Q1: What is the Three-Color AOI Light designed for?
A: The Three-Color AOI Light is designed for automated optical inspection (AOI) systems, providing flexible RGBW illumination to improve defect detection accuracy.
Q2: What color configurations are supported?
A: The AOI Light supports customizable red, green, blue, and white LED configurations to meet different inspection requirements.
Q3: Why use RGBW lighting in machine vision inspection?
A: Different wavelengths enhance contrast between materials and defects, helping cameras capture clearer images for more accurate inspection.
Q4: Can each LED color channel be controlled independently?
A: Yes. Each color channel can be controlled independently, allowing users to optimize illumination settings for different inspection tasks.
Q5: What defects can this AOI light detect?
A: It is suitable for detecting missing components, misalignment, solder defects, insufficient solder, excessive solder, and surface defects in PCB inspection.
Q6: Is the Three-Color AOI Light suitable for SMT inspection systems?
A: Yes. It is designed for electronics manufacturing, SMT inspection, PCB quality control, and industrial machine vision applications.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Açıklama
Product Description

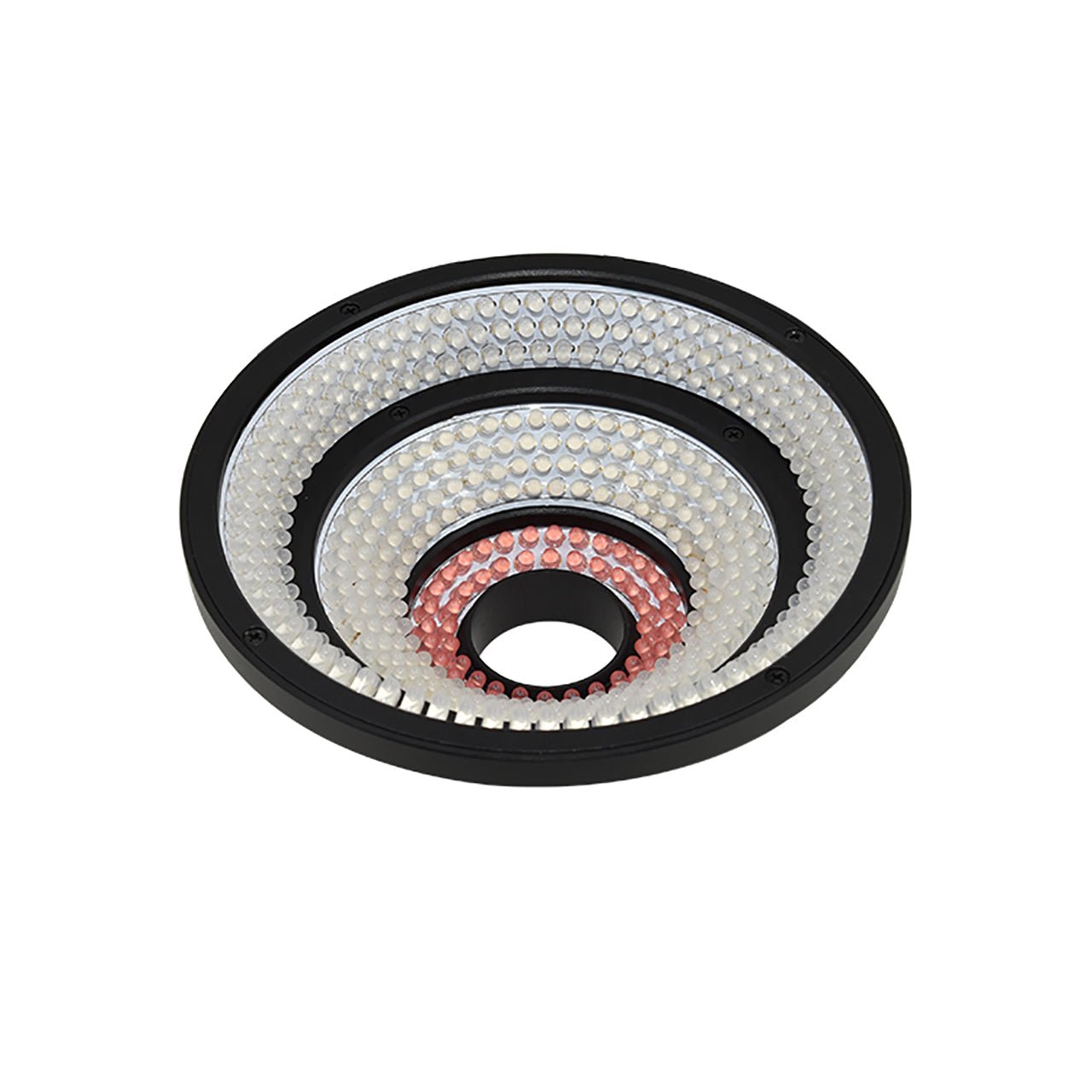

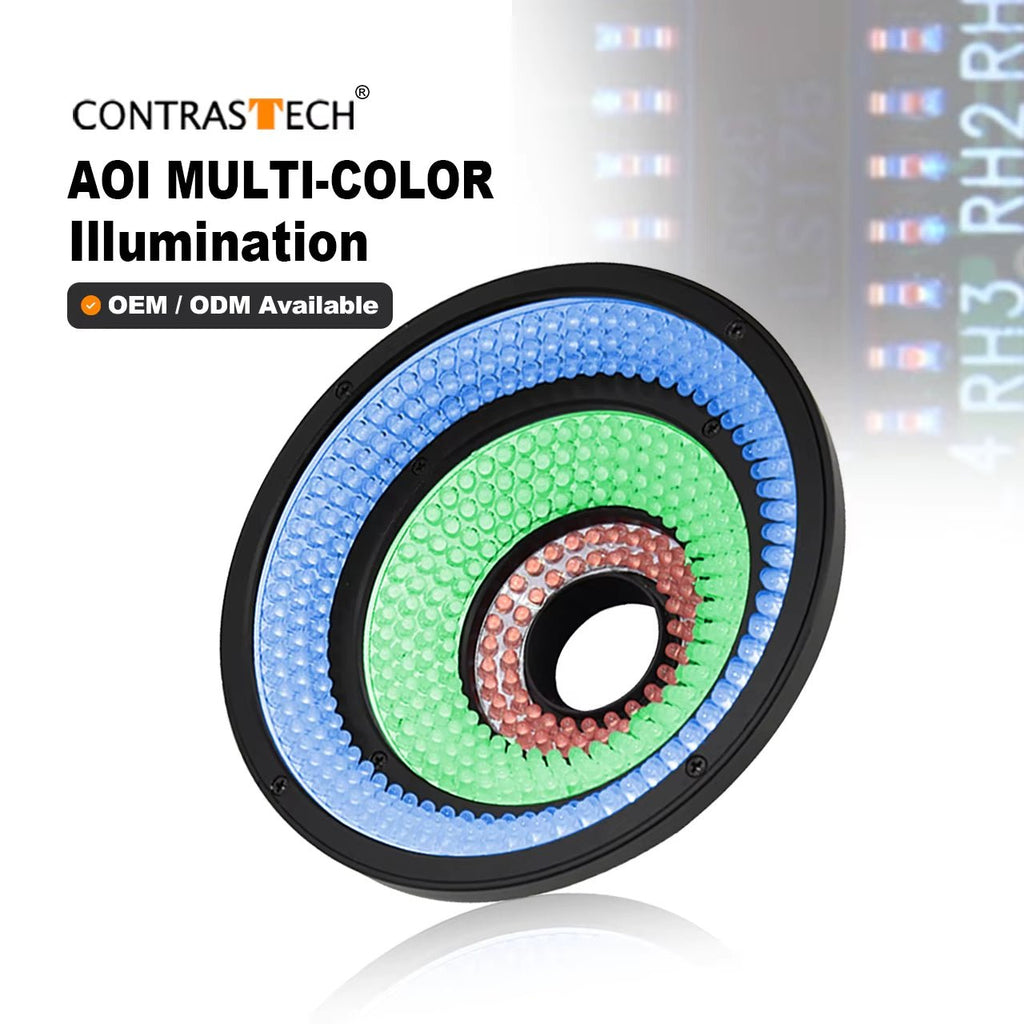

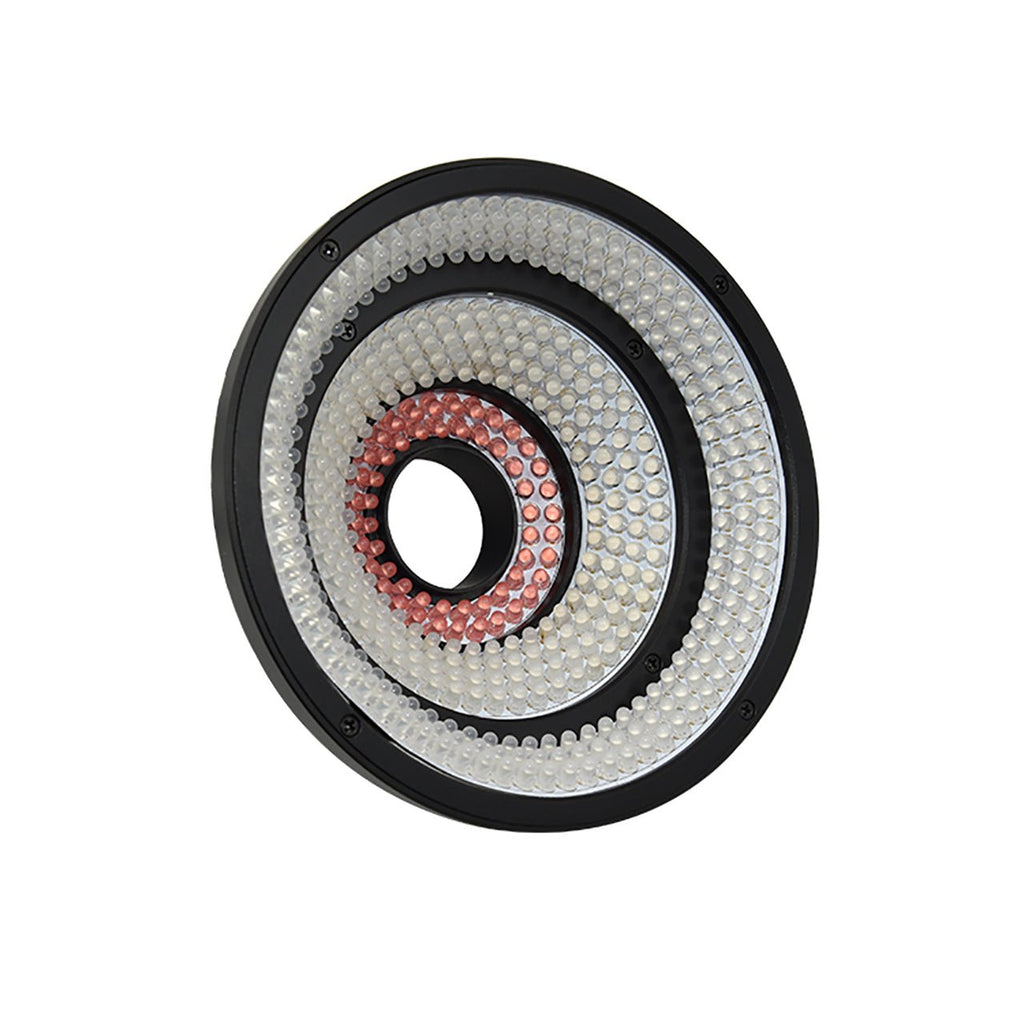

The Three-Color AOI Light is a high-performance illumination solution designed for automated optical inspection (AOI) systems. Featuring customizable red, green, blue, and white LED configurations, it delivers precise and flexible lighting for demanding industrial inspection tasks.
Key Features
- Customizable LED angles for red, green, blue, and white illumination
- Independent control of each color channel for optimized inspection results
- High brightness and uniform light distribution
- Designed for precision machine vision and AOI systems
Applications
- PCB soldering inspection (detect missing, misaligned, or incorrect components)
- Identification of solder defects such as insufficient, excessive, or missing solder
- Multi-layer surface defect inspection
- Electronics manufacturing and SMT inspection processes
Why Choose This AOI Light
This RGBW AOI lighting solution enhances contrast and visibility of defects, enabling higher detection accuracy and improved production efficiency in industrial environments.
| Model No. |
Supply Volt
|
Power cons.
|
Dimensions
|
|
VT-VT2-AOI73RGB
|
24V | R:4w G:5w B:6w W:/w | OD:73mm ID:8mm |
|
VT-VT2-AOI100RGB
|
24V | R:2w G:5w B:6w W:/w | OD:100mm ID:7mm |
|
VT-VT2-AOI123RGB
|
24V | R:4.5w G:7.5w B:9w W:/w | OD:123mm ID:33mm |
|
VT-VT2-AOI198RGB
|
24V | R:10w G:12w B:14w W:/w | OD:198mm ID:42mm |
|
VT-AOI252RGB
|
24V | R:10w G:16w B:16w W:16w | OD:252mm ID:80mm |
Illumination Catalog Download
