Açıklama

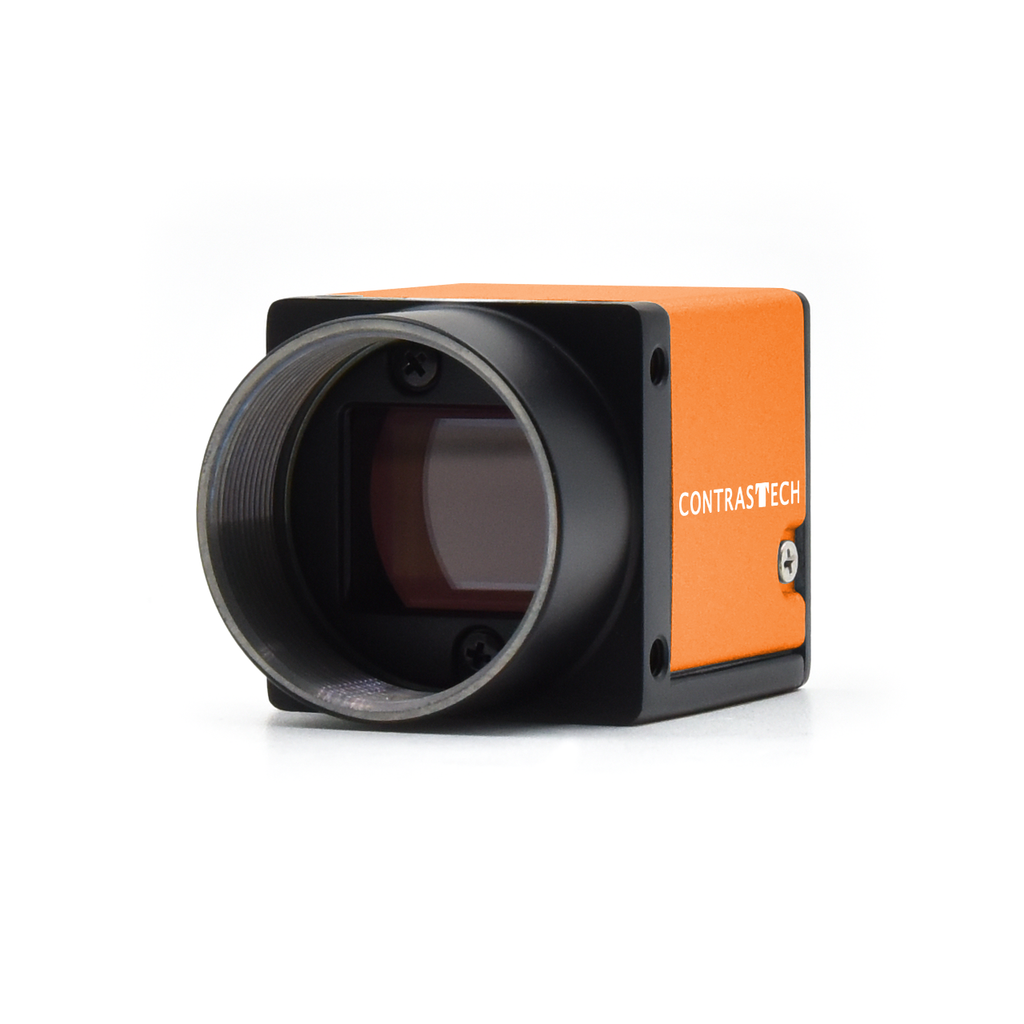

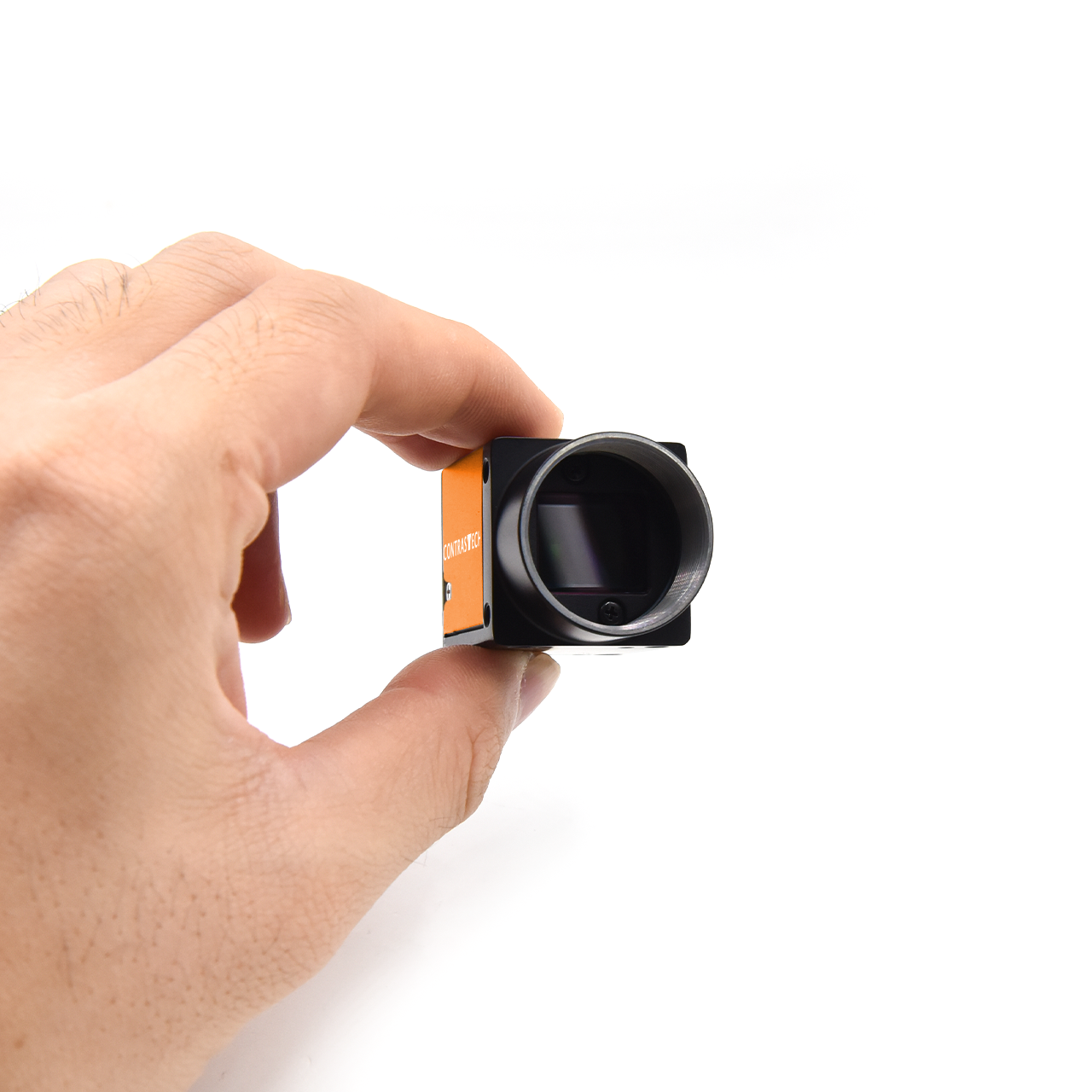

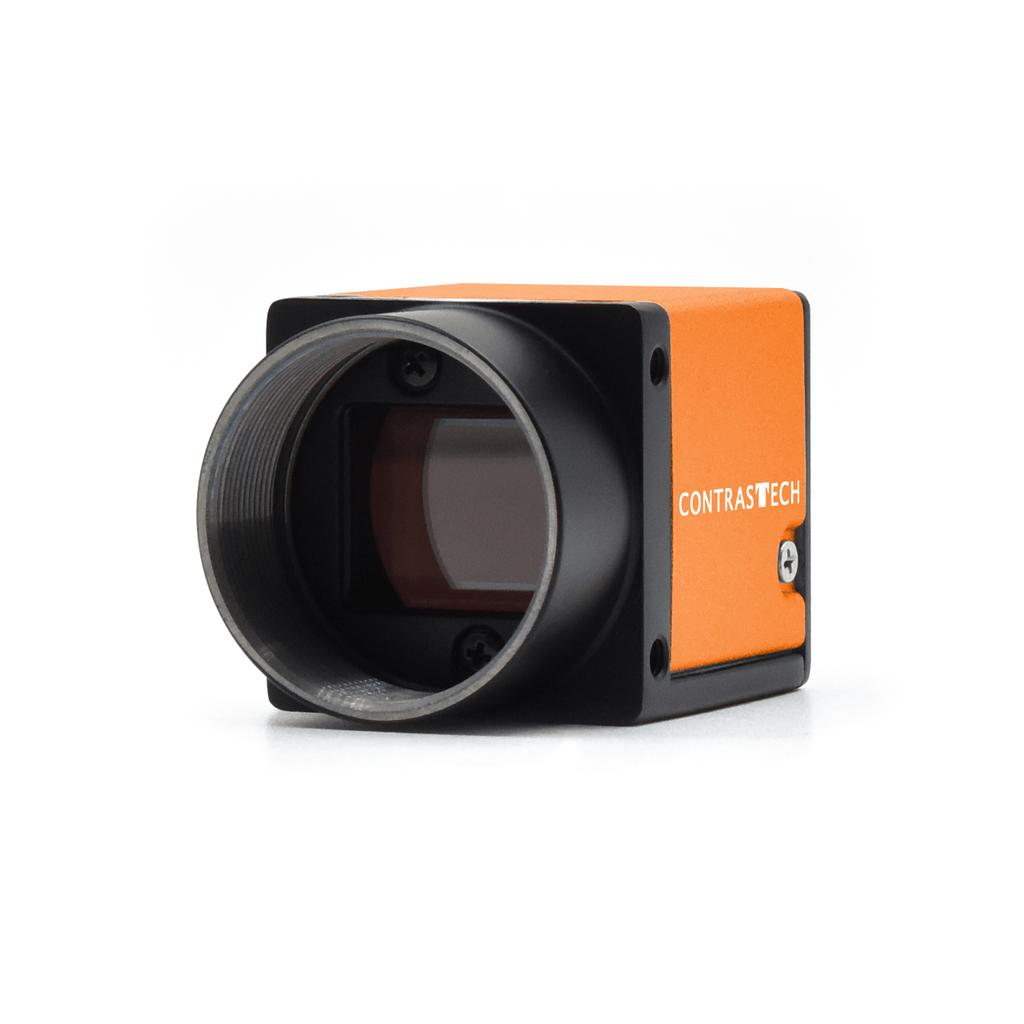

The iCt9SM/CU50A-Pro is a high-performance 5MP USB3.0 industrial area scan camera designed for precision machine vision applications. Equipped with the Sony IMX264 global shutter sensor, it delivers 2448 × 2048 resolution at 68 fps, ensuring sharp, distortion-free imaging of fast-moving objects. The 2/3" sensor format and 3.45 μm pixel size provide excellent sensitivity and image quality. With a high-speed USB 3.0 interface, 12-bit output, and compact design, the camera enables reliable, real-time imaging for automation and inspection systems.
Main Specifications
| Model | iCt9SM/CU50A-Pro |
| Sensor | Sony IMX264 |
| Resolution | 2448 x 2048 (5MP) |
| Frame Rate | 68fps |
| Pixel Size | 3.45μm |
| Sensor Size | 2/3" |
| Shutter Type | Global |
| Data Bit Depth | 12-bit |
| Interface | USB 3.0 |
Applications
• Industrial inspection and quality control
• Factory automation and robotics
• Machine vision measurement and positioning
• Motion capture and tracking
• Embedded and AI vision systems
Packing List
