Q1: What is the MARS5000S-68UM/UC-Lite used for?
A: It is a 5MP USB3 Vision industrial camera designed for machine vision inspection, automation systems, and high-speed imaging applications.
Q2: What is the frame rate of this camera?
A: The camera supports up to 68 FPS, making it suitable for fast-moving industrial inspection tasks.
Q3: What sensor does this camera use?
A: It uses a 5MP industrial-grade CMOS sensor, optimized for high-speed and stable image capture.
Q4: Is this camera compatible with industrial software?
A: Yes, it supports USB3 Vision and GenICam standards, and is compatible with HALCON and LabVIEW.
Q5: Can it be used with embedded systems?
A: Yes, it is compatible with NVIDIA TX1 and TX2 platforms, as well as Windows and Linux systems.
Q6: What interface does it use?
A: It uses a USB 3.0 interface, ensuring high-speed and stable data transmission.
Q7: Is it suitable for real-time inspection?
A: Yes, its high frame rate (68 FPS) and low latency make it suitable for real-time industrial inspection.
Q8: What industries commonly use this camera?
A: It is widely used in factory automation, electronics inspection, robotics vision, and quality control systems.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Açıklama
Product Description

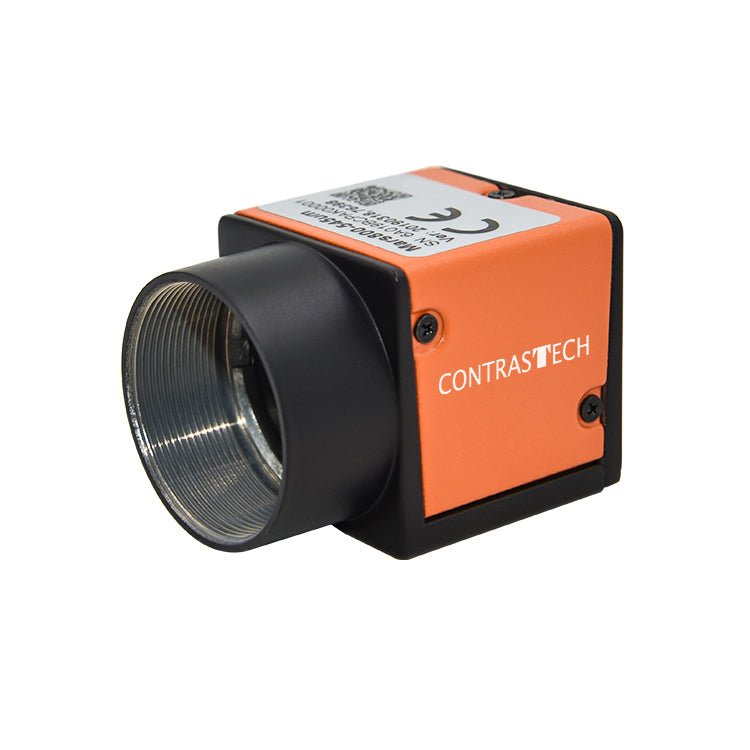

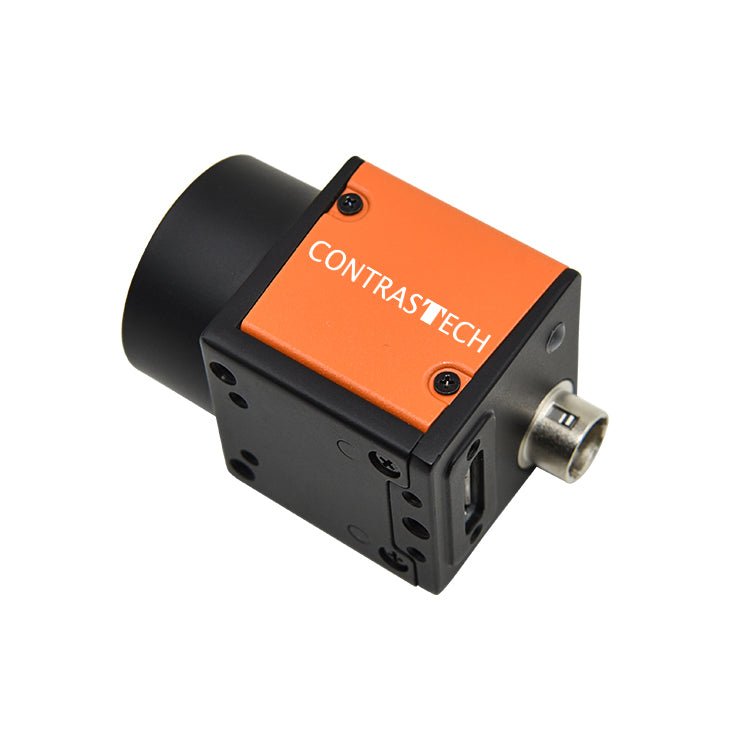

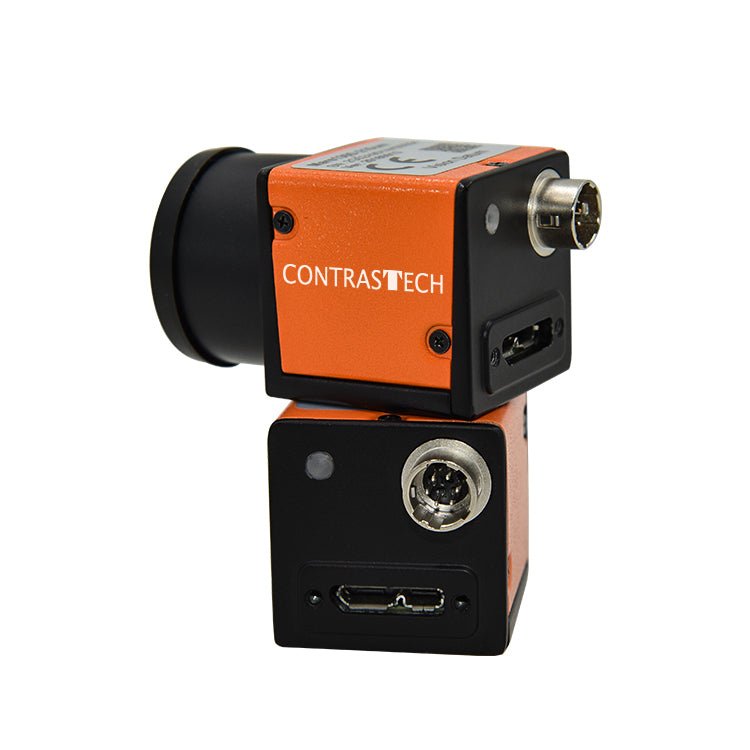

High-Speed 5MP USB3 Vision Area Scan Camera for Industrial Automation and Machine Vision
The iCt9SM/CU50A-Pro is a compact 5MP USB3 Vision area scan industrial camera designed for high-speed and high-precision machine vision applications.
With a frame rate of up to 68 FPS and a high-resolution 5MP imaging sensor, it delivers fast, stable, and distortion-free image acquisition for dynamic industrial environments.
The camera fully supports USB3 Vision and GenICam standards, ensuring seamless integration with leading machine vision software platforms such as HALCON and LabVIEW. It is also compatible with embedded platforms including NVIDIA TX1 and TX2, as well as Windows and Linux systems.
Its flexible design makes it ideal for automation systems requiring reliable high-speed imaging and easy system integration.
Key Features
✔ 5MP High-Resolution Imaging
Delivers detailed and stable industrial image capture.
✔ Up to 68 FPS High-Speed Performance
Suitable for fast-moving inspection and automation tasks.
✔ USB3 Vision Interface (USB 3.0)
Ensures high-speed and stable data transmission.
✔ GenICam Standard Compatibility
Easy integration with industrial vision software.
✔ Embedded Platform Support
Compatible with NVIDIA TX1/TX2 systems.
✔ Cross-Platform Operation
Supports Windows and Linux environments.
Ideal Applications
- Industrial Automation Systems
- Machine Vision Inspection
- Electronics Manufacturing
- Robotics Vision Systems
- Precision Measurement
- Quality Control (QC)
- Embedded Vision Applications
- Smart Factory Production Lines
Product Parameters
| Model |
iCt9SM/CU50A-Pro
|
| Resolution | 2448 px x 2048 px |
| Pixel size | 3.45μm x 3.45 μm |
| Frame Rate | 68 fps |
| Mono/Color | Mono/Color |
| Sensor Vendor | Sony |
| Sensor | IMX264 |
| Shutter | Global Shutter |
| Sensor Size | 2/3" |
| Sensor Type | CMOS |
| Dynamic range | 70 dB |
| Interface | USB 3.0 |
| Pixel Bit Depth | 12 bit |
| Synchronization | Soft Trigger,Hardware Trigger,Free Run |
| I/O |
1 input(opto-isolated)，1 output(opto-isolated),1 configurable input and output(without opto-isolated) |
| Power Supply | 9-24 VDC |
| Design | Compact industrial design |
| Dimension (L x W x H) | 29 mm x 29 mm x 29 mm |
| Lens Mount | C-mount （CS-Mount can be customized ） |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） |
| Weight（Typical） | 60g |
| Driver , SDK |
Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with USB3 Vision Protocol |
| Operating System | Windows，Linux |
| Conformity | USB3 Vision and GenICam |
Lens Information:
Packing List
MARS5000S-68UM/UC-Lite Download
