Q1: What is the Mars245MS used for?
A: It is designed for ultra high-resolution industrial inspection, including semiconductor wafers, display panels, and precision metrology applications.
Q2: What is the resolution of this camera?
A: It delivers 245MP resolution (19200 × 12800 pixels) for extremely detailed imaging.
Q3: What sensor does it use?
A: The camera uses the Sony IMX811 rolling shutter CMOS sensor, optimized for large-format imaging.
Q4: What interface does it support?
A: It uses a CoaXPress-12 interface, enabling high-bandwidth and low-latency image transmission.
Q5: What is the frame rate?
A: The camera operates at 12.4 fps, optimized for static and slow-moving high-precision inspection.
Q6: What lens mount is used?
A: It features an M72 lens mount, compatible with high-end industrial optics.
Q7: Does the camera include image processing?
A: Yes, it has a built-in ISP algorithm for noise reduction, sharpening, and image enhancement.
Q8: What industries use this camera?
A: It is widely used in semiconductor, FPD, aerospace, PCB inspection, and scientific imaging industries.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
설명
Product Description

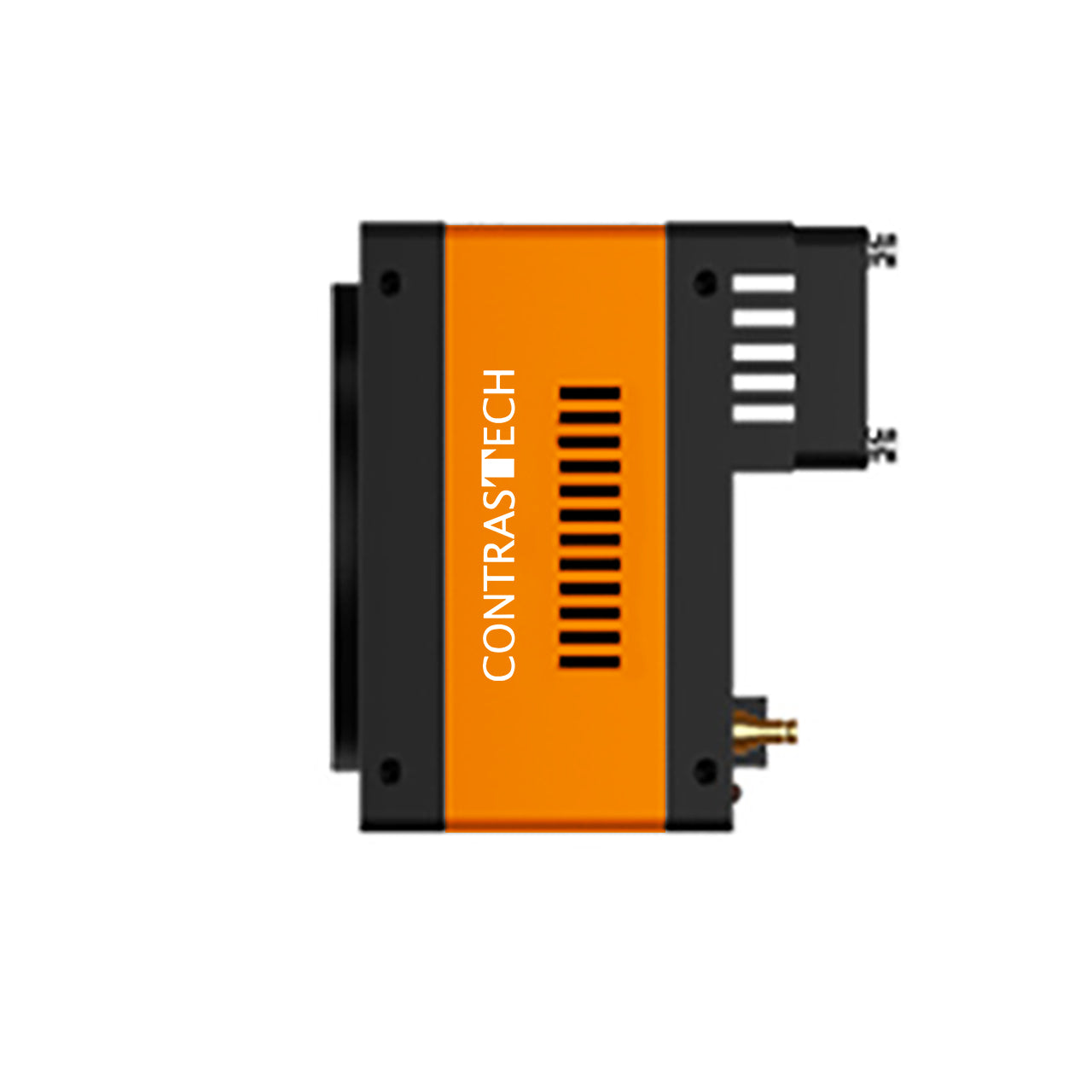

Ultra High Resolution 245MP CoaXPress-12 Industrial Camera for Precision Metrology and Large-Scale Inspection

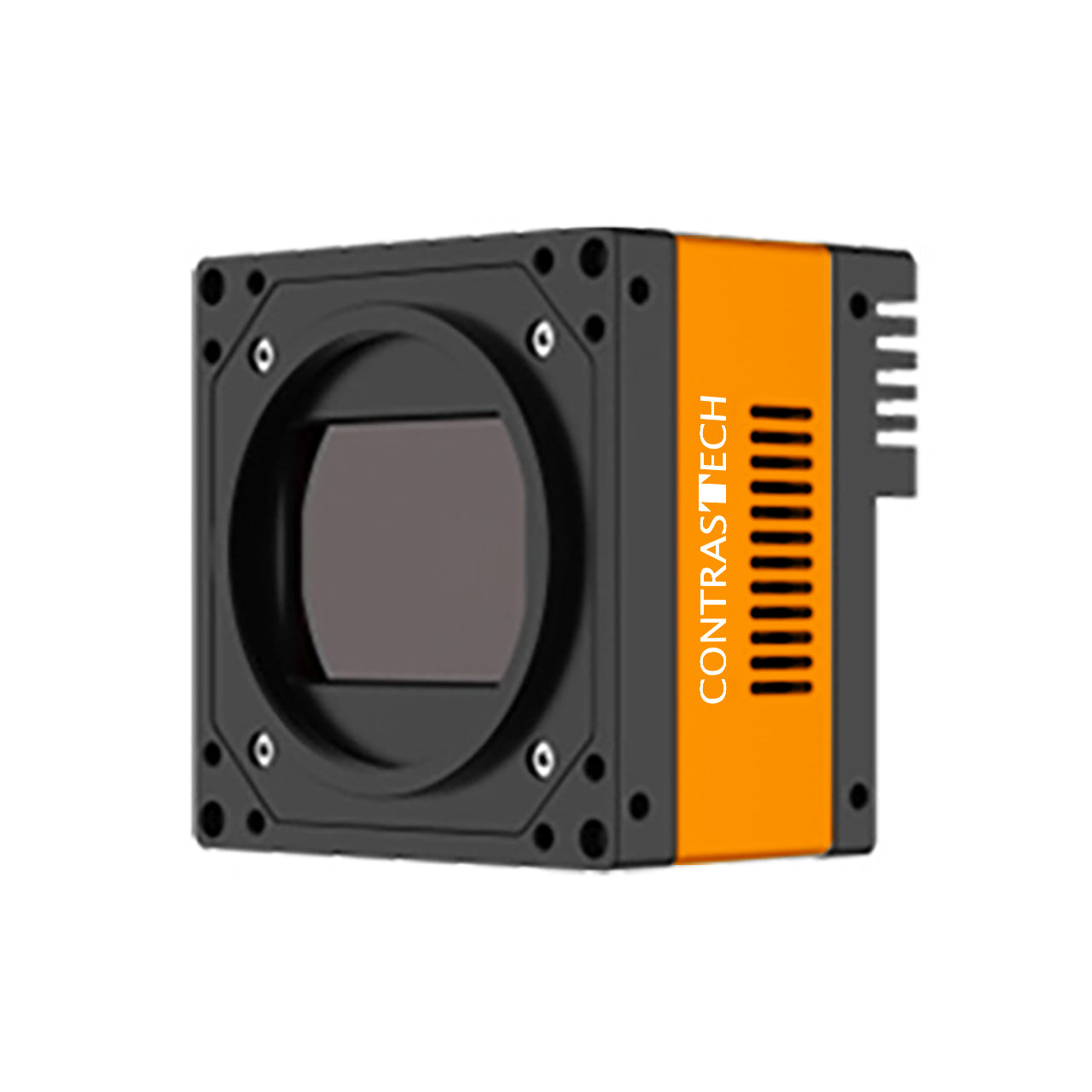

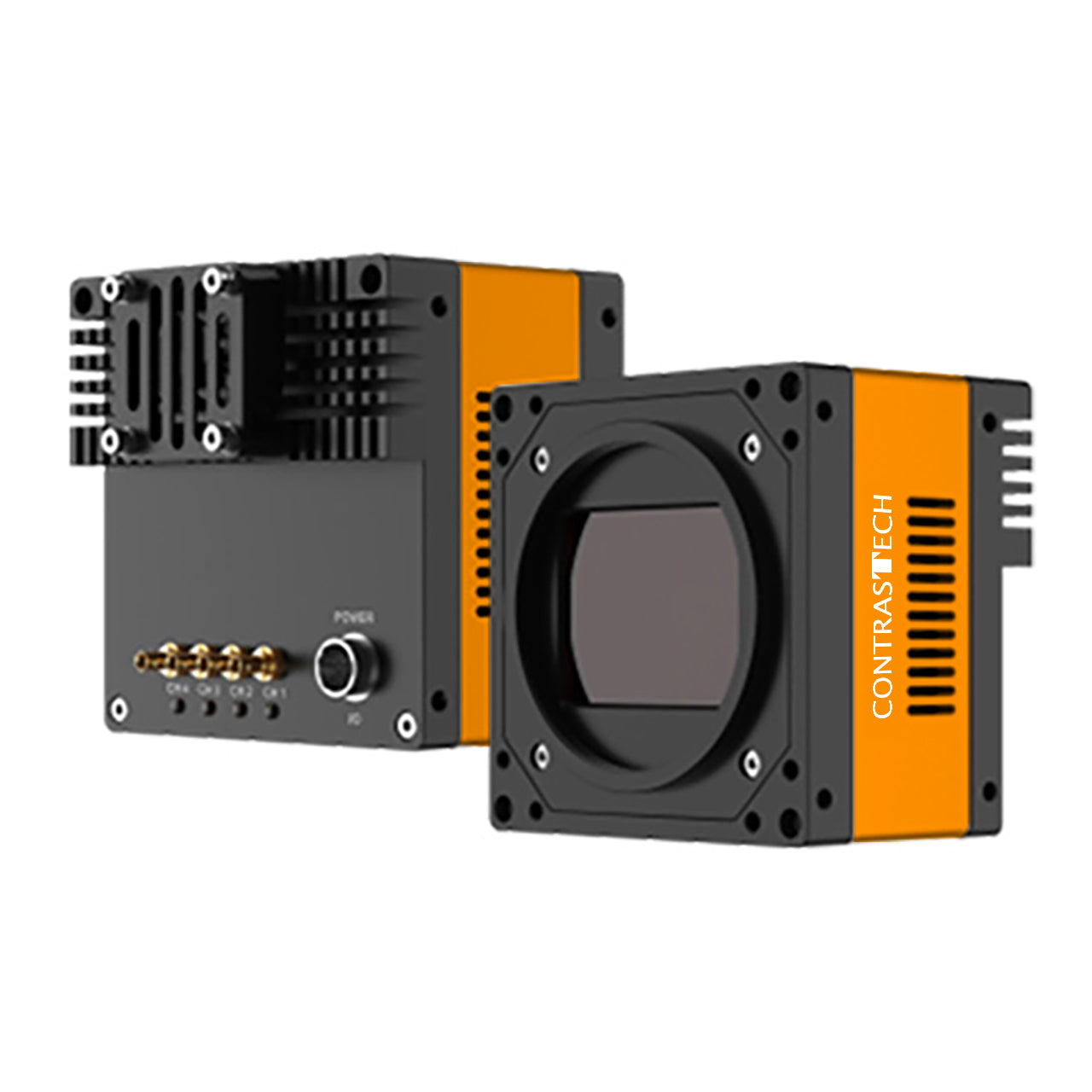

The Mars245MS-2XM/C-M72 is a next-generation 245MP ultra high-resolution industrial camera based on the Sony IMX811 rolling shutter CMOS sensor. With a resolution of 19200 × 12800 pixels and a large sensor format of 53.95 × 35.97 mm, it delivers extremely detailed imaging for advanced machine vision, metrology, and scientific applications.
Supporting CoaXPress-12 high-speed interface technology, the camera ensures stable, low-latency transmission of massive image data, making it suitable for large-area inspection systems where precision and throughput are critical.
With a frame rate of 12.4 fps, it is optimized for high-detail static or slow-moving inspection tasks such as wafer inspection, flat panel display analysis, and precision measurement systems. Built-in ISP algorithms enhance image quality by improving contrast, reducing noise, and optimizing dynamic range.
The M72 lens mount provides compatibility with high-end industrial optics, ensuring maximum imaging performance in demanding environments.
Key Features
✔ 245MP Ultra High Resolution Imaging
Delivers extremely fine detail for large-area inspection.
✔ Sony IMX811 CMOS Sensor
High-performance rolling shutter sensor with large imaging area.
✔ CoaXPress-12 High-Speed Interface
Enables stable multi-gigabit data transmission.
✔ Built-in ISP Processing
Enhances image quality with noise reduction and sharpening.
✔ Large Sensor Format (53.95 × 35.97 mm)
Enables wide field-of-view high-resolution imaging.
Ideal Applications
- Semiconductor Wafer Inspection
- Flat Panel Display Inspection
- Photomask & Lithography Inspection
- Aerospace Component Metrology
- Precision Scientific Imaging
- PCB Full-Field Inspection
- AOI Inspection
- Industrial Quality Control Systems
Specifications
| Model | Mars245MS-12XM / Mars245MS-12XC |
| Resolution | 19200 × 12800 |
| Frame Rate | 12.4 fps |
| Sensor Type | Sony IMX811 CMOS (64.84 mm) |
| Pixel Size | 2.81 × 2.81 μm |
| Bit Depth | 12-bit |
| Mono / Color | Mono / Color (Bayer RG) |
| Shutter Type | Rolling Shutter |
| SNR | 44.07 dB |
| Dynamic Range | 71.7 dB |
| Image Format | Mono8 / Mono10 / Mono12 / Bayer RG8 / RG10 / RG12 |
| ROI | Supported |
| Flip (X/Y) | Supported |
| SPC | Supported |
| Exposure Time | 62 μs – 60 s |
| Data Interface | CoaXPress-12 (CXP-12) |
| Power Consumption | 30 W |
| Lens Mount | M72 × 0.75 |
Lens Specifications
Variable Iris M72 150MP Telecentric Lens
| Model | Coaxial | WD | Mag. | FOV |
| BTLM-7.5X-49-Q667(1A) | No | 49mm | 0.75x | 8.9mm |
| BTLM-7.5X-49D-Q667(IA) | Yes | 49mm | 0.75x | 8.9mm |
Standard M72 150MP Lens
| Model | EFL | Mag. | WD |
|---|---|---|---|
| VT-LEN72-5545MP150 | 55mm | 0.01x–0.5x | 98mm–∞ |
| VT-LEN72-9040MP150 | 90mm | 0.08x–0.14x | 722–1229mm |
| VT-LEN72-11635MP150 | 116mm | 0.93x–1.07x | 176–192mm |
| VTL-8035-0.3X-FB1955 | 80mm | 0.3x | 280mm–∞ |
| VTL-8035-0.3X-FB465 | 80mm | 0.3x | 280mm–∞ |
| VTL-8035-0.3X-FB318 | 80mm | 0.3x | 280mm–∞ |
Why Telecentric Lens in AOI Inspection?
| Standard Lens | Telecentric Lens |
|---|---|
| Perspective distortion (near-large, far-small) | No perspective distortion |
| Magnification changes with distance | Constant magnification |
| Not suitable for measurement | Designed for precision metrology |
