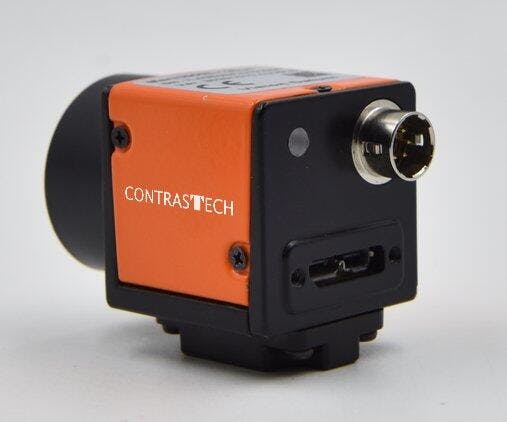

The MARS2000-150UC is a high-performance 2/3" 2MP USB 3.0 color area scan camera designed for precision imaging applications. With a remarkable 150 FPS frame rate, it delivers fast and detailed visuals. Compact and robust, it is ideal for industrial inspection, medical imaging, and scientific research. Plug-and-play USB connectivity ensures seamless integration.
Product Parameters
| Series | Mars |
| Resolution | 1920 px x 1200 px |
| Pixel size | 4.8 μm x 4.8 μm |
| Frame Rate | 150 fps |
| Mono/Color | Color and Color |
| Sensor Vendor | ON Semiconductor |
| Sensor | PYTHON 2000 |
| Shutter | Global Shutter |
| Sensor Size | 2/3" |
| Sensor Type | CMOS |
| Dynamic range | 60.0 dB |
| Signal-to-Noise Ratio (typical) | >38.0 dB |
| Interface | USB 3.0 |
| Pixel Bit Depth | 8 / 10 bits |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
| I/O | 1 input(opto-isolated),1 output(opto-isolated),1 bi-directional custom non-isolated I/O |
| Power Supply | USB3.0 power supply / 3.0 W |
| Design | Compact industrial design |
| Dimension (L x W x H) | 29 mm x 29 mm x 29 mm |
| Lens Mount | C-mount （CS-Mount can be customized ） |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） |
| Weight（Typical） |
60g |
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with USB3 Vision Protocol |
| Operating System | Windows，Linux |
| Conformity | USB3 Vision and GenICam |
Packing List
MARS2000-150UM/UC Download
