説明

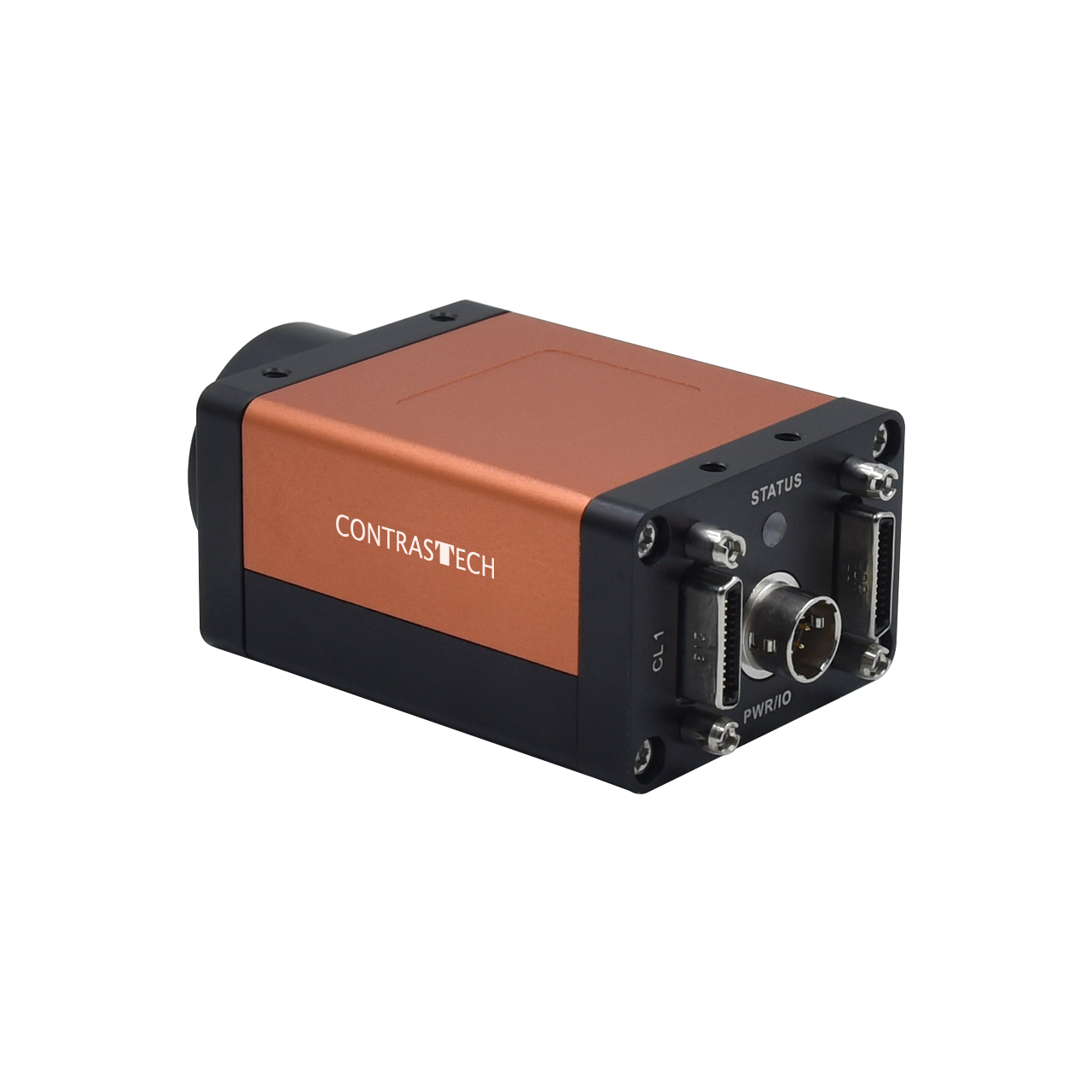

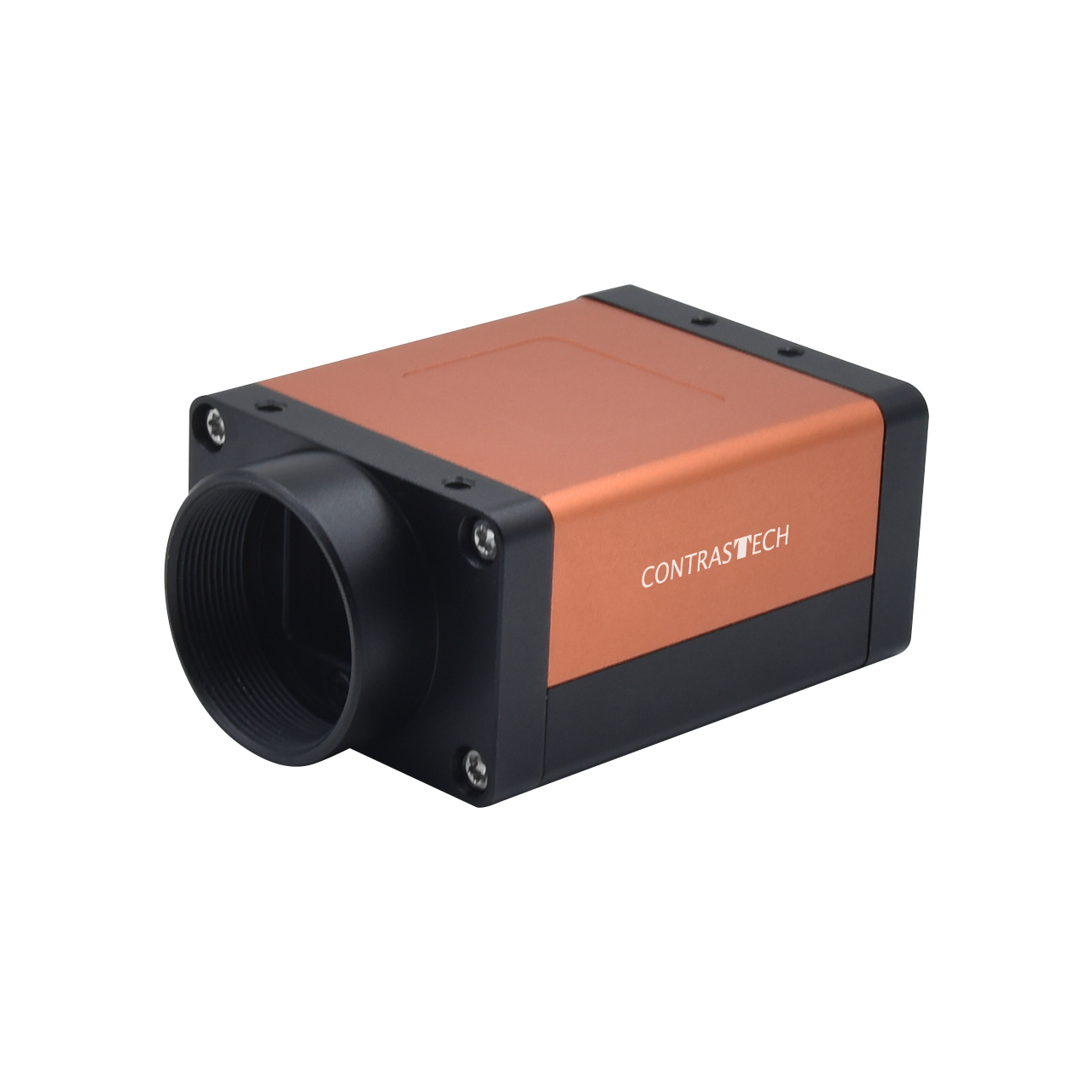

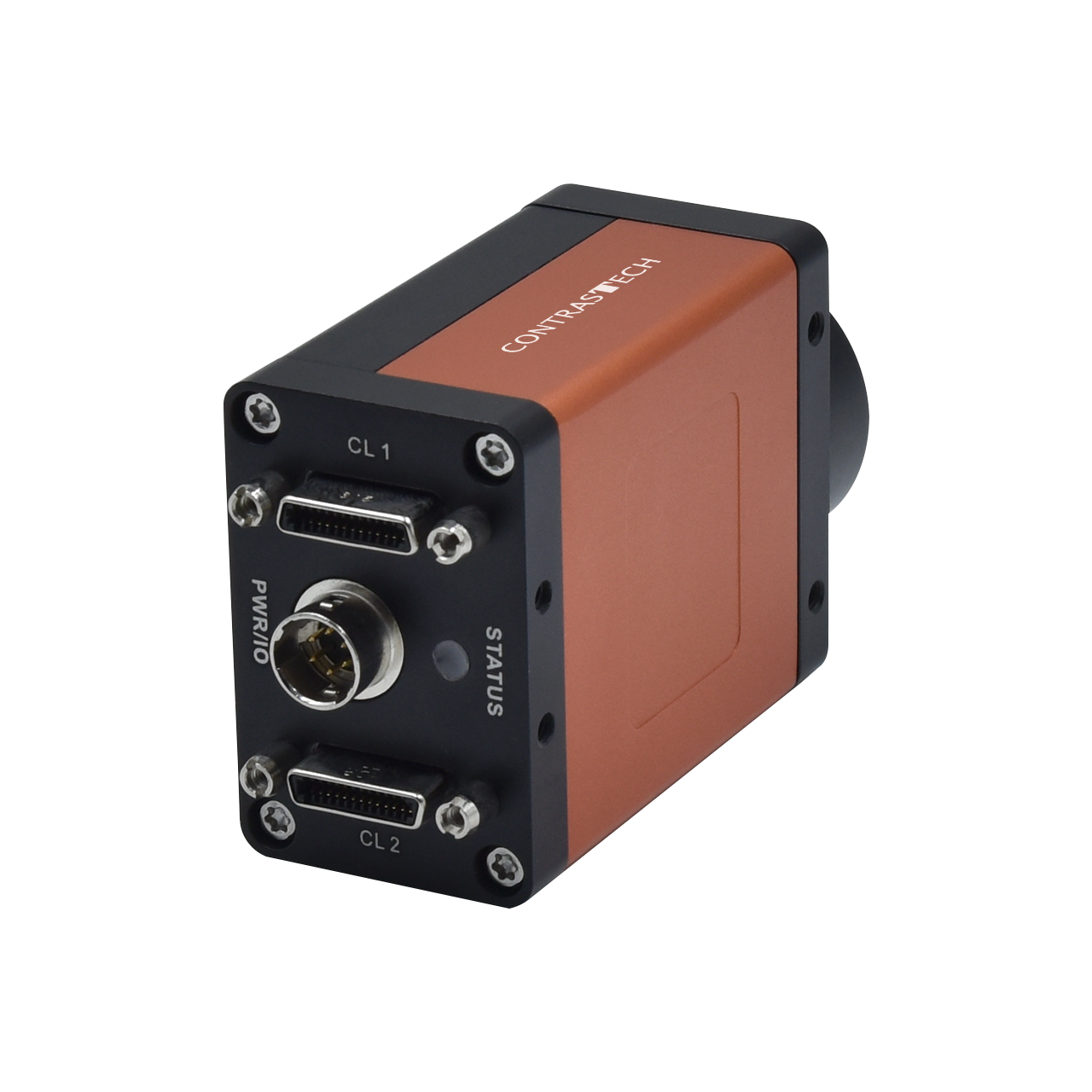

The Mars12MS-20CM/CC is a high-performance area scan CameraLink camera designed for precision industrial imaging. Equipped with the Sony IMX304 global shutter sensor, it delivers 12MP resolution (4096 × 3000) with excellent image clarity and geometric accuracy. The 1.1-inch sensor and 3.45 μm pixel size ensure high sensitivity and low noise, making it suitable for detailed inspection tasks. Operating at 20 fps with 10-bit output, the camera supports stable, low-latency data transmission via the CameraLink interface. Available in mono and color versions, it provides flexibility for a wide range of machine vision applications requiring accurate motion capture and reliable performance.
Main Specifications
| Model | Mars12MS-20CM/CC |
| Resolution | 4096x3000 |
| Frame Rate | 20fps |
| Sensor | IMX304 |
| Sensor Size | 1.1" |
| Pixel Size | 3.45μm |
| Shutter Type | Global Shutter |
| Interface | CameraLink |
| Bit Depth | 10-bit |
| Image Color | Mono / Color |
| Mount | C-Mount |
Applications
• Industrial inspection and quality control
• Electronics and semiconductor inspection
• Precision measurement and metrology
• Automation and robotics vision
• High-speed imaging applications
Packing List
MARS12MS-20cm/cc Download
