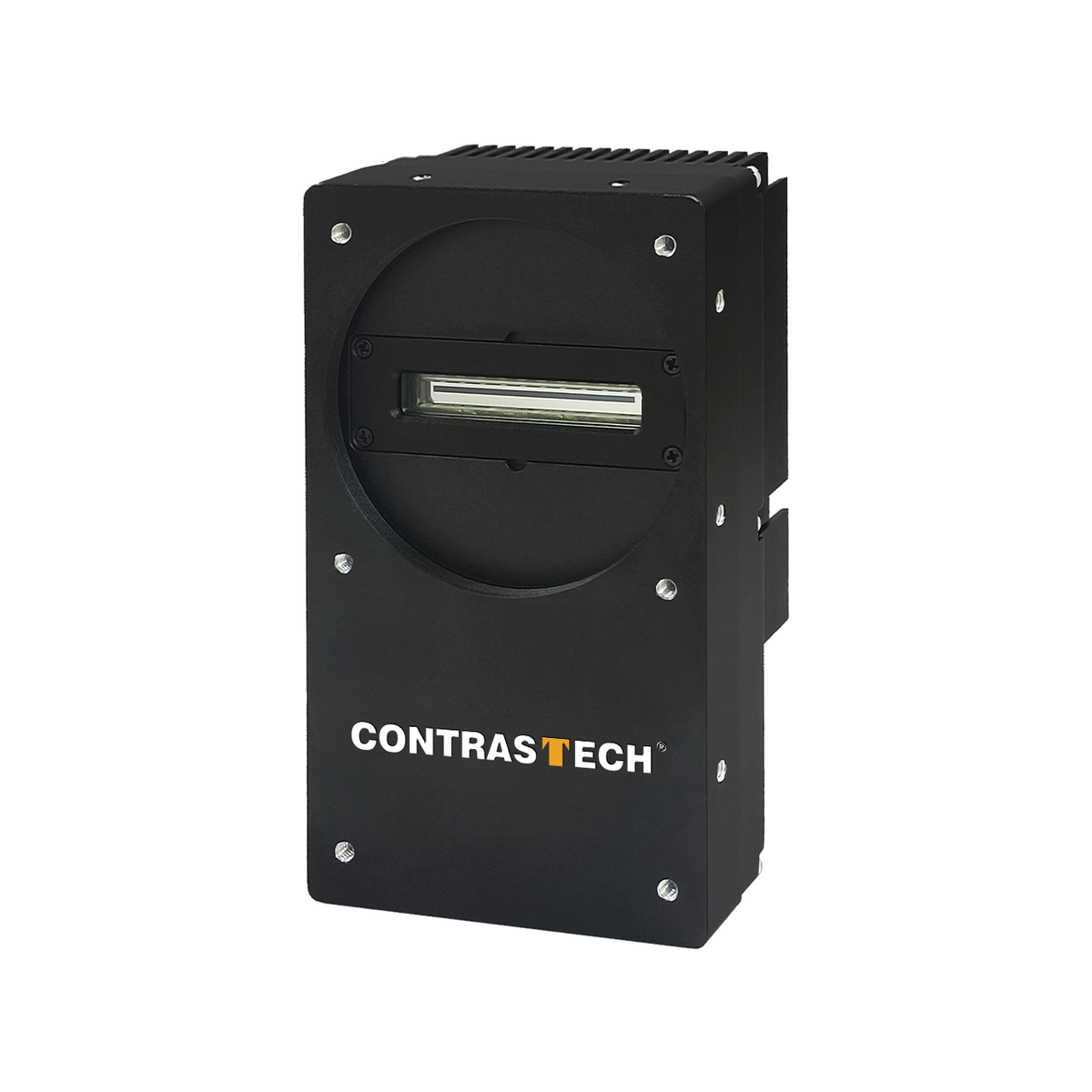

Caméra de vision par ligne TDI NIR 4096×256 | Caméra industrielle CXP-6 250kHz 256 étages

ContrastechSKU: iBt-UV8KT
0 avis

Spécification: [UV 256-TDI]4K 250kHz-CXP6
Bundle: without lens
Prix:
Prix réduit$34,500.00

Frais de port calculés au paiement

⚠️ Destination Duties & Taxes Not Included

💰 Buy more, save on shipping. Contact market@contrastech.com for a discounted shipping rate.

  • In-stock items: Ready for quick shipment.
  • Pre-order items: Typically require around 7 days for preparation. We will notify you promptly after your order.
  • Proforma lnvoice Needed: Please create a draft order to obtain.

Estimated Delivery Time

Delivery Truck

Ship To Detecting...

Delivery: -
?
Estimated Shipping Time

Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.

Description

Description du produit

Caméra de balayage linéaire TDI NIR haute vitesse pour l'inspection industrielle de précision

Le iBt-250NX4KT256-M42 est une caméra de balayage linéaire TDI NIR haute performance conçue pour des applications d'inspection industrielle exigeantes à haute vitesse. Dotée d'une résolution de 4096 × 256, d'une technologie TDI avancée à 256 étages et d'un taux de ligne allant jusqu'à 150kHz, elle offre une sensibilité et une qualité d'image exceptionnelles dans des environnements d'imagerie à faible luminosité et à haute vitesse.

Équipée d'une interface CoaXPress CXP-6, la caméra assure une transmission d'images à large bande stable pour les systèmes de vision machine de précision, l'inspection des semi-conducteurs, l'inspection des affichages et les applications d'imagerie scientifique.

Caractéristiques principales

✔ Imagerie haute résolution 4096 × 256
Assure une acquisition d'images par balayage linéaire détaillée et précise.

✔ Technologie TDI à 256 étages
Améliore la sensibilité et les performances du rapport signal sur bruit dans les environnements à faible luminosité.

✔ Taux de ligne ultra-élevé de 250kHz
Prend en charge l'inspection à haute vitesse et l'imagerie continue des lignes de production.

✔ Sensibilité NIR améliorée
Optimisé pour l'imagerie dans le proche infrarouge et les applications d'inspection de précision.

✔ Interface CoaXPress CXP-6
Assure une transmission de données à haute vitesse fiable pour les systèmes industriels.

✔ Conception compacte de qualité industrielle
Performance stable pour un fonctionnement continu et une intégration flexible.

Spécifications

 Modèle
iBt-250NX4KT256-M42
TDI
256-TDI
Résolution
4096×256
Fréquence de ligne
250kHz
Taille du pixel
5μm
Couleur de l'image NIR
Interface CXP-6
Baionnette d'objectif M42

Applications idéales

  • Inspection de wafers de semi-conducteurs
  • OLED & Inspection des affichages
  • Batterie & Inspection de panneaux solaires
  • Web & Inspection de l'impression
  • Automatisation industrielle à haute vitesse
  • Scientifique & Systèmes d'imagerie NIR

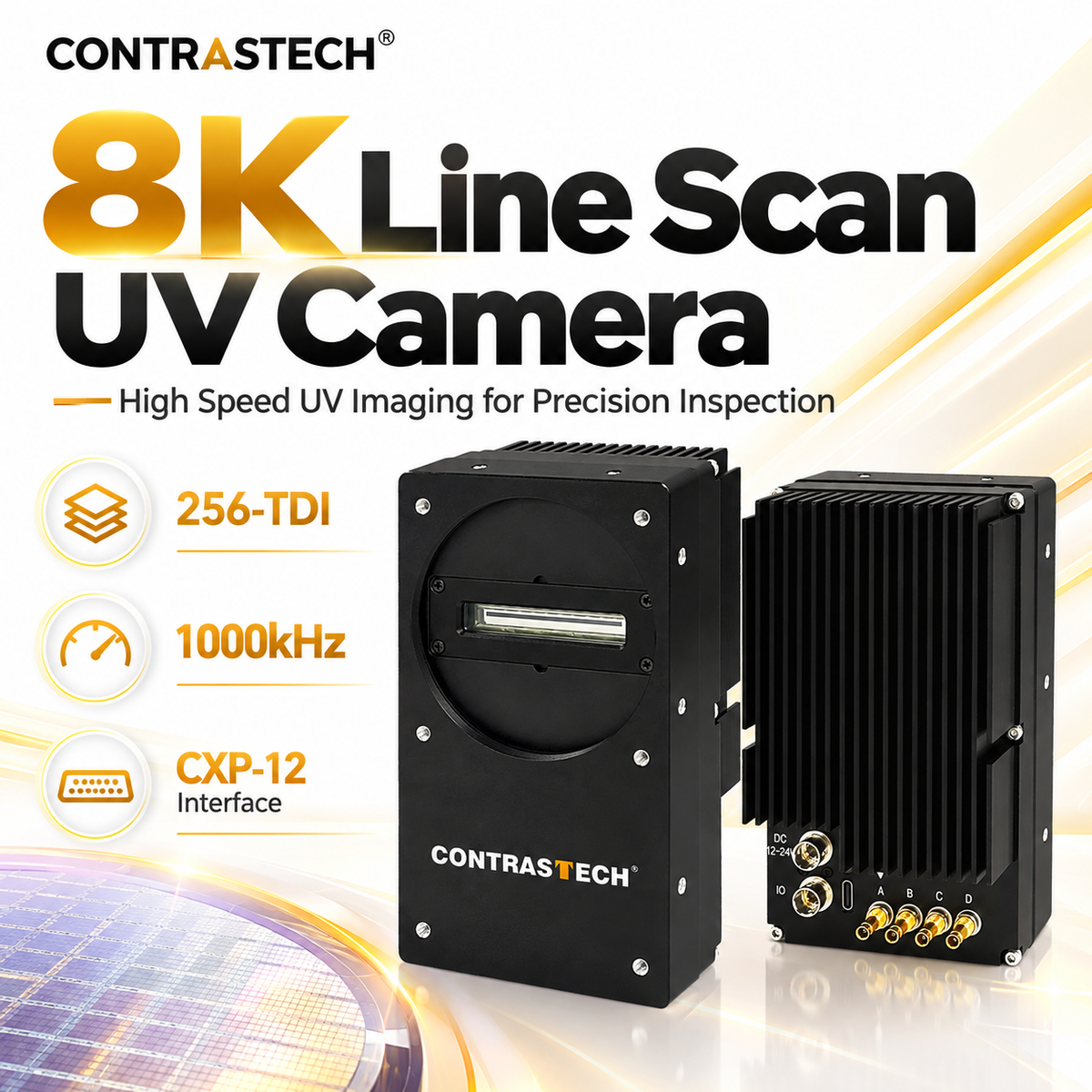

1. What is the resolution of the iBt-UV8KT UV line scan camera?
The iBt-UV8KT provides 8192 × 256 resolution with 256 TDI stages for high-resolution UV line scan imaging.

2. What does 256-TDI mean for UV inspection?
256-TDI allows image signals to be accumulated across multiple stages during line scanning, increasing effective sensitivity and helping capture weak UV signals at high scanning speeds.

3. What is the maximum line rate of the iBt-UV8KT?
The camera supports a line rate of up to 1000 kHz, making it suitable for high-speed web inspection and other demanding industrial applications.

4. Why is ultra-low dark current important for UV imaging?
Ultra-low dark current helps minimize unwanted background signal, which is particularly useful when detecting weak UV signals or inspecting low-light targets.

5. What applications are suitable for an 8K UV TDI line scan camera?
Typical applications include UV surface inspection, fluorescence detection, coating inspection, semiconductor and electronics inspection, UV printing inspection, and high-speed material inspection.

6. What lenses are compatible with the iBt-UV8KT?
The camera uses an M72 lens mount and can be paired with dedicated UV lenses. Different UV lens options can be selected according to wavelength, field of view, working distance, and inspection requirements.
