Descripción

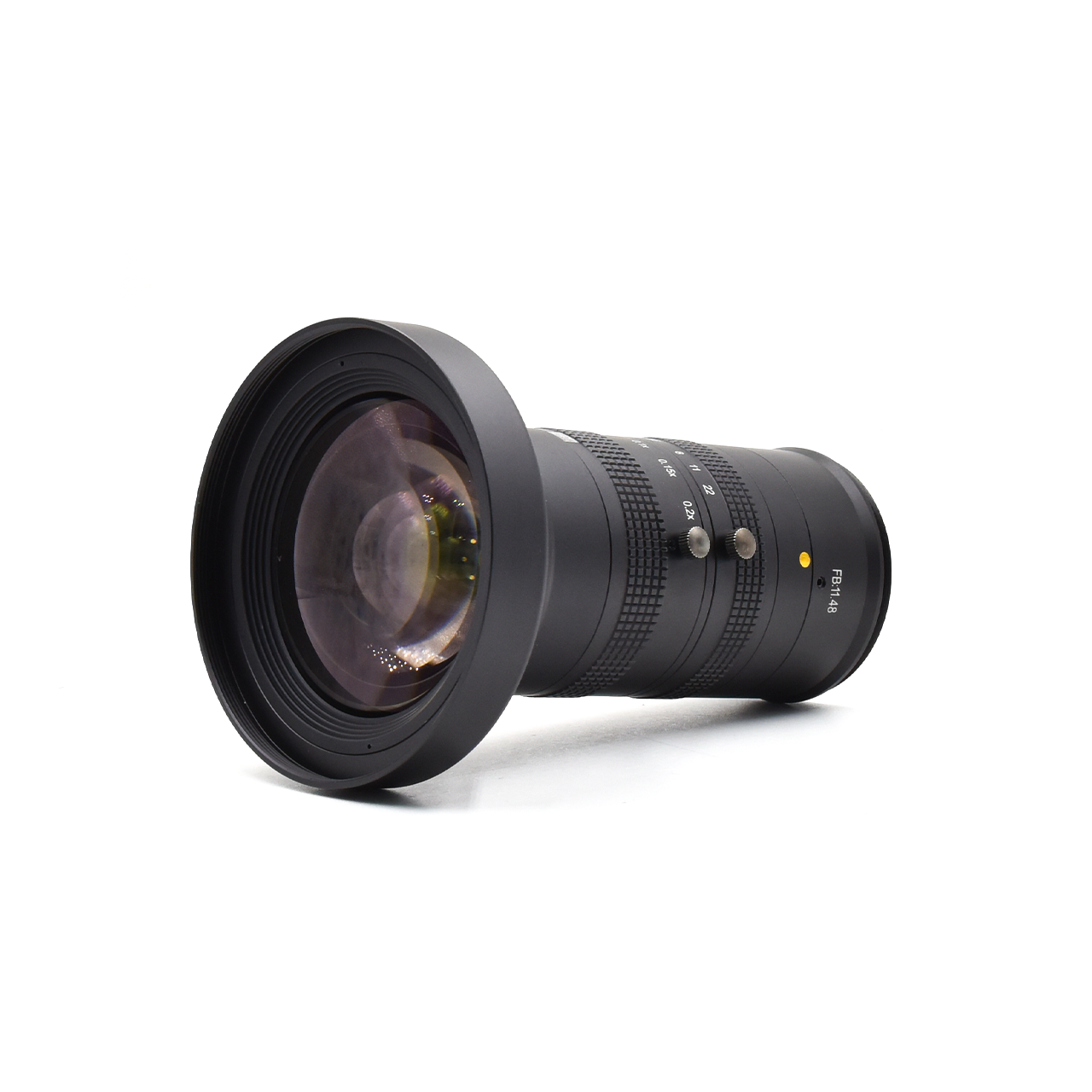

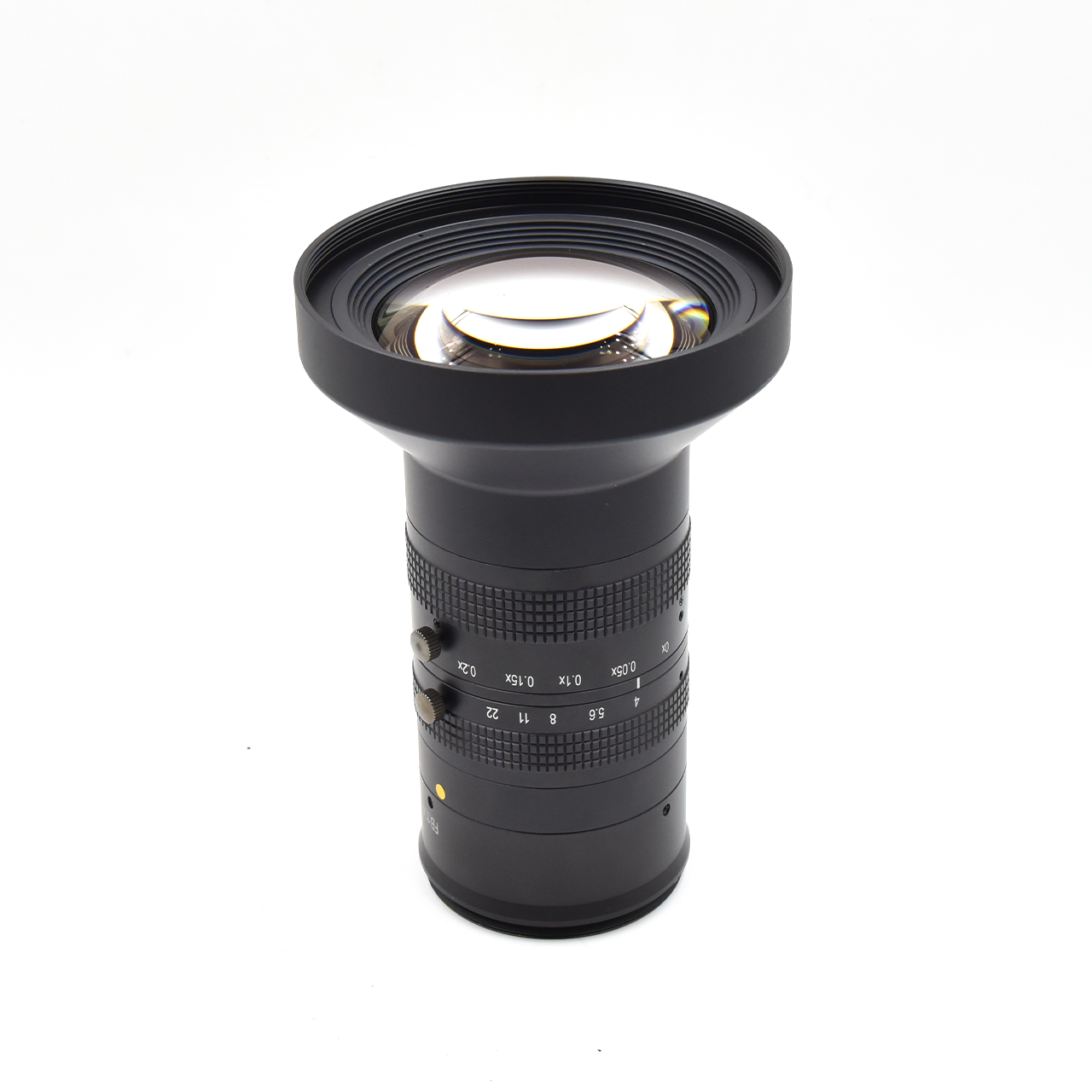

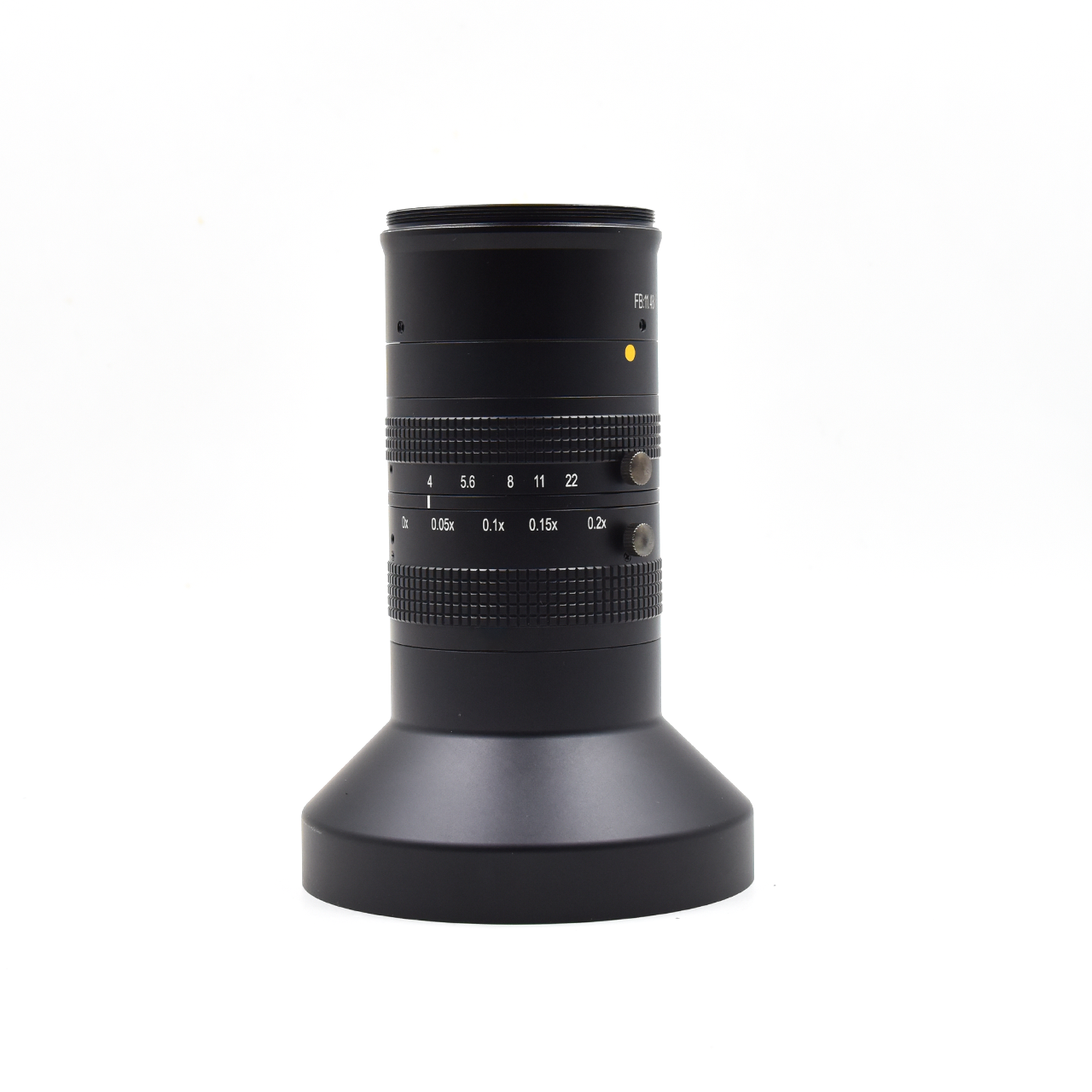

65MP Large Format Machine Vision Lens
Product Description
Designed for high-resolution industrial imaging, this 65MP Large Format Machine Vision Lens is optimized for large-format area scan and line scan cameras, delivering excellent image quality and reliable optical performance for demanding machine vision applications.
Supporting camera resolutions from 29MP up to 65MP and pixel sizes down to approximately 3.2 μm, the lens is designed to match high-resolution sensors while maintaining high image sharpness and low distortion. With a large image circle and multiple focal length options, it provides flexible solutions for precision inspection systems requiring a wide field of view and high optical performance.
The lens series offers various F, T, M58, and M72 mounts, making it suitable for different industrial cameras and imaging platforms. Depending on the model, magnification ranges from approximately 0–0.2X to 0.15–1.0X, providing flexibility for both large-area imaging and detailed close-up inspection.
Key Features
- 65MP high-resolution optical performance
- Designed for large-format area scan and line scan cameras
- Supports high-resolution sensors from 29MP to 65MP
- Suitable for pixel sizes down to approximately 3.2 μm
- Large image circle for large-format sensors
- Low optical distortion for precision imaging
- Multiple focal lengths from 25mm to 80mm
- Various magnification ranges for different inspection requirements
- Available with F, T, M58 and M72 mounts
- Adjustable aperture for flexible lighting and depth-of-field control
- Ideal for high-precision industrial machine vision systems
Product Applications
This large format machine vision lens is suitable for a wide range of high-resolution inspection applications, including:
- LCD, LED and OLED display inspection
- Smartphone screen and glass cover inspection
- AOI and PCB inspection
- Electronic component inspection
- Solar panel and solar cell inspection
- Printing and surface inspection
- Precision measurement and defect detection
- High-resolution industrial imaging
- Automated machine vision inspection
Product Specifications
| Model |
EFL(mm)
|
Format
|
WD(mm)
|
FFL (mm)
|
Mount
|
|---|---|---|---|---|---|
|
VT-LEN58-2540MP65
|
25±5%
|
Ø46
|
100-∞
|
12/11.48
|
M58×P0.75
|
|
VT-LEN72-2540MP65
|
25±5%
|
Ø46
|
100-∞
|
12
|
M72×P0.75
|
|
VT-LEN58-3540MP65
|
35±5%
|
Ø42
|
150-∞
|
12/11.48
|
M58×P0.75
|
|
VT-LEN72-3540MP65
|
35±5%
|
Ø42
|
150-∞
|
12
|
M72×P0.75
|
|
VT-LEM42-5036MP65
|
50±5%
|
Ø32
|
80-2500
|
12/17.5
|
M42×P1.0
|
|
VT-LEN58-5036MP65
|
50±5% |
Ø46
|
80-2500
|
12/11.48 | M58×P0.75 |
|
VT-LEN72-5036MP65
|
50±5% |
Ø46
|
80-2500
|
12 | M72×P0.75 |
|
VT-LEN58-8036MP65
|
80±5% |
Ø46
|
235-2000
|
12/11.48 | M58×P0.75 |
|
VT-LEN72-8036MP65
|
80±5% |
Ø46
|
235-2000
|
12 | M72×P0.75 |
Large Format Lenses Download
