Q1: What is the VT-TLL-23 liquid telecentric lens used for?
A: It is designed for precision machine vision, metrology, semiconductor inspection, and automated optical inspection (AOI) requiring flexible focusing and high measurement accuracy.
Q2: What is the advantage of liquid lens technology?
A: The liquid lens enables electronic focusing, allowing fast and stable working distance adjustment without mechanical movement while maintaining telecentric performance.
Q3: Does the lens maintain telecentricity during focus adjustment?
A: Yes. The lens maintains consistent telecentric imaging, low distortion, and stable magnification across the entire focusing range.
Q4: What magnification range does this lens support?
A: The VT-TLL-23 supports a wide magnification range from 0.4X to 4.0X, making it suitable for various inspection and measurement tasks.
Q5: What is the sensor format and mount type?
A: It is designed for 2/3" sensors with C-Mount compatibility, widely used in industrial machine vision cameras.
Q6: What is the optical performance of this lens?
A: The lens achieves MTF > 0.3 at 100 lp/mm, ensuring high-resolution imaging and accurate edge detection.
Q7: Is a coaxial illumination version available?
A: Yes, an optional coaxial illumination version is available for reflective surfaces such as metal, glass, and polished components.
Q8: What industries commonly use this lens?
A: It is widely used in semiconductor inspection, PCB inspection, electronics manufacturing, precision assembly, and industrial automation.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Descripción
Descripción del producto

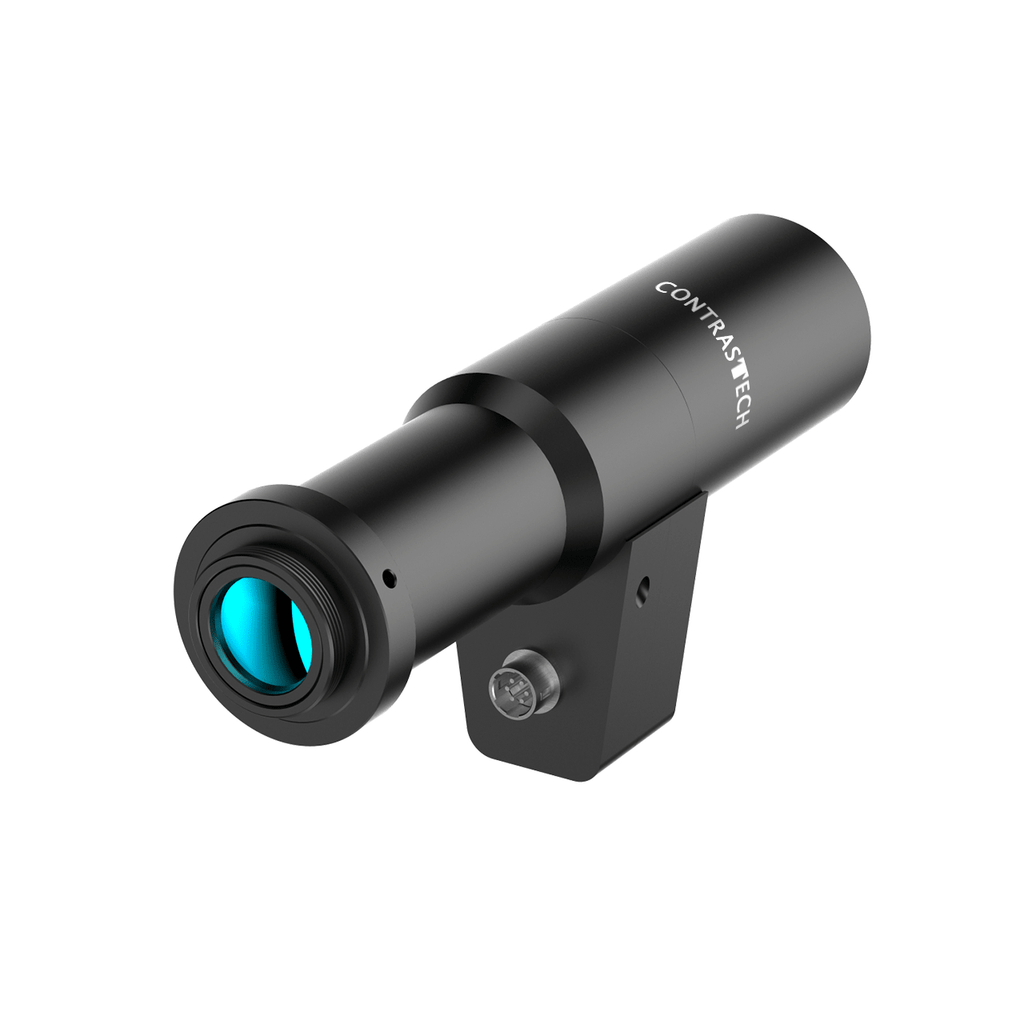

Lente telecéntrica líquida con enfoque electrónico para visión de máquina de alta precisión
La serie VT-TLL-23 es una lente telecéntrica líquida de montaje C de 2/3" diseñada para visión de máquina de precisión, metrología e inspección automatizada. Al integrar la tecnología de lente líquida, permite un enfoque electrónico rápido y una profundidad de campo extendida, manteniendo el rendimiento de imagen telecéntrica en todo el rango de enfoque.
Disponible en aumentos de 0.4X a 4.0X, la serie VT-TLL-23 ofrece alta resolución óptica con MTF >0.3 @100 lp/mm, asegurando una nitidez de imagen excelente para la medición de precisión y la inspección de defectos. Una versión opcional con iluminación coaxial está disponible para superficies reflectantes y aplicaciones de inspección exigentes.
A diferencia de las lentes telecéntricas convencionales que requieren enfoque mecánico, el diseño de lente líquida permite un ajuste rápido y repetible de la distancia de trabajo sin comprometer el aumento, la telecentricidad o la calidad de imagen.
Características principales
✔ Tecnología de Lente Líquida
El enfoque electrónico permite un ajuste de enfoque rápido, preciso y libre de mantenimiento.
✔ Profundidad de Campo Extendida
Mantiene una imagen nítida en un mayor rango de enfoque, mejorando la eficiencia de la inspección.
✔ Compatibilidad con Montaje C de 2/3"
Optimizado para cámaras industriales con sensores de imagen de hasta 2/3".
✔ Aumento de 0.4X a 4.0X
Soporta una amplia gama de aplicaciones de visión de máquina y medición de precisión.
✔ Alta Resolución Óptica
MTF >0.3 @100 lp/mm para una detección de bordes precisa y una imagen de detalles finos.
✔ Versión Opcional con Iluminación Coaxial
Ideal para superficies reflectantes, pulidas y metálicas.
Aplicaciones Ideales
- Metrología de Precisión
- Inspección de Semiconductores
- Inspección de PCB
- Fabricación Electrónica
- AOI (Inspección Óptica Automatizada)
- Ensamblaje de Precisión
- Robótica & Visión de Máquina
- Inspección de Defectos de Superficie
Especificaciones
Lente Telecéntrica Líquida de 2/3"

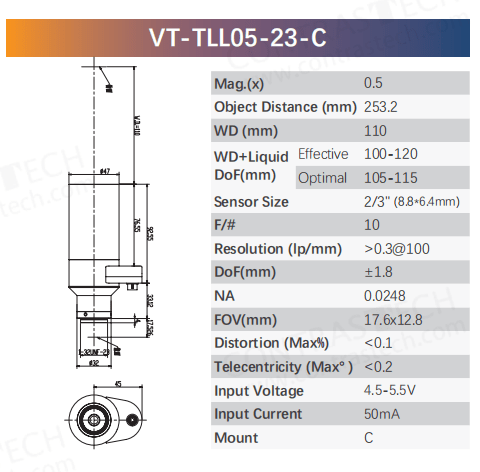

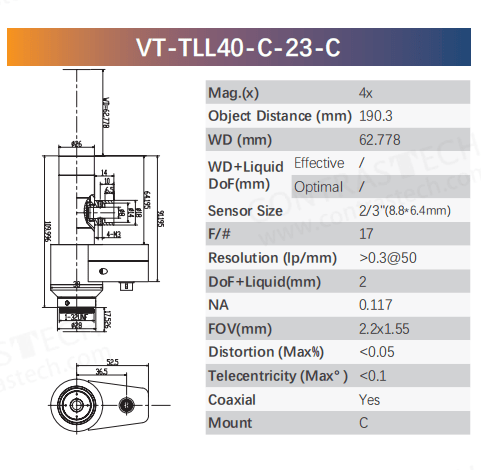

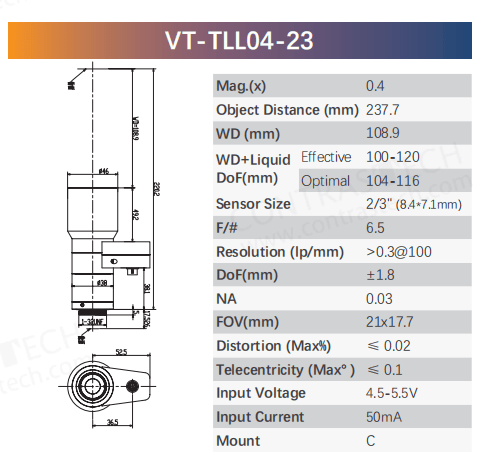

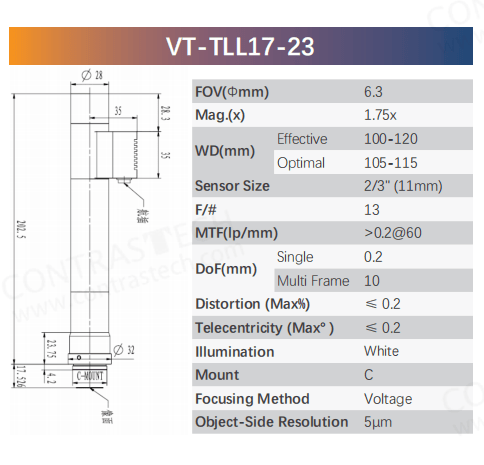

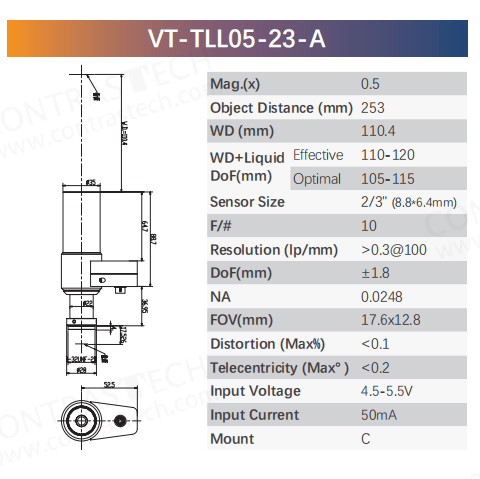

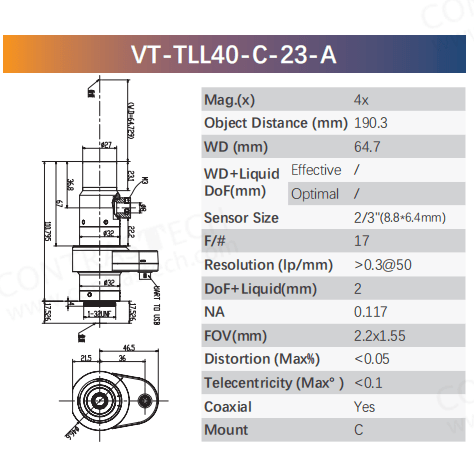

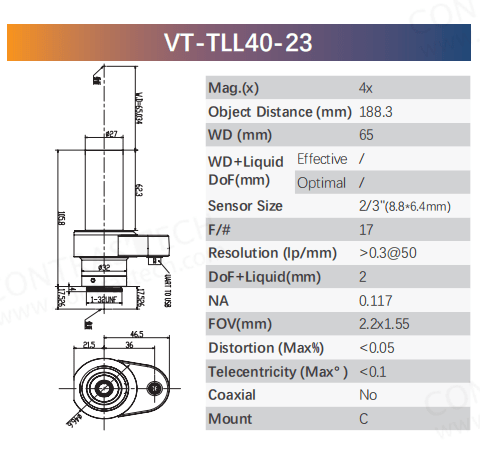

| Modelo | Coaxial | Aum. | WD+Líquido | DOF | F/# | MTF (lp/mm) |
|---|---|---|---|---|---|---|
| VT-TLL04-23 | No | 0.4x | 100-120mm | ±1.8mm | 6.5 | >0.3@100 |
| VT-TLL05-23-A | No | 0.5x | 110-120mm | ±1.8mm | 10 | >0.3@100 |
| VT-TLL05-23-C | No | 0.5x | 100-120mm | ±1.8mm | 10 | >0.3@100 |
| VT-TLL17-23 | No | 1.75x | 100-120mm | ±0.2mm | 13 | >0.2@60 |
| VT-TLL40-C-23-A | Sí | 4.0x | 64.7mm | 2mm | 17 | >0.3@50 |
| VT-TLL40-C-23-C | Sí | 4.0x | 62.778mm | 2mm | 17 | >0.3@50 |
| VT-TLL40-23 | No | 4.0x | / | 2mm | 17 | >0.3@50 |
