Q1: What is the VT-BTLP-V1 360° telecentric lens used for?
A: The VT-BTLP-V1 Series is designed for 360° side inspection of small cylindrical parts, allowing multiple side views to be captured simultaneously for high-speed machine vision inspection.
Q2: What size parts can this lens inspect?
A: The lens is optimized for inspecting small parts from approximately 1 mm to 10 mm, including screws, pins, fasteners, connectors, and other precision components.
Q3: How does multi-angle imaging improve inspection?
A: Multi-angle imaging captures multiple side surfaces in a single image, eliminating the need for rotating parts or using multiple cameras, which increases throughput and reduces system complexity.
Q4: Does the lens maintain accurate measurements from every viewing angle?
A: Yes. The optical design provides uniform magnification across all viewing angles, ensuring consistent dimensional measurement and reliable defect detection.
Q5: Which industrial cameras are compatible?
A: The VT-BTLP-V1 Series supports 1/2", 2/3", and 1/1.8" C-Mount industrial cameras, making it compatible with most mainstream machine vision systems.
Q6: Is illumination included?
A: Yes. The lens features an integrated 24V LED illuminator, providing stable, uniform lighting for consistent inspection performance.
Q7: What industries commonly use this lens?
A: It is widely used in electronics manufacturing, automotive components, medical device production, precision machining, and automated optical inspection (AOI).
Q8: Why choose a 360° telecentric lens instead of multiple cameras?
A: A single 360° telecentric lens can inspect multiple side surfaces simultaneously, helping reduce equipment cost, system footprint, alignment complexity, and inspection cycle time.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Descripción
Descripción del producto

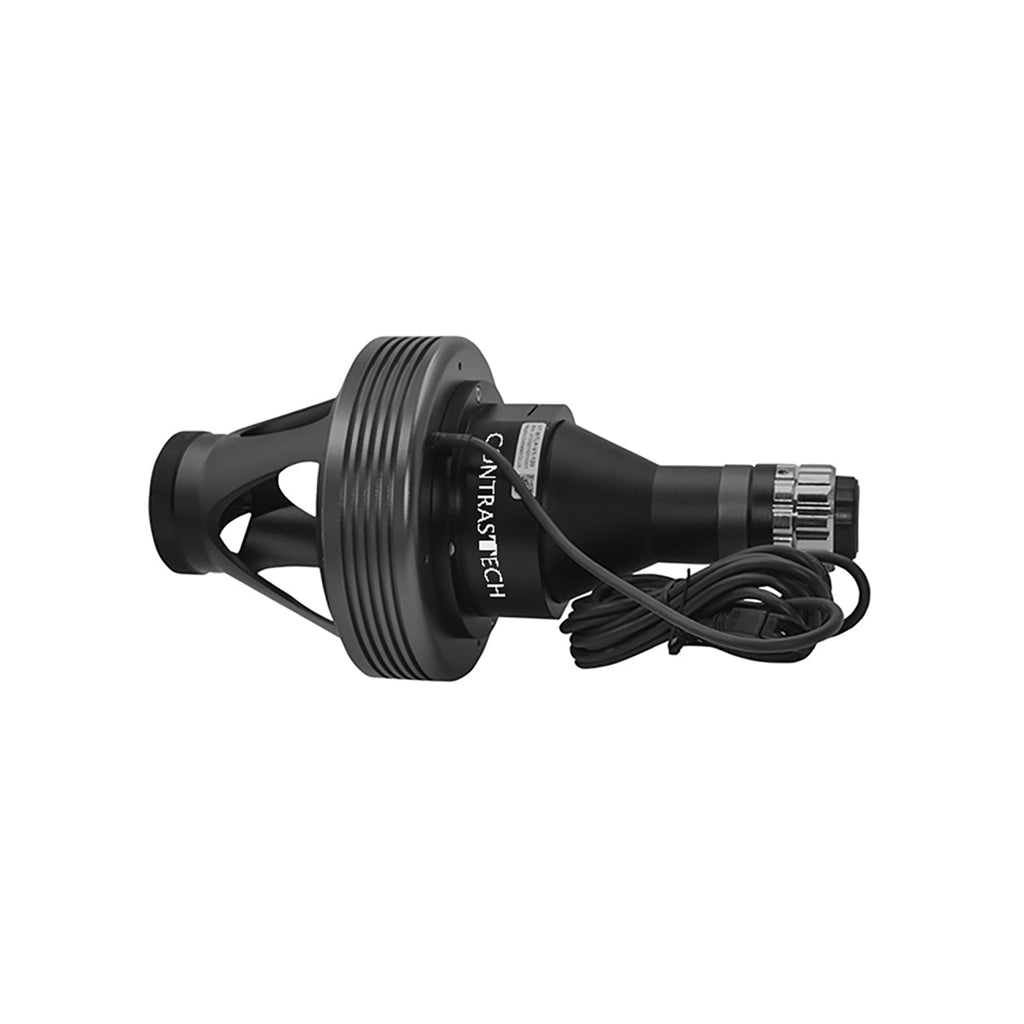

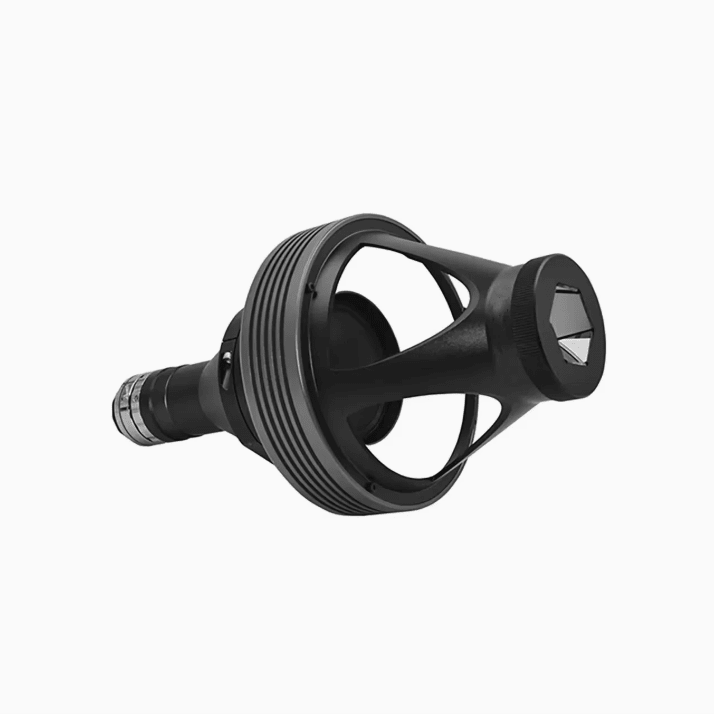

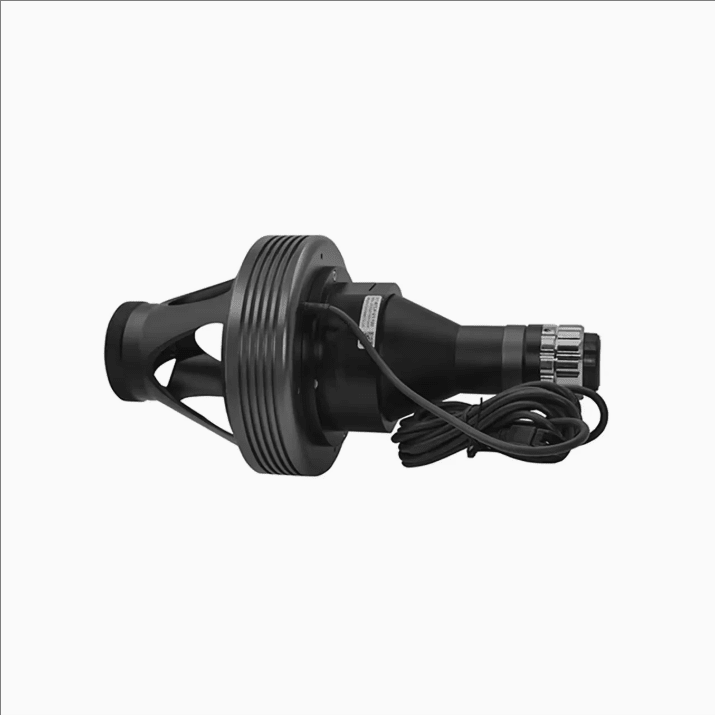

Lente telecentrica multángulo de 360° para inspección lateral simultánea
La serie VT-BTLP-V1 es una lente telecentrica de imagen multángulo de 360° diseñada para la inspección de alta velocidad de componentes cilíndricos y roscados pequeños. A diferencia de las lentes telecentricas convencionales, captura múltiples vistas laterales simultáneamente, permitiendo una inspección completa de 360 grados en una sola adquisición de imagen.
Al proporcionar una magnificación óptica idéntica en cada ángulo de visión, la serie VT-BTLP-V1 garantiza una medición dimensional precisa y una detección de defectos consistente, reduciendo significativamente el tiempo de inspección y la complejidad del equipo.
Compatible con cámaras industriales de 1/2", 2/3" y 1/1.8", esta lente se integra de manera fluida en sistemas de visión por máquina para la inspección automatizada de tornillos, pasadores, conectores, componentes electrónicos y otras piezas de precisión.
Características principales
✔ Imagen multángulo de 360°
Capture múltiples vistas laterales en una sola exposición para una inspección completa de la pieza.
✔ Magnificación óptica uniforme
Mantiene una magnificación idéntica en todos los ángulos de visión para una medición precisa.
✔ Inspección de alta velocidad
Elimina la necesidad de múltiples cámaras o rotación mecánica, mejorando la eficiencia de la inspección.
✔ Ideal para piezas pequeñas (1–10 mm)
Diseñada para tornillos, pasadores, conectores, sujetadores y componentes miniatura.
✔ Compatible con cámaras industriales estándar
Admite cámaras C-Mount de 1/2", 2/3" y 1/1.8".
✔ Iluminación LED integrada
La iluminación integrada de 24V simplifica la integración del sistema y garantiza una calidad de imagen consistente.
Aplicaciones ideales
- Inspección de tornillos
- Pasador & Inspección de sujetadores
- Inspección de conectores
- Inspección de piezas de precisión
- Inspección de dispositivos médicos
- Fabricación de electrónica
- Inspección óptica automatizada (AOI)
- Automatización de visión por máquina
Especificaciones
| Modelo | Tamaño del sensor | Longitud de onda | WD | MTF30 (lp/mm) | Apertura (F/#) |
|---|---|---|---|---|---|
| VT-BTLP-V1-118 | 1/1.8" | 400–680nm | 19-23mm | >190 | 4.6 |
| VT-BTLP-V1-120 | 1/2" | 400–600nm | 1.5-5mm | >200 | 4.2 |
| VT-BTLP-V1-230 | 2/3" | 400–600nm | 1.5-5mm | >135 | 6.5 |
Descarga de Lentes Telecentricas
