24V Multi-channel Ethernet Digital LED Light Controller for Machine Vision - Contrastech

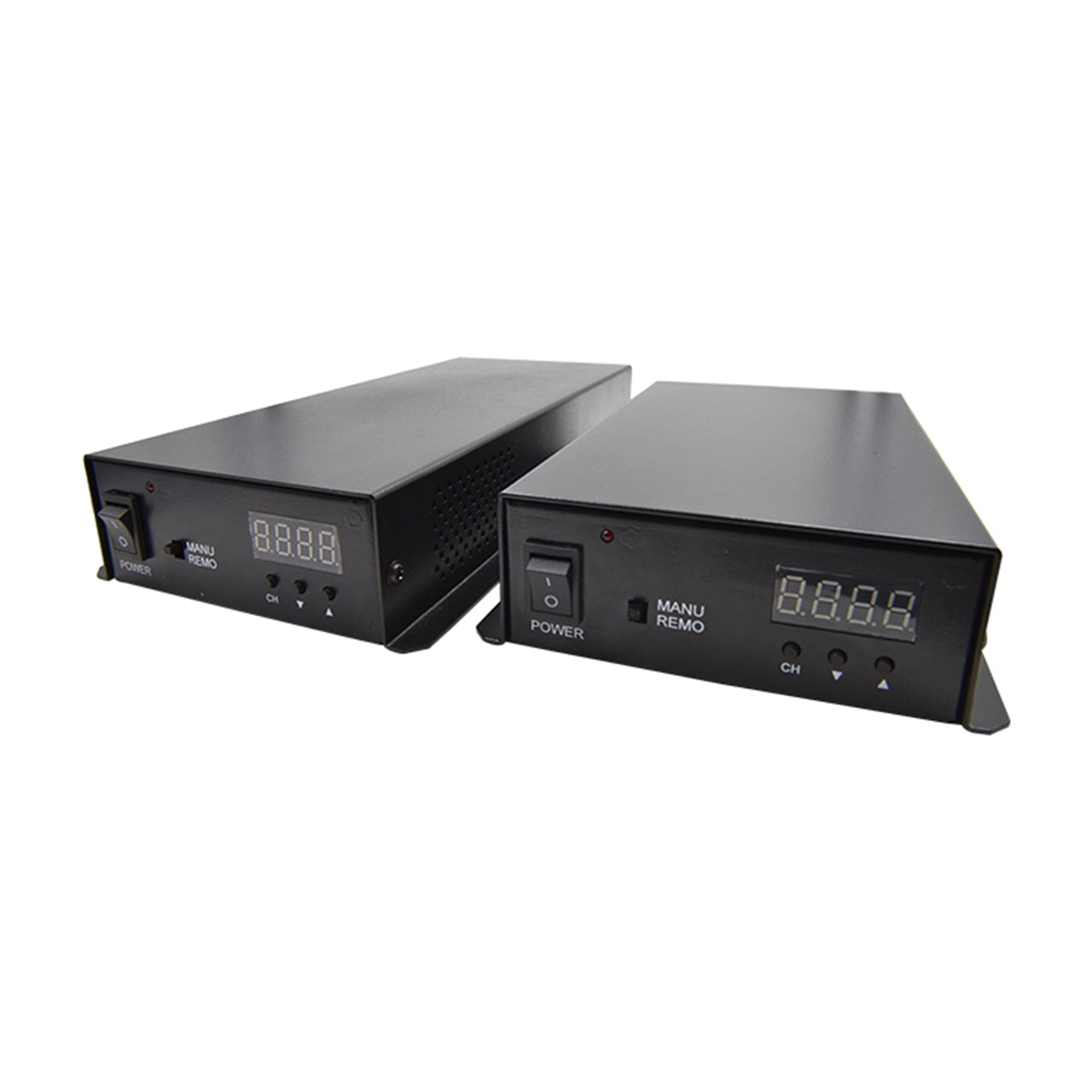

Machine vision light digital controller for multi-channel LED lighting and strobe control

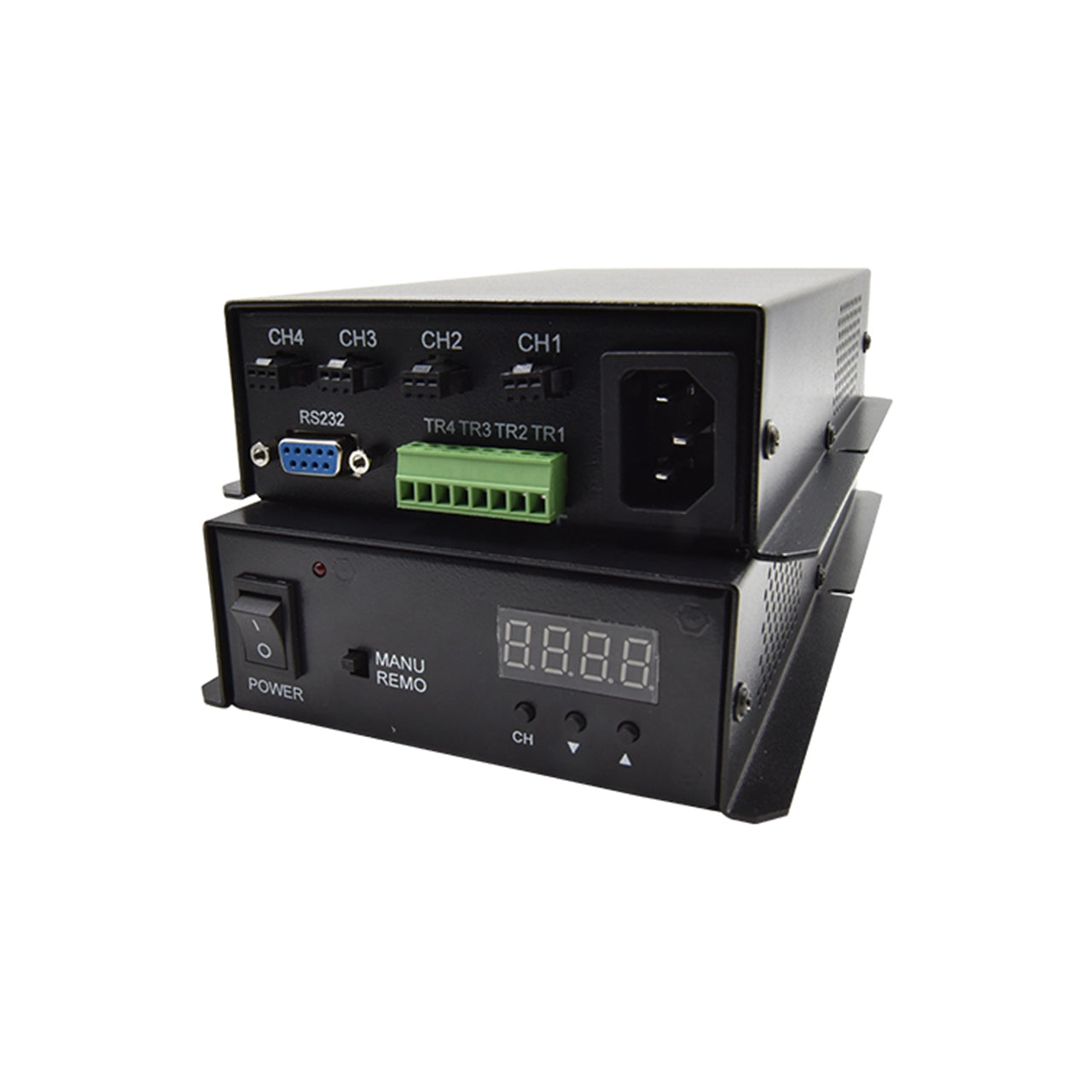

Digital light controller for synchronized LED lighting in machine vision and AOI systems
Machine Vision Light Digital Controller | RS232 & Ethernet Optional
Pasa el cursor sobre la imagen para ampliarla. Clic en la imagen para aumentar
24V Multi-channel Ethernet Digital LED Light Controller for Machine Vision - ContrastechMachine vision light digital controller for multi-channel LED lighting and strobe controlDigital light controller for synchronized LED lighting in machine vision and AOI systemsMachine Vision Light Digital Controller | RS232 & Ethernet Optional

Machine Vision Light Digital Controller | RS232 & Ethernet Optional

ContrastechSKU: VT-LT4-0506PWDC-2
11 reseñas
Specification: 5V 6W 2-Channel[SMP-03V]
Ver.: RS232
Precio:
$120.00

Gastos de envío calculados en la caja

⚠️ Destination Duties & Taxes Not Included

💰 Buy more, save on shipping. Contact market@contrastech.com for a discounted shipping rate.

  • In-stock items: Ready for quick shipment.
  • Pre-order items: Typically require around 7 days for preparation. We will notify you promptly after your order.
  • Proforma lnvoice Needed: Please create a draft order to obtain.

Estimated Delivery Time

Ship To Detecting...

Delivery: -

Descripción

Product Description

The Machine Vision Light Digital Controller Series provides stable, programmable lighting control for industrial vision systems. With 1–4 output channels, selectable 5V, 24V, or 48V output, and strobe synchronization, it supports precise illumination for machine vision, AOI, automation, and inspection applications.

Multiple models and output connectors are available for different machine vision lighting configurations.

Key Features

  • 1–4 channel output
  • 5V / 24V / 48V options
  • Adjustable light intensity
  • Strobe synchronization
  • Multiple output connectors

Applications

  • Machine Vision Inspection
  • AOI Systems
  • Factory Automation
  • Quality Control
  • Industrial Imaging
  • Research & Laboratory Imaging

Common Specifications

Model Voltage Power Channel Output Port
VT-LT4-0506PWDC-2 5V
Total:6W/Singlel:3W
Expandable:
Total:12W/Single:6W
 2 SMP-03V
VT-LT4-2420PWDC-2 24V
Total:20W
Single:20W
 2 SMP-03V
VT-LT4-24150PWDC-4 24V
Total:150W
Single:70W
 4 SMP-03V
VT-LT4-24200PWDC-2 24V
200W
 2 19M-2E
VT-LT3-24240PWDC-2 24V
240W
 2 19M-5
VT-LT3-24500PWDC-2 24V
480W
 2 19M-2E
VT-LT4-48300PWDC-1 48V
300W
 1 GX20-4T

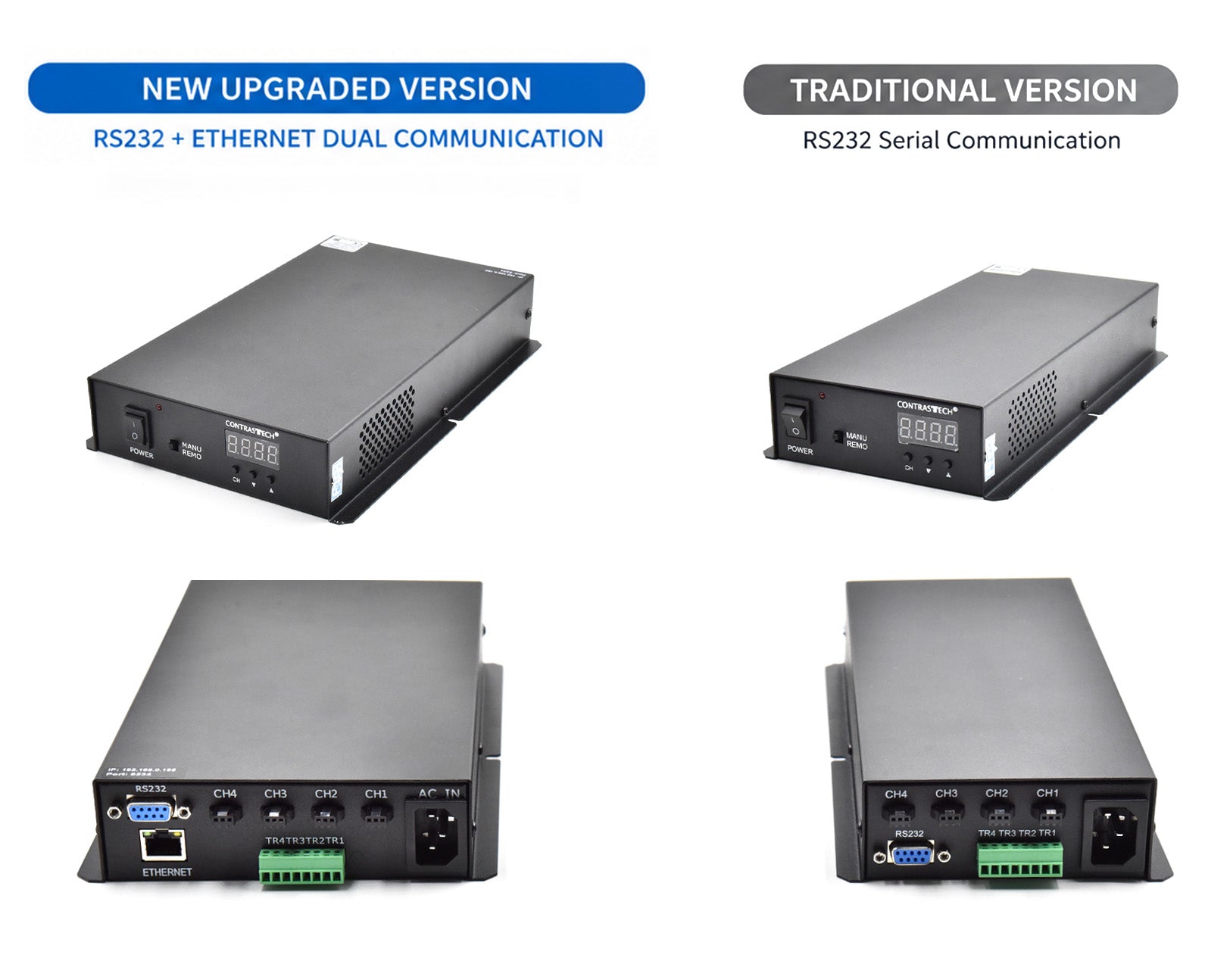

RS232 vs. Ethernet Light Controller

Choose the Right Communication Interface for Your Application

Feature RS232 Controller Ethernet Controller
Communication Distance Typically up to 15 m Up to 100 m
Network Capability Point-to-point connection Multi-device networking via Ethernet switch
Device Management Individual COM port required Multiple controllers accessible via IP address
System Integration Suitable for basic machine control Ideal for automated and networked systems
Remote Access Limited Remote configuration and control supported
PC Connectivity Requires an RS232 port or USB adapter Direct connection to standard Ethernet ports
Scalability Limited Easy to expand for multi-station systems
Best Suited For Standalone machines and simple setups Production lines, multi-station AOI, and centralized control

Light Collection Download

Q1: What is the digital light controller used for?
A: It controls machine vision lights for stable illumination, intensity adjustment, and synchronized strobe operation.

Q2: How many output channels are available?
A: The series offers 1, 2, or 4 output channels, depending on the model.

Q3: What output voltages are supported?
A: Models are available with 5V, 24V, and 48V outputs.

Q4: Can the controller synchronize with a camera?
A: Yes. Strobe synchronization enables precise timing between lighting and image acquisition.

Q5: What lighting systems can it be used with?
A: It can be integrated with various industrial LED machine vision lights, depending on voltage, power, and connector requirements.

Q6: What applications are suitable for this controller?
A: It is suitable for AOI, machine vision inspection, factory automation, quality control, and industrial imaging.
