Q1: What is the MARS5470S-5GM/GC industrial camera used for?
A: It is a 20MP GigE machine vision camera used for industrial inspection, electronics manufacturing, quality control, and precision measurement applications.
Q2: What image sensor does this camera use?
A: It uses the Sony IMX183 CMOS sensor, providing high sensitivity and excellent image quality for detailed inspection tasks.
Q3: What is the resolution of this camera?
A: The camera delivers 20MP resolution (5472 × 3648) for high-precision imaging and fine detail capture.
Q4: Is this a GigE Vision camera?
A: Yes, it fully supports the GigE Vision and GenICam standards, ensuring easy integration with machine vision systems.
Q5: Does it support high-speed data transmission?
A: Yes, the GigE interface provides stable and reliable long-distance high-speed image transmission.
Q6: Is this camera suitable for fast-moving objects?
A: It uses a rolling shutter, making it suitable for standard industrial inspection. For ultra-high-speed motion, a global shutter model is recommended.
Q7: What industries commonly use this camera?
A: It is widely used in electronics inspection, semiconductor manufacturing, PCB inspection, and industrial automation systems.
Q8: Why choose this 20MP GigE camera?
A: Its combination of high resolution, IMX183 sensor performance, and stable GigE connectivity makes it ideal for precision industrial imaging and machine vision applications.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Descripción
Descripción del producto

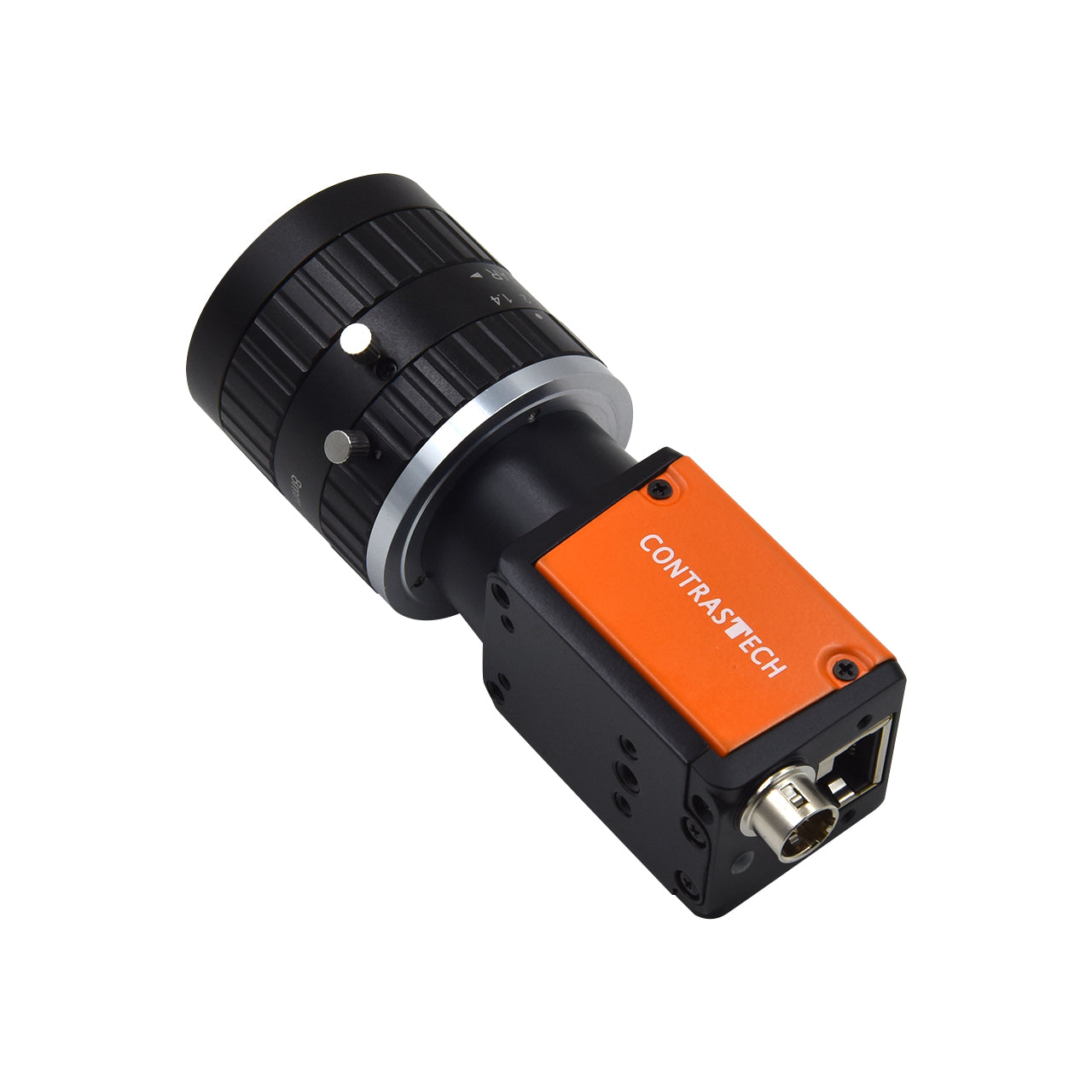

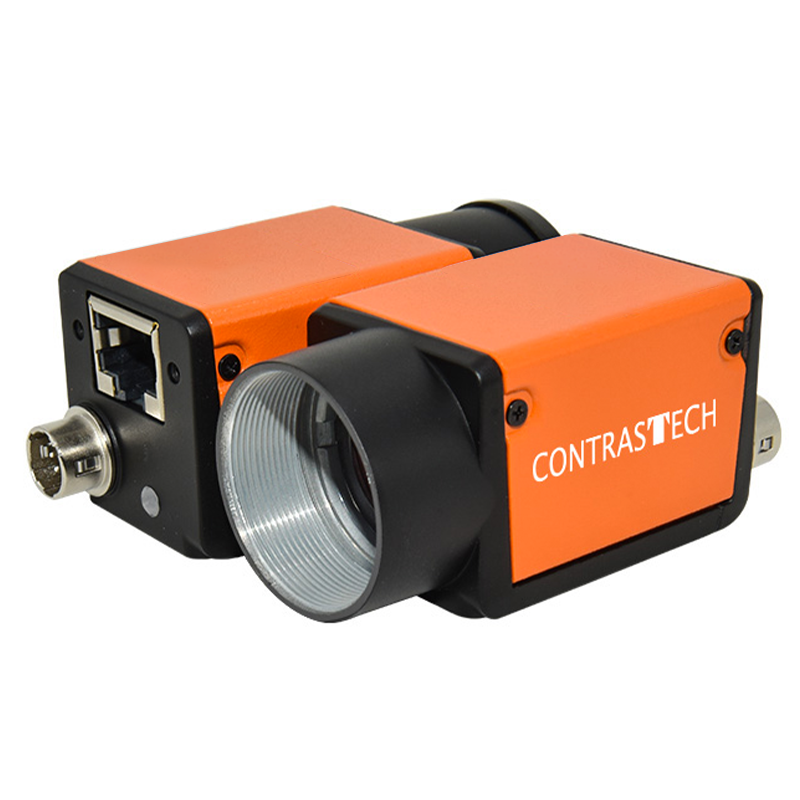

Cámara GigE Vision de 20 MP de alta resolución para inspección industrial de precisión
La MARS5470S-5GM/GC es una cámara industrial GigE de 20 MP de alto rendimiento diseñada para inspección de visión por máquina de precisión y sistemas de automatización. Equipada con el sensor CMOS Sony IMX183, ofrece imágenes de alta resolución y ultra nítidas con excelente sensibilidad, lo que la hace ideal para tareas de inspección detallada en entornos de electrónica, fabricación y control de calidad.
Con compatibilidad de interfaz GigE Vision, la cámara garantiza una transmisión de datos a larga distancia estable y fiable, lo que permite una integración sin problemas en sistemas de imagen industrial. Su diseño compacto permite una instalación flexible en entornos con espacio limitado, manteniendo un alto rendimiento y eficiencia de imagen.
Características principales
✔ Imagen de alta resolución de 20 MP
Ofrece captura de imágenes detallada y precisa para inspección de precisión.
✔ Sensor CMOS Sony IMX183
Alta sensibilidad y excelente calidad de imagen para aplicaciones industriales.
✔ Interfaz GigE Vision
Transmisión de datos de alta velocidad y estable para sistemas de visión por máquina.
✔ Arquitectura de obturador rodante
Rendimiento de imagen eficiente para tareas estándar de inspección industrial.
✔ Diseño industrial compacto
Fácil integración en equipos de automatización e inspección.
✔ Integración de sistema fiable
Compatible con plataformas estándar de visión por máquina.

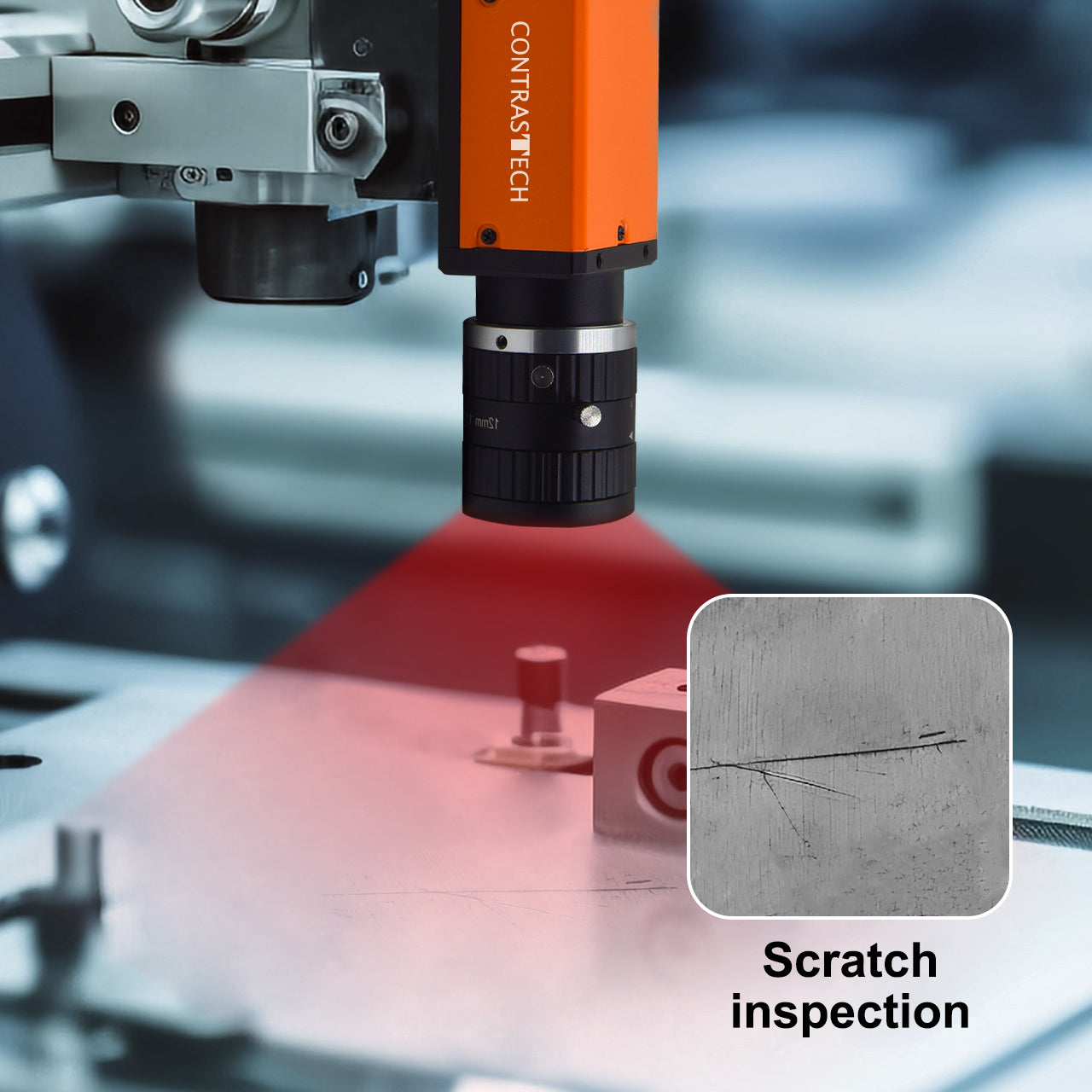

Aplicaciones ideales
- Automatización industrial
- Inspección de electrónica
- Medición de precisión
- Sistemas de control de calidad
- Detección de defectos de superficie
- Inspección de visión por máquina
Especificaciones del producto
| Modelo | MARS5470S-5GM/GC |
| Resolución | 5472 px x 3468 px |
| Tamaño del píxel | 2.4 μm x 2.4 μm |
| Tasa de fotogramas | 5 fps |
| Mono/Color | Mono y Color |
| Fabricante del sensor | Sony |
| Sensor | IMX183 |
| Obturador | Obturador rodante |
| Tamaño del sensor | 1" |
| Tipo de sensor | CMOS |
| Relación señal-ruido (típico) | >38.5 dB |
| Interfaz | GigE |
| Profundidad de bits del píxel | 8 / 10 / 12 bits |
| Sincronización |
● Disparador suave ● Disparador de hardware ● Ejecución libre |
| E/S | Entrada optoaislada x 1, salida optoaislada x 1 y E/S personalizada bidireccional no aislada x 1 |
| Alimentación | PoE o 6-24 VDC |
| Diseño | Diseño industrial compacto |
| Dimensiones (L x A x H) | 42 mm x 29 mm x 29 mm |
| Montura de lente | C-mount （CS-Mount puede personalizarse） |
| Temperatura de funcionamiento | -30 - 50°C（Funcionamiento），-30 - 80°C（Almacenamiento） |
| Peso（Típico） | 88g |
| Controlador, SDK | Kit de desarrollo secundario de cámara de la serie Mars（iCentral）o software de terceros que cumpla con el protocolo GigE Vision |
| Sistema operativo | Windows, Linux |
| Conformidad | GigE Vision y GenICam |
Lista de embalaje
Descarga de MARS5470S-5GM/GC
