Q1: What is the LEO2 5470S-6GM/GC-Lite used for?
A: It is designed for logistics automation, barcode reading, package sorting, and industrial machine vision inspection requiring high-resolution imaging.
Q2: What sensor does this camera use?
A: The camera uses a Sony IMX183 20MP CMOS sensor with a resolution of 5472 × 3648 pixels.
Q3: What interface does the camera support?
A: It supports GigE Vision interface with PoE power supply, enabling long-distance and stable data transmission.
Q4: Is this camera suitable for fast-moving production lines?
A: Yes, it supports multiple trigger modes including hardware trigger, software trigger, and free run, making it suitable for automated production environments.
Q5: What is the working temperature range?
A: The camera operates from -30°C to 60°C, suitable for harsh industrial environments.
Q6: Is it compatible with third-party software?
A: Yes, it is fully compatible with GigE Vision and GenICam standards, and supports Windows and Linux systems.
Q7: What are the physical dimensions of the camera?
A: The compact body measures 29 × 29 × 42 mm and weighs approximately 100 g.
Q8: What industries commonly use this camera?
A: It is widely used in logistics, warehouse automation, barcode inspection, electronics manufacturing, and industrial quality control.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Descripción
![]()
Descripción del producto
Cámara GigE Vision de 20MP para automatización logística y visión artificial de alta resolución

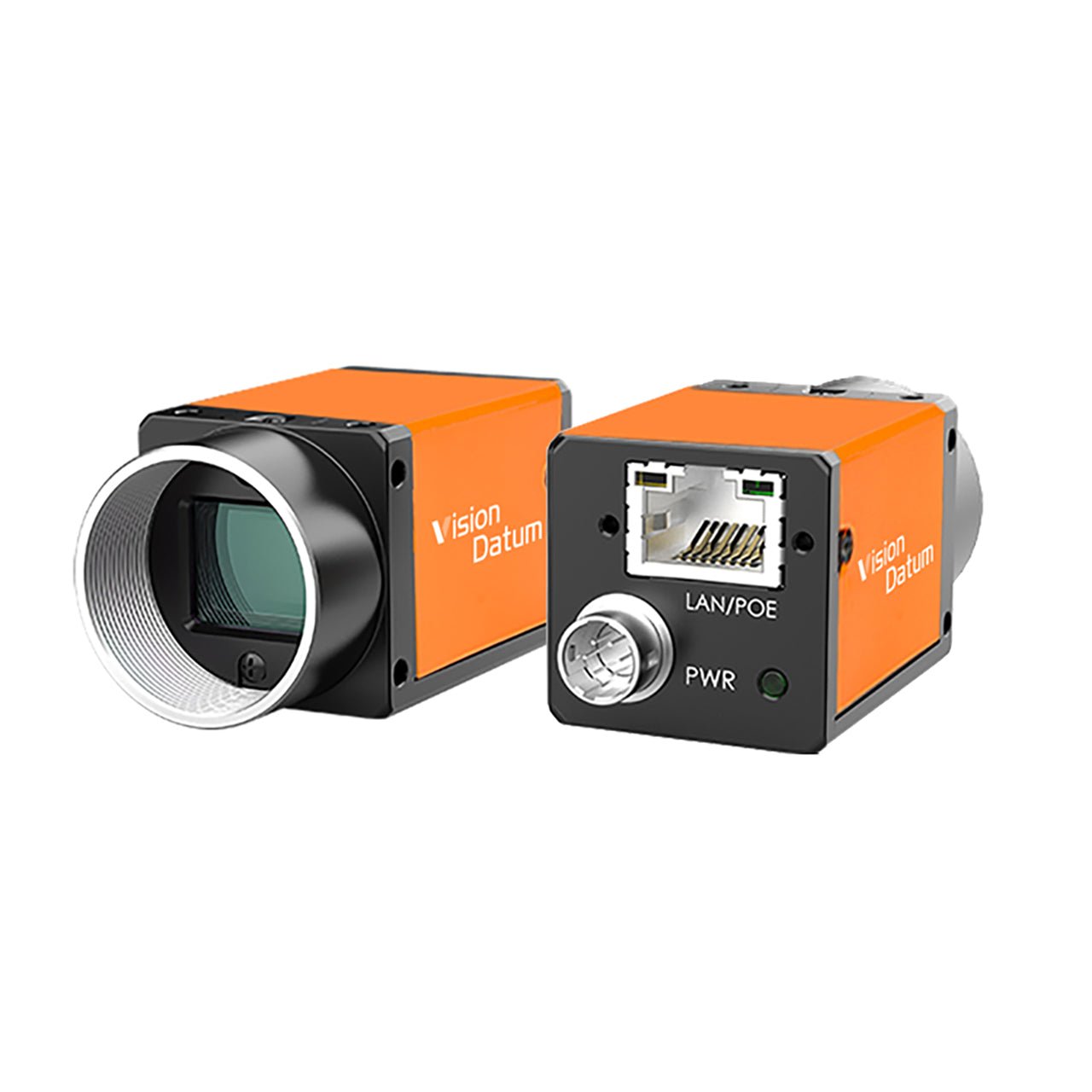

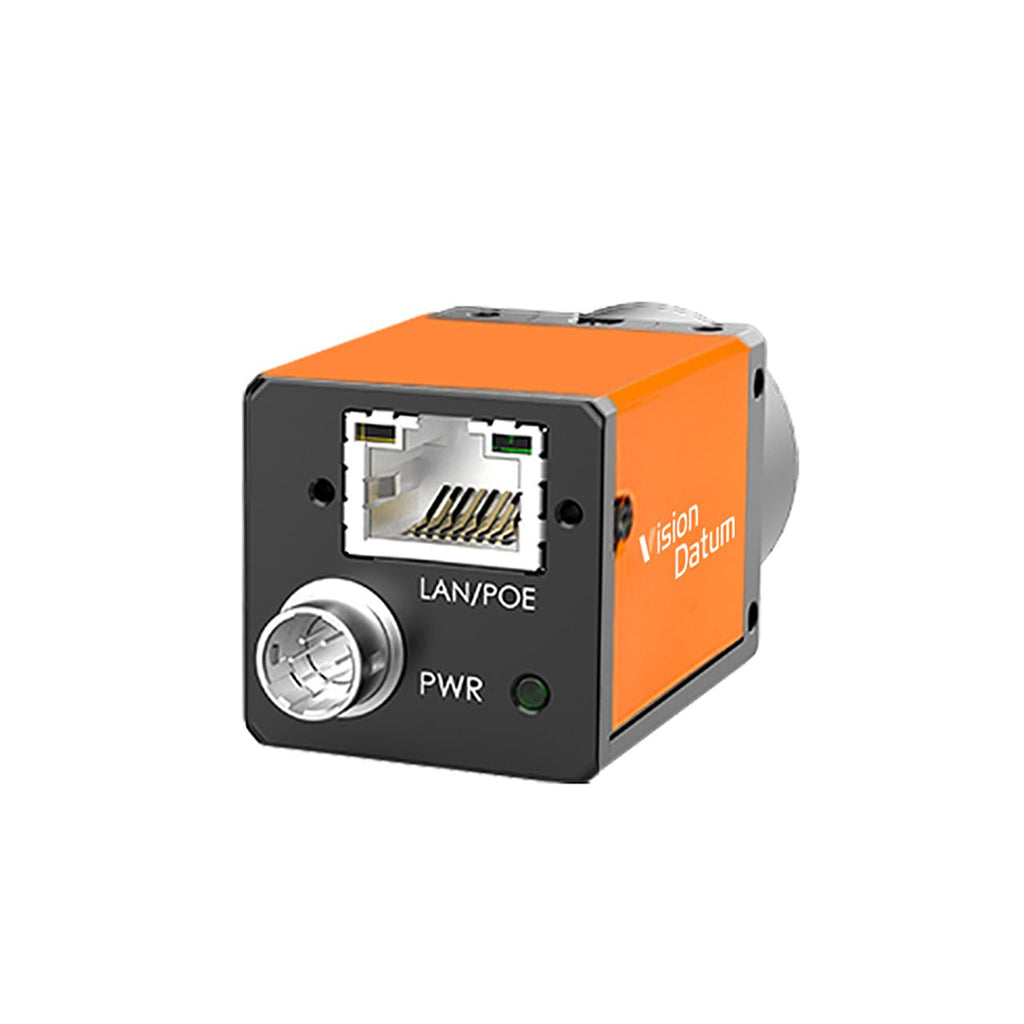

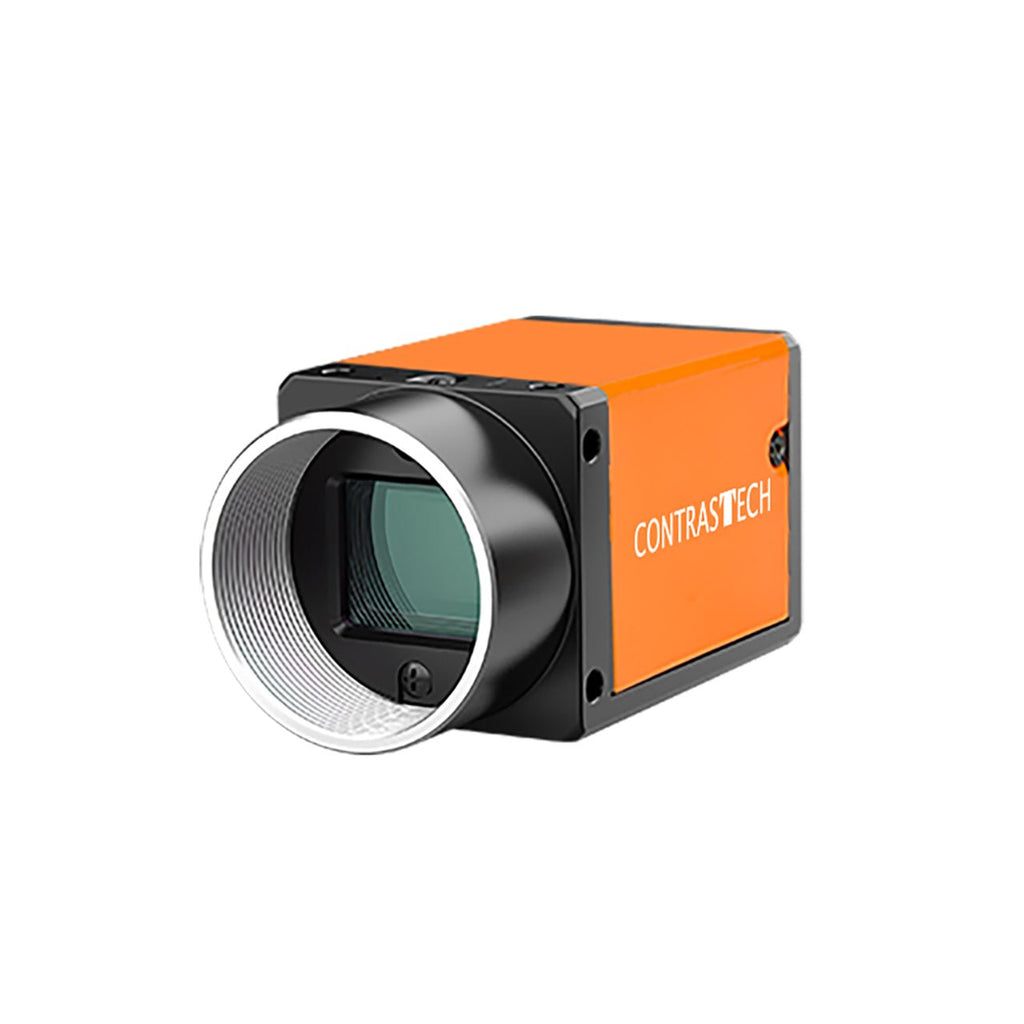

La LEO2 5470S-6GM/GC-Lite es una cámara industrial compacta GigE Vision de 20MP impulsada por el sensor CMOS Sony IMX183. Al ofrecer una resolución de 5472 × 3648 a 5.9 fps, captura imágenes de gran detalle para lectura de códigos de barras, clasificación de paquetes, inspección de calidad y aplicaciones de visión artificial de precisión.
Con un sensor de obturador de barrido de 1 pulgada, interfaz GigE con soporte PoE y compatibilidad con los estándares GigE Vision y GenICam, la cámara se integra de manera fluida en los sistemas de automatización industrial. Su carcasa compacta de 29 × 29 × 42 mm y su diseño ligero de 100 g facilitan la instalación, incluso en equipos con espacio limitado.
Al soportar salida de imagen de 8/10/12 bits, múltiples modos de disparo, sistemas operativos Windows y Linux, y el SDK iDatum, la Serie LEO2 ofrece un rendimiento confiable para entornos de logística, fabricación e inspección industrial.
Características principales
✔ Sensor CMOS Sony IMX183 de 20MP
Resolución ultra alta de 5472 × 3648 para la captura de imágenes detalladas.
✔ Interfaz GigE Vision con PoE
Transmisión de imágenes a larga distancia confiable e instalación simplificada.
✔ Diseño industrial compacto
Carcasa de 29 × 29 × 42 mm para una fácil integración del sistema.
✔ Múltiples modos de disparo
Admite Free Run, disparo por software y disparo por hardware.
✔ Fiabilidad industrial
Funciona desde -30°C hasta 60°C para entornos exigentes.
✔ GigE Vision & Compatible con GenICam
Compatible con software y SDK de visión artificial de uso general.
Aplicaciones ideales
- Automatización logística
- Código de barras & Lectura de códigos QR
- Sistemas de clasificación de paquetes
- Automatización de almacenes
- Inspección de calidad industrial
- Inspección de electrónica
- Integración de visión artificial
- Líneas de producción automatizadas
Especificaciones del producto
| Modelo | LEO2 5470S-6GM/GC-Lite |
| Resolución | 5472 px x 3468 px |
| Tamaño de píxel | 2.4 μm x 2.4 μm |
| Tasa de fotogramas | 5.9 fps |
| Mono/Color | Mono y Color |
| Fabricante del sensor | Sony |
| Sensor | IMX183 |
| Obturador | Obturador de barrido |
| Tamaño del sensor | 1" |
| Tipo de sensor | CMOS |
| Interfaz | GigE |
| Profundidad de bits del píxel | 8 / 10 / 12 bits |
| Sincronización |
● Disparo por software ● Disparo por hardware ● Free Run |
| E/S | Entrada optoaislada x 1, salida optoaislada x 1 y E/S personalizada bidireccional no aislada x 1 |
| Alimentación | Alimentación PoE / 9-24 VDC |
| Diseño | Diseño industrial compacto |
| Dimensiones (L x A x H) | 29 mm x 29 mm x 42 mm |
| Montura de lente | C-mount |
| Temperatura de funcionamiento | -30 - 60°C（Funcionamiento），-30 - 70°C（Almacenamiento） |
| Peso（Típico） | 100g |
| Controlador, SDK | Kit de desarrollo secundario de cámara de la Serie LEO（iDatum）o Software de terceros que cumpla con el Protocolo GigE Vision |
| Sistema operativo | Windows, Linux |
| Conformidad | GigE Vision y GenICam |
Lista de empaquetado
Descarga de documentación de LEO2 5470S-6GM/GC-Lite
