Q1: What is the resolution of the LEO2 1300D-60gNIR?
It provides 1.3MP resolution at 1224 × 1024 pixels.
Q2: Which image sensor does this camera use?
It uses a 2/3-inch CMOS global shutter sensor with a pixel size of 6.9 × 6.9 μm.
Q3: What is the benefit of its global shutter?
Global shutter captures the image simultaneously across the sensor, helping reduce motion distortion when imaging moving objects.
Q4: What is the maximum frame rate?
The camera supports a maximum frame rate of 59.2 fps at a resolution of 1224 × 1024.
Q5: Which interface does it support?
It features a GigE interface, supporting transmission distances of up to 100 meters without a repeater. It is compatible with the GigE Vision protocol and GenICam standard, and supports Windows and Linux.
Q6: What applications is this camera suitable for?
Typical applications include near-infrared imaging, electronic component inspection, food sorting, textile inspection, material identification, plastic sorting and recycling, and industrial automation.

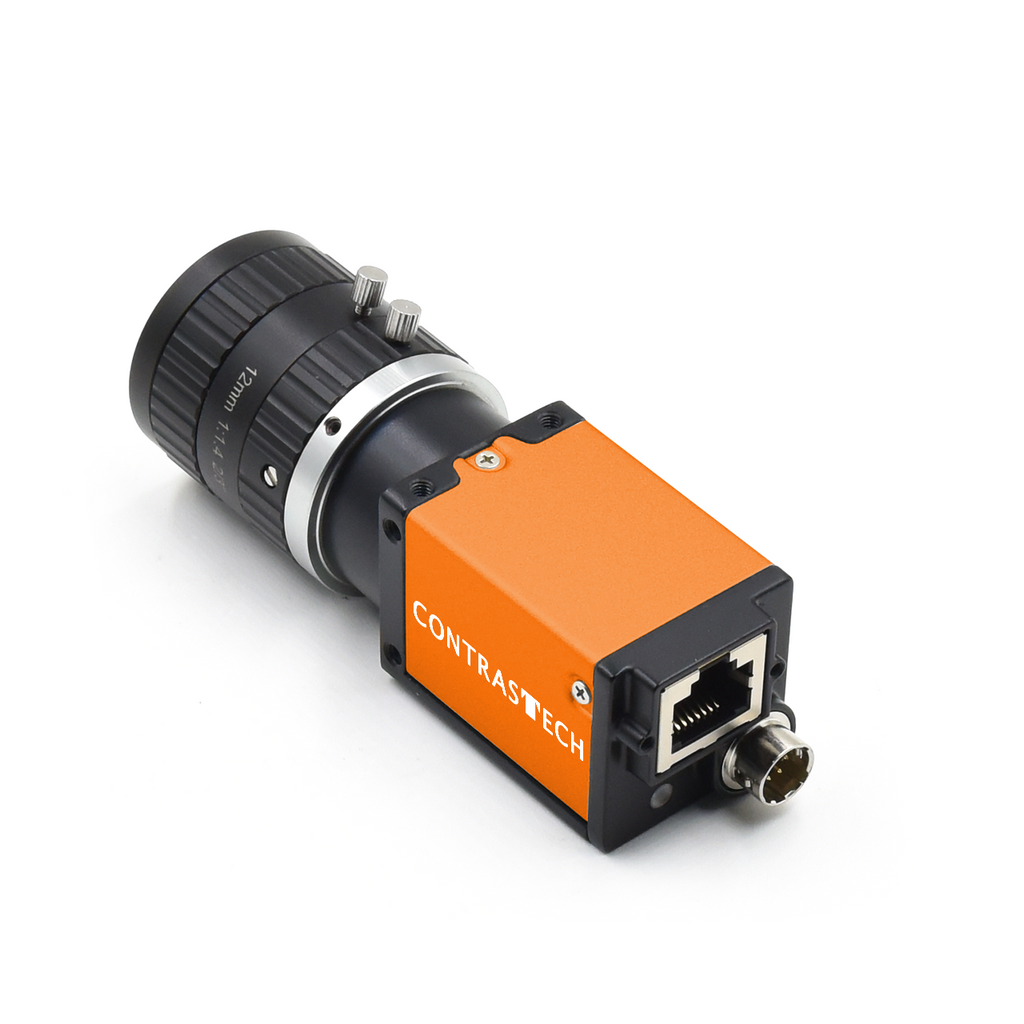

Q2: Which image sensor does this camera use?
It uses the Sony IMX265 CMOS sensor with a 1/1.8-inch sensor format and 3.45 μm pixels.
Q3: What is the benefit of its global shutter?
Global shutter captures the image simultaneously across the sensor, helping reduce motion distortion when imaging moving objects.
Q4: What is the maximum frame rate?
The specified frame rate is 38 fps.
Q5: Which interface and lens mount does it support?
It features a GigE interface and a standard C-mount.
Q6: What applications is this camera suitable for?
Typical applications include AOI, surface inspection, defect detection, dimensional measurement, and visual positioning.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Descripción
La MARS5000A-23GC/GM-NP es una cámara GigE Vision de alto rendimiento que incorpora un sensor de 1/2.5" con resolución de 5MP y una tasa de fotogramas de 23FPS. Ofrece una calidad de imagen excepcional para diversas aplicaciones industriales y científicas. Compacta y fiable, funciona sin PoE, lo que garantiza opciones de despliegue flexibles.
Parámetros del producto
| Serie | Mars |
| Resolución | 2592 px x 1944 px |
| Tamaño de píxel | 2.2 μm x 2.2 μm |
| Tasa de fotogramas | 23 fps |
| Mono/Color | Mono y Color |
| Fabricante del sensor | On Semiconductor |
| Sensor | AR0521 |
| Obturador | Obturador rodante |
| Tamaño del sensor | 1/2.5" |
| Tipo de sensor | CMOS |
| Rango dinámico | 60.0 dB |
| Relación señal-ruido (típico) | >38.0 dB |
| Interfaz | GigE |
| Profundidad de bits del píxel | 8 / 10 / 12 bits |
| Sincronización |
● Disparador suave ● Disparador de hardware ● Ejecución libre |
| E/S |
1 entrada (aislada ópticamente), |
| Fuente de alimentación | 6-24 VDC |
| Diseño | Diseño industrial compacto |
| Dimensiones (L x A x H) | 29 mm x 29 mm x 29 mm |
| Montura de lente | C-mount (CS-Mount puede personalizarse) |
| Temperatura de funcionamiento | -30 - 50°C (Operación), -30 - 80°C (Almacenamiento) |
| Peso (Típico) | 60g |
| Controlador, SDK | Kit de desarrollo secundario de cámara de la serie Mars (iCentral) o software de terceros que cumpla con el protocolo GigE Vision |
| Sistema operativo | Windows, Linux |
| Conformidad | GigE Vision y GenICam |
Lista de embalaje
Descarga de MARS5000A-23GC/GM-NP
