Descripción

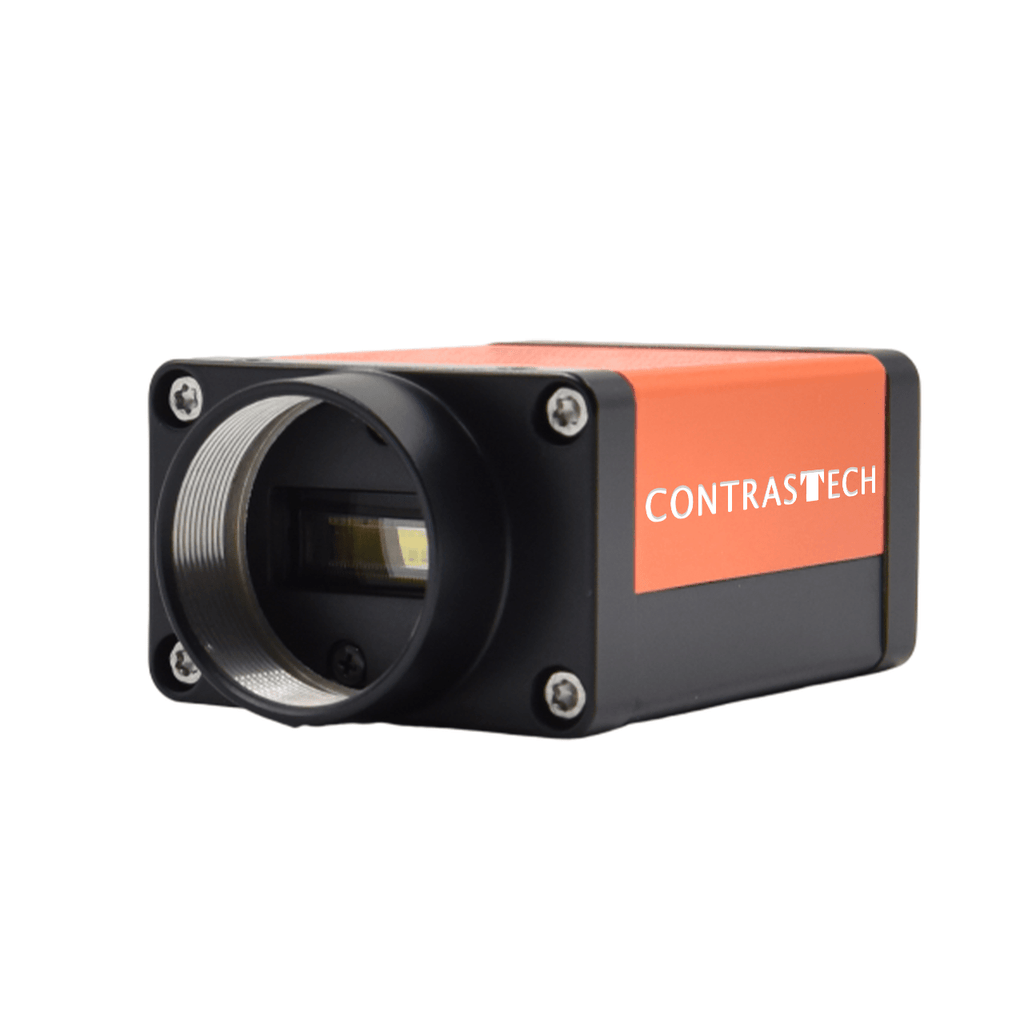

The Mars 16K 3.5μm M72-Mount Cameralink Line Scan Camera offers ultra-high 16,384-pixel resolution with a 3.5μm pixel size, making it perfect for applications demanding extreme detail,and the Cameralink interface ensures fast, high-bandwidth data transmission. Ideal for precision industrial inspections and high-speed imaging tasks.
Key Features
■16K @50 KHz
■ CameraLink supports Full, Medium, Base, and Deca，can provide up to 6.8Gbps theoretical bandwidth
■ Compatible with Cameralink Protocol, GenlCam Standard, and the third-party software based on these protocol and standard
■Support Windows
Product Specifications
| Model |
Resolution
|
Pixel Size
|
Mono/Color
|
Interface
|
|---|---|---|---|---|
|
Mars16001-L50cm
|
16384 x 1
|
3.5 × 3.5
|
Mono |
Cameralink
|
|
Line Rate
(Max. KHz)
|
50
|
|---|---|
|
Lens Mount
|
M72*0.75，BFL 12 mm
|
|
Data Bit
|
12 bit
|
Application
■ Agriculture sorting;
■ PCB inspection;
■ Paper surface inspection;
■ Textile surface inspection;
■ Railway inspection;
