Q1: What is the MARS25MG-30CM/CC used for?
A: It is a 25MP high-resolution Camera Link industrial camera designed for robot vision, precision inspection, and high-speed automation systems.
Q2: What is the advantage of Camera Link interface?
A: Camera Link provides high bandwidth and low latency transmission, making it ideal for real-time machine vision and high-speed inspection.
Q3: Does this camera support fast moving objects?
A: Yes, it uses a global shutter sensor, ensuring distortion-free imaging of moving objects on production lines.
Q4: What is the resolution of this camera?
A: The camera delivers a resolution of 25MP (2592 × 9720 or equivalent high-resolution format depending on configuration) for detailed inspection tasks.
Q5: Is it suitable for robot vision applications?
A: Yes, it is specifically designed for robot guidance, positioning, and automated inspection systems.
Q6: What industries commonly use this camera?
A: It is widely used in semiconductor manufacturing, electronics inspection, AOI systems, robotics, and industrial automation.
Q7: Is it suitable for real-time inspection?
A: Yes, the high-speed Camera Link interface ensures real-time image acquisition and processing.
Q8: Is the camera reliable for industrial environments?
A: Yes, it is built for continuous operation in high-load industrial environments with stable performance and robustness.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Beschreibung
Produktbeschreibung
Hochauflösende 25-MP-Camera-Link-Industriekamera für präzise Robotervision und Inspektion

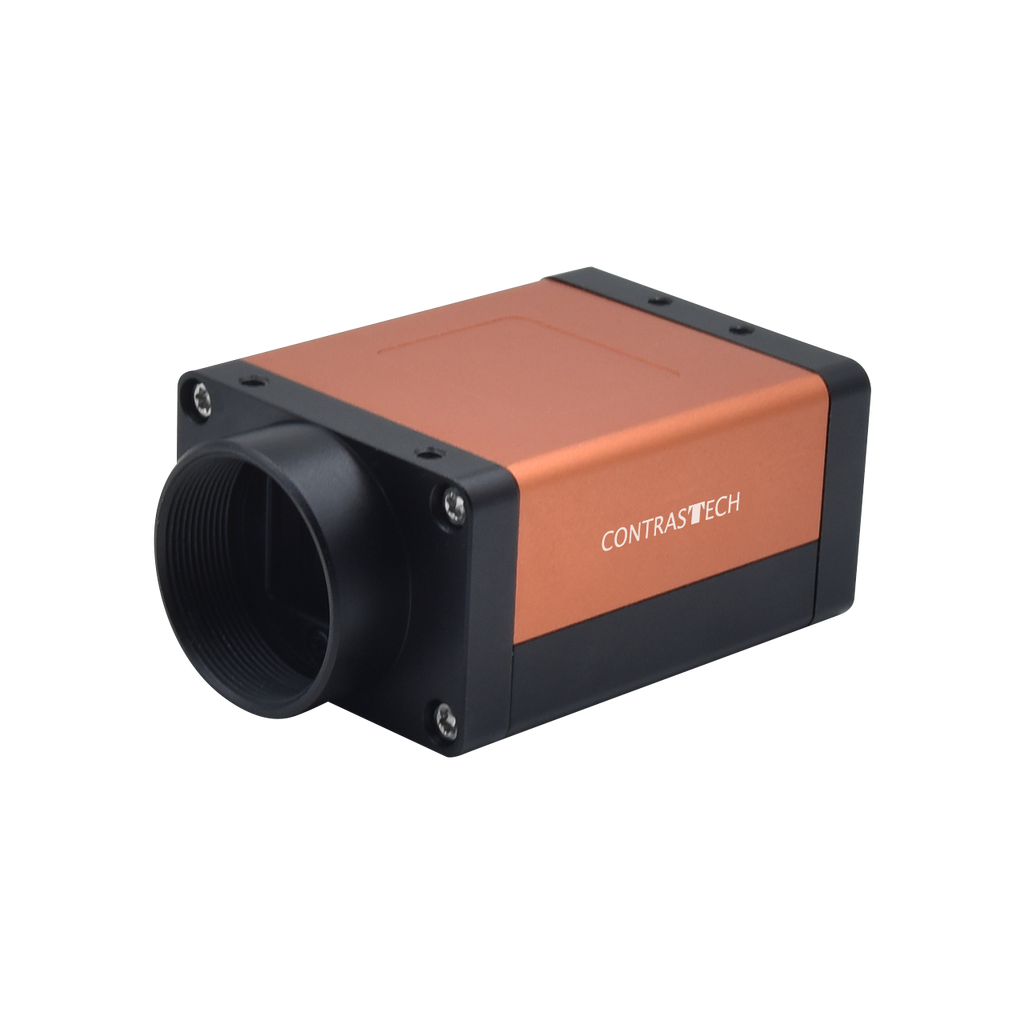

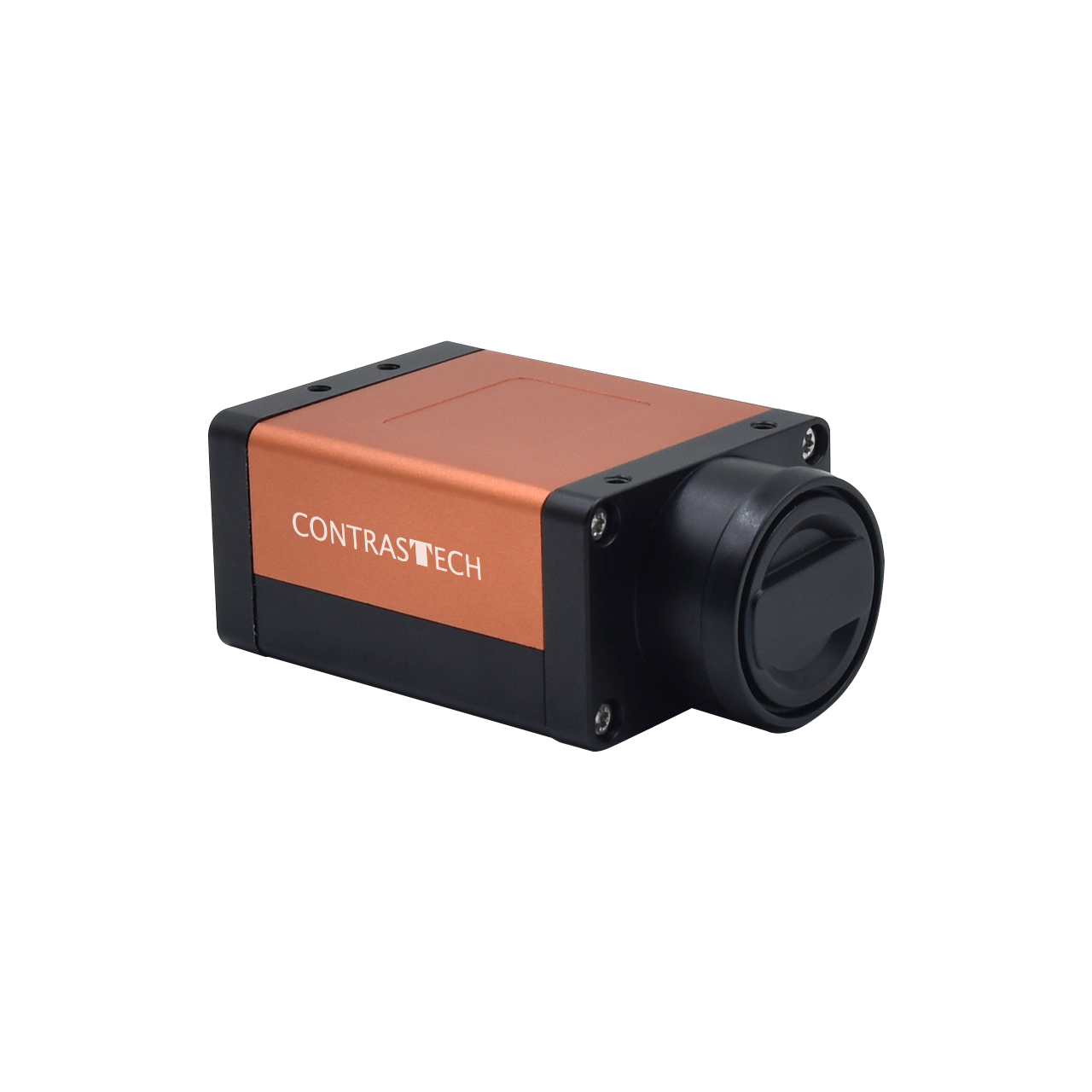

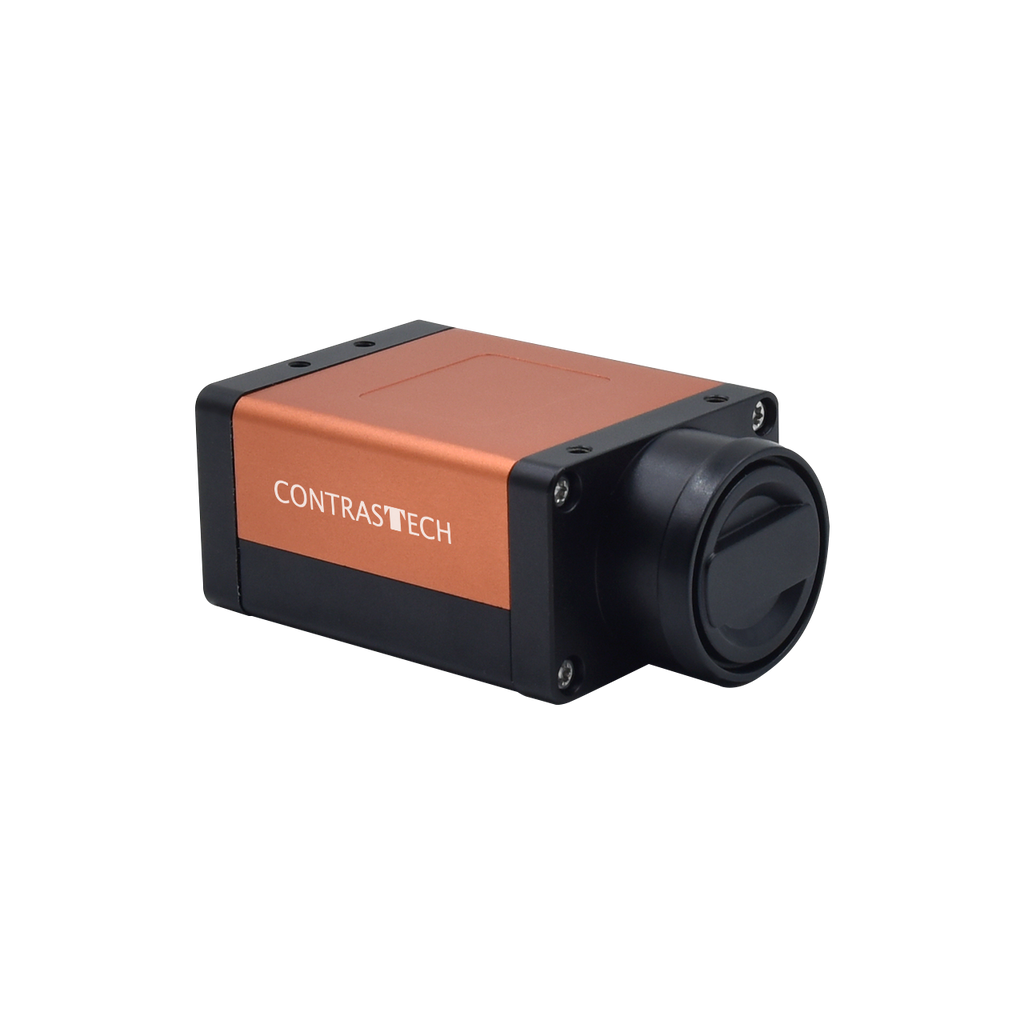

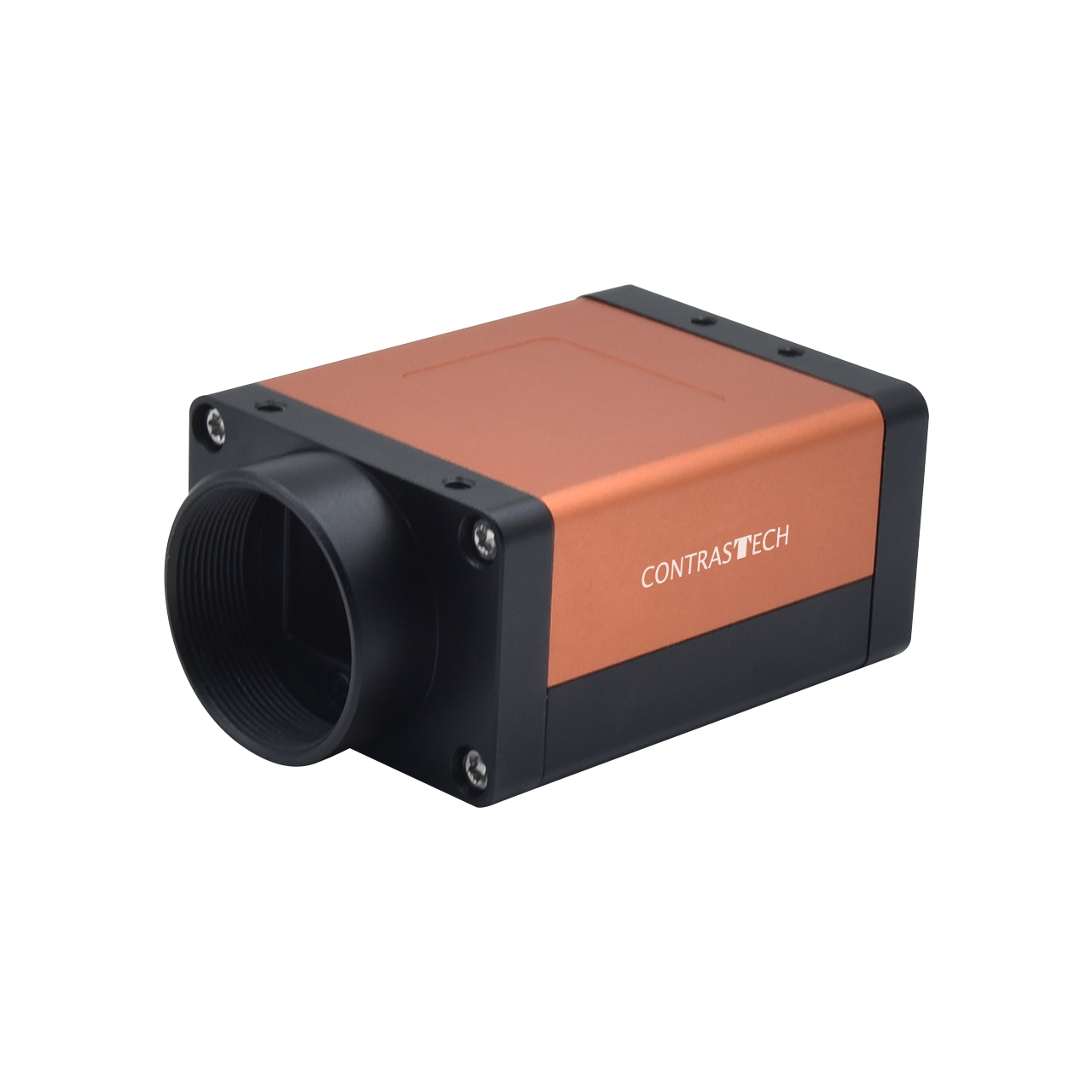

Die MARS25MG-30CM/CC ist eine leistungsfähige 25-MP-Camera-Link-Industriekamera, die für anspruchsvolle Anwendungen in Robotervision, Automatisierung und Präzisionsinspektion entwickelt wurde.
Ausgestattet mit einem Global-Shutter-Sensor liefert sie verzerrungsfreie Bilder von schnell bewegten Objekten und sorgt so für genaue Messungen und zuverlässige Fehlererkennung in hochgeschwindigkeitsorientierten industriellen Umgebungen.
Dank ihrer Camera-Link-Schnittstelle bietet die Kamera eine ultraschnelle Datenübertragung mit geringer Latenz, die für Echtzeit-Machine-Vision-Systeme geeignet ist. Sie ist für Anwendungen optimiert, die hohe Auflösung, hohen Durchsatz und determiniertes Bildgebungsverhalten erfordern.
Für industrielle Zuverlässigkeit gebaut, unterstützt die MARS25MG-30CM/CC den Dauerbetrieb in komplexen Automatisierungssystemen wie Robotik, AOI, Halbleiterinspektion und Hochpräzisionsfertigung.
Hauptmerkmale
✔ 25-MP-Ultra-Hochauflösende Bildgebung
Liefert extrem detaillierte Bilder für die Präzisionsinspektion.
✔ Camera-Link-Hochgeschwindigkeitsschnittstelle
Ermöglicht Datenübertragung mit extrem niedriger Latenz und hoher Bandbreite.
✔ Global-Shutter-Sensor
Stellt eine verzerrungsfreie Bildgebung von schnell bewegten Objekten sicher.
✔ Optimiert für Robotervisionssysteme
Entwickelt für automatisierte Positionierung und präzise Führung.
✔ Industrielle Zuverlässigkeit
Stabiler Betrieb in Umgebungen mit hoher Geschwindigkeit und hoher Last.
✔ Echtzeit-Machine-Vision-Leistung
Unterstützt anspruchsvolle Inspektions- und Automatisierungsabläufe.
Ideale Anwendungen
- Robotervisionssysteme
- Halbleiterinspektion
- Hochgeschwindigkeits-Industrieautomatisierung
- Präzisionsmessung
- AOI (Automated Optical Inspection)
- Elektronikfertigung
- Fehlererkennungssysteme
- Produktionslinien intelligenter Fabriken
Produktspezifikationen
| Serie | MARS25MG-30CM/CC |
| Auflösung | 5120 px x 5120 px |
| Pixelgröße | 2,5 μm x 2,5 μm |
| Bildrate | 30 fps |
| Mono/Farbe | Mono und Farbe |
| Sensor | Gpixel GMAX0505 |
| Verschluss | Global Shutter |
| Sensorgröße | 1,1" |
| Sensortyp | CMOS |
| Signal-Rausch-Verhältnis (typisch) | >35,0 dB |
| Schnittstelle | Cameralink |
| Pixel-Bittiefe | 10 Bit |
| Synchronisation |
|

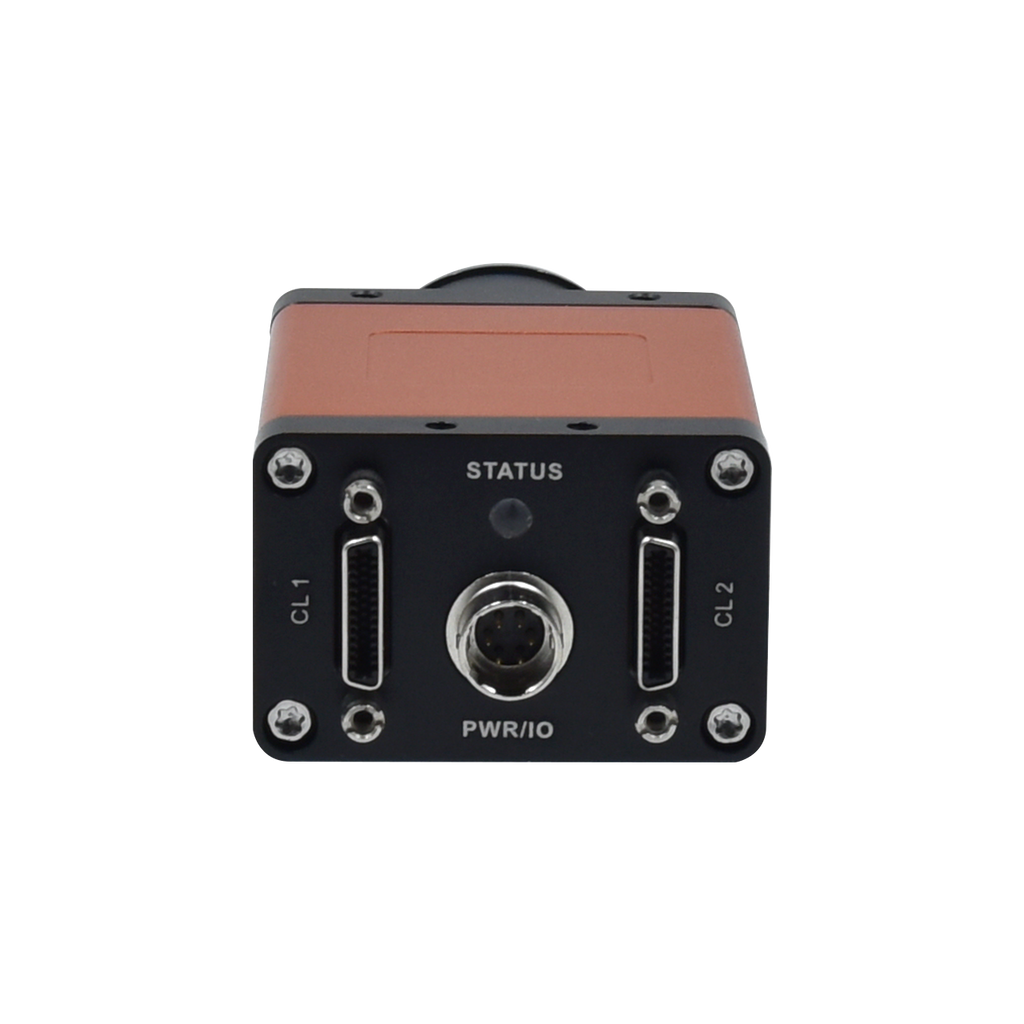

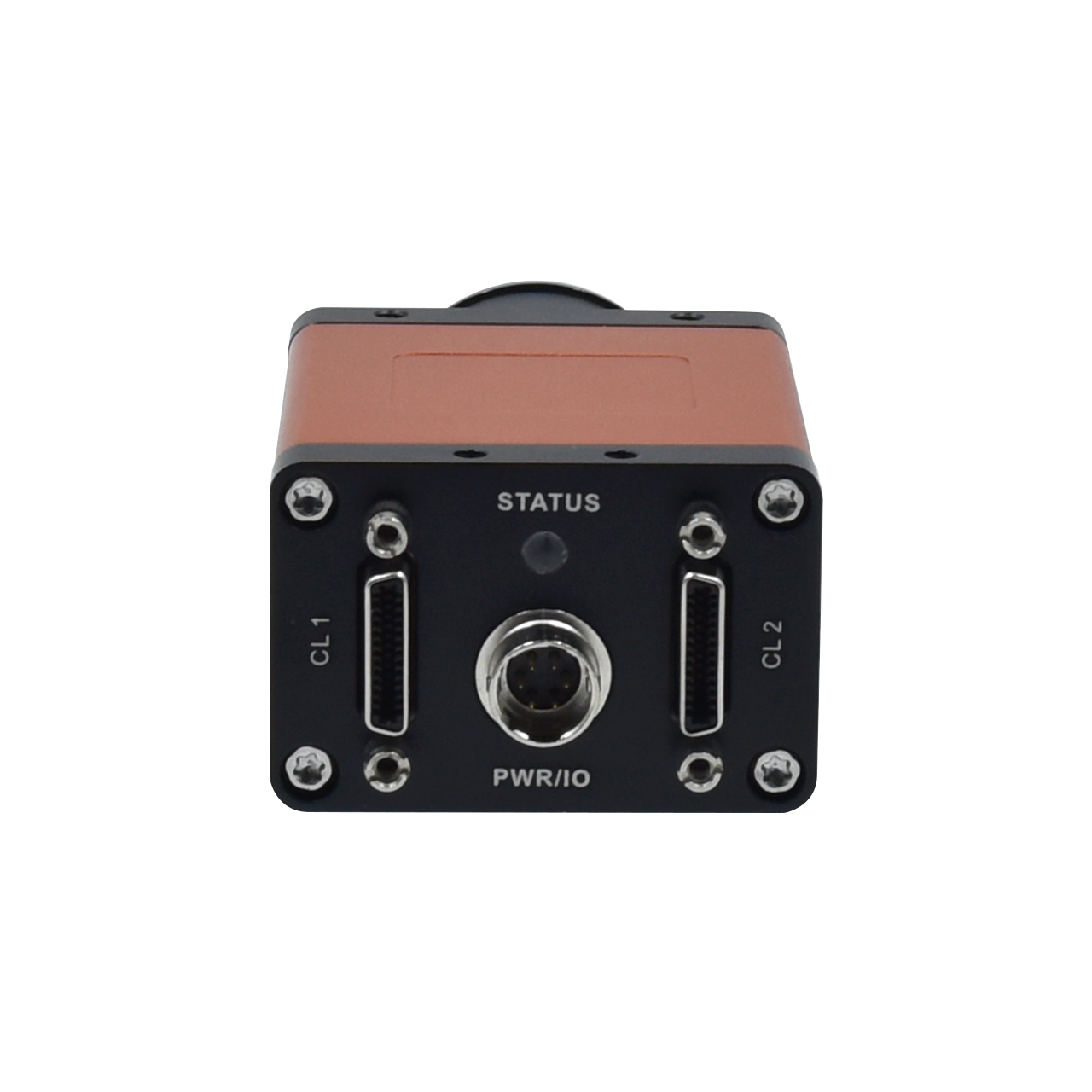

| I/O | Opto-entkoppelte Eingabe x 1, opto-entkoppelte Ausgabe x 1 und bidirektionaler benutzerdefinierter nicht-entkoppelter I/O x 1 |
| Stromversorgung | PoCL, DC 9-24V |
| Design | Kompaktes Industriedesign |
| Abmessungen (L x B x H) | 29,0 × 44,0 × 58,0 mm |
| Objektivanschluss | C-Bajonett |
| Betriebstemperatur | -30 - 50°C (Betrieb), -30 - 80°C (Lagerung) |
| Gewicht (typisch) | 100g |
| Treiber, SDK | Mars-Serie-Kamerasoftware-Suite (iCentral) oder Cameralink-Protokoll-Software von Drittanbietern |
| Betriebssystem | Windows |
| Konformität | Cameralink und GenICam |
Packliste
MARS25MG-30CM/CC Katalog herunterladen
