Q1: What applications is the MARS151MSC-6XM/C-M72 suitable for?

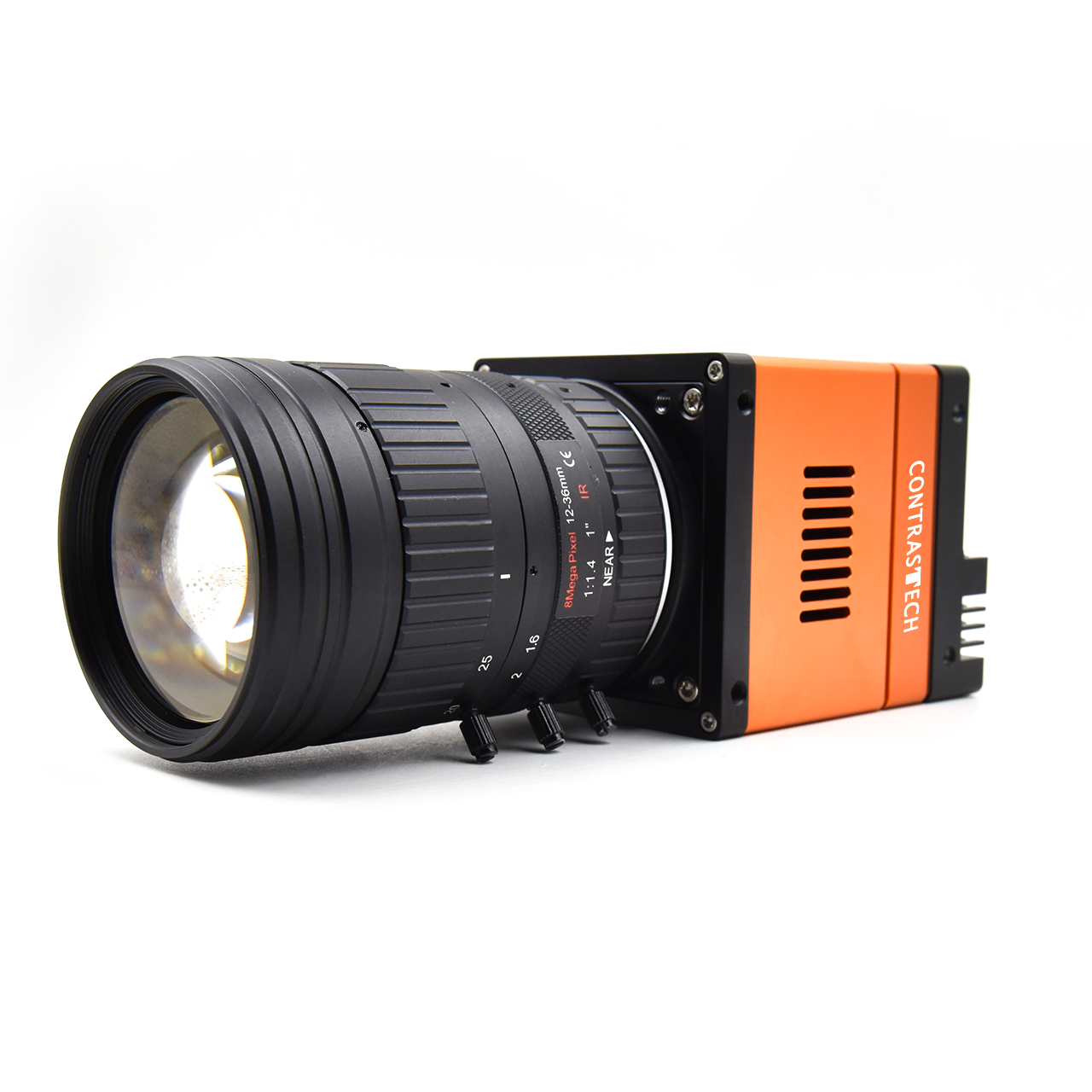

A: The camera is designed for high-resolution AOI inspection, including PCB inspection, semiconductor inspection, wafer inspection, flat panel inspection, and precision measurement applications.
Q2: What sensor does the MARS151MSC-6XM/C-M72 use?
A: It uses the Sony IMX411 150MP CMOS sensor with a large 53.4 × 40.0 mm sensor format and 3.76μm pixel size for detailed imaging.
Q3: Why is this camera suitable for large-area AOI inspection?
A: With 14192 × 10640 ultra-high resolution, the camera can capture large inspection areas with fine details, helping reduce image stitching requirements.
Q4: What interface does the camera support?
A: The MARS151MSC-6XM/C-M72 uses a CoaXPress interface, providing high-speed and reliable image transmission for demanding industrial vision systems.
Q5: What type of lens is compatible with this camera?

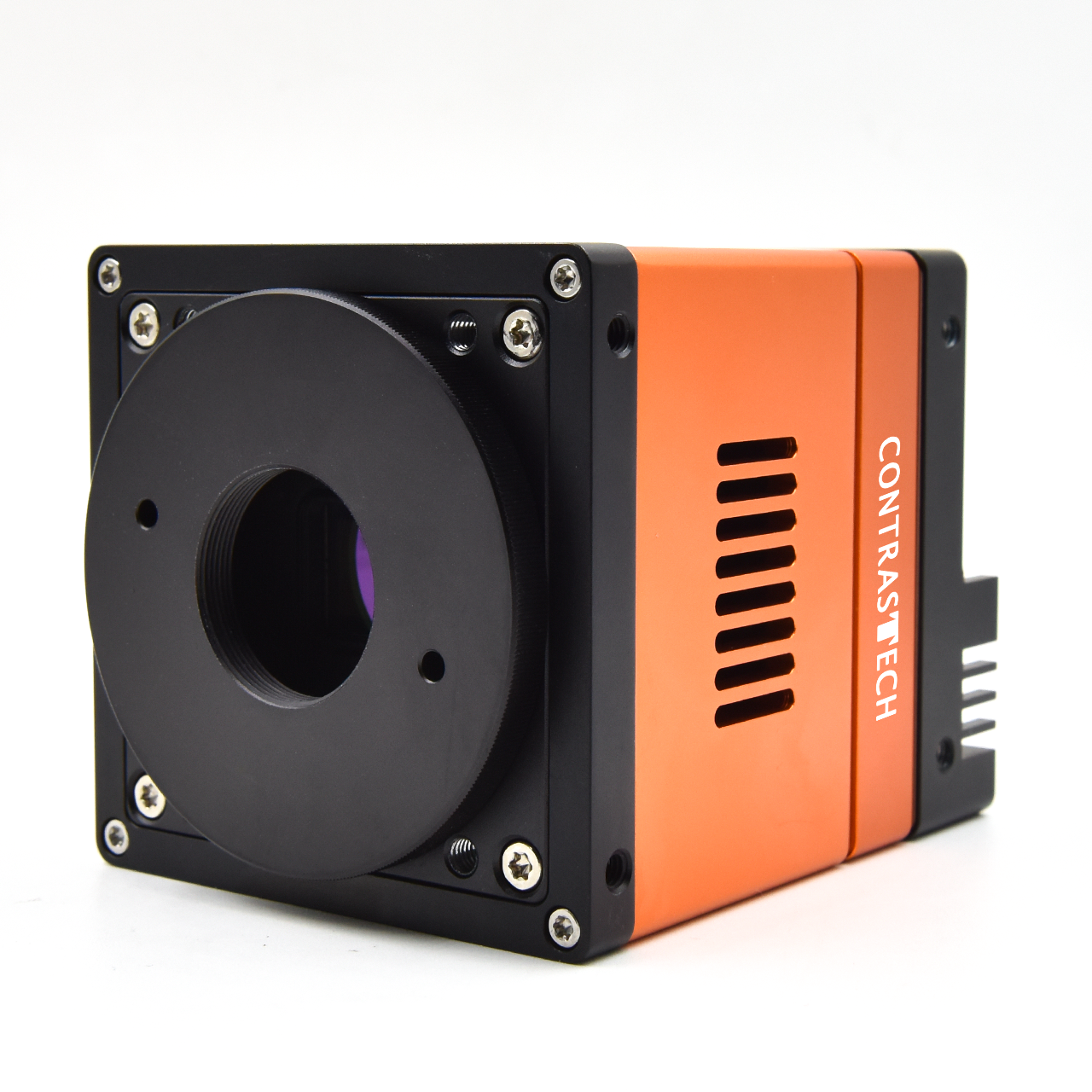

A: The camera features an M72 lens mount, designed for use with large-format lenses to fully utilize the large sensor area.
Q6: What advantages does a 150MP industrial camera provide for AOI systems?
A: A 150MP camera enables higher defect detection accuracy, larger field of view coverage, and detailed imaging of complex components in advanced inspection systems.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Beschreibung
Produktbeschreibung

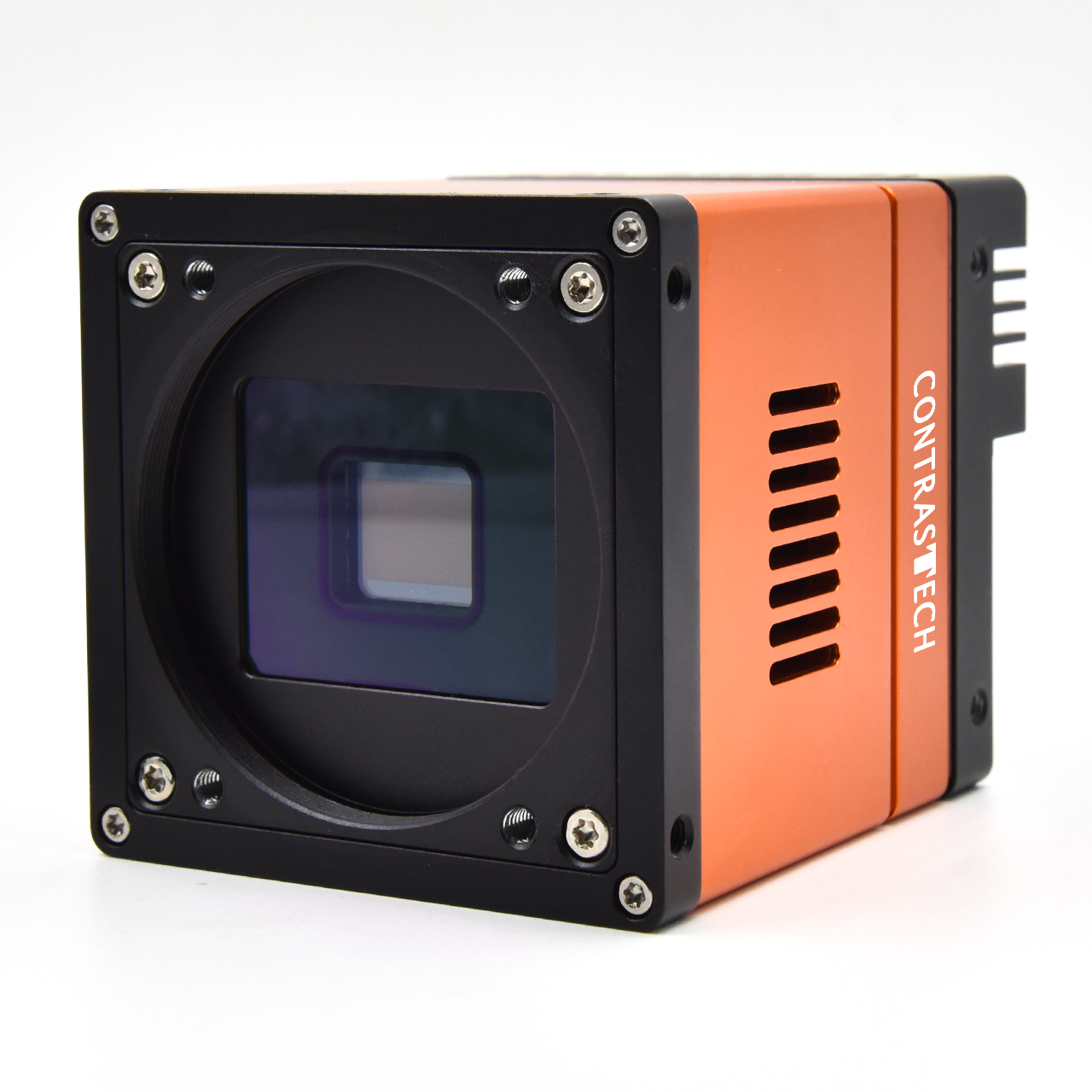

Die MARS151MSC-6XM/C-M72 ist eine 150-MP-CoaXPress-Flächenkamera, die für hochauflösende AOI- und industrielle Inspektion entwickelt wurde. Ausgestattet mit dem Sony IMX411 CMOS-Sensor erfasst sie 14192 × 10640 Bilder mit 6,1 fps und ermöglicht die präzise Inspektion großer PCBs, Halbleiterwafer, Flachbildschirme und anderer hochpräziser Komponenten.
Mit einem 53,4 × 40,0 mm großen Sensor, 3,76 μm Pixeln, CoaXPress-Hochgeschwindigkeitsübertragung und M72-Objektivanschluss liefert sie herausragende Bildeinzelheiten und zuverlässige Leistung für anspruchsvolle Machine-Vision-Systeme.
Hauptmerkmale
- 150-MP-Sony-IMX411-Sensor
- 14192 × 10640 Ultra-Hochauflösung
- 6,1 fps CoaXPress-Schnittstelle
- Großformat-Sensor 53,4 × 40,0 mm
- M72-Anschluss für Großformat-Objektive
Anwendungen
- PCB-AOI-Inspektion
- Halbleiterinspektion
- Wafer-Inspektion
- Flachbildschirm-Inspektion
- Inspektion der elektronischen Montage
- Präzisionsmesstechnik
Produktparameter
| Serie | Mars |
| Auflösung | 14192 px x 10640 px |
| Pixelgröße | 3,76 μm x 3,76 μm |
| Bildrate | 6,2 fps |
| Mono/Farbe | Mono/Farbe |
| Sensor-Hersteller | Sony |
| Sensor | IMX411 |
| Verschluss | Rolling Shutter |
| Sensorgröße | 66,7 mm |
| Sensortyp | CMOS |
| Dynamikbereich | 78 dB |
| Schnittstelle | CoaXPress |
| Pixel-Bittiefe | 12 bit |
| Synchronisation | Soft Trigger, Hardware Trigger, Free Run |
| I/O | Opto-isolierte Eingänge x 3, opto-isolierte Ausgänge x 3 und RS232 x 1 |
| Stromversorgung | PoCXP / DC 24V |
| Abmessungen (L x B x H) | 110,0 × 110,0 × 90,1 mm |
| Objektivanschluss | M72*0.75 |
| Arbeitstemperatur | -30~80 °C (Lagerung), -10~50°C (Betrieb) |
| Gewicht (typisch)/ | 1000g |
| Treiber, SDK | Frame-Grabber-Software entspricht dem CoaXPress-Protokoll |
| Betriebssystem | Windows |
| Konformität | Coaxpress Vision und GenICam |
Packliste
