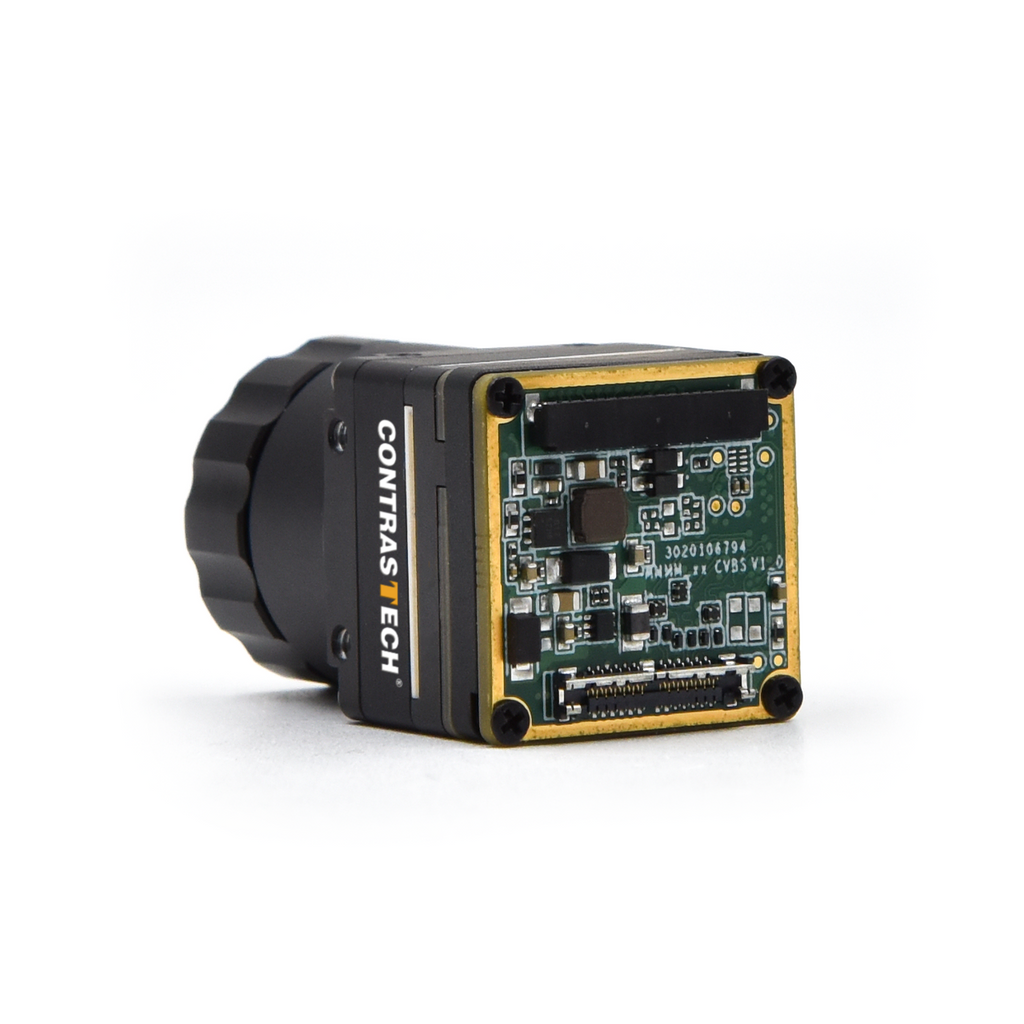

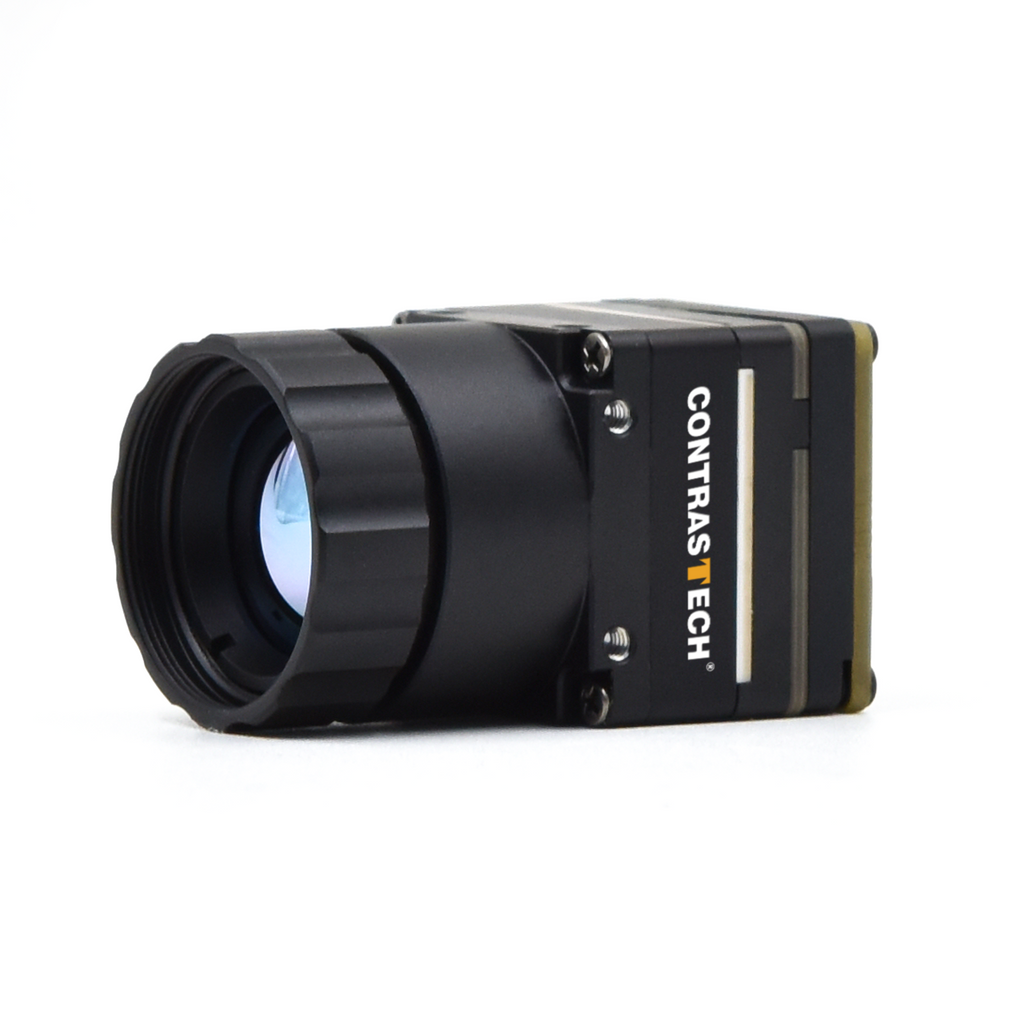

The iRP(SL)1280LW LWIR Thermal Camera Module features a high-resolution 1280×1024 uncooled VOx infrared detector, delivering exceptional thermal imaging performance in the 8–14μm long-wave infrared range. With ≤30mK ultra-low NETD, it ensures precise temperature detection even in challenging environments.
Designed for low power consumption (≤1.2W) and compact integration, this module supports USB3.0, MIPI, and multiple industrial interfaces, making it ideal for thermal imaging, security surveillance, industrial inspection, and night vision applications.
Compatible with a wide range of fixed, motorized, and zoom lenses (up to 300mm), and supported by Windows/Linux SDK, it enables seamless integration into advanced machine vision and infrared systems.
Product Parameters
| Model |
iRPSL1280LW
|
| Shutterless | Support |
| Resolution | 1280 px x 1024 px |
| Pixel Size | 12 μm x 12 μm |
|
Image Processing
|
NUC/DRC/DNS/DDE/SFFC
|
|
Digital Zoom
|
1x/2x/4x/8x
|
| Frame Rate | 25HZ/30HZ/50HZ |
| NETD |
≤ 30mk/F1.0/25℃
|
| Spectral Range | 8~14μm |
|
Digital Video Format
|
YUV420/YUV422/RGB888/RAW
|
|
Brightness & Contrast
|
Manual / Auto
|
|
Image Display
|
Black Hot/White Hot
|
|
Image Mirroring
|
Left-Right/Up-Down/Diagonal
|
|
Pseudo Color
|
Support
|
|
Super-Resolution Algorithm
|
Support
|
|
Size
|
38×39×28mm /65±3g
(14/19/25/35mm Lens)
|
|
Operating Temperature
Range
|
-40℃ ~+70℃
|
|
Vibration
|
5.35g Random Vibration, Three Axes, 3min/Axis
|
| Lens |
Athermalized Fixed Focus:
14/19/25/35/50/100mm
Motorized Focus:
75/100/150mm
Continuous Zoom:
25~75mm/28~90mm/30~180mm/25~225mm/30~300mm
|
CONNECTIVITY :
| Interface |
50pin: BP040SB-50-0114-B-R0
|
|
Communication
Interface
|
TTL-232/USB3.0
|
|
Power Supply
|
2.7V~5.3V
|
|
Typical Power Consumption
(Non-Extended Version)
|
≤ 1.2W@25hz@23±3℃
|
|
Digital Video
|
DVP16/BT1120/USB3.0/MIPI-DSI-4LANE
|
|
Extended Version
|
USB3.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE
|
| Model Number | iVaster1280LW |
| Sensor Type | Uncooled VOx Microbolometer |
| Resolution | 1280 x 1024 |
| Pixel Size | 12μm |
| Frame Rate | 30Hz |
| Spectral Range | 8 ～ 14μm |
| NETD | ≤ 50mK@25℃（≤ 40mk Optional） |
| Via 70pin output trigger | LVCMOS/BT.1120/MIPI |
| Via extend board | USB3.0 Type-C |
| USB-Type C Port | Typical voltage 5V, support image and temperature data transmission, support control protocol |
| Input Supply Voltage | 4.0-5.5V |
| Dimension/Weight | 29×29mm/24.5g |
| Operating Temperature | -40℃～ +80℃ |
| Focal Length | 10/35/50/75mm |
| Polarity | Black Hot/White Hot |
| Pseudo-Color | Support multiple |
| Cross | Show/hide/move |
iRPSL1280LW IR Camera Module Download
