Q1: What is the BTL-H1 Series used for?
A: The BTL-H1 Series is designed for high-precision machine vision, metrology, semiconductor inspection, and automated optical inspection (AOI) applications requiring ultra-low distortion imaging.
Q2: What sensor size is the BTL-H1 Series compatible with?
A: It is optimized for 1-inch area scan sensors (Φ16.4mm image circle), making it suitable for high-resolution industrial cameras.
Q3: What is a bi-telecentric lens?
A: A bi-telecentric lens maintains constant magnification from both object and image side, ensuring highly accurate and repeatable measurements.
Q4: What is the magnification range of this lens?
A: The BTL-H1 Series supports a wide magnification range from 0.055X to 0.638X, suitable for various inspection tasks.
Q5: How accurate is this lens for measurement applications?
A: It offers ultra-low distortion (<0.1%) and high telecentricity (<0.1°), ensuring extremely precise dimensional measurement.
Q6: What industries commonly use this lens?
A: It is widely used in semiconductor manufacturing, electronics inspection, metrology systems, AOI, and industrial automation.
Q7: What mount type does this lens use?
A: The lens uses a standard C-Mount interface, compatible with most industrial machine vision cameras.
Q8: Why choose a bi-telecentric lens over a standard lens?
A: Bi-telecentric lenses eliminate perspective errors, providing stable magnification and highly repeatable measurement accuracy, which is critical for precision inspection.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.

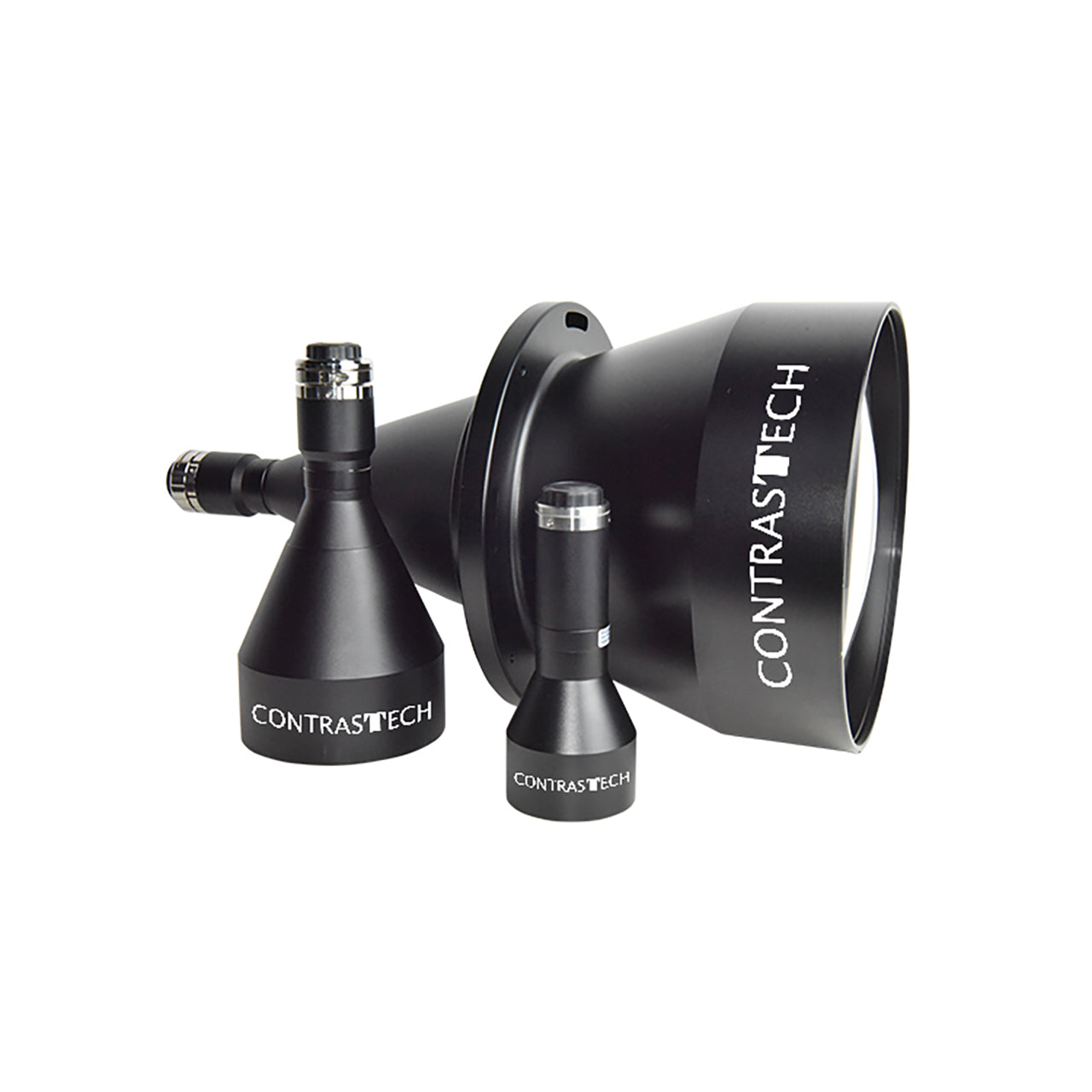

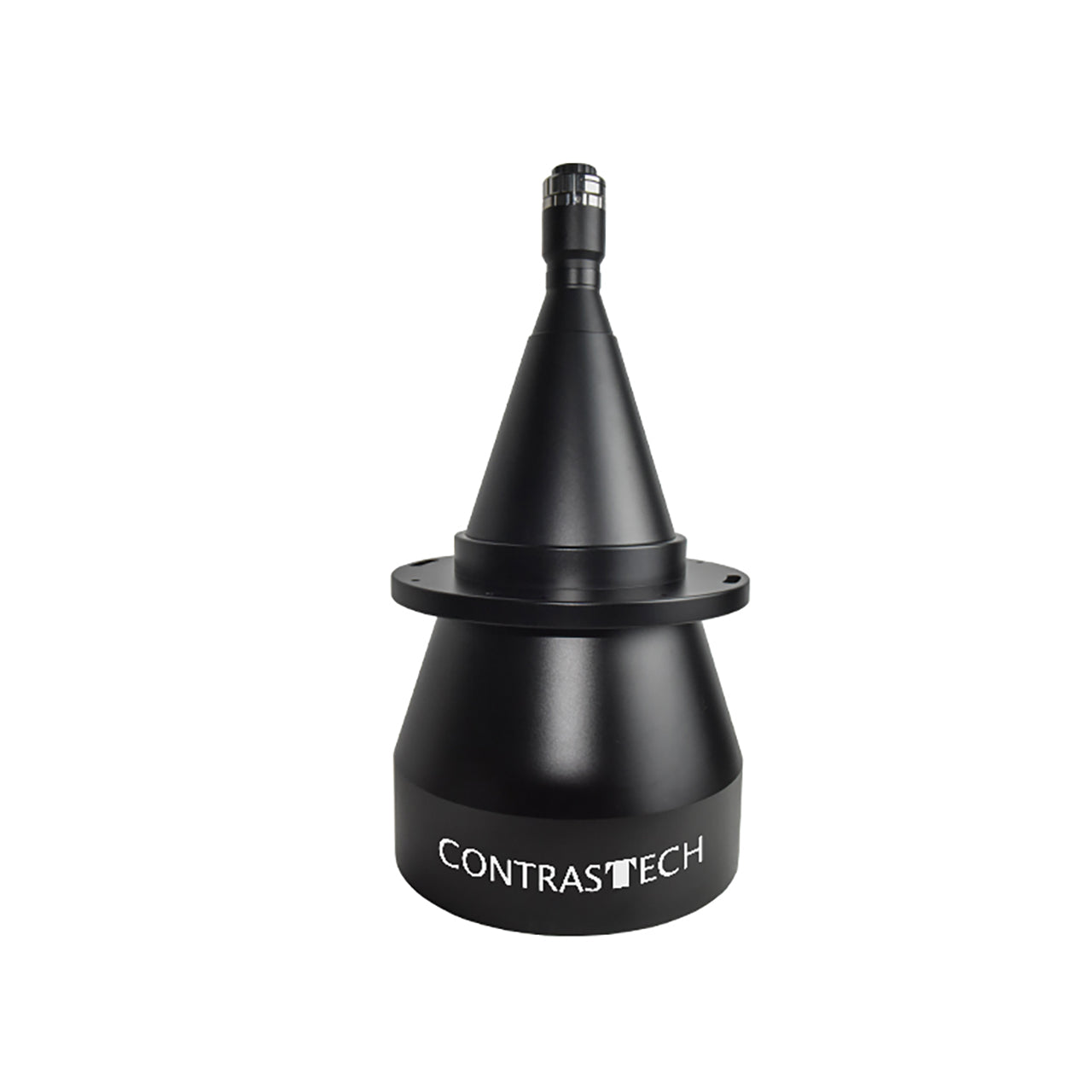

Description
وصف المنتج

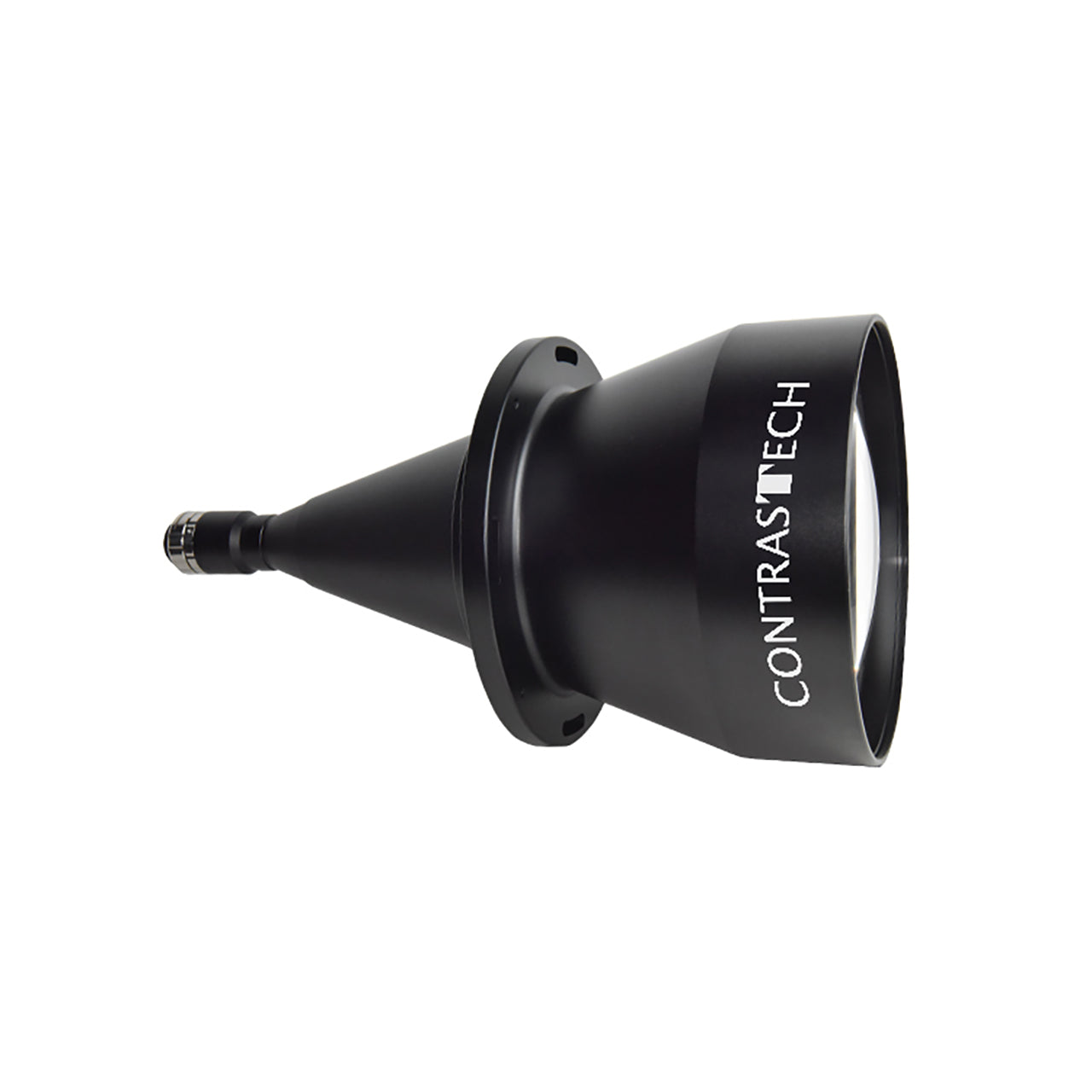

عدسة ثنائية التيليسنترية عالية الدقة لتطبيقات الرؤية الآلية والقياسات للمحسوسات ذات الحجم 1 بوصة
صُممت عدسات BTL-H1 الثنائية التيليسنترية لأنظمة التفتيش الصناعي والقياسات عالية الدقة، ومحسّنة للمحسوسات الماسحة للمساحة ذات الحجم 1 بوصة. مع نطاق تكبير يتراوح من 0.055X إلى 0.638X، توفر هذه العدسات حلول تصوير مرنة لمجموعة واسعة من مهام القياس والتفتيش.
تتميز بتصميم بصري ثنائي التيليسنتري، تضمن سلسلة BTL-H1 تشويهاً منخفضاً للغاية (<0.1%) وتكبيراً متسقاً للغاية عبر مجال الرؤية بأكمله. يضمن ذلك دقة قياس مستقرة وقابلة للتكرار، حتى في البيئات الصناعية الصعبة.
صُممت للتكامل مع التركيب C-Mount، تدعم العدسة التركيب السهل في أنظمة الرؤية الآلية المستخدمة في القياس الأبعادي، وتفتيش العيوب، والتحكم الآلي في الجودة.
الميزات الرئيسية
✔ مُحسّنة للمحسوسات ذات الحجم 1 بوصة (Φ16.4mm)
متوافقة مع كاميرات المسح الصناعي عالية الدقة.
✔ نطاق تكبير واسع (0.055X–0.638X)
تصوير مرن لمتطلبات تفتيش مختلفة.
✔ تشويه منخفض للغاية (<0.1%)
يضمن دقة هندسية عالية للقياس الدقيق.
✔ تيليسنترية عالية (<0.1°)
يحافظ على تكبير مستقر عبر مجال الرؤية الكامل.
✔ تصميم بصري ثنائي التيليسنتري
يقلل من أخطاء المنظور للحصول على تصوير دقيق للغاية.
✔ توافق مع التركيب C-Mount
تكامل سهل في أنظمة الرؤية الآلية الصناعية.
التطبيقات المثالية
- القياسات الدقيقة
- تفتيش أشباه الموصلات
- تصنيع الإلكترونيات
- أنظمة القياس الأبعادي
- التفتيش البصري الآلي (AOI)
- التحكم الصناعي في الجودة
- أتمتة الرؤية الآلية
- كشف العيوب عالي الدقة
| الموديل |
WD(mm)
|
FOV(Φmm)
|
Mag.(x)
|
|---|---|---|---|
|
BTL-0.638X-73-H1
|
73±1
|
26 | 0.638 |
|
BTL-0.46X-110-H1
|
110±2
|
36 | 0.46 |
|
BTL-0.395X-118-H1
|
118±3
|
42 | 0.395 |
|
BTL-0.346X-128-H1
|
128±3
|
48 | 0.346 |
|
BTL-0.346X-138-H1(LM)
|
138±3
|
48 | 0.346 |
|
BTL-0.296X-138-H1(LM)
|
138±3
|
56 | 0.296 |
|
BTL-0.259X-158-H1(LM)
|
158±3
|
64 | 0.259 |
|
BTL-0.231X-178-H1(LM)
|
178±3
|
72 | 0.231 |
|
BTL-0.208X-228-H1(LM)
|
228±4
|
80 | 0.208 |
|
BTL-0.184X-208-H1(LM)
|
208±3
|
90 | 0.184 |
|
BTL-0.166X-238-H1(LM)
|
258±4
|
100 | 0.166 |
|
BTL-0.151X-263-H1(LM)
|
263±4
|
110 | 0.151 |
|
BTL-0.138X-273-H1(LM)
|
273±5
|
120 | 0.138 |
|
BTL-0.122X-288-H1(LM)
|
288±5
|
136 | 0.122 |
|
BTL-0.11X-300-H1(LM)
|
300±5
|
150 | 0.11 |
|
BTL-0.098X-318-H1(LM)
|
318±5
|
170 | 0.098 |
|
BTL-0.087X-330-H1(LM)
|
330±5
|
190 | 0.087 |
|
BTL-0.077X-372-H1(LM)
|
372±5
|
216 | 0.077 |
|
BTL-0.069XH-410-H1(LM)
|
410±6
|
240 | 0.069 |
|
BTL-0.064X-338-H1(LM)
|
338±5
|
258 | 0.064 |
|
BTL-0.055XH-465-H1(LM)
|
465±6
|
300 | 0.055 |
معلومات مهمة قبل الشراء
■ طول البؤرة الخلفية للموديل الذي يحمل علامة (LM) قابل للتعديل.
■ الوزن يختلف حسب مسافة العمل. إذا كان لديك أي أسئلة، فلا تتردد في التواصل معنا!
تنزيل عدسات التيليسنترية
