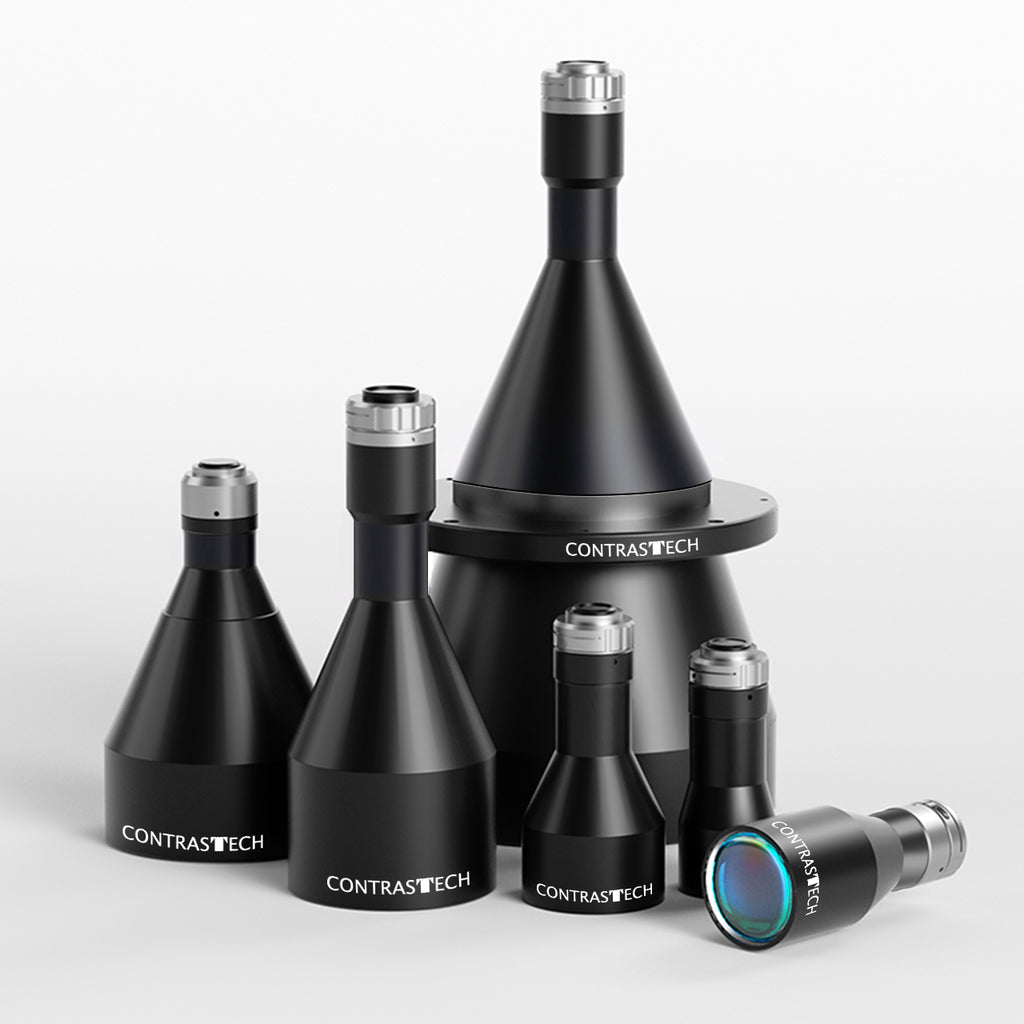

High Resolution Telecentric Lens | CLW2-10MP Series
The CLW2-10MP Series Telecentric Lens is designed for high-precision machine vision, industrial inspection, and metrology applications. Supporting up to 10MP resolution, this industrial telecentric lens delivers ultra-low distortion, constant magnification, and superior edge clarity, making it ideal for accurate measurement and defect detection.
Key Features
- ✔ High Resolution Telecentric Lens (Up to 10MP / 12MP compatible)
- ✔ Ultra-low distortion (<0.1%) for precision measurement
- ✔ High telecentricity for consistent magnification
- ✔ Long working distance (WD 110mm / 180mm / 190mm / 220mm)
- ✔ Large depth of field (DOF) for stable imaging
- ✔ Optional coaxial illumination for reflective surfaces
- ✔ C-Mount compatible, supports up to 1.1" sensors
| Model |
Mag.(x)
|
WD(mm)
|
Max. Sesnor Size
(Φmm)
|
Distortion
(% max) |
Mount
|
|---|---|---|---|---|---|
|
CLW2-0.3X-180-118
|
0.3
|
180±2
|
9.0(1/1.8")
|
<0.1
|
C Mount
|
|
CLW2-0.3X-180-23
|
0.3
|
180±2
|
11.0(2/3")
|
<0.1
|
C Mount
|
|
CLW2-0.3X-180D-23
|
0.3
|
180±2
|
11.0(2/3")
|
<0.1
|
C Mount
|
|
CLW2-0.14X-190-125
|
0.14
|
180±2
|
7.2(1/2.5")
|
<0.1
|
C Mount
|
|
CLW2-0.22X-200-118
|
0.22
|
200±3
|
9.0(1/1.8")
|
<0.1
|
C Mount
|
|
CLW2-0.22X-200-23
|
0.22
|
200±3
|
11.0(2/3")
|
<0.1 |
C Mount
|
|
CLW2-0.22X-200-23(LM)
|
0.22
|
200±3
|
11.0(2/3")
|
<0.05
|
C Mount
|
