Description

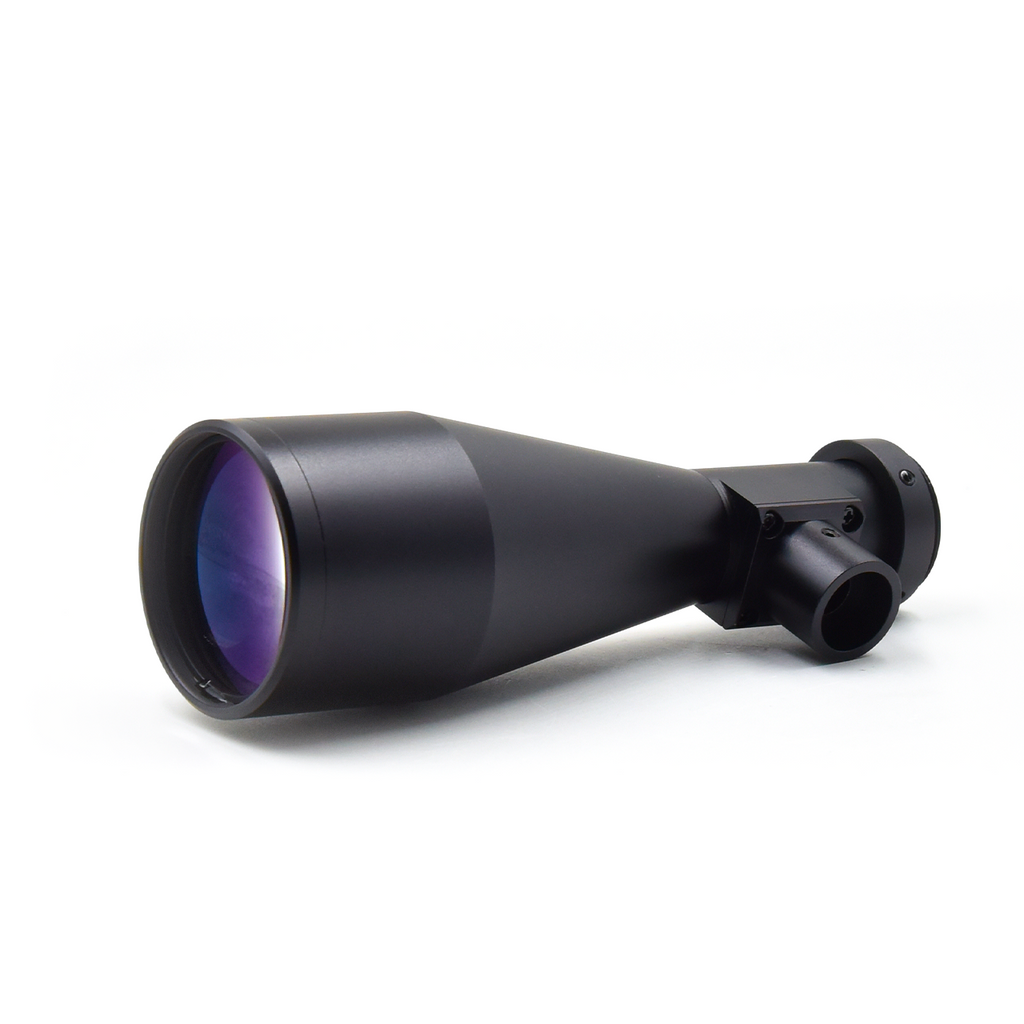

10MP High Resolution Telecentric Lens
The CLW2-10MP Telecentric Lens (110mm WD Series) is engineered for high-precision machine vision, industrial inspection, and metrology applications. With 0.3X to 4X magnification options, this industrial telecentric lens ensures constant magnification, ultra-low distortion, and high telecentricity, making it ideal for micron-level measurement and defect detection.
Key Features
- ✔ 10MP high resolution telecentric lens (up to 1.1” sensor compatible)
- ✔ Magnification range: 0.3X – 4X (flexible for different FOV needs)
- ✔ Long working distance: 110mm (easy system integration)
- ✔ Ultra-low distortion (<0.02%) for accurate measurement
- ✔ High telecentricity for consistent imaging accuracy
- ✔ Large depth of field (DOF) for stable inspection
- ✔ Optional coaxial illumination for reflective surfaces
- ✔ C-Mount industrial lens, easy to integrate
| Model |
Coaxial
|
Mag.（x）
|
DOF
（mm）
|
Max. Sesnor Size
(Φmm) |
Mount
|
|---|---|---|---|---|---|
|
CLW2-0.3X-110-23
|
No
|
0.3 |
±2.5@F5.6
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.3X-110D-23
|
Yes
|
0.3 |
±2.5@F5.6
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.4X-110-23
|
No | 0.4 |
±1.8@F7
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.4X-110D-23
|
Yes | 0.4 |
±1.8@F7
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.5X-110-23
|
No | 0.5 |
±1.1@F7
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.5X-110D-23
|
Yes | 0.5 |
±1.1@F7
|
11.0(2/3")
|
C Mount
|
|
CLW2-0.8X-110-H1.1
|
No | 0.8 |
±0.5@F7.9
|
18.0(1.1")
|
C Mount
|
|
CLW2-0.8X-110D-H1.1
|
Yes | 0.8 |
±0.5@F7.9
|
18.0(1.1")
|
C Mount
|
|
CLW2-1.0X-110-H1.1
|
No | 1 |
±0.3@F7
|
18.0(1.1")
|
C Mount
|
|
CLW2-1.0X-110D-H1.1
|
Yes | 1 |
±0.3@F7
|
18.0(1.1")
|
C Mount
|
|
CLW2-1.5X-110-H1.1
|
No | 1.5 |
±0.18@F10
|
18.0(1.1")
|
C Mount
|
|
CLW2-1.5X-110D-H1.1
|
Yes | 1.5 |
±0.18@F10
|
18.0(1.1")
|
C Mount
|
|
CLW2-2.0X-110-H1.1
|
No | 2 |
±0.14@F13.5
|
18.0(1.1")
|
C Mount
|
|
CLW2-2.0X-110D-H1.1
|
Yes | 2 |
±0.14@F13.5
|
18.0(1.1")
|
C Mount
|
|
CLW2-3.0X-110-H1.1
|
No | 3 |
±0.09@F20.1
|
18.0(1.1")
|
C Mount
|
|
CLW2-3.0X-110D-H1.1
|
Yes | 3 |
±0.09@F20.1
|
18.0(1.1")
|
C Mount
|
10MP High Resolution Telecentric Lens Download
