Description

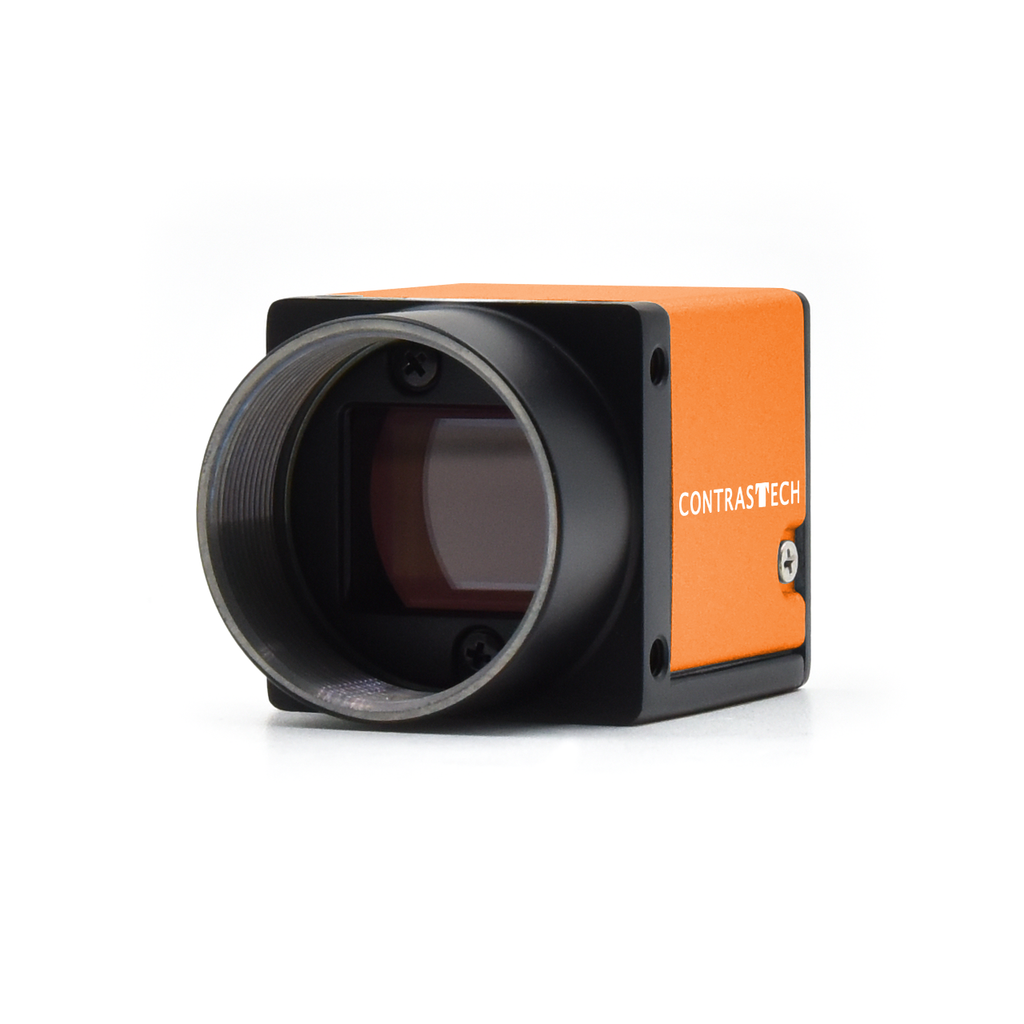

iCt90M/CU16A-Pro delivers 1.6MP high resolution imaging with stable performance
and advanced ISP features. Its ultra-low power, low heat, and USB power supply
ensure reliable operation even in harsh industrial environments.
● USB 3.0 interface, 5 Gbps theoretical data transfer bandwidth, USB-powered
● Supports gamma, LUT, denoise, sharpen, color tune
● Compatible with USB3 Vision protocol and GenICam standard
● Compact design with four-side mounting support, ideal for tight spaces and flexible
system integration.
Product Parameters
| Series |
iCt90MU16A-Pro - Mono |
| Resolution | 1440 px x 1080 px |
| Pixel size | 3.45 μm x 3.45 μm |
| Frame Rate | 249 fps |
| Mono/Color | Mono and Color |
| Sensor Vendor | Sony |
| Sensor | IMX 273 |
| Shutter | Global Shutter |
| Sensor Size | 1/2.9" |
| Sensor Type | CMOS |
| Dynamic range | 73 dB |
| Signal-to-Noise Ratio (typical) | 43 dB |
| Interface | USB3.0 |
| Image Format |
Mono Version: Mono8/10/10Packed/ Color Version: Mono 8/10/12, Bayer |
| Synchronization | Soft Trigger,Hardware Trigger,Free Run |
| GPIO | 6-pin Hirose connector: 1 opto-isolated input, 1 opto-isolated output, 1 configurable non-isolated input/output |
| Power Supply | USB or 9-24V DC (via Hirose) |
| Binning | off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3 |
| Dimension (L x W x H) | 29 mm x 29 mm x 30 mm |
| Lens Mount | C-mount |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） |
| Weight（Typical） | 85g |
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with USB3 Vision Protocol |
| Operating System | Windows, Linux |
| Conformity | USB3 Vision and GenICam |
Packing List
iCt90M/CU16A-Pro Download
