Description
Product Description
High-Resolution Telecentric Lens for Precision Machine Vision Inspection

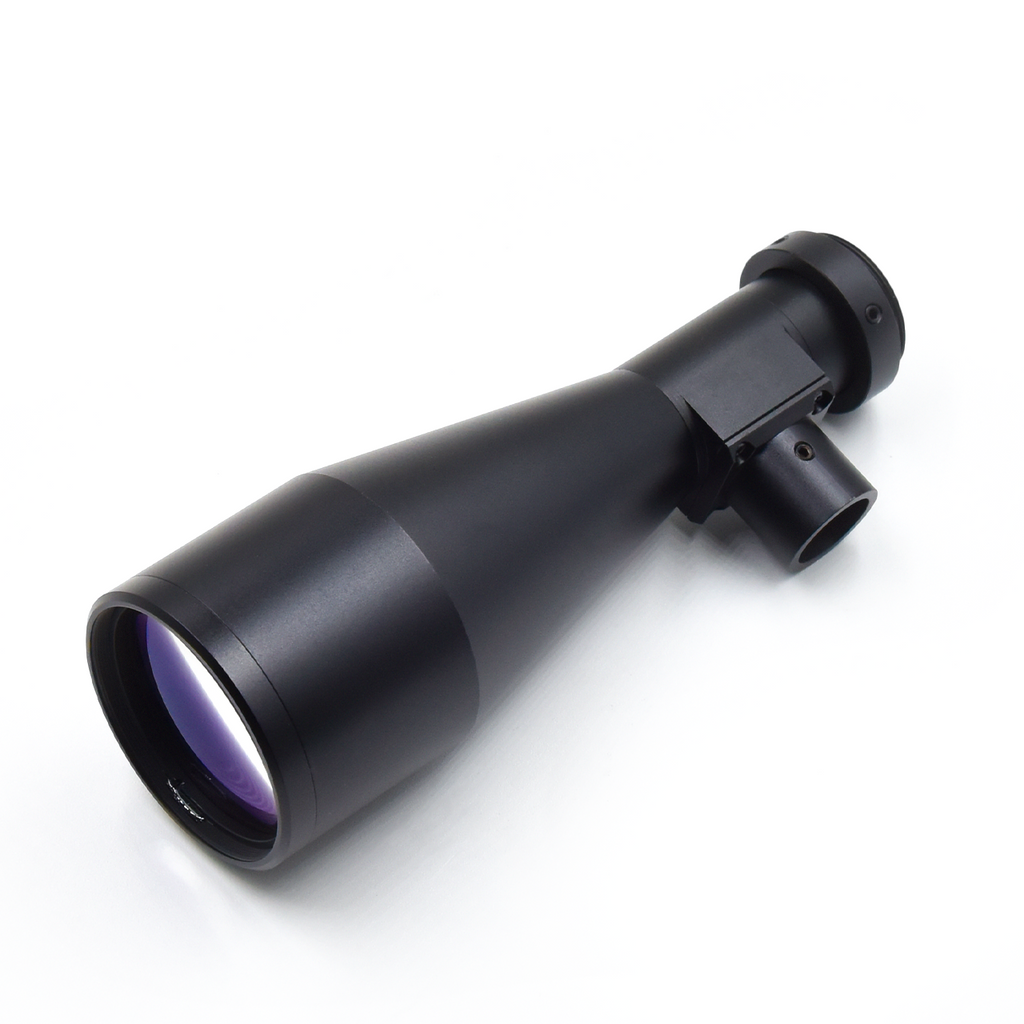

The CLW2-MP Series Telecentric Lens is designed for high-precision industrial imaging applications requiring exceptional image quality, low distortion, and stable magnification. Featuring a compact optical design with optional coaxial illumination, this lens series delivers high contrast and sharp imaging performance for Mega Pixel machine vision cameras.
With working distances up to 510mm, the CLW2-MP series is ideal for precision measurement, electronics inspection, semiconductor inspection, and automated industrial vision systems where accuracy and consistency are critical.
Key Features
✔ High-Resolution Optical Performance
Supports Mega Pixel industrial cameras with sharp, detailed image capture.
✔ Optional Coaxial Illumination
Models with coaxial lighting improve contrast and reduce reflections on reflective surfaces.
✔ Low Distortion & High Contrast Imaging
Designed for accurate dimensional measurement and precision inspection.
✔ Long Working Distance
Working distance up to 510mm for flexible system integration.
✔ Compact Industrial Design
Space-saving structure for machine vision and automation systems.
✔ C-Mount Compatibility
Easy integration with standard industrial cameras and vision systems.
Ideal Applications
- Precision Measurement
- Semiconductor Inspection
- Electronics & PCB Inspection
- Automated Optical Inspection (AOI)
- Industrial Metrology
- Robotics & Machine Vision Systems
Specifications
| Model |
Coaxial
|
Sensor Size |
Mag.（x）
|
WD（mm）
|
|---|---|---|---|---|
|
CLW2-MP-0.5X-510
|
No
|
1/1.8"
|
0.5
|
510±3
|
|
CLW2-MP-0.5X-510D
|
Yes
|
1/1.8"
|
0.5
|
510±3
|
|
CLW2-MP-1.0X-330
|
No
|
2/3"
|
1.0
|
330±3
|
|
CLW2-MP-1.0X-330D
|
Yes |
2/3"
|
1.0
|
330±3
|
|
CLW2-MP-1.0X-410
|
No |
2/3"
|
1.0
|
410±3
|
|
CLW2-MP-1.0X-410D
|
Yes |
2/3"
|
1.0
|
410±3
|
|
CLW2-MP-1.0X-510
|
No |
2/3"
|
1.0
|
510±3
|
|
CLW2-MP-1.0X-510D
|
Yes |
2/3"
|
1.0
|
510±3
|
Note1. Models with letter "D" support coaxial lights. Models with "IA" support Variable Iris.
Note2. Warm tips: The above DOF is just theoretical value at the ideal aperture (eg. ±763@F11). Actual DOF or the DOF what you need, please check with our sales engineer before order cfm.
Telecentric Lenses Download
