Description

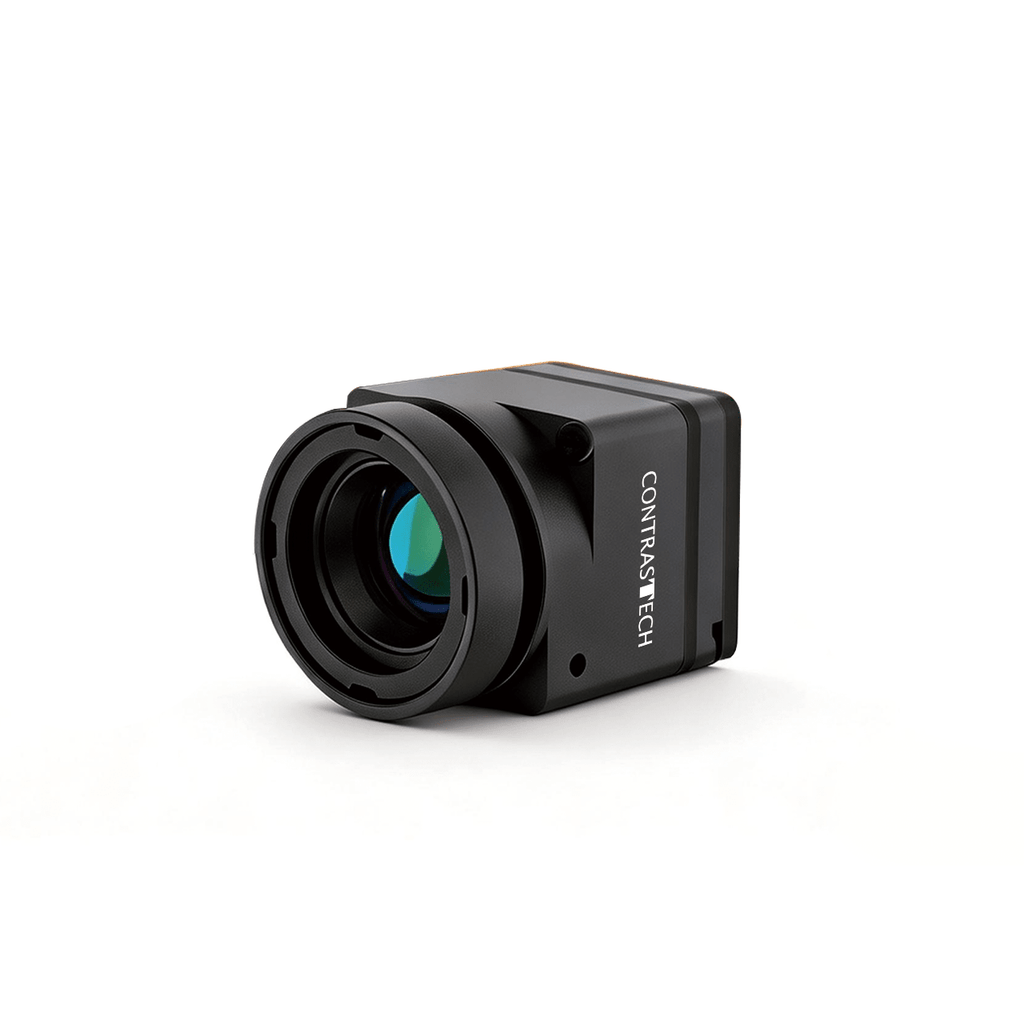

The iVaster640LW(T)-P8 is ultra-compact, uncooled LWIR core module with 13×13 mm size and weight under 3.5 g. It features self-developed 640×512, 8 μm detector, consumes just 0.5 W, and supports flexible SDKs, making it ideal for compact thermal imaging systems.
● Spectral Range: 8 ～ 14µm
● Ultra-low power consumption of 0.5 W
● High thermal sensitivity, typical NETD ≤ 40mK @25℃，F#1.0
● Digital Output: 8-bit LVCMOS; BT.656 / CDS3; 2-Lane MIPI
Main Features
Model:iVaster640LW/T-P8
Resolution:640 x 512
Pixel spacing:8μm
Frame Rate:50/30Hz
Resolution:640 x 512
Pixel spacing:8μm
Frame Rate:50/30Hz
Product Parameters
| Resolution | 640 px x 512 px |
| Detector Type | VOx Uncooled detector |
| Pixel Pitch | 8 μm x 8 μm |
|
Spectral Range
|
8μm~14μm
|
|
Typical NETD
|
≤ 40mK@25℃ ,F#1.0
|
|
Temp. Range
|
-20℃ ~+150℃，100℃ ~+650℃
|
|
Temp. Accuracy
|
±2° C or ±2% of reading (Ambient: -20° C to 60° C)
|
|
Brightness & Contrast
|
Manual / Auto
|
|
Image Display
|
Black Hot/White Hot
|
|
Image Mirroring
|
Left-Right/Up-Down/Diagonal
|
|
Pseudo Color
|
Support
|
|
Image Processing
|
Grayscale Stretch, Local Contrast Enhancement,
Temporal Noise Reduction, Spatial Noise Reduction,
Detail Enhancement, Edge Enhancement
|
|
Power Supply
|
Main Module (MAIN_POWER): 3.8V to 5.2V
(Typical: 5V)
4-Pin USB Expansion: USB 2.0 Supported, USB_VBUS: 5.0V |
|
Typical Power
Consumption
(Non-Extended Version)
|
≤ 0.5W
|
|
Digital Video
|
8Bit LVCMOS；BT656/CDS3; 2lane MIPI
|
|
Control Interface
|
UART（1.8V）
|
|
Size
|
13×13×13.4mm ( ＜ 3.5g)
|
|
Operating Temperature
|
-40° C to +70° C
|
|
Vibration
|
2 g, random vibration, 3 axes, 6 directions
|
|
Shock
|
6 g, 2 ms, half-sine, 3 axes, 6 directions
|
| Operating System | Windows/Linux |
Optional Lenses
| Resolution | F# | Type | FOV | IFOV |
|---|---|---|---|---|
| 640×512 | 3.7mm F1.0 |
Athermal
|
90.0° (H) × 68.2° (V) | 2.16 mrad |
| 640×512 | 6.1mm F1.0 |
Athermal
|
46.6° (H) × 37.6° (V) | 1.31 mrad |
| 640×512 | 8.7mm F1.0 |
Athermal
|
40.0° (H) × 32.2° (V) | 0.92 mrad |
| 640×512 | 11mm F1.0 |
Athermal
|
24.9° (H) × 20.0° (V) | 0.73 mrad |
iVaster640LW/T-P8 Download
