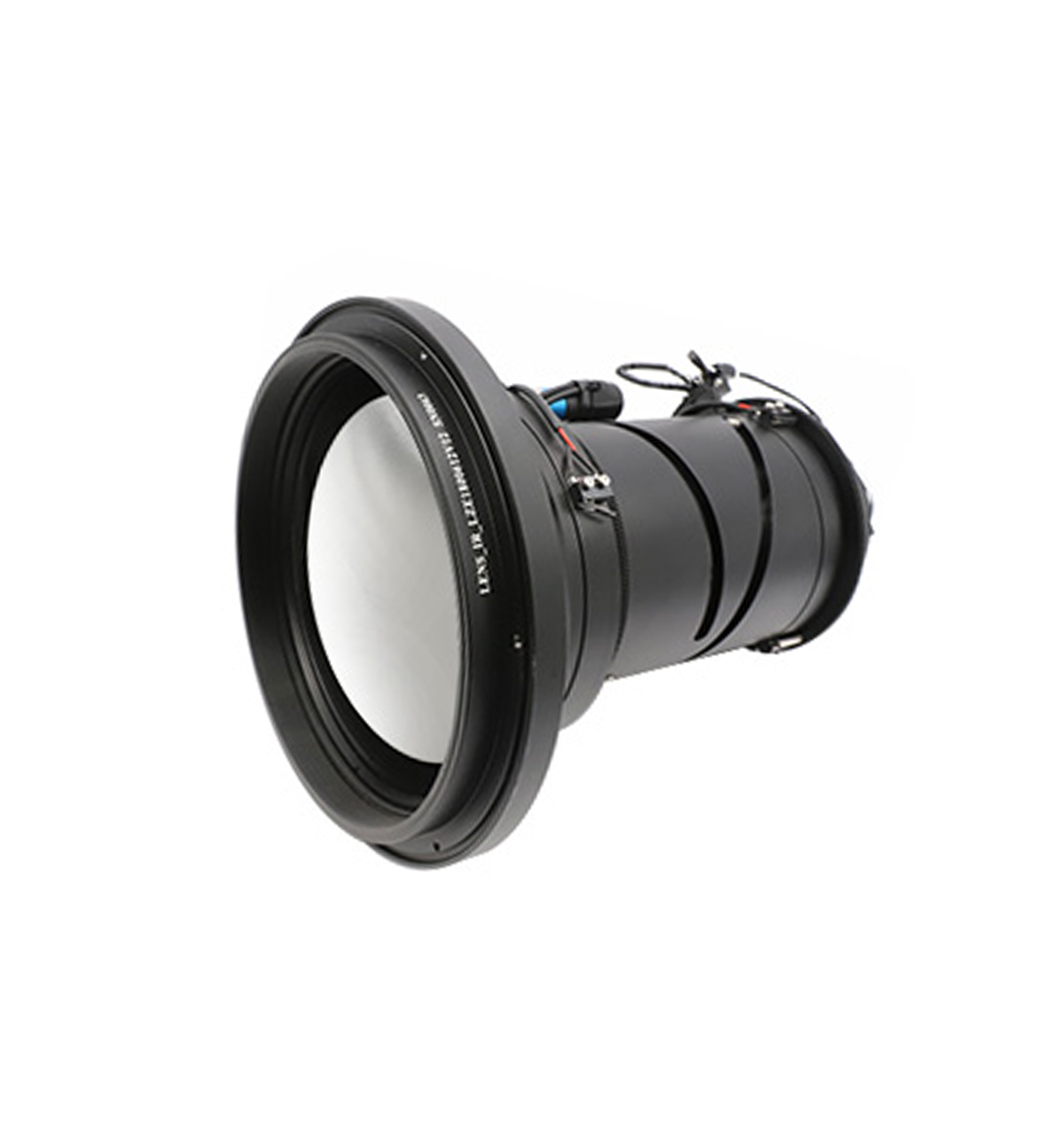

Low NETD 35mk USB 3.0 8μm 1920×1080 Thermal Camera with Continuous Zoom Lens

ContrastechSKU: iVa-LW20A
No reviews

Specification: 1920×1080 30fps Digital Zoom 1.0-8.0x[Non Radiometric]
Bundle: +no lens
Interface: SDI
Price:
Sale price$13,900.00

Shipping calculated at checkout

⚠️ Destination Duties & Taxes Not Included

💰 Buy more, save on shipping. Contact market@contrastech.com for a discounted shipping rate.

  • In-stock items: Ready for quick shipment.
  • Pre-order items: Typically require around 7 days for preparation. We will notify you promptly after your order.
  • Proforma lnvoice Needed: Please create a draft order to obtain.

Estimated Delivery Time

Delivery Truck

Ship To Detecting...

Delivery: -
?
Estimated Shipping Time

Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.

Description

The iVa-LW20A is a next-generation 1920×1080 LWIR thermal imaging camera module engineered for high-performance infrared imaging applications. Equipped with a highly sensitive VOx uncooled infrared detector and advanced image processing algorithms, this professional thermal camera delivers exceptional image clarity, superior thermal sensitivity, and reliable long-range detection performance.

Designed for demanding environments, the module supports Ethernet, MIPI, BT.1120, and LVCMOS video outputs, making it ideal for integration into security systems, industrial automation platforms, UAVs, robotics, and AI-powered thermal vision systems.

Whether used for perimeter security, wildfire prevention, industrial inspection, or machine vision, the iVa-LW20A provides stable, real-time thermal imaging performance with ultra-low power consumption and flexible lens configurations.

Key Features

1920×1080 Full HD Thermal Resolution
Capture highly detailed thermal images with a large-format 1920×1080 infrared sensor for superior target recognition and long-distance observation.

High Sensitivity VOx Detector
Built with an advanced VOx uncooled IRFPA detector featuring ≤35mK NETD sensitivity for enhanced thermal contrast and accurate infrared imaging.

Long Wave Infrared (LWIR) Technology
Operating in the 8–14μm spectral range, the module delivers reliable thermal imaging performance in total darkness, smoke, haze, and challenging weather conditions.

Multiple Video Output Interfaces
Supports Ethernet, MIPI, BT.1120, and LVCMOS interfaces for seamless integration into industrial, security, and embedded vision systems.

Long Range Thermal Surveillance
Compatible with athermalized fixed-focus, motorized focus, and continuous zoom lenses for long-range thermal monitoring and tracking applications.

Low Power Consumption
Optimized power design with low energy consumption, ideal for UAV thermal imaging, mobile surveillance platforms, and embedded systems.

Product Parameters

Model Number iVa-LW20A
Resolution 1920 px x 1080 px
Detector Type VOx Uncooled detector
Pixel Pitch 8 μm x 8 μm
Digital Zoom
1.0-8.0x
Frame Rate 30Hz
NETD ≤35mK@25℃,F#1.0
Spectral Range 8~14μm
Polarity Black-hot/white-hot
Color Palettes Support
Electronic zoom 1.0~8.0×continuous zoom (step 0.1), arbitrary area magnification
Image Processing Based on scene non-uniformity correction/image detail strength/Brightness &Contrast Adjustment/digit noise reduction
Image Mirror Horizontal / Vertical / Diagonal
Lens Type Fixed Focus /Continuous zoom Lens (Optional)
Focus Support auto/variable
Zoom Support
Digital Video LVDS/BT.1120/LVCMOS(Optional)
Serial Communication Interface RS-232/RS-485(PELCO-D protocol only)(Optional)
Expansion Board
HDMI/USB/CameraLink/SDI
(for
Digital Version)
Temperature Range
-45~85 ° C (Storage), -40~70° C (Operating),
5-95%,No Condensation
Size
Digital Version:
55mmx55mm(
±0.2mm);165g±5g
Ethernet Version:
 55mmx55mmx50mm; 230±10g
(Lens Excluded)
Operating System Windows/Linux

*Functions vary as model, please consult sales for details !

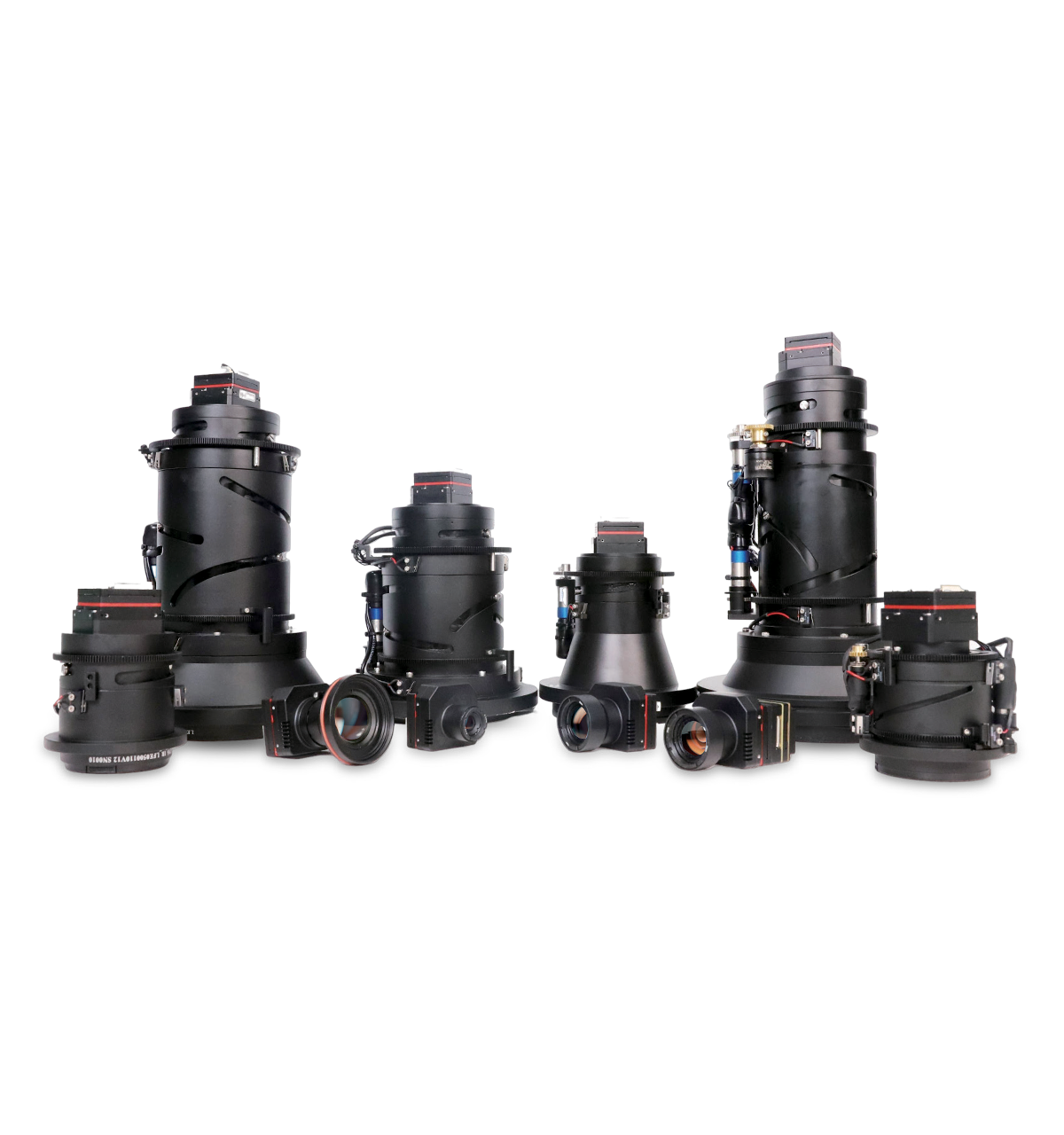

Optional Lenses

 Athermal Lens
Motorized Focus Lens
Continuous Zoom Lens
19/25/35/55/75/100mm2
75/100/150mm
25-75mm/30-150mm/25-225mm/30-300mm/35-350mm

Note 2: iVA-LW20A Ethernet port version does not support Athermal Lens.



iVa-LW20A  Download
