Description
Multi-color Machine Vision Lights
Multi-Color Machine Vision LED Lighting
Our machine vision lighting series provides flexible illumination solutions for automated inspection and industrial vision systems. Available in Bar, Backlight, Coaxial, Dome, and High-Angle Ring configurations, the lights can be customized with RGB, RGBW, RGBIR, or other multi-channel LED options.
Different wavelengths and illumination angles help improve image contrast, reduce unwanted reflections, and highlight specific features for reliable machine vision inspection.
Product Features
- Multiple illumination types: Bar, Backlight, Coaxial, Dome, High-Angle Ring etc.
- Multi-color options: RGB, RGBW, RGBIR and custom configurations
- High-brightness & uniform illumination
- Flexible wavelength and size customization
- Optional diffuser and polarizing plates
- 24 VDC input for typical configurations
- Aluminum alloy / resin housing depending on model
- Suitable for continuous or controlled machine vision illumination
Product Applications
- Surface and defect inspection
- PCB, FPC and electronic component inspection
- Semiconductor and wafer inspection
- Dimensional and contour measurement
- Scratch, burr and stain detection
- OCR, OCV and barcode inspection
- Inspection of reflective, glossy and curved surfaces
Common Specifications
| Input voltage | 24 VDC |
| Connector | SMR-03V-B |
|
Polarity
|
Red: 620-630nm; Blue: 465-475nm; Green: 515-530nm; White: 6000-10000K(ColorTemperature) |
|
Cable length
|
500 mm |
|
Optional Accessory
|
Diffusion plate, Polarizing plate. DC extension cable: 1m/2m/3m |
|
Operating environment(indoor)
|
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
Life time
|
White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
Case material
|
Aluminum alloy, Resin |
| Type | Model No. | Light Area |
Supply Voltag(V) |
Light Color | |
|
Length(mm) |
Width(mm) | ||||

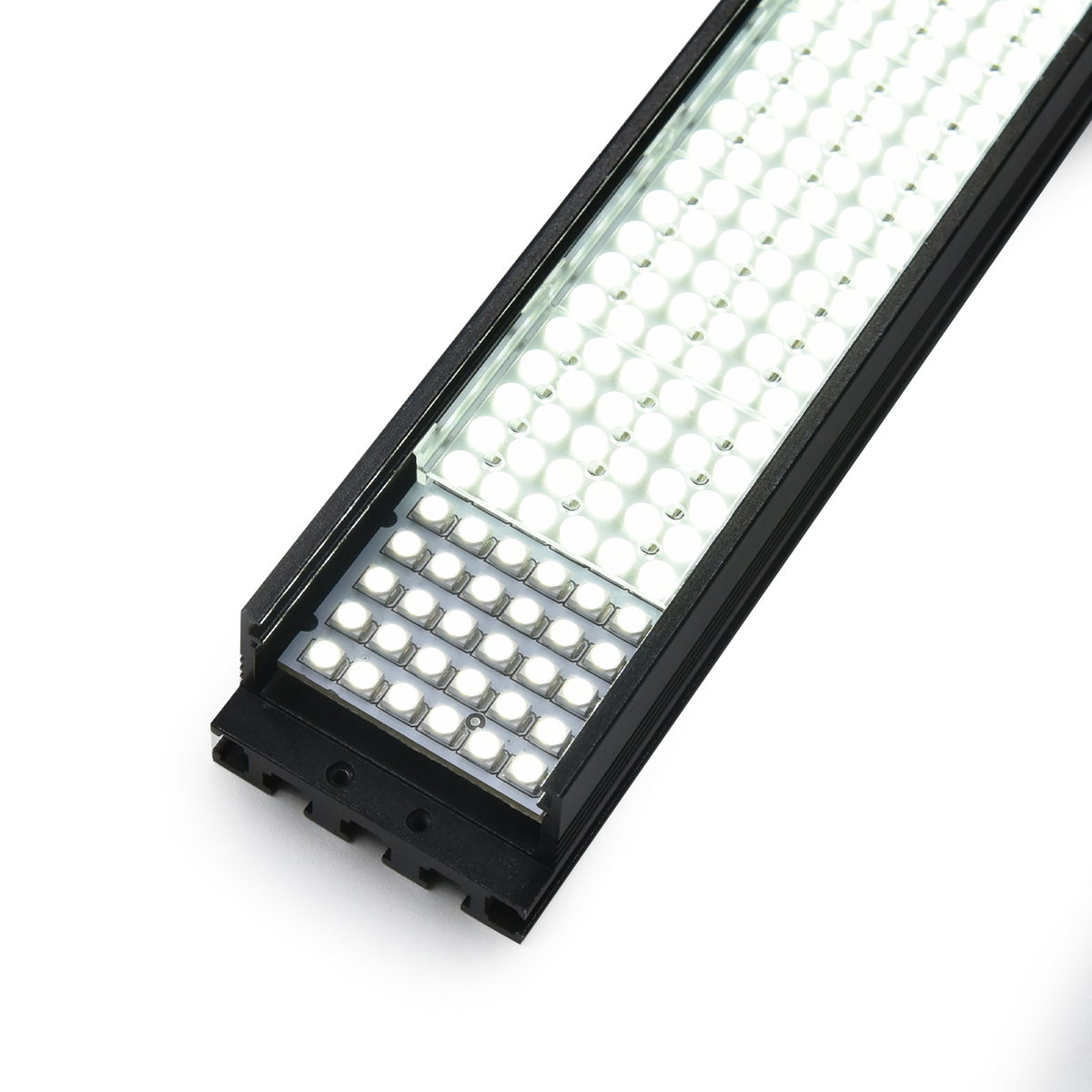

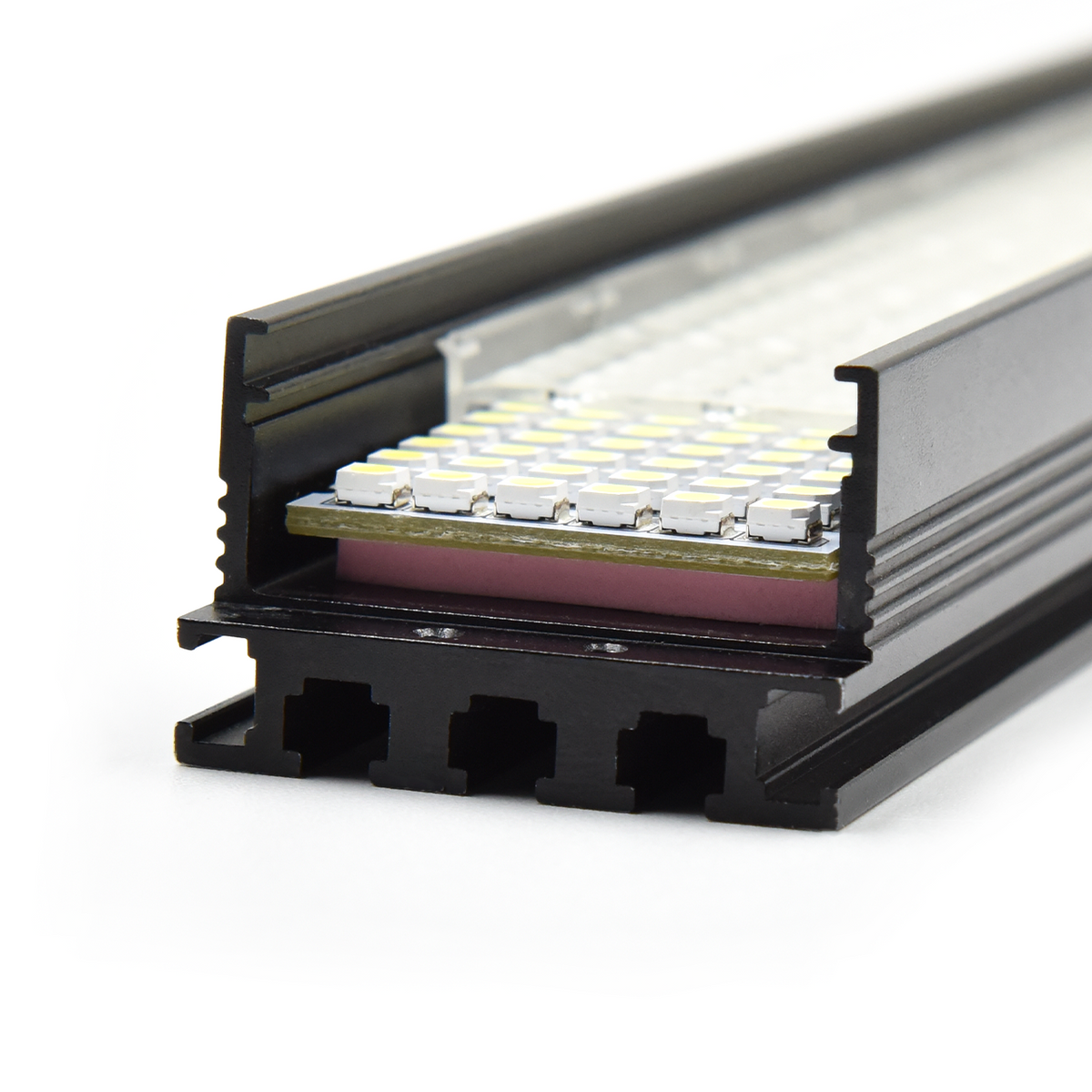

| Bar Light | LT2-HL14630RGB | 146 | 30 | 24 | RGB |
| Bar Light | LT2-HL21830RGB | 218 | 30 | 24 | RGB |
| Bar Light | LT3-HL+20035RGB | 200 | 35 | 24 | RGB |

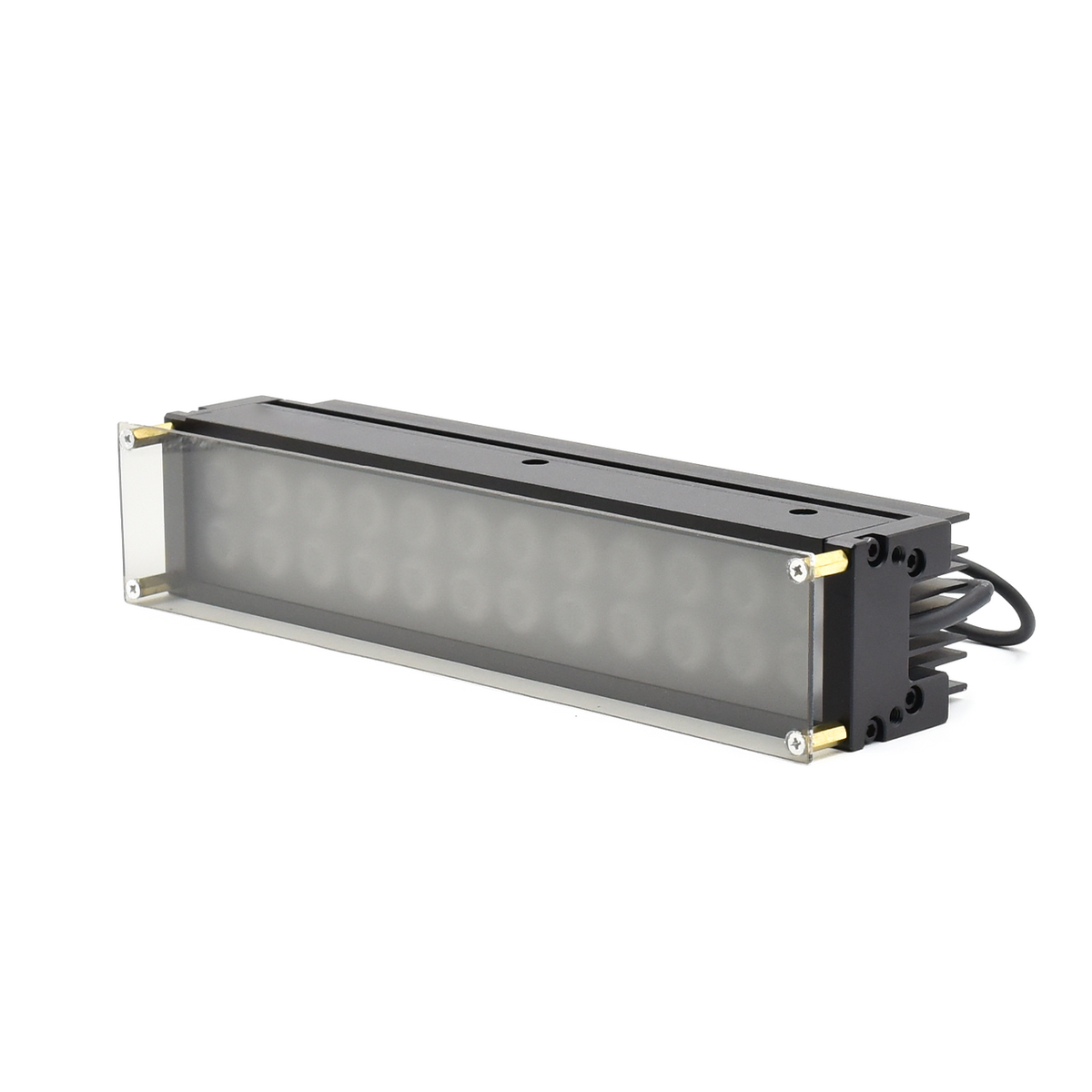

| Bar Light | LT3-HL+20035PRGB | 158 | 16 | 24 | RGB+Polarized |
| Backlight | LT2-BF5050RGB | 50 | 50 | 24 | RGB |
| Backlight | LT2-BF8375RGB | 83 | 75 | 24 | RGB |
| Backlight | LT2-BF13770WUV | 137 | 70 | 24 | WUV |
| Backlight | LT2-BF13770RGBIR | 137 | 70 | 24 | RGBIR |
| Backlight | LT2-BF140105WUV | 140 | 105 | 24 | WUV |
| Backlight | LT2-BF140105RGBIR | 140 | 105 | 24 | RGBIR |
| Backlight | LT2-BF200150RGB | 200 | 150 | 24 | RGB |
| Backlight | LT2-BF200150RGB-IP67 | 200 | 150 | 24 | RGB+IP67 |
| Backlight | LT2-BF200150RGBW | 200 | 150 | 24 | RGBW |

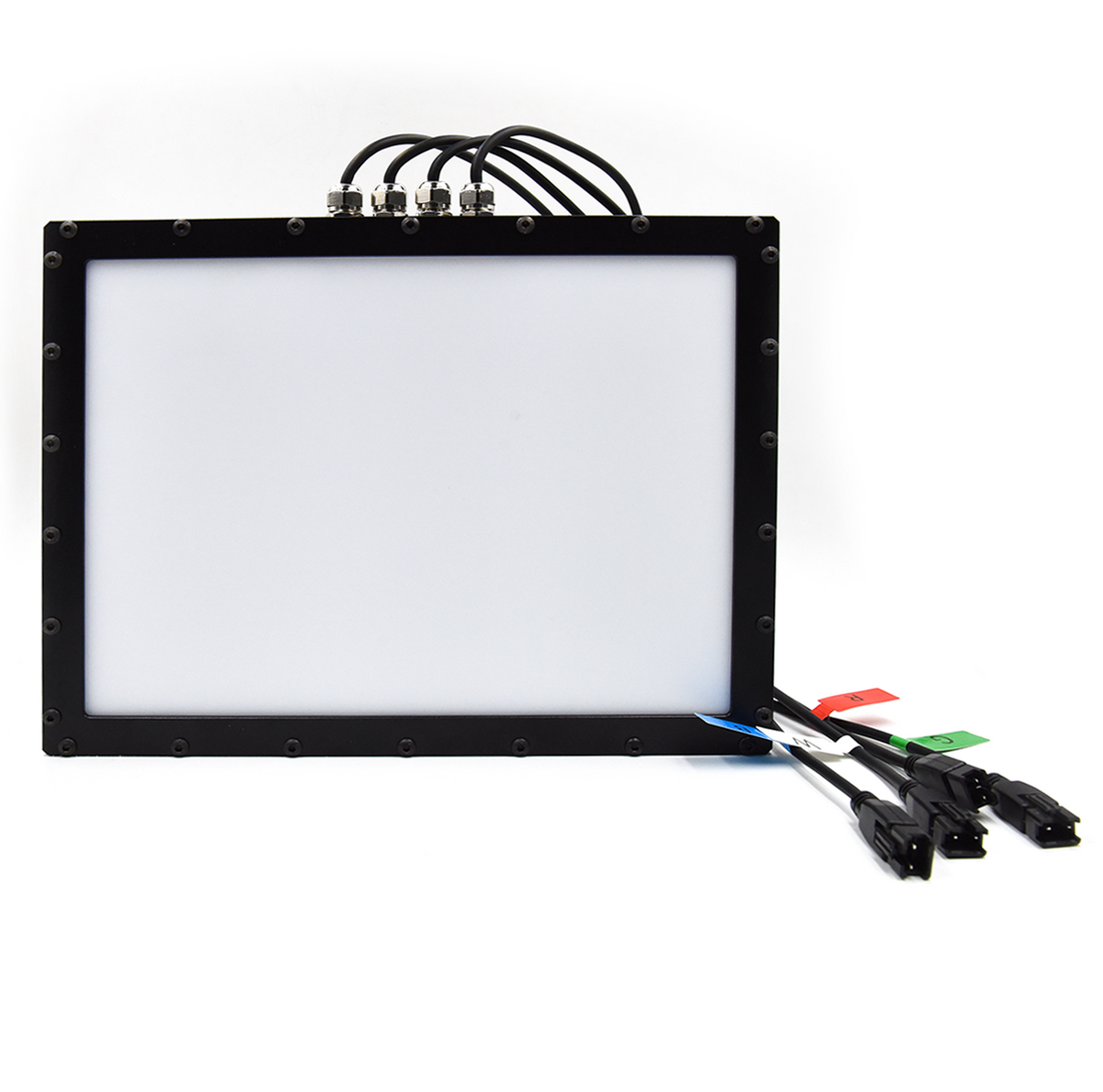

| Backlight | LT2-BF200150RGBW-IP67 | 200 | 150 | 24 | RGBW+IP67 |
Note: R-Red, B-Blue, G-Green, IR-Infrared, UV-Vltraviolet
Optional Accessory: Diffusion Plate/Polarizer Plate/ Extension Cable /Light Controller
Emitting Color, IP Rating, cooling method, emitting surface length, etc customizable
