Description
Product Description

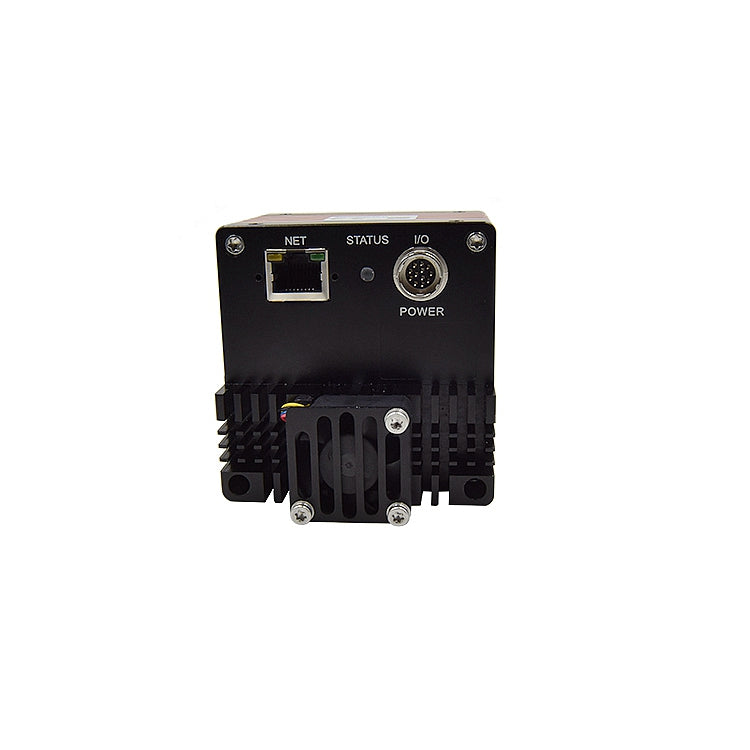

The Mars65MG-2GM/GC-M58 is a large-format GigE area scan camera designed for ultra-high-resolution industrial imaging where image detail and stability are critical. Built around the Gpixel GMAX3265 global shutter sensor, it delivers an impressive 65MP resolution (9344 × 7000) with precise, distortion-free capture. The 29.9 × 22.4 mm sensor and 3.2 μm pixel size provide excellent spatial accuracy across wide inspection areas. Featuring 12-bit depth and a reliable Gigabit Ethernet interface, the camera ensures stable data transmission for fixed inspection setups. The M58 lens mount supports large-format optics, making it well suited for high-precision imaging applications.
Main Specifications
| Model | Mars65MG-2gm/gc-M58 |
| Resolution | 9344 x 7000 (65MP) |
| Frame Rate | 1.7fps |
| Sensor | Gpixel GMAX3265 |
| Sensor Size | 29.9 x 22.4 mm |
| Pixel Size | 3.2μm |
| Shutter Type | Global |
| Interface | GigE |
| Lens Mount | M58 |
| Bit Depth | 12-bit |
Applications
• Large-area precision inspection
• Flat panel and display inspection
• Semiconductor and electronics inspection
• High-resolution metrology and measurement
• Scientific and industrial imaging
MARS65MG-2GM/GC Download
