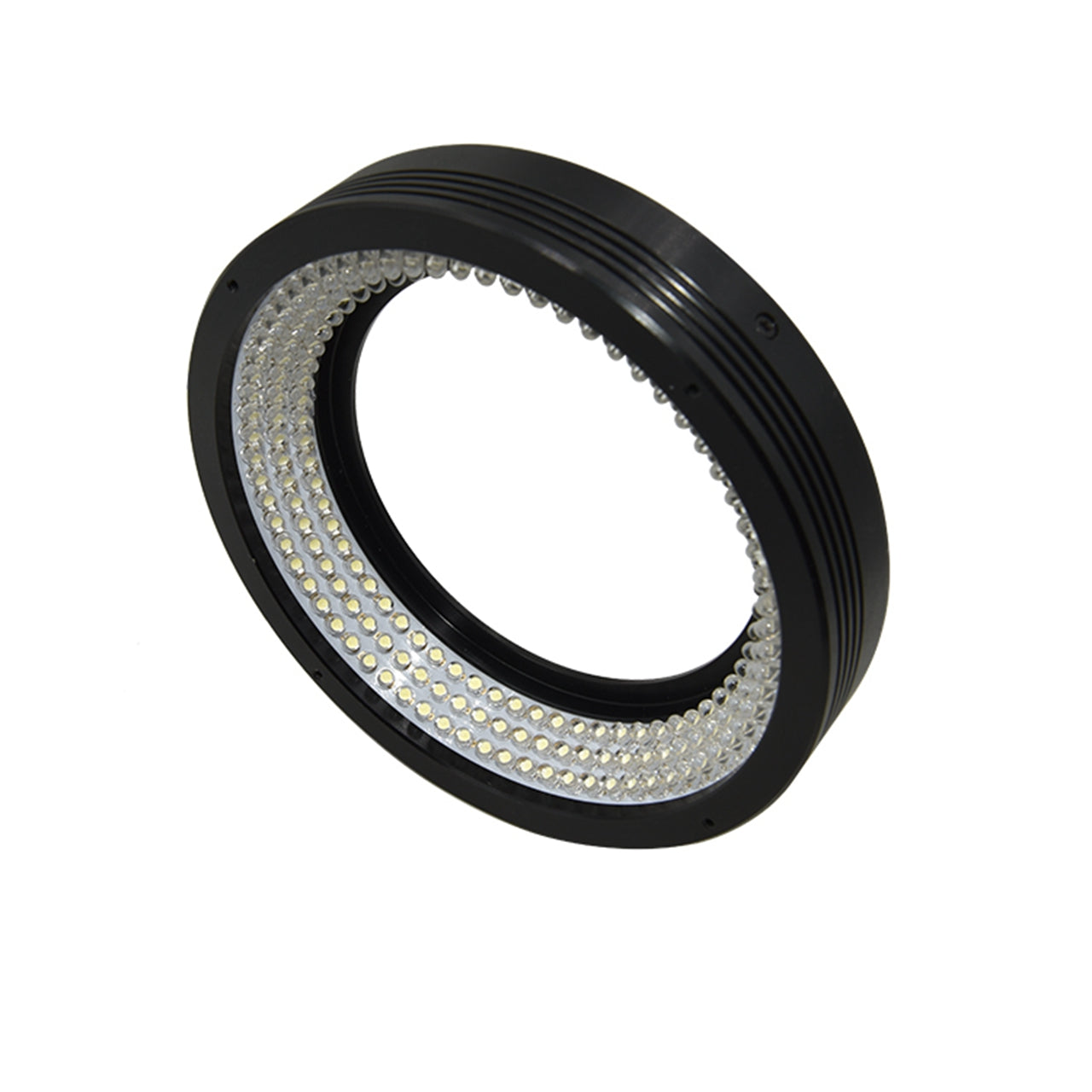

LR Series Low Angle Ring Light for Dark Field Machine Vision Inspection
The LR Series Low Angle Ring Light is specifically designed for machine vision applications requiring enhanced edge detection and surface texture analysis. With its low-angle LED illumination, it creates a dark field effect that emphasizes surface defects such as scratches, engravings, and fine irregularities.
Equipped with high-brightness LEDs mounted on a precision-engineered flexible circuit board, the LR Series delivers consistent and reliable lighting performance. Advanced wave-soldering technology ensures superior build quality and long-term stability in demanding industrial environments.
This lighting solution is ideal for inspecting reflective and glossy surfaces where traditional lighting fails to reveal subtle details
Key Features
- Low-angle illumination for strong dark field effect
- Enhanced edge detection and surface defect visibility
- High-brightness LEDs for stable and uniform lighting
- Flexible PCB design for precise light positioning
- Advanced wave-soldering for improved durability and consistency
Applications
- PCB and substrate positioning
- Chip and electronic component inspection
- LCD alignment and inspection
- Plastic container and packaging inspection
- Label inspection and verification
- IC marking inspection
Specifications
| Input voltage | 24 VDC |
| Wavelength range | Red: 620-630nm; Blue: 460-475nm; Green: 520-530nm; |
|
Color temperature (white)
|
6500-8500K
|
|
Operating environment(indoor)
|
Temperature: 0~40℃ Humidity: 20% to 85% RH (with no condensation) |
| Life time | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
Case material
|
Aluminum alloy, Resin |
Illumination Structure
