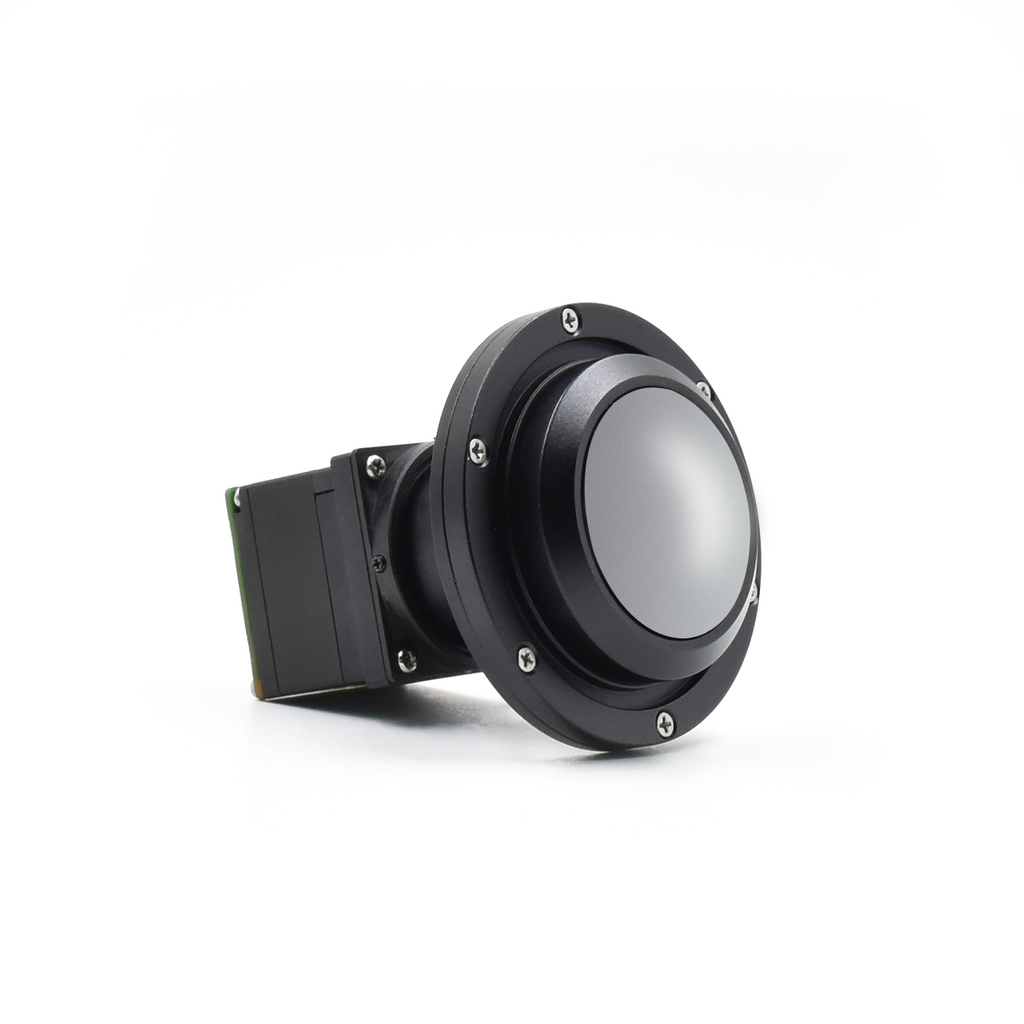

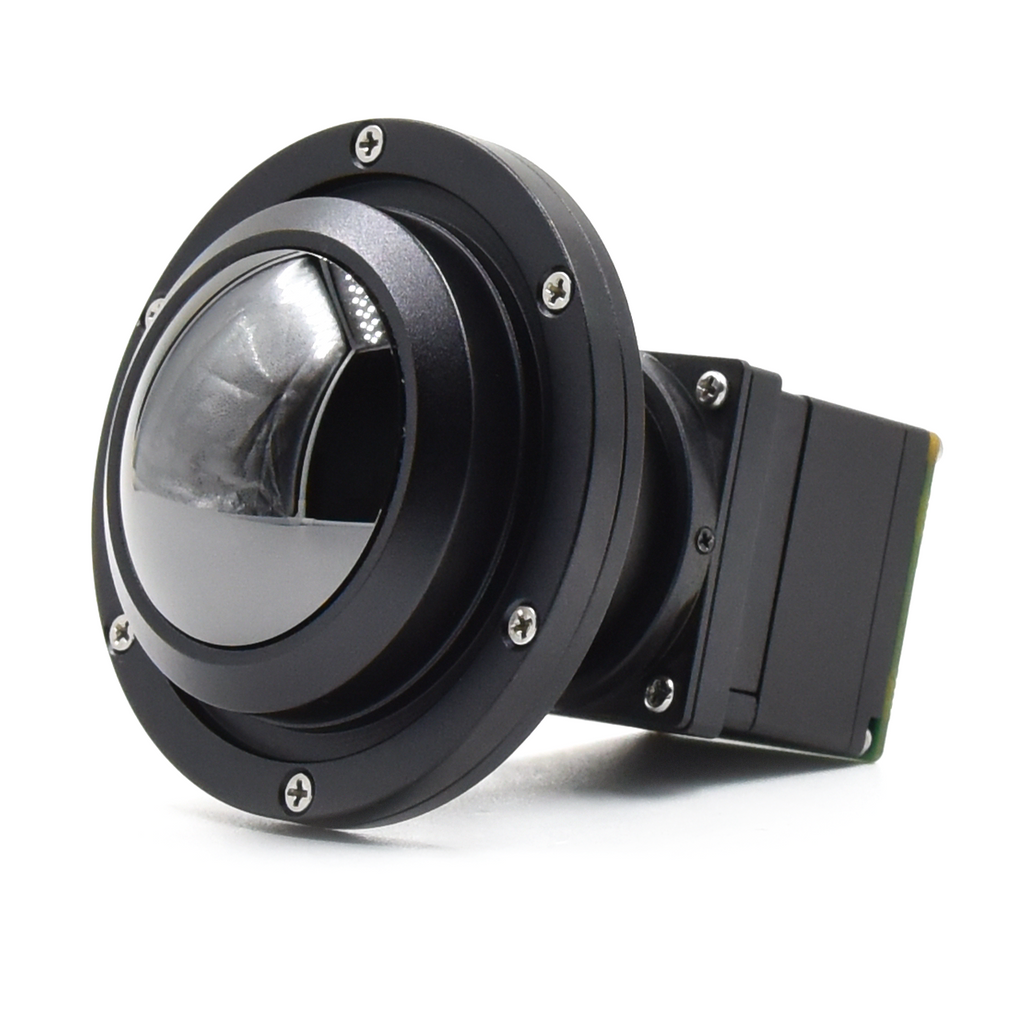

iVaster640LWPro 640x512 12μm FL 2.7mm FOV 200° Fisheye LWIR Thermal Camera Module

High-Performance, Ultra-Lightweight Thermal Imaging for Embedded Systems

The iVaster640 Pro LWIR Thermal Camera Module is a compact and high-sensitivity long-wave infrared (LWIR) solution designed for advanced thermal imaging and temperature measurement applications. Operating in the 8–14 μm spectral range, it features a 640 × 512 resolution detector with 12 μm pixel pitch and NETD ≤ 40 mK, delivering clear thermal contrast and precise temperature detection even in challenging environments.

Key Features

• 8–14 μm LWIR spectrum for reliable thermal imaging
• 640 × 512 resolution, 12 μm pixel size for sharp thermal detail
• NETD ≤ 40 mK for high thermal sensitivity
• 1×–4× digital zoom support
• Ultra-lightweight design (< 5 g), ideal for size- and weight-constrained systems
• Efficient and accurate temperature measurement

Wide Lens Options & Ultra-Wide FOV

The iVaster640 Pro supports an extensive range of interchangeable lenses, allowing flexible system design for both short-range and long-distance applications:

Available focal lengths:
2.7 / 4.1 / 6.9 / 9.1 / 13 / 19 / 25 / 35 / 55 / 75 / 100 mm

• 2.7 mm ultra-wide lens delivers up to ~200° field of view
• Popular focal lengths: 4.1 mm, 13 mm, 19 mm, 25 mm, 55 mm

This flexibility makes the module suitable for wide-area monitoring, object detection, and precise thermal analysis.

Easy Integration with Embedded Platforms

Designed for seamless integration, the iVaster640 Pro is compatible with a wide range of mainstream embedded processors, including:

NVIDIA® | Qualcomm® | MediaTek® | HiSilicon® | Rockchip™ | Allwinner™

This ensures faster development cycles and easier system deployment.

Multiple Interface Options

To meet diverse hardware requirements, the module supports multiple output interfaces:

• USB 2.0 Type-C
• USB 2.0 4-Pin
• BT656 + Analog
• LVDS + Analog
• CameraLink + Analog
• MIPI + Analog

Typical Applications

• Embedded thermal imaging systems
• Industrial temperature monitoring
• Robotics & autonomous systems
• Drones and UAVs
• Smart security and surveillance
• R&D and thermal analysis

Temp. Meas.：Abbreviation for “Temperature measuring function”
