Q1: What is the iCt9SM/CU200A-Pro used for?
A: It is a 20MP USB3 Vision industrial camera designed for precision measurement, metrology, machine vision inspection, and scientific imaging applications.
Q2: What sensor does this camera use?
A: It uses the Sony IMX183 CMOS sensor, offering high sensitivity and excellent image quality for detailed industrial inspection.
Q3: What is the resolution of this camera?
A: The camera provides 5472 × 3648 (20MP) ultra-high resolution, ideal for capturing fine structural details and precision measurements.
Q4: What is the frame rate of this camera?
A: It supports up to 19.2 fps, ensuring stable imaging performance for industrial and laboratory applications.
Q5: What interface does this camera support?
A: It uses a USB3 Vision (USB 3.0) interface, providing high-speed and stable data transmission with low latency.
Q6: What makes this camera suitable for precision measurement?
A: Its 20MP resolution, 1-inch sensor, and 2.4μm pixel size deliver high spatial accuracy for metrology and dimensional inspection.
Q7: Is this camera suitable for machine vision systems?
A: Yes, it is fully compatible with machine vision and industrial automation systems, making integration simple and efficient.
Q8: What industries commonly use this camera?
A: It is widely used in industrial inspection, metrology, electronics manufacturing, surface analysis, and scientific research.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Description
Product Description

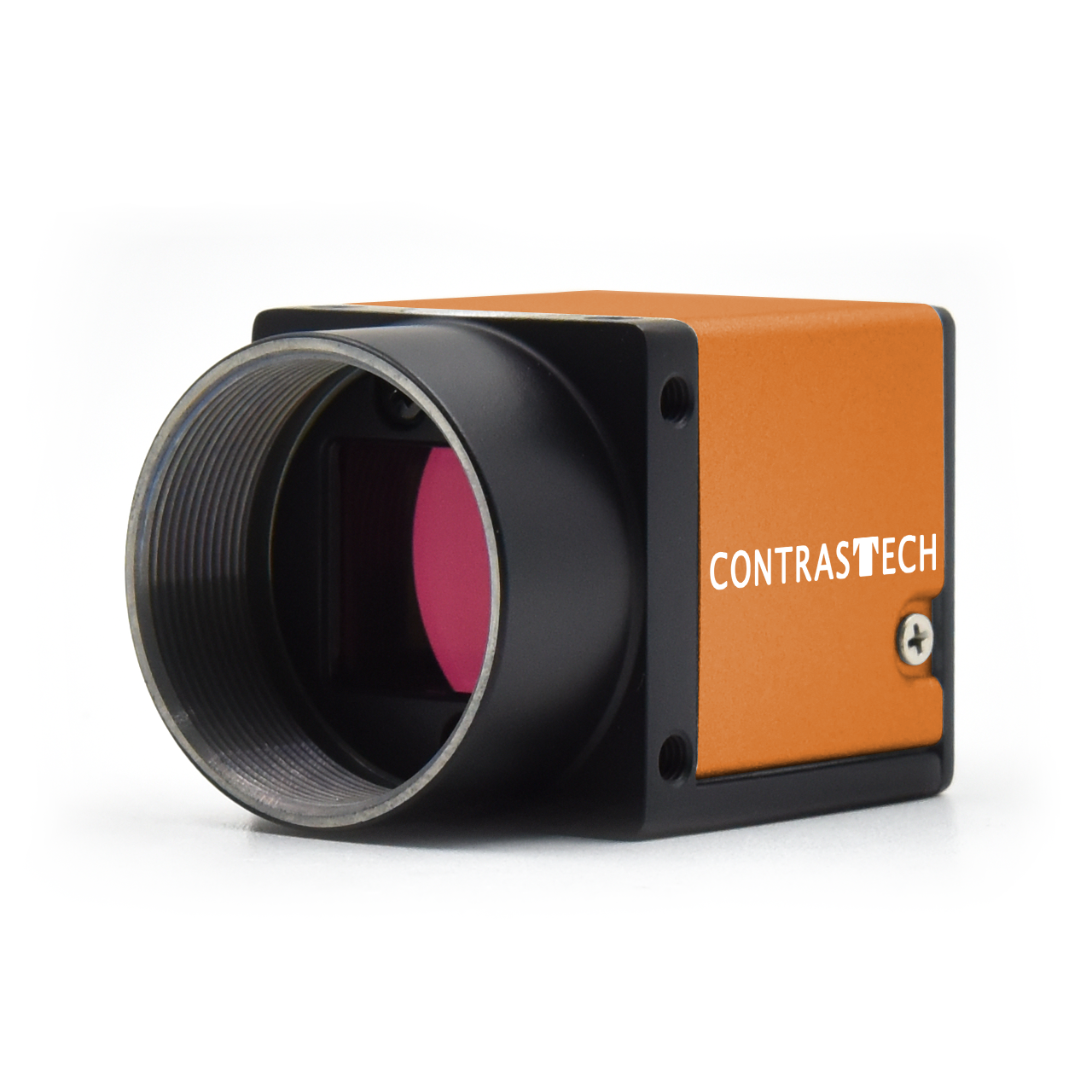

High-Resolution 20MP USB3 Vision Camera for Precision Measurement and Industrial Inspection
The iCt9SM/CU200A-Pro is a high-resolution 20MP USB3 Vision industrial camera designed for precision measurement, metrology, and machine vision applications. Powered by the Sony IMX183 CMOS sensor, it delivers ultra-detailed 5472 × 3648 resolution at 19.2 fps, enabling accurate dimensional analysis and high-precision inspection.
With a 1-inch sensor format and 2.4μm pixel size, the camera provides exceptional spatial resolution for capturing fine structural details. Its USB 3.0 interface ensures high-speed, stable data transmission, making it ideal for industrial automation, quality control, and scientific imaging applications.
Key Features
✔ 20MP Ultra-High Resolution Imaging
5472 × 3648 resolution for detailed image capture and precise measurement.
✔ Sony IMX183 CMOS Sensor
High-sensitivity 1-inch sensor for superior image quality and detail accuracy.
✔ 19.2FPS High-Speed Acquisition
Stable frame rate for efficient industrial inspection workflows.
✔ USB3 Vision Interface
High-bandwidth USB 3.0 transmission for reliable, low-latency image transfer.
✔ 2.4μm Pixel Size for Precision Measurement
High spatial resolution for dimensional inspection and metrology applications.

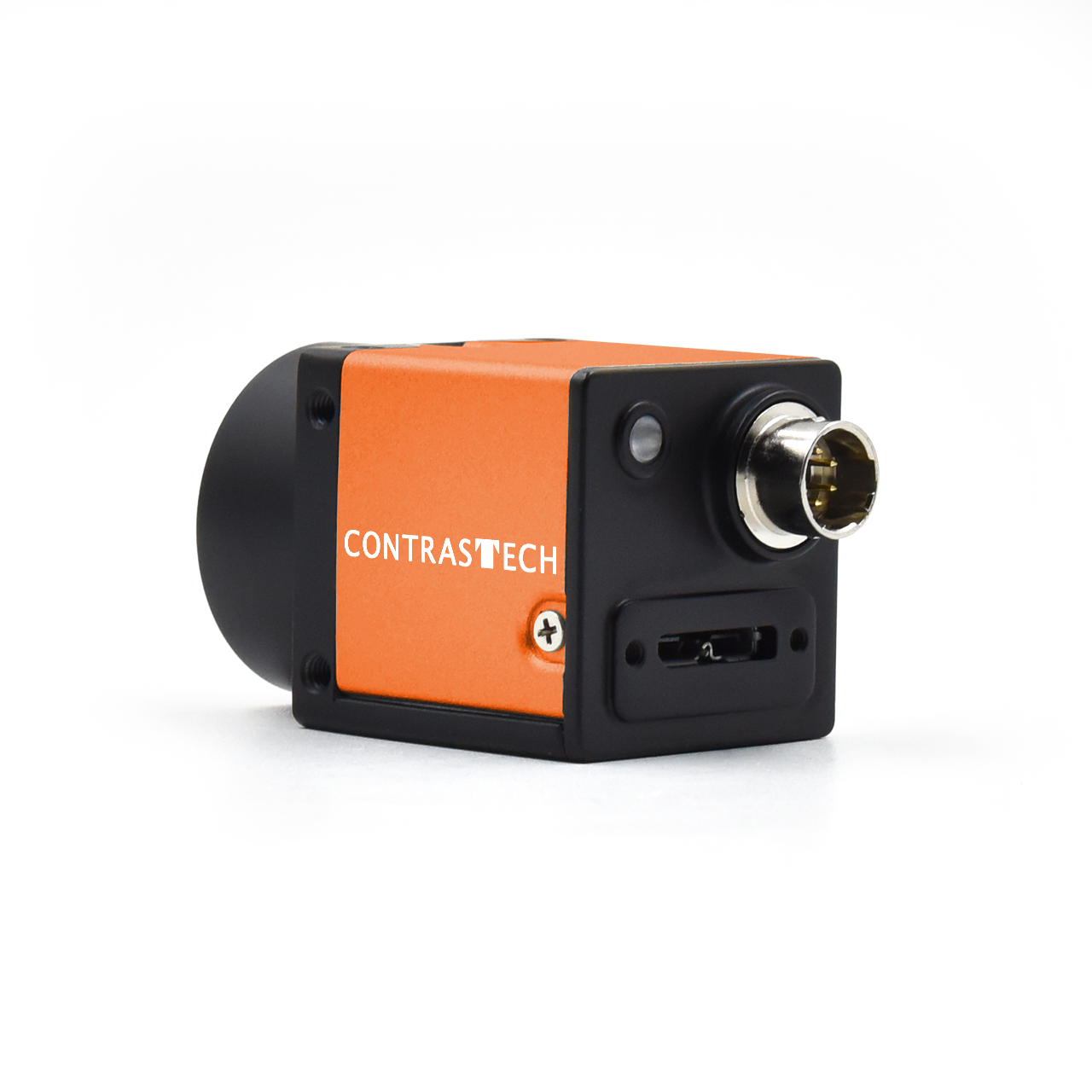

✔ Compact Industrial Design
Easy integration into machine vision systems and inspection equipment.
Ideal Applications
- Precision Dimensional Measurement
- Industrial Inspection & Metrology
- Surface Analysis & Quality Control
- Machine Vision Automation
- Laboratory Imaging
- Scientific Research
Specifications
| Model | iCt9SM/CU200A-Pro |
| Resolution | 5472 × 3648 |
| Frame Rate | 19.1 fps |
| Sensor | IMX183 (1" CMOS) |
| Pixel Size | 2.4 × 2.4 μm |
| Mono / Color | Mono |
| Bit Depth | 12-bit |
| Shutter Type | Rolling / Global Reset Release |
| SNR | 41.5 dB |
| Dynamic Range | 61.5 dB |
| Binning | Off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3 |
| ROI | Supported |
| Flip X | Supported |
| Flip Y | Supported |
| Gain | 1 ~ 32X |
| Gamma | LUT Range: 0 to 3.99998 |
| Exposure Time | 16 μs ~ 10 sec |
| Image Acquisition Mode | Software Trigger / Hardware Trigger / Free Run |
| SPC | Supported |

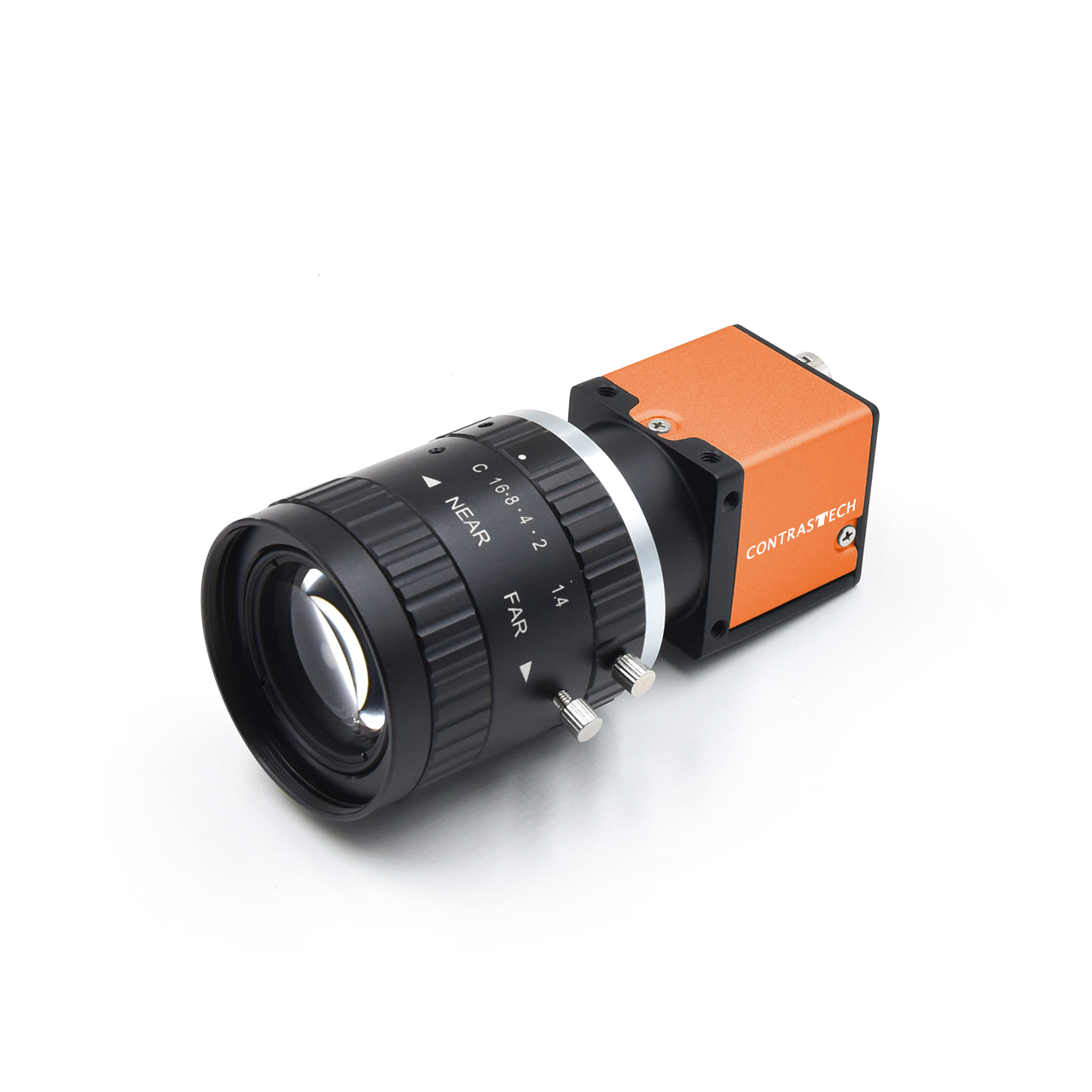

Lens Specifications
1.1" 20MP C-Mount Lens
| Part Name | EFL | Aperture | AOV | Wavelength |
|---|---|---|---|---|
| VT-LEM0618MP20-H1.1 | 6mm | F1.8 | 118.2°x104.91°x86.2° | 400–1000nm |
| VT-LEM0814MP20-H1.1 | 8mm | F1.4 | 98.4°x84.8°x68° | 400–1000nm |
| VT-LEM1228CBMP20-H1.1 | 12mm | F2.8 | 57°x45°x66.7° | 420–1150nm |
| VT-LEM1628CBMP20-H1.1 | 16mm | F2.8 | 46.3°x36°x55.4° | 420–1150nm |
| VT-LEM2528CBMP20-H1.1 | 25mm | F2.8 | 30.4°x23°x37.6° | 420–1150nm |
| VT-LEM3528CBMP20-H1.1 | 35mm | F2.8 | 22.6°x17°x28.3° | 420–1150nm |
| VT-LEM5028CBMP20-H1.1 | 50mm | F2.8 | 15.9°x11.9°x19.9° | 420–1150nm |
