Q1: What is the BF Series Bottom Flat Backlight used for?
A: The BF Series is designed for high-contrast machine vision inspection, providing uniform backlighting for applications requiring clear edge and contour detection.
Q2: What are the advantages of using a flat backlight in machine vision?
A: A flat backlight creates a bright, even background that highlights object outlines, improving accuracy for measurement, shape detection, and defect inspection.
Q3: What applications are suitable for the BF Series Backlight?
A: It is commonly used for dimension measurement, contour inspection, liquid level detection, pinhole inspection, and metal burr detection.
Q4: Why does the BF Series provide uniform illumination?
A: The backlight uses high-density SMD LED technology and diffused lighting design to achieve consistent brightness across the entire emitting area.
Q5: Can the BF Series be integrated into compact inspection systems?
A: Yes. Its low-profile flat design allows easy installation in space-limited machine vision systems and automated inspection equipment.
Q6: What types of objects are suitable for silhouette inspection with this backlight?
A: The BF Series is ideal for inspecting metal parts, electronic components, transparent objects, mechanical parts, and precision components where clear edges are required.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Description
Product Description

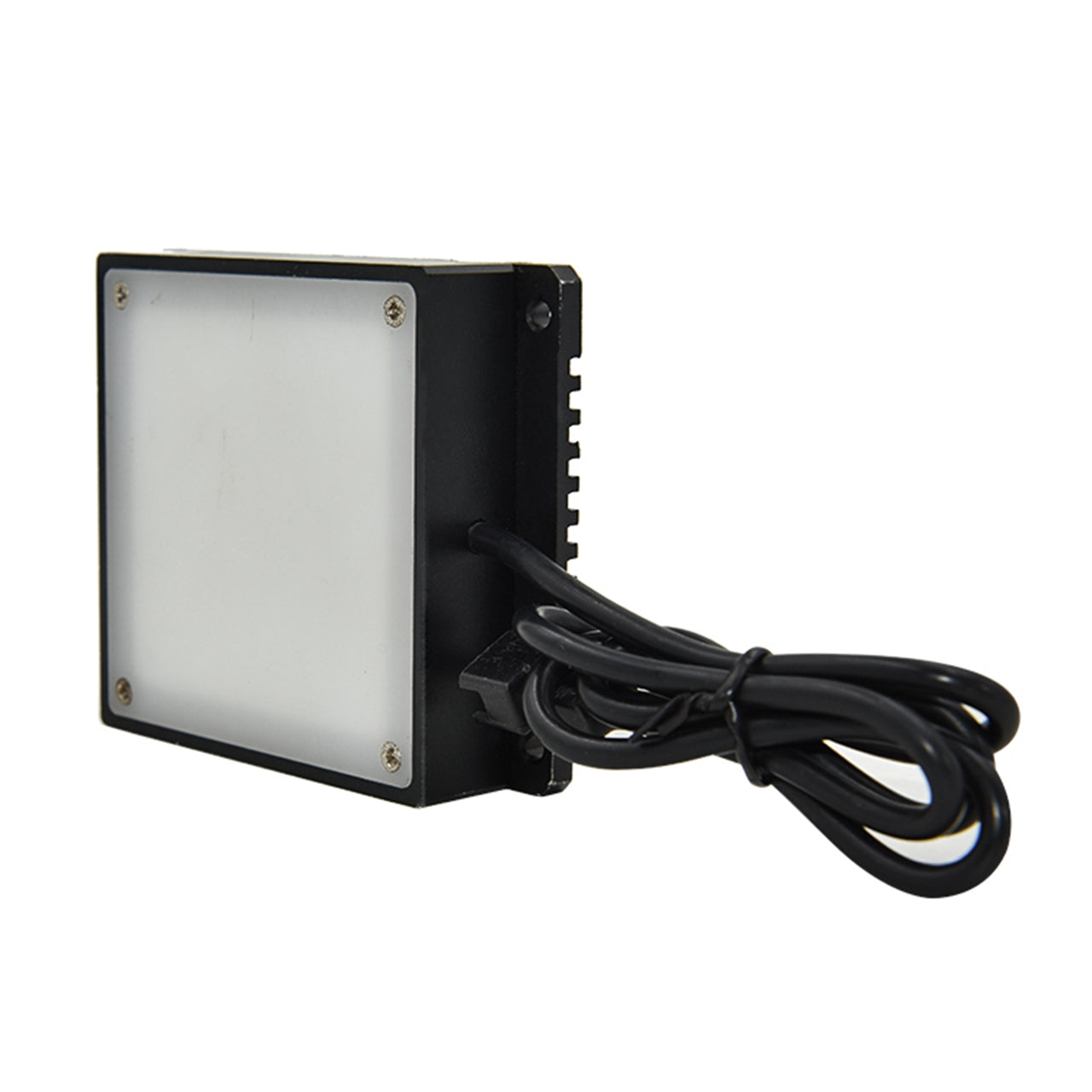

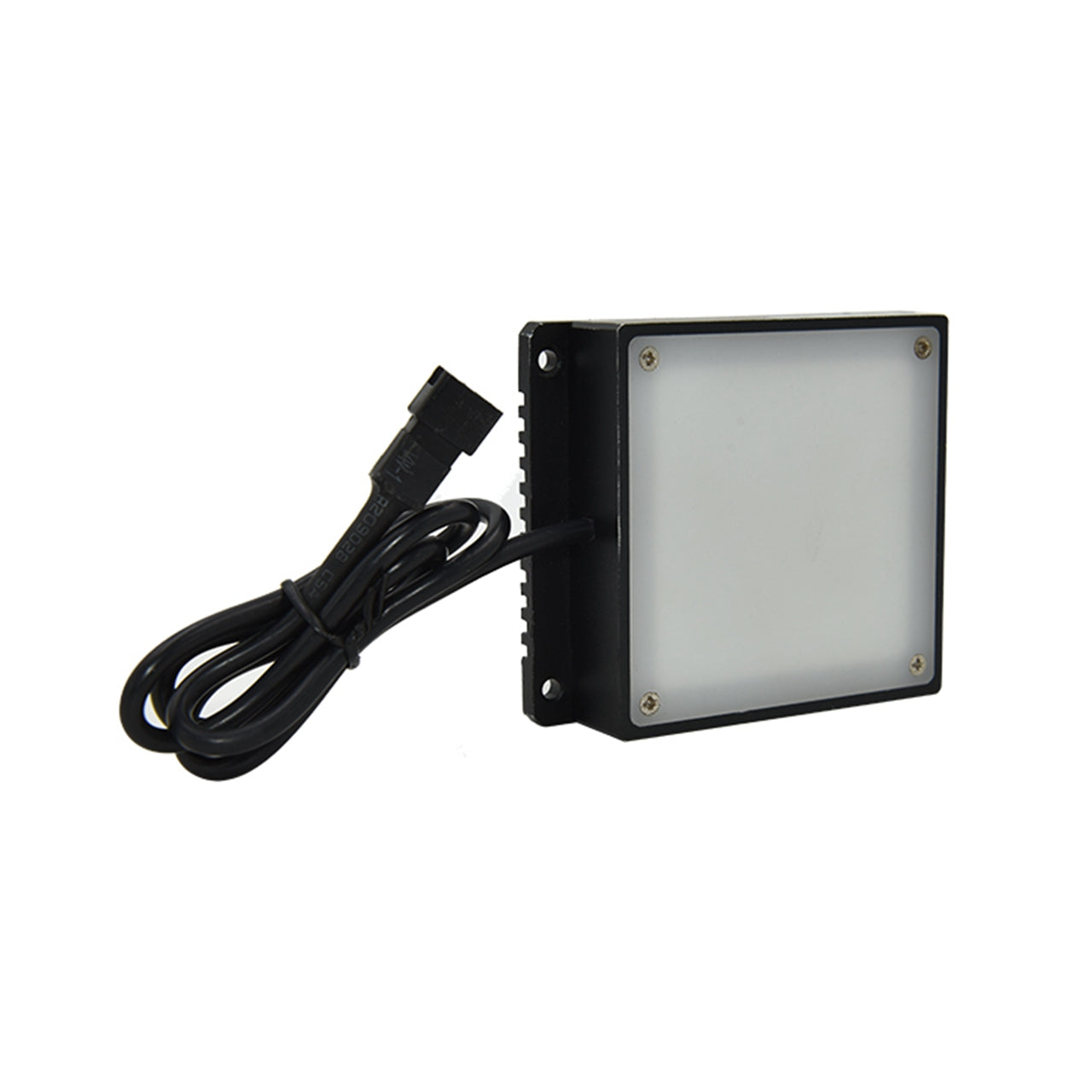

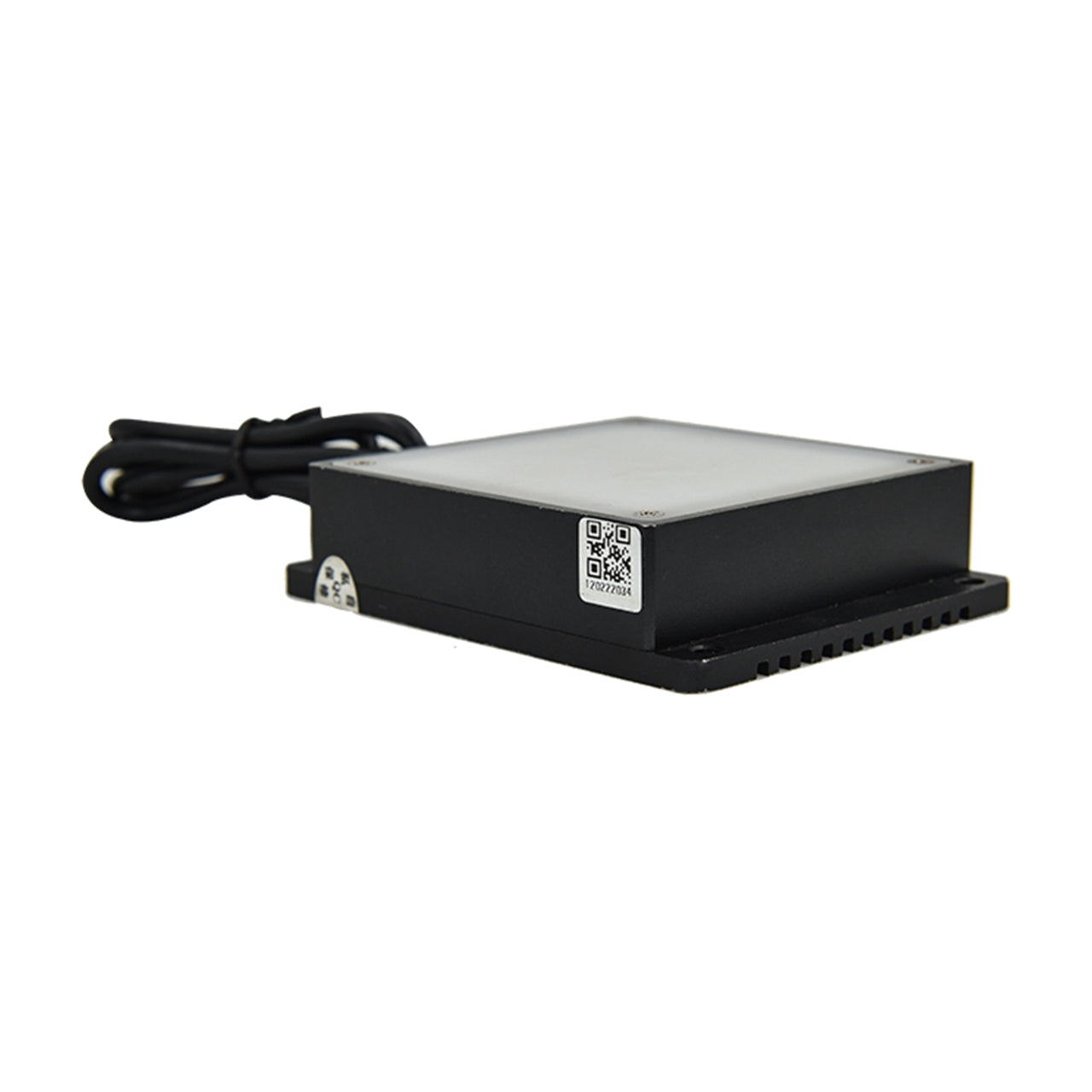

BF Series Bottom Flat Backlight for High-Contrast Machine Vision Inspection
The BF Series Bottom Flat Backlight Illumination is designed to deliver uniform, high-contrast lighting for precision machine vision applications. Its flat, low-profile structure allows easy integration into compact inspection systems, making it ideal for backlighting tasks requiring accurate contour detection.
With high-density SMD LED technology, the BF Series produces bright, diffused illumination across a wide emitting surface, ensuring consistent image quality and reliable performance in demanding industrial environments.
This backlight is especially suitable for silhouette imaging and measurement applications where clarity and edge definition are critical.
Key Features
- Uniform and diffused flat surface illumination
- High-brightness output with dense SMD LEDs
- Low-profile design for easy system integration
- Stable and durable for industrial environments
Applications
- Dimension measurement and precision inspection
- Contour and silhouette detection
- Liquid level inspection
- Pinhole and defect detection
- Burr inspection for metal parts
Specifications
| Input voltage | 24 VDC |
| Wavelength range | Red: 620-630nm; Blue: 460-475nm; Green: 520-530nm; |
|
Color temperature (white)
|
5800-7500K
|
|
Operating environment(indoor)
|
Temperature: 0~40℃ Humidity: 20% to 85% RH (with no condensation) |
| Life time | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
Case material
|
Aluminum alloy, Resin |
Illumination Structure
Emitting Color, IP Rating, cooling method, emitting surface length, etc customizable
