Q1: What is the MARS25MG-30CM/CC used for?
A: It is a 25MP high-resolution Camera Link industrial camera designed for robot vision, precision inspection, and high-speed automation systems.
Q2: What is the advantage of Camera Link interface?
A: Camera Link provides high bandwidth and low latency transmission, making it ideal for real-time machine vision and high-speed inspection.
Q3: Does this camera support fast moving objects?
A: Yes, it uses a global shutter sensor, ensuring distortion-free imaging of moving objects on production lines.
Q4: What is the resolution of this camera?
A: The camera delivers a resolution of 25MP (2592 × 9720 or equivalent high-resolution format depending on configuration) for detailed inspection tasks.
Q5: Is it suitable for robot vision applications?
A: Yes, it is specifically designed for robot guidance, positioning, and automated inspection systems.
Q6: What industries commonly use this camera?
A: It is widely used in semiconductor manufacturing, electronics inspection, AOI systems, robotics, and industrial automation.
Q7: Is it suitable for real-time inspection?
A: Yes, the high-speed Camera Link interface ensures real-time image acquisition and processing.
Q8: Is the camera reliable for industrial environments?
A: Yes, it is built for continuous operation in high-load industrial environments with stable performance and robustness.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Description
Product Description

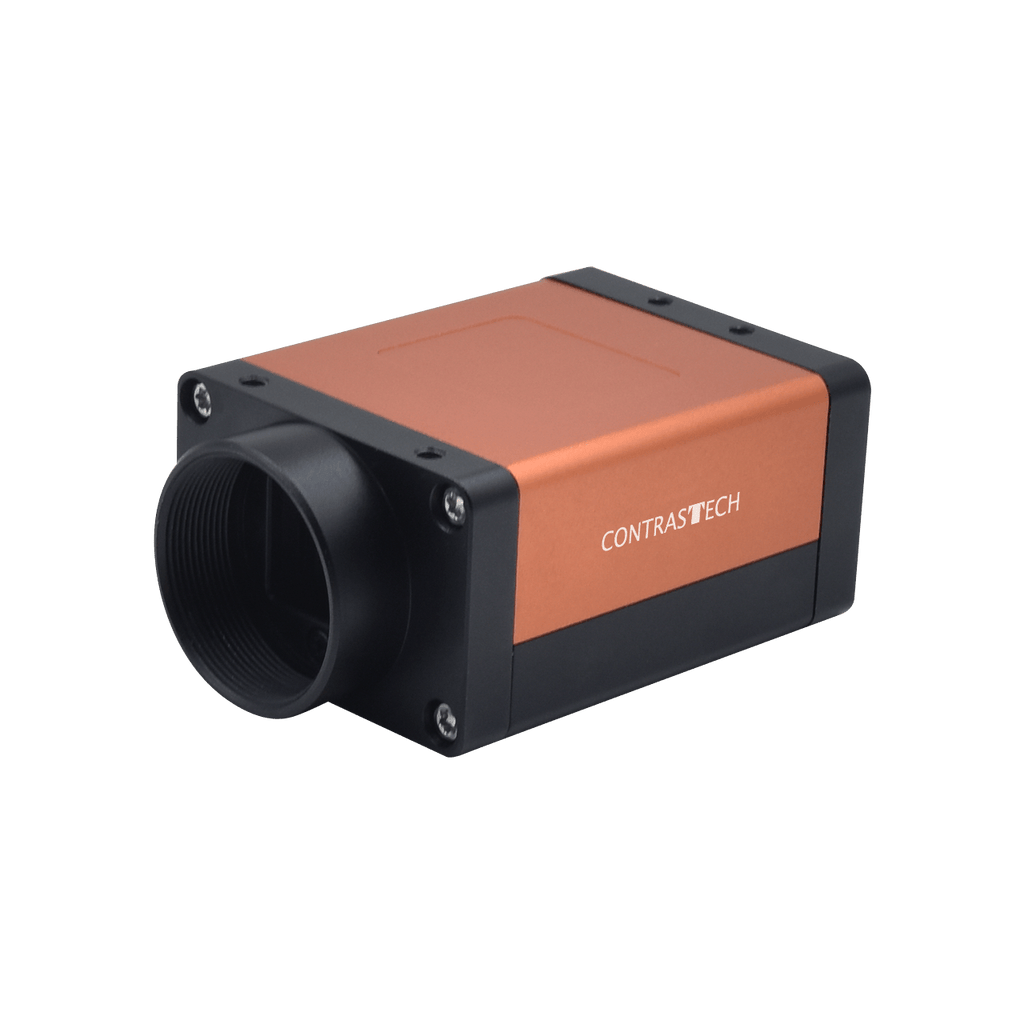

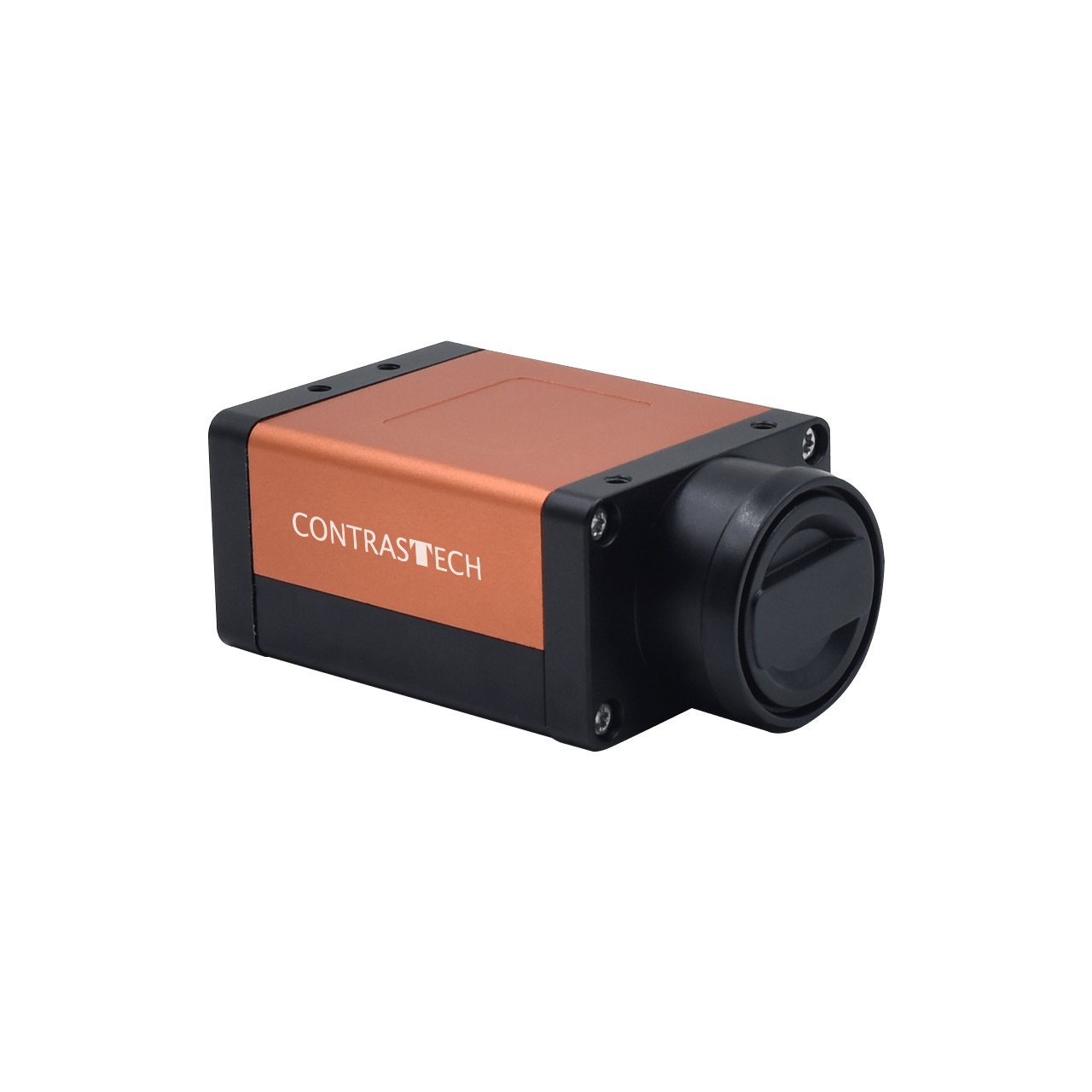

High-Resolution 25MP Camera Link Industrial Camera for Precision Robot Vision and Inspection
The MARS25MG-30CM/CC is a high-performance 25MP Camera Link industrial camera designed for demanding robot vision, automation, and precision inspection applications.
Equipped with a global shutter sensor, it delivers distortion-free imaging of fast-moving objects, ensuring accurate measurement and reliable defect detection in high-speed industrial environments.
With its Camera Link interface, the camera provides ultra-fast, low-latency data transmission suitable for real-time machine vision systems. It is optimized for applications requiring high resolution, high throughput, and deterministic imaging performance.
Built for industrial reliability, the MARS25MG-30CM/CC supports continuous operation in complex automation systems such as robotics, AOI, semiconductor inspection, and high-precision manufacturing.
Key Features
✔ 25MP Ultra-High Resolution Imaging
Delivers extremely detailed images for precision inspection.
✔ Camera Link High-Speed Interface
Enables ultra-low latency and high-bandwidth data transfer.
✔ Global Shutter Sensor
Ensures distortion-free imaging of fast-moving objects.
✔ Optimized for Robot Vision Systems
Designed for automated positioning and precision guidance.
✔ Industrial-Grade Reliability
Stable operation in high-speed and high-load environments.
✔ Real-Time Machine Vision Performance
Supports demanding inspection and automation workflows.
Ideal Applications
- Robot Vision Systems
- Semiconductor Inspection
- High-Speed Industrial Automation
- Precision Measurement
- AOI (Automated Optical Inspection)
- Electronics Manufacturing
- Defect Detection Systems
- Smart Factory Production Lines
Product Specifications
| Series | MARS25MG-30CM/CC |
| Resolution | 5120 px x 5120 px |
| Pixel size | 2.5 μm x 2.5 μm |
| Frame Rate | 30 fps |
| Mono/Color | Mono and Color |
| Sensor | Gpixel GMAX0505 |
| Shutter | Global Shutter |
| Sensor Size | 1.1" |
| Sensor Type | CMOS |
| Signal-to-Noise Ratio (typical) | >35.0 dB |
| Interface | Cameralink |
| Pixel Bit Depth | 10 bits |
| Synchronization |
|

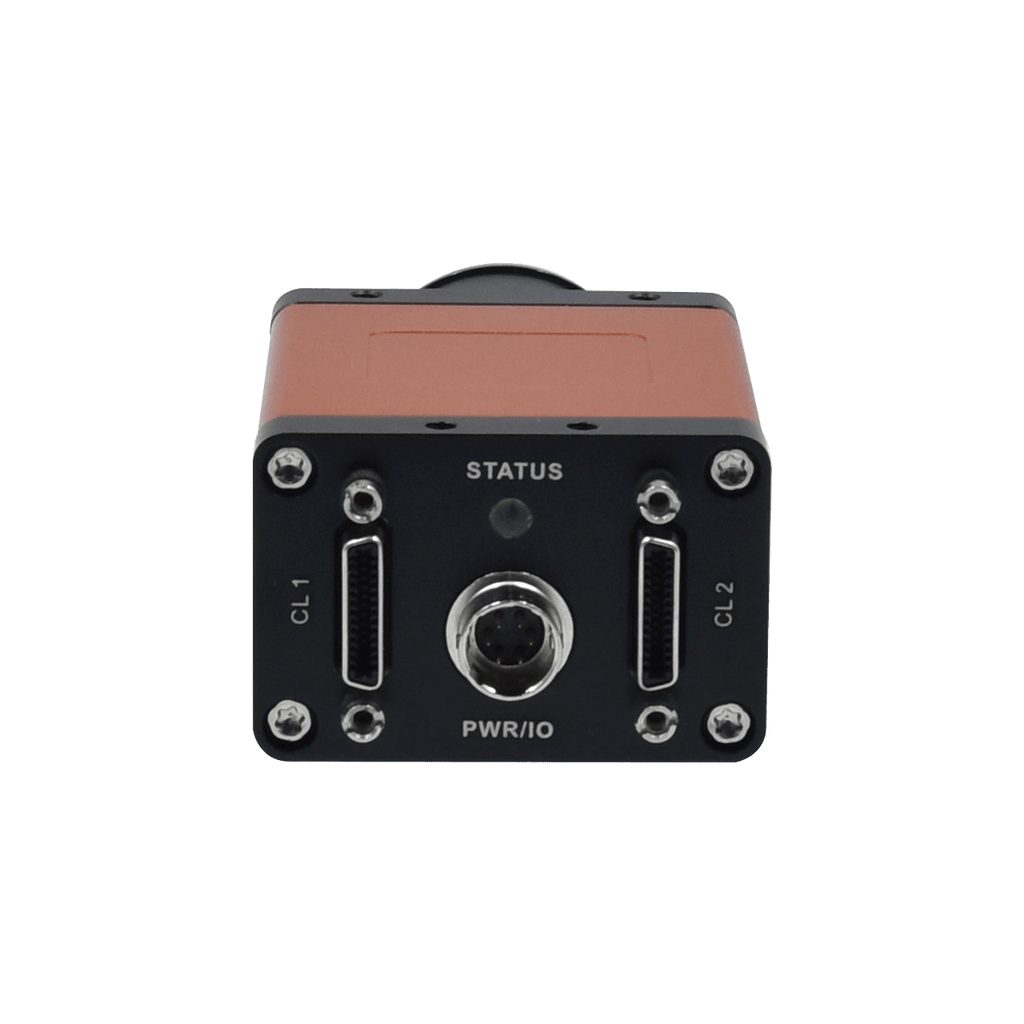

| I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
| Power Supply | PoCL，DC 9-24V |
| Design | Compact industrial design |
| Dimension (L x W x H) | 29.0 × 44.0 × 58.0 mm |
| Lens Mount | C-mount |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） |
| Weight（Typical） | 100g |
| Driver , SDK | Mars Series Camera Software Suite (iCentral) or 3rd Party Cameralink Protocol Software |
| Operating System | Windows |
| Conformity | Cameralink and GenICam |
