Q1: What is the MARS5470S-5GM/GC industrial camera used for?
A: It is a 20MP GigE machine vision camera used for industrial inspection, electronics manufacturing, quality control, and precision measurement applications.
Q2: What image sensor does this camera use?
A: It uses the Sony IMX183 CMOS sensor, providing high sensitivity and excellent image quality for detailed inspection tasks.
Q3: What is the resolution of this camera?
A: The camera delivers 20MP resolution (5472 × 3648) for high-precision imaging and fine detail capture.
Q4: Is this a GigE Vision camera?
A: Yes, it fully supports the GigE Vision and GenICam standards, ensuring easy integration with machine vision systems.
Q5: Does it support high-speed data transmission?
A: Yes, the GigE interface provides stable and reliable long-distance high-speed image transmission.
Q6: Is this camera suitable for fast-moving objects?
A: It uses a rolling shutter, making it suitable for standard industrial inspection. For ultra-high-speed motion, a global shutter model is recommended.
Q7: What industries commonly use this camera?
A: It is widely used in electronics inspection, semiconductor manufacturing, PCB inspection, and industrial automation systems.
Q8: Why choose this 20MP GigE camera?
A: Its combination of high resolution, IMX183 sensor performance, and stable GigE connectivity makes it ideal for precision industrial imaging and machine vision applications.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Description
Product Description

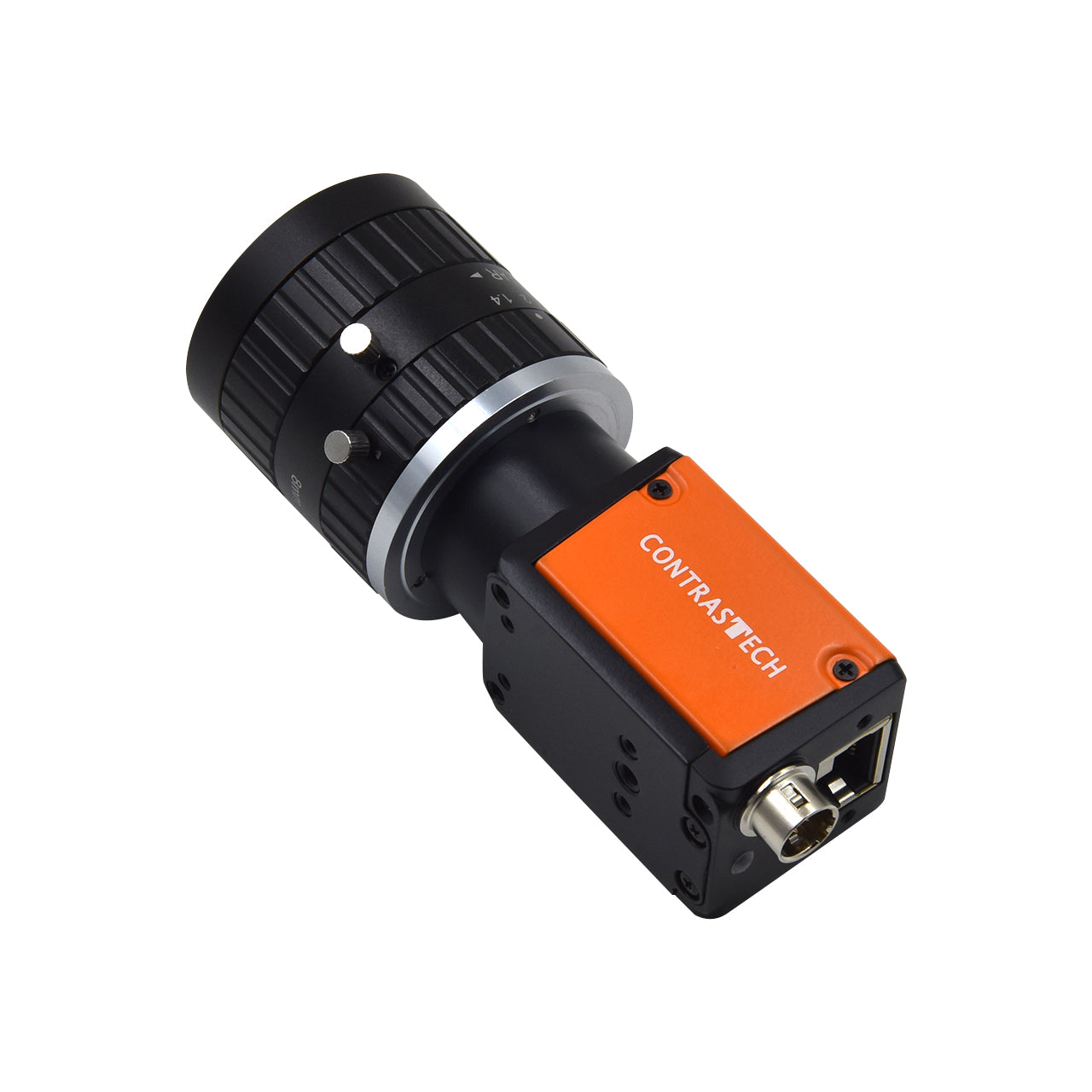

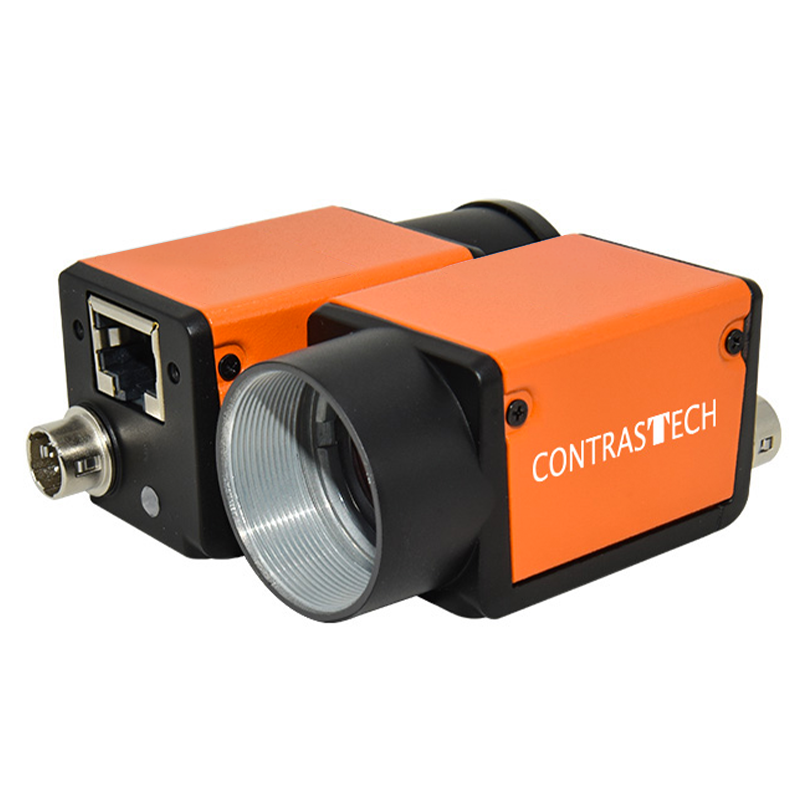

High-Resolution 20MP GigE Vision Camera for Precision Industrial Inspection
The MARS5470S-5GM/GC is a high-performance 20MP GigE industrial camera designed for precision machine vision inspection and automation systems. Equipped with the Sony IMX183 CMOS sensor, it delivers ultra-clear high-resolution imaging with excellent sensitivity, making it ideal for detailed inspection tasks in electronics, manufacturing, and quality control environments.
With GigE Vision interface compatibility, the camera ensures stable and reliable long-distance data transmission, supporting seamless integration into industrial imaging systems. Its compact design allows flexible installation in space-constrained environments while maintaining high imaging performance and efficiency.
Key Features
✔ 20MP High-Resolution Imaging
Delivers detailed and accurate image capture for precision inspection.
✔ Sony IMX183 CMOS Sensor
High sensitivity and excellent image quality for industrial applications.
✔ GigE Vision Interface
Stable, high-speed data transmission for machine vision systems.
✔ Rolling Shutter Architecture
Efficient imaging performance for standard industrial inspection tasks.
✔ Compact Industrial Design
Easy integration into automation and inspection equipment.
✔ Reliable System Integration
Compatible with standard machine vision platforms.
Ideal Applications
- Industrial Automation
- Electronics Inspection
- Precision Measurement
- Quality Control Systems
- Surface Defect Detection
- Machine Vision Inspection
Product Specifications
| Model | MARS5470S-5GM/GC |
| Resolution | 5472 px x 3468 px |
| Pixel size | 2.4 μm x 2.4 μm |
| Frame Rate | 5 fps |
| Mono/Color | Mono and Color |
| Sensor Vendor | Sony |
| Sensor | IMX183 |
| Shutter | Rolling Shutter |
| Sensor Size | 1" |
| Sensor Type | CMOS |
| Signal-to-Noise Ratio (typical) | >38.5 dB |
| Interface | GigE |
| Pixel Bit Depth | 8 / 10 / 12 bits |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |
| I/O | Opto-isolated input x 1, opto-isolated output x 1, and bi-directional custom non-isolated I/O x 1 |
| Power Supply | PoE or 6-24 VDC |
| Design | Compact industrial design |
| Dimension (L x W x H) | 42 mm x 29 mm x 29 mm |
| Lens Mount | C-mount （CS-Mount can be customized） |
| Working Temperature | -30 - 50°C（Operating），-30 - 80°C（Storage） |
| Weight（Typical） | 88g |
| Driver , SDK | Mars Series Camera Secondary Development Kit（iCentral）or Third-party Software meeting with GigE Vision Protocol |
| Operating System | Windows，Linux |
| Conformity | GigE Vision and GenICam |
