1. What is the iBt-UV16KT used for?
The iBt-UV16KT is designed for corona detection, partial discharge inspection, high-voltage equipment inspection, and UV emission imaging.
2. Why is UV imaging useful for corona detection?
Corona discharge can generate UV emissions that can be detected using UV-sensitive imaging systems. UV imaging provides a non-contact method for locating and analyzing these emissions.
3. What is the resolution of the iBt-UV16KT?
The camera provides 16384 × 256 resolution with 5 μm pixels, offering high spatial resolution for detailed UV inspection.
4. How does 256-TDI improve corona detection?
The 256-TDI architecture accumulates signals during line scanning, increasing effective sensitivity and helping capture weak UV emissions associated with corona and partial discharge.
5. What equipment can be inspected with the iBt-UV16KT?
Typical applications include high-voltage electrical equipment, power transmission components, electrical insulation systems, connectors, and other components requiring corona or partial discharge inspection.
6. What interface and lens mount does the camera use?
The iBt-UV16KT uses a CXP12 interface and M95 lens mount, supporting high-speed data transmission and integration with compatible UV optical systems.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Description
Product Description

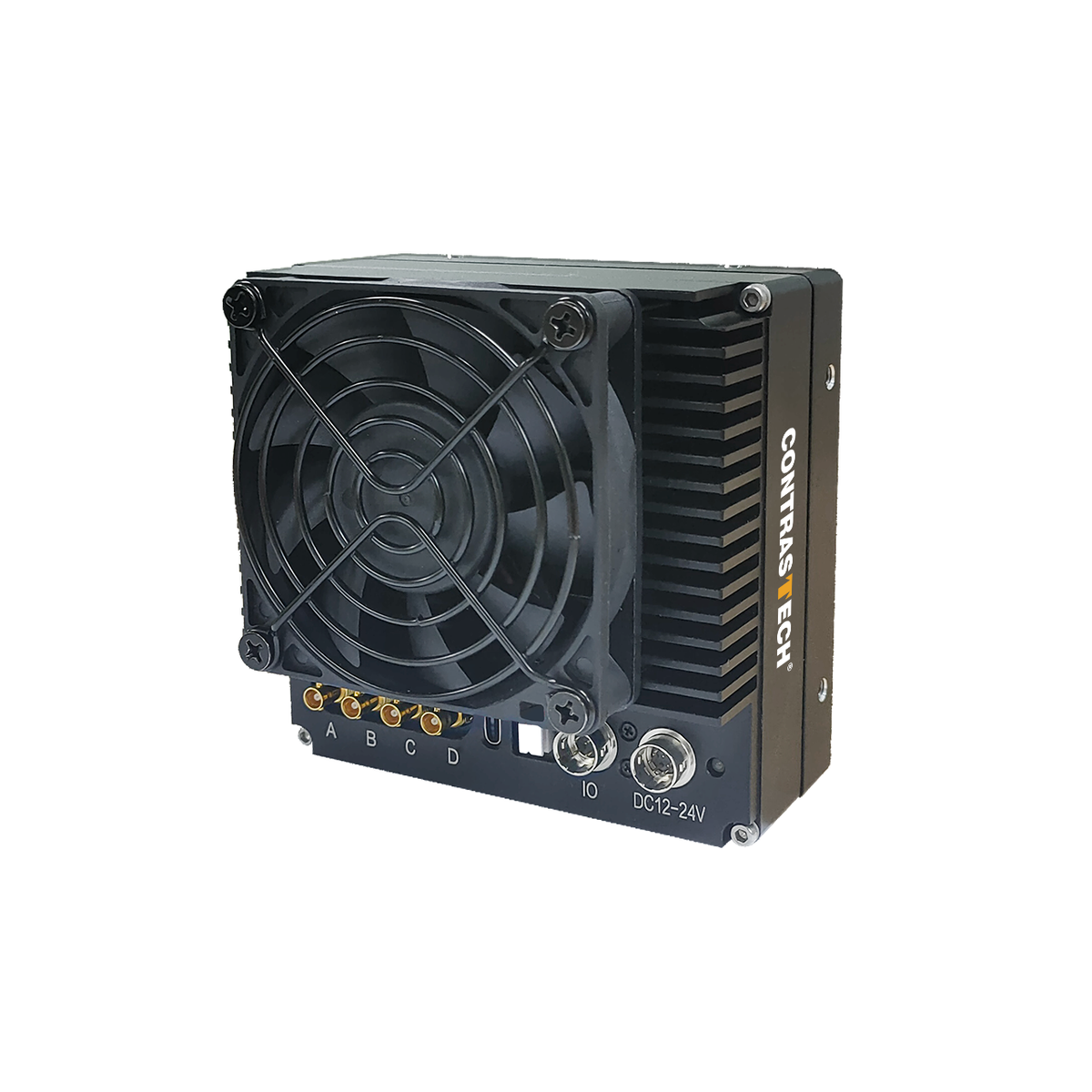

The iBt-UV16KT is a high-resolution 16K UV TDI line scan camera designed for corona detection, partial discharge inspection, and UV emission imaging. With 16384 × 256 resolution, 256-TDI, 5 μm pixels, and a 280 kHz line rate, it provides detailed UV imaging for demanding electrical inspection applications.
Its 256-TDI architecture enhances signal accumulation for weak UV emissions, while the CXP12 interface and M95 lens mount support high-speed image transmission and flexible optical integration. The camera is suitable for inspecting high-voltage equipment, electrical insulation, power components, and other systems where corona or partial discharge needs to be detected.
Key Features
✔ 16K UV Resolution: 16384 × 256 for detailed UV imaging
✔ 256-TDI: Enhanced sensitivity for weak UV emissions
✔ 280 kHz Line Rate: High-speed UV line scan acquisition
✔ 5 μm Pixels: Fine spatial resolution for precise inspection
✔ CXP12 Interface: High-bandwidth industrial imaging
Typical Applications
- Corona Detection
- Partial Discharge Detection
- High-Voltage Equipment Inspection
- Electrical Insulation Inspection
- Power Equipment Inspection
- UV Emission Detection
- Electrical Component Inspection
- High-Speed UV Imaging
Specifications
| Model | iBt-UV16KT |
| Resolution | 16384 × 256 |
| TDI | 256-TDI |
| Line Rate | 280 kHz |
| Pixel Size | 5 μm |
| Interface | CXP12 |
| Lens Mount | M95 |
| Camera Type | UV TDI Line Scan |
