Q1. What spectral range does the iRx10U19L cover?
The iRx10U19L covers the 400–1000nm VIS-NIR spectral range, providing detailed spectral information for UAV remote sensing and material analysis.
Q2. How many spectral and spatial channels does it provide?
The system provides 1200 spectral channels and 1920 spatial channels, enabling detailed hyperspectral data acquisition.
Q3. What is the spectral resolution of the iRx10U19L?
It achieves better than 2.5nm spectral resolution, supporting precise spectral detection and material identification.
Q4. Can the iRx10U19L be integrated with a UAV?
Yes. It is designed as a compact drone-mounted hyperspectral camera and is compatible with the DJI X-Port flight platform.
Q5. How does the built-in processing unit help UAV applications?
The built-in processing unit supports onboard data processing and, together with the USB interface, simplifies integration with UAV hyperspectral imaging systems.
Q6. What applications can the iRx10U19L support?
Typical applications include mineral exploration, soil monitoring, water quality monitoring, crop growth assessment, agriculture, forestry, and environmental monitoring.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Description
Product Description

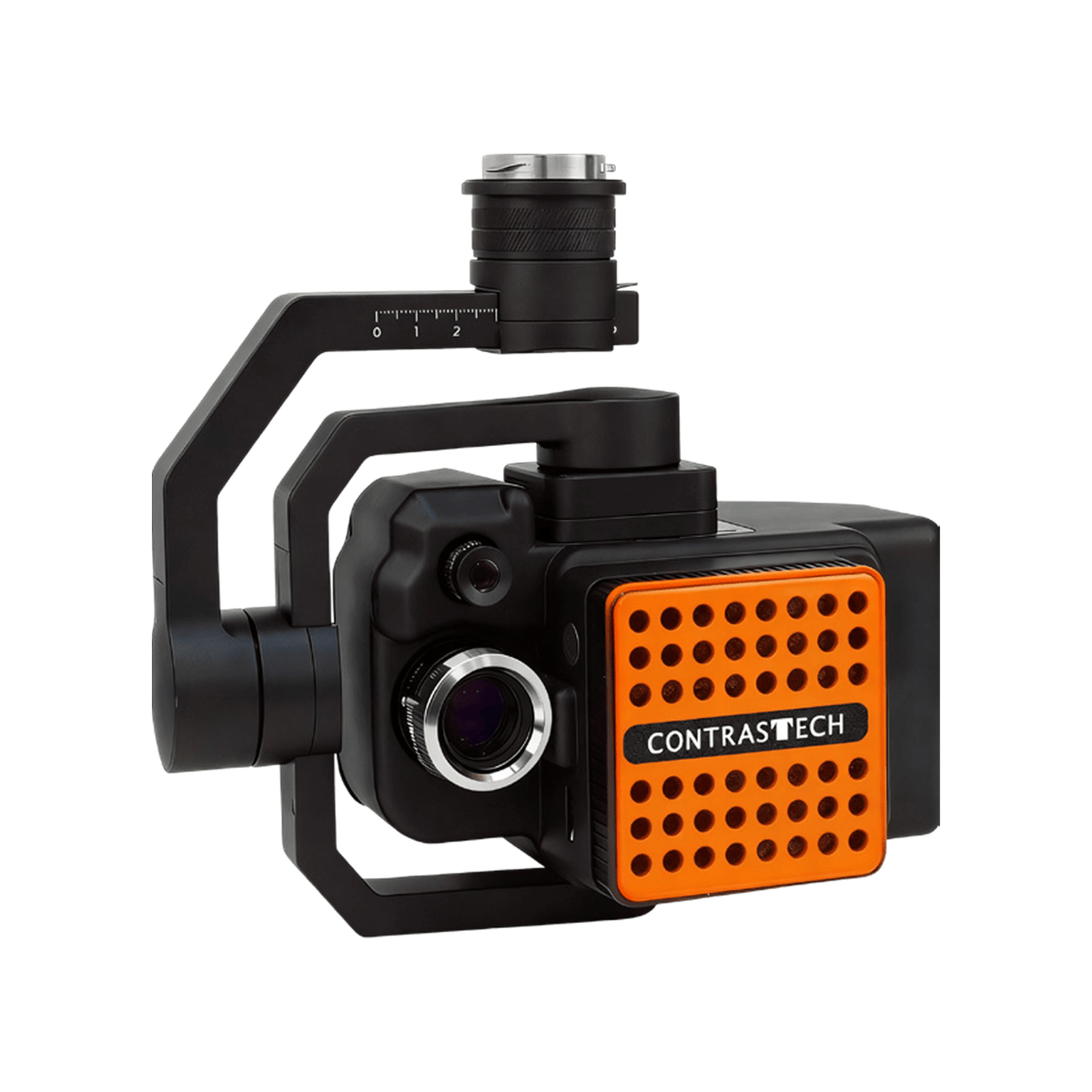

The iRx10U19L is a compact drone-mounted hyperspectral camera covering the 400–1000nm VIS-NIR spectral range. With 1200 spectral channels and 1920 spatial channels, it provides better than 2.5nm spectral resolution for detailed spectral detection and material analysis.
Featuring a high-efficiency transmission grating, achromatic optics, and a high-SNR ultra-high-speed spectral scanning imager, the system provides stable hyperspectral data acquisition. A USB interface and built-in processing unit support efficient integration with UAV remote sensing systems, while compatibility with the DJI X-Port flight platform makes it suitable for agriculture, forestry, mineral exploration, and environmental monitoring.
Key Features
- 400–1000nm VIS-NIR spectral range
- 1200 spectral × 1920 spatial channels
- <2.5nm spectral resolution
- High-SNR ultra-high-speed spectral imaging
- DJI X-Port compatible with USB interface
Applications
- Mineral Exploration
- Water Quality Monitoring
- Soil Monitoring
- Crop Growth Assessment
- Forestry & Environmental Monitoring
- UAV Remote Sensing
Main Specifications
| Feature |
iRx10U19L
|
|
Spectral Dispersion
|
Transmission Grating Dispersion
|
|
Spectral Range
|
400-1000nm
|
|
Spectral Band
|
1200
|
|
Spectral Resolution
|
2.5nm
|
|
Slit Width
|
≤ 25um
|
|
Spectral Efficiency
|
＞ 60%
|
|
Stray Light
|
＜ 0.5%
|
|
Spatial Pixel
|
1920
|
|
Pixel Size
|
5.86um
|
|
Imaging Speed
|
Full spectrum 128fps
|
|
Sensor
|
CMOS
|
|
SNR(Peak)
|
600/1
|
|
Interface
|
USB
|
|
Lens Mount
|
C-Mount
|
|
Built-In Unit
|
Embedded processor, 512 GB SSD
|
|
Cooling Method
|
Internal air cooling
|
|
Observation Mode
|
Real-time observation via ground station of aircraft sampling points, hyperspectral images, and spectral data, with features
|
|
Calibration Method
|
Radiance correction, reflectance correction, and regional calibration support batch processing
|
|
Data Format
|
Compatible with SPE, HDR, and SCP formats
|
|
Dimensions
|
155*95*119mm
|
|
Weight
|
≤ 840g
|
|
Accessories
|
Reflectance calibration plate
|
|
Lens Focal
|
25mm
|
|
Lens Field
|
>25°
|
