Description

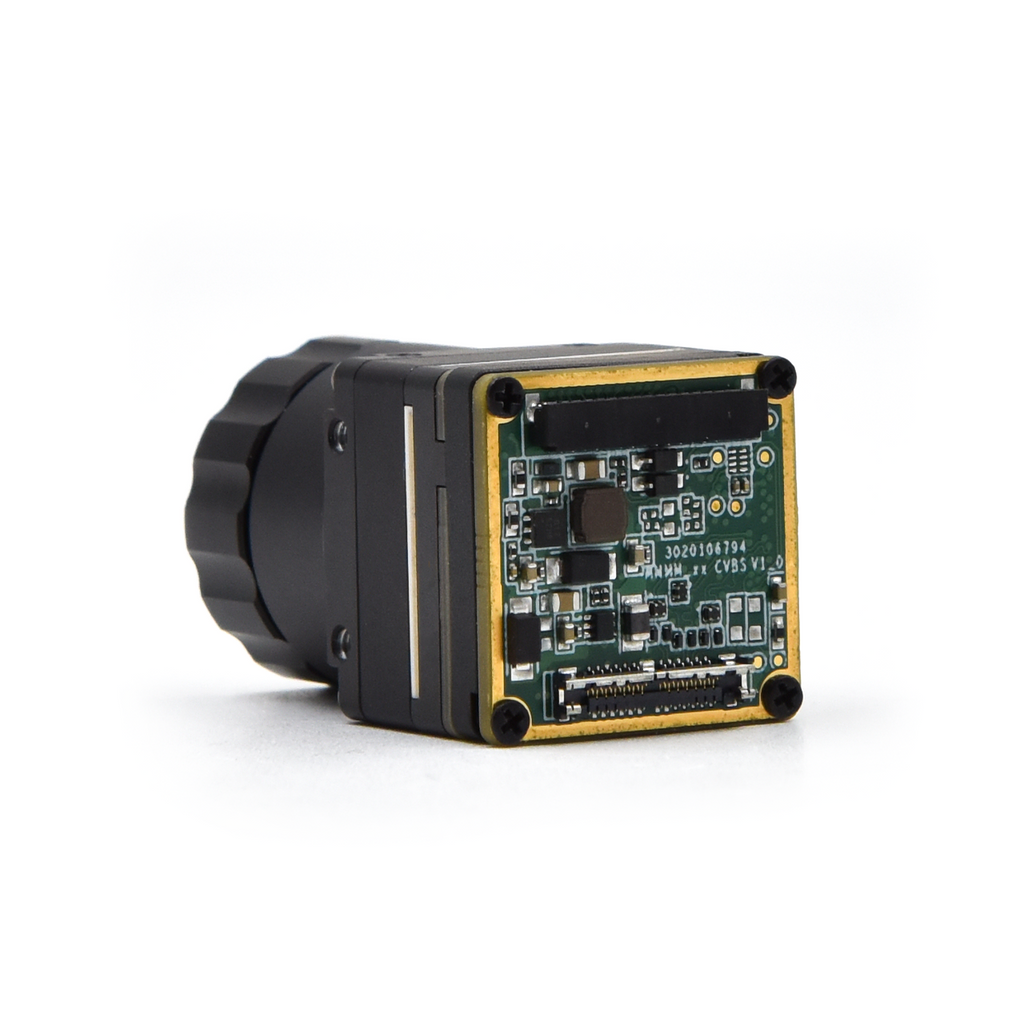

The iVaster-SL LWIR Camera features a 256×192 resolution, 50Hz frame rate, and shutterless design for smooth, reliable thermal imaging. With 1.0–8.0x digital zoom, it delivers clear detail for industrial inspection, security monitoring, fire detection, and UAV integration in compact, lightweight form.
Main Features
● 8 to 14 μm spectrum, pixel size options: 10 μm and 12 μm
● High frame rate, low power, lightweight for easy integration
● Supports high-quality imaging and optional temperature measurement
● Full-range 3.9–55mm lenses, detects pedestrians up to 6.1km
● 80g@4ms shock & 6.06g vibration resistance, <0.1% failure in harsh missions
Application
● Security Monitoring
● Enforcement & Rescue
● Industrial Temperature Measurement
● Animal Observation
● Drone
● Enforcement & Rescue
● Industrial Temperature Measurement
● Animal Observation
● Drone
| Model |
iVaSL256LW
|
|
Temp
|
No |
| Pixel Size |
12μm
|
|
Resolution
|
256×192
|
|
Frame Rate（Hz）
|
50
|
|
Digital Zoom
|
1.0-8.0x
|
|
Shutterless
|
Support
|
|
Lenses
|
3.9/9.1/13/25mm
|
|
Digital Video Interface
|
DVP/BT656/USB2.0/MIPI
|
|
Analog Video
|
PAL/NTSC
|
|
Communication Interface
|
UART/I2C/USB2.0
|
Datasheet Download
