Q1: What is the VT-TLL-23 liquid telecentric lens used for?
A: It is designed for precision machine vision, metrology, semiconductor inspection, and automated optical inspection (AOI) requiring flexible focusing and high measurement accuracy.
Q2: What is the advantage of liquid lens technology?
A: The liquid lens enables electronic focusing, allowing fast and stable working distance adjustment without mechanical movement while maintaining telecentric performance.
Q3: Does the lens maintain telecentricity during focus adjustment?
A: Yes. The lens maintains consistent telecentric imaging, low distortion, and stable magnification across the entire focusing range.
Q4: What magnification range does this lens support?
A: The VT-TLL-23 supports a wide magnification range from 0.4X to 4.0X, making it suitable for various inspection and measurement tasks.
Q5: What is the sensor format and mount type?
A: It is designed for 2/3" sensors with C-Mount compatibility, widely used in industrial machine vision cameras.
Q6: What is the optical performance of this lens?
A: The lens achieves MTF > 0.3 at 100 lp/mm, ensuring high-resolution imaging and accurate edge detection.
Q7: Is a coaxial illumination version available?
A: Yes, an optional coaxial illumination version is available for reflective surfaces such as metal, glass, and polished components.
Q8: What industries commonly use this lens?
A: It is widely used in semiconductor inspection, PCB inspection, electronics manufacturing, precision assembly, and industrial automation.
Estimated Delivery Time
Ship To Detecting...
?
Shipping dates are estimates and subject to change. By ordering, you accept possible schedule adjustments. For urgent orders, please confirm with us before purchasing. Post-order cancellations are subject to a 6.4% handling fee.
Descrizione
Descrizione del prodotto

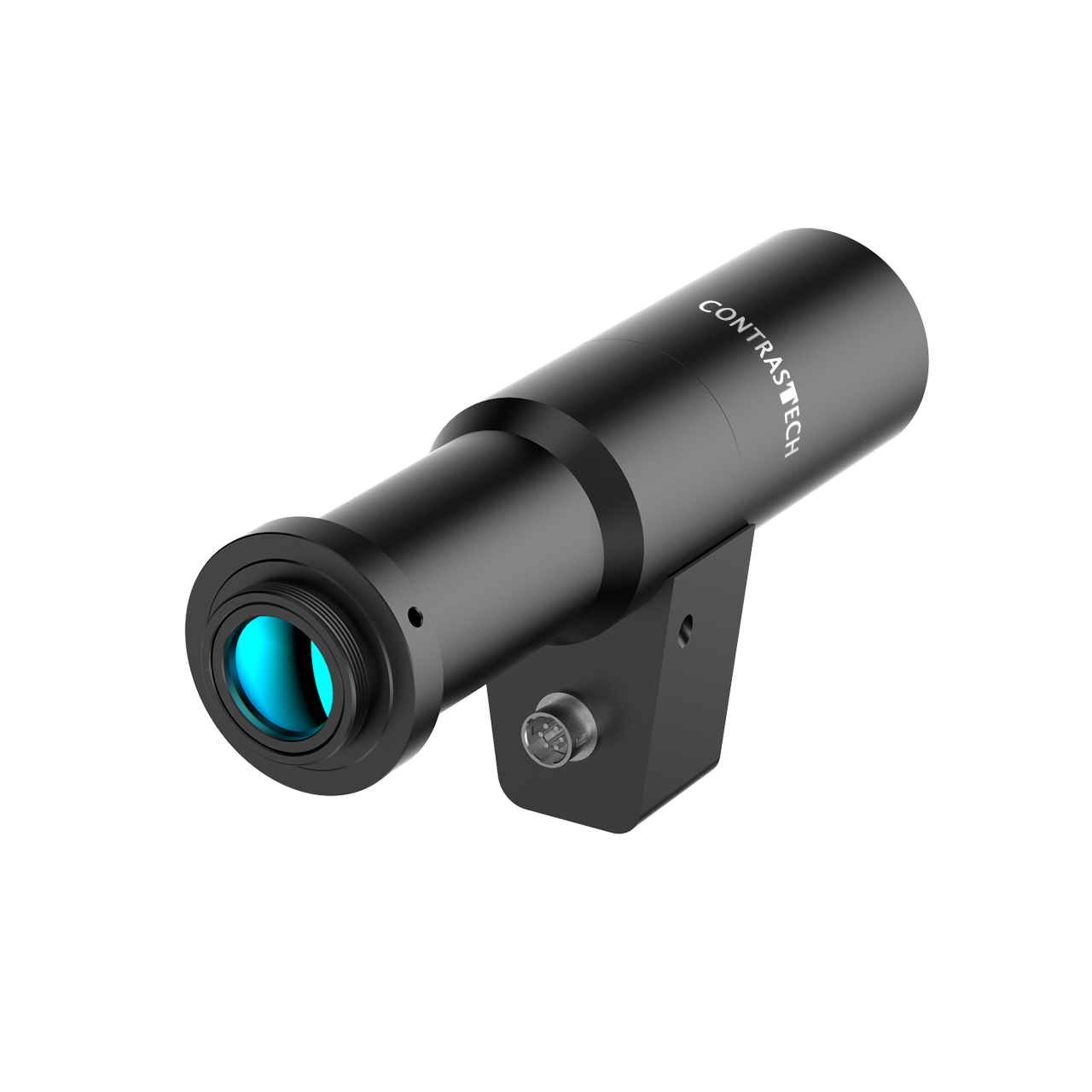

Obiettivo telecentrico liquido con messa a fuoco elettronica per visione artificiale ad alta precisione
La serie VT-TLL-23 è un obiettivo telecentrico liquido C-Mount da 2/3" progettato per la visione artificiale di precisione, la metrologia e l'ispezione automatizzata. Integrando la tecnologia degli obiettivi liquidi, consente una messa a fuoco elettronica rapida e una profondità di campo estesa, mantenendo al contempo le prestazioni di imaging telecentrico su tutto l'intervallo di messa a fuoco.
Disponibile con ingrandimenti da 0,4X a 4,0X, la serie VT-TLL-23 offre un'alta risoluzione ottica con MTF >0,3 @100 lp/mm, garantendo un'eccellente nitidezza dell'immagine per la misurazione di precisione e l'ispezione dei difetti. È disponibile una versione opzionale con illuminazione coassiale per superfici riflettenti e applicazioni di ispezione esigenti.
A differenza degli obiettivi telecentrici convenzionali che richiedono la rifocalizzazione meccanica, il design dell'obiettivo liquido consente un rapido e ripetibile aggiustamento della distanza di lavoro senza compromettere l'ingrandimento, la telecentricità o la qualità dell'immagine.
Caratteristiche principali
✔ Tecnologia dell'obiettivo liquido
La messa a fuoco elettronica consente un aggiustamento della messa a fuoco rapido, preciso e senza manutenzione.
✔ Profondità di campo estesa
Mantiene un'immagine nitida su un intervallo di messa a fuoco più ampio, migliorando l'efficienza dell'ispezione.
✔ Compatibilità C-Mount da 2/3"
Ottimizzato per telecamere industriali con sensori di immagine fino a 2/3".
✔ Ingrandimento da 0,4X a 4,0X
Supporta un'ampia gamma di applicazioni di visione artificiale e misurazione di precisione.
✔ Alta risoluzione ottica
MTF >0,3 @100 lp/mm per un rilevamento accurato dei bordi e un'immagine dei dettagli fini.
✔ Versione opzionale con illuminazione coassiale
Ideale per superfici riflettenti, lucidate e metalliche.
Applicazioni ideali
- Metrologia di precisione
- Ispezione dei semiconduttori
- Ispezione dei PCB
- Produzione elettronica
- AOI (Ispezione Ottica Automatizzata)
- Assemblaggio di precisione
- Robotica & Visione artificiale
- Ispezione dei difetti superficiali
Specifiche
Obiettivo telecentrico liquido da 2/3"

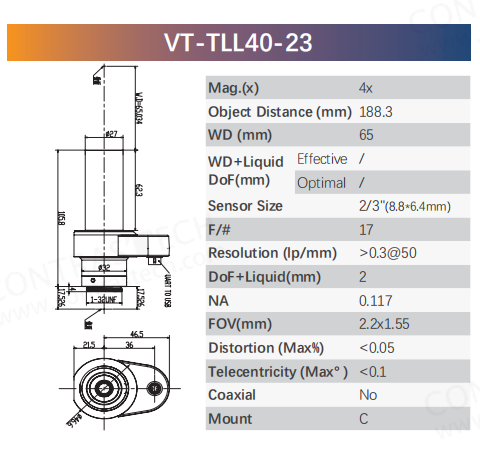

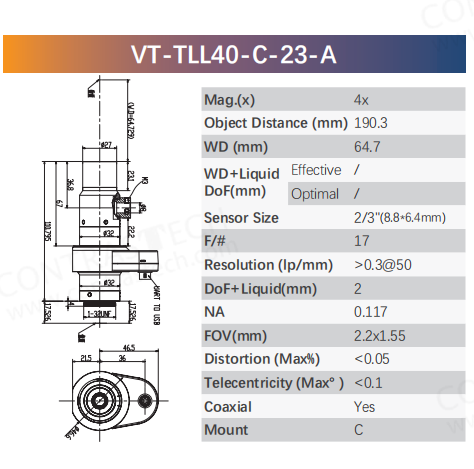

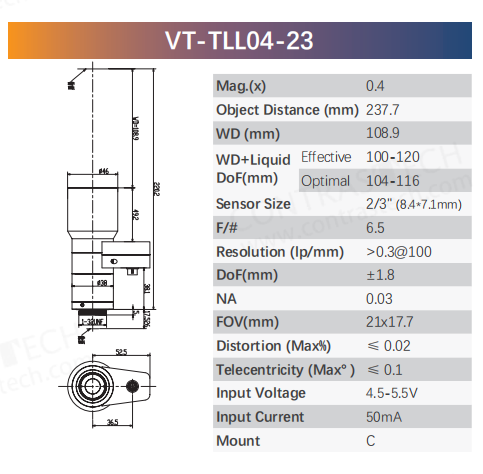

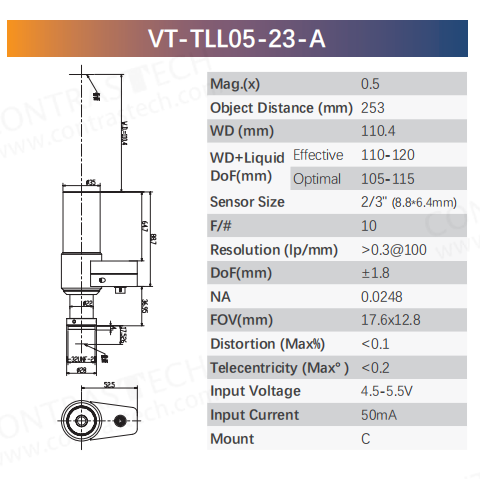

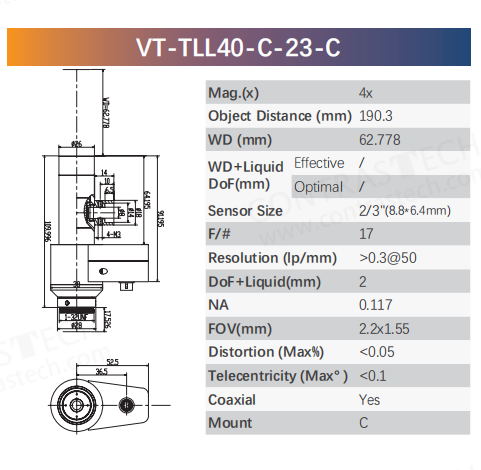

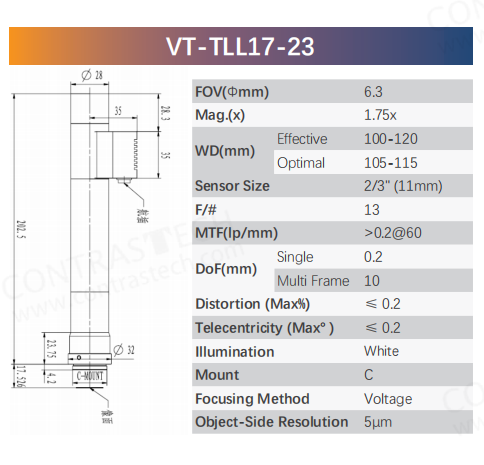

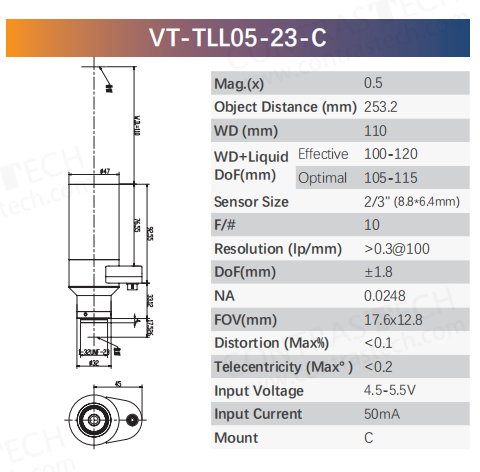

| Modello | Coassiale | Ing. | WD+Liquido | DOF | F/# | MTF (lp/mm) |
|---|---|---|---|---|---|---|
| VT-TLL04-23 | No | 0,4x | 100-120mm | ±1,8mm | 6,5 | >0,3@100 |
| VT-TLL05-23-A | No | 0,5x | 110-120mm | ±1,8mm | 10 | >0,3@100 |
| VT-TLL05-23-C | No | 0,5x | 100-120mm | ±1,8mm | 10 | >0,3@100 |
| VT-TLL17-23 | No | 1,75x | 100-120mm | ±0,2mm | 13 | >0,2@60 |
| VT-TLL40-C-23-A | Sì | 4,0x | 64,7mm | 2mm | 17 | >0,3@50 |
| VT-TLL40-C-23-C | Sì | 4,0x | 62,778mm | 2mm | 17 | >0,3@50 |
| VT-TLL40-23 | No | 4,0x | / | 2mm | 17 | >0,3@50 |
