Q1. What is the PHL+ Series Polarized Bar Light used for?
The PHL+ Series provides high-intensity polarized illumination for machine vision inspection, especially for reflective surfaces and glare-sensitive applications.
Q2. What is the difference between HL+ and PHL+?
PHL+ is the polarized version of the HL+ Series, adding a built-in polarizing plate to help control reflections while maintaining high-brightness illumination.
Q3. How does the polarizing plate improve machine vision imaging?
It helps reduce glare and unwanted reflections from reflective surfaces, improving image contrast and making inspection features easier to detect.
Q4. Can all HL+ Series bar lights be upgraded to PHL+?
Yes. The HL+ Series can be customized with a polarizing structure and built-in polarizing plate to create a PHL+ configuration.
Q5. What PHL+ sizes are available?
PHL+ can be configured based on the HL+ platform, including 22mm and 35mm light widths with light lengths from 100mm to 1000mm.
Q6. What applications are suitable for PHL+ polarized lighting?
It is suitable for reflective surface inspection, automotive inspection, material inspection, printing inspection, and other machine vision applications where glare control is important.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Descrizione
Product Description

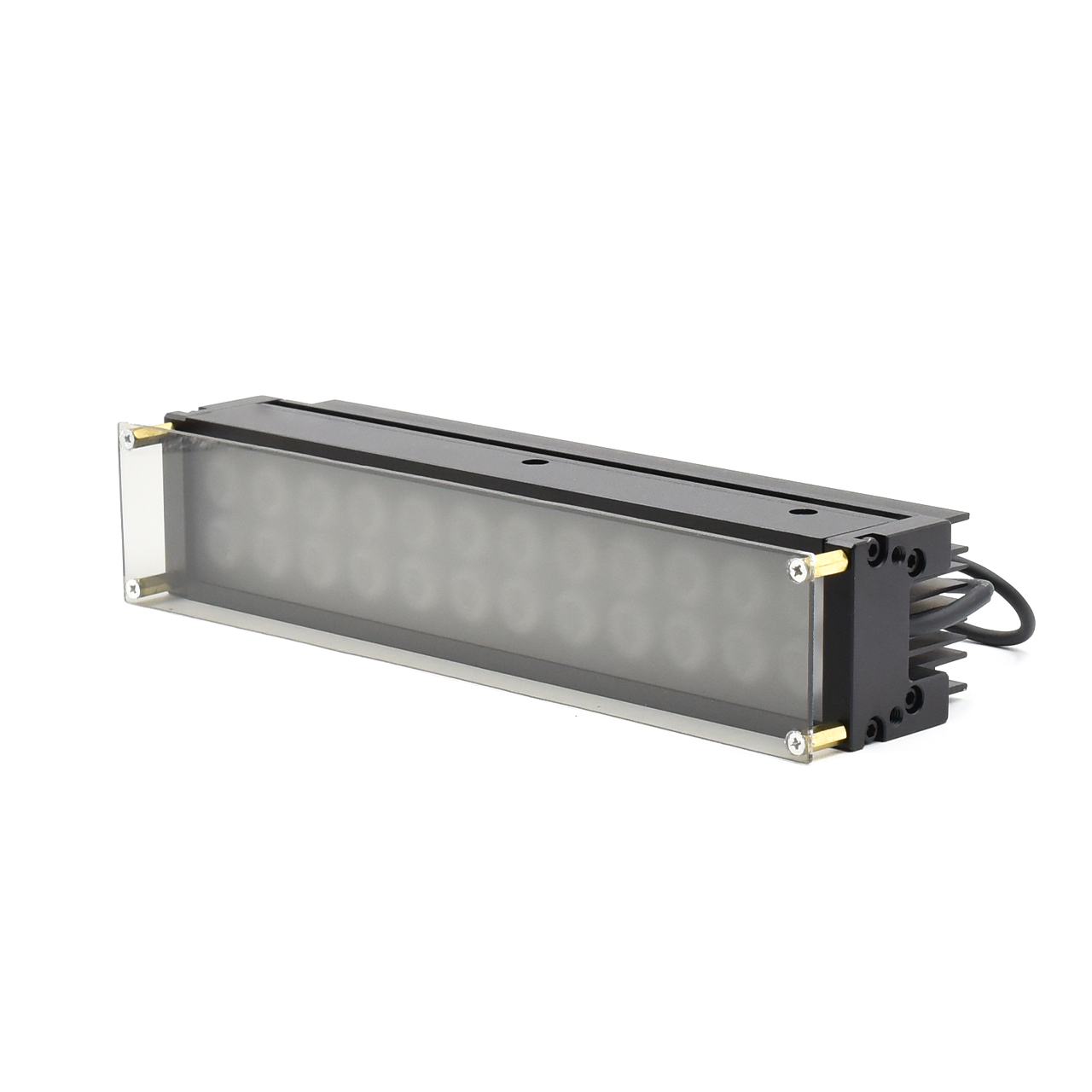

The PHL+ Series Polarized High Brightness Bar Lights combine high-intensity LED illumination with a built-in polarizing plate to provide controlled, uniform lighting for demanding machine vision inspection.

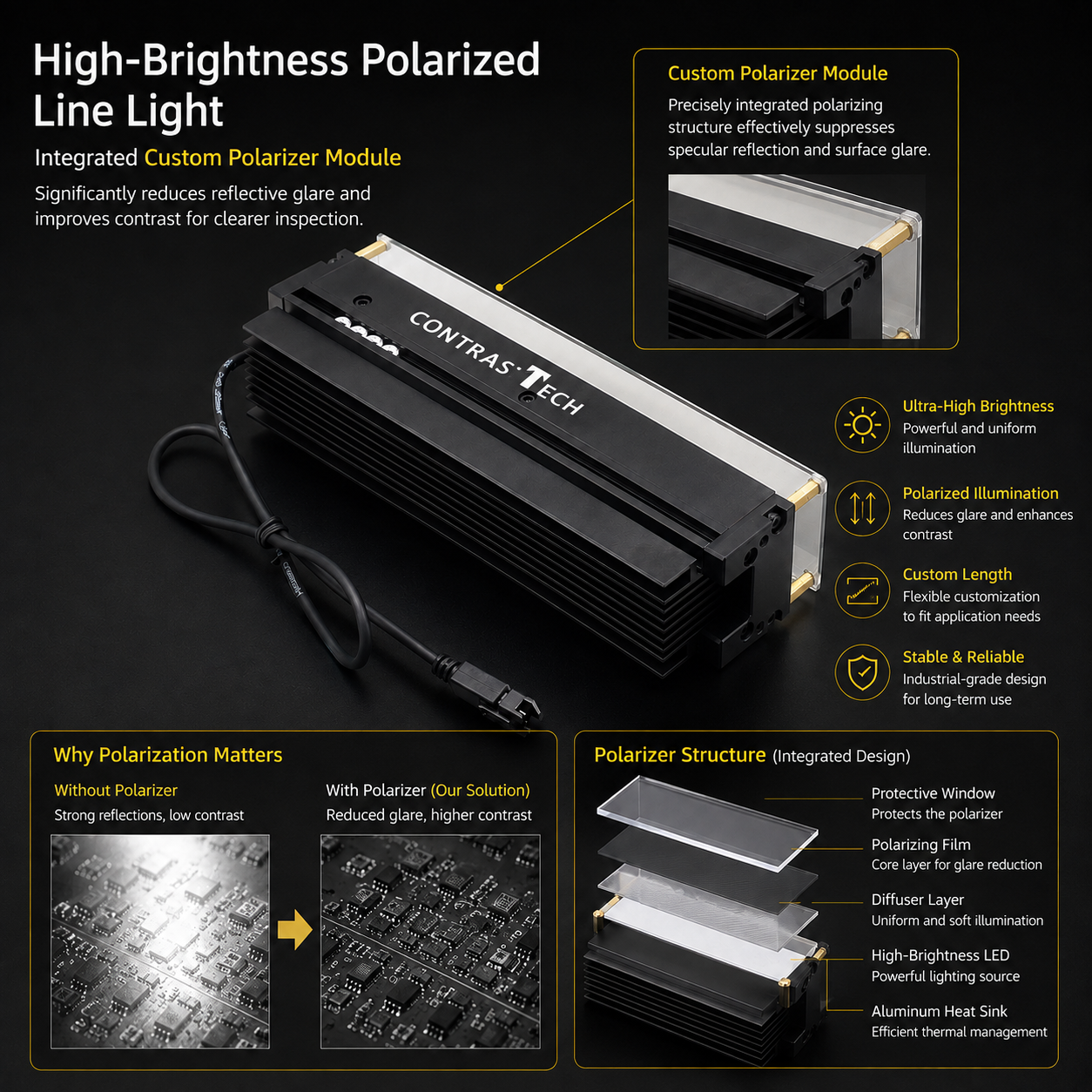

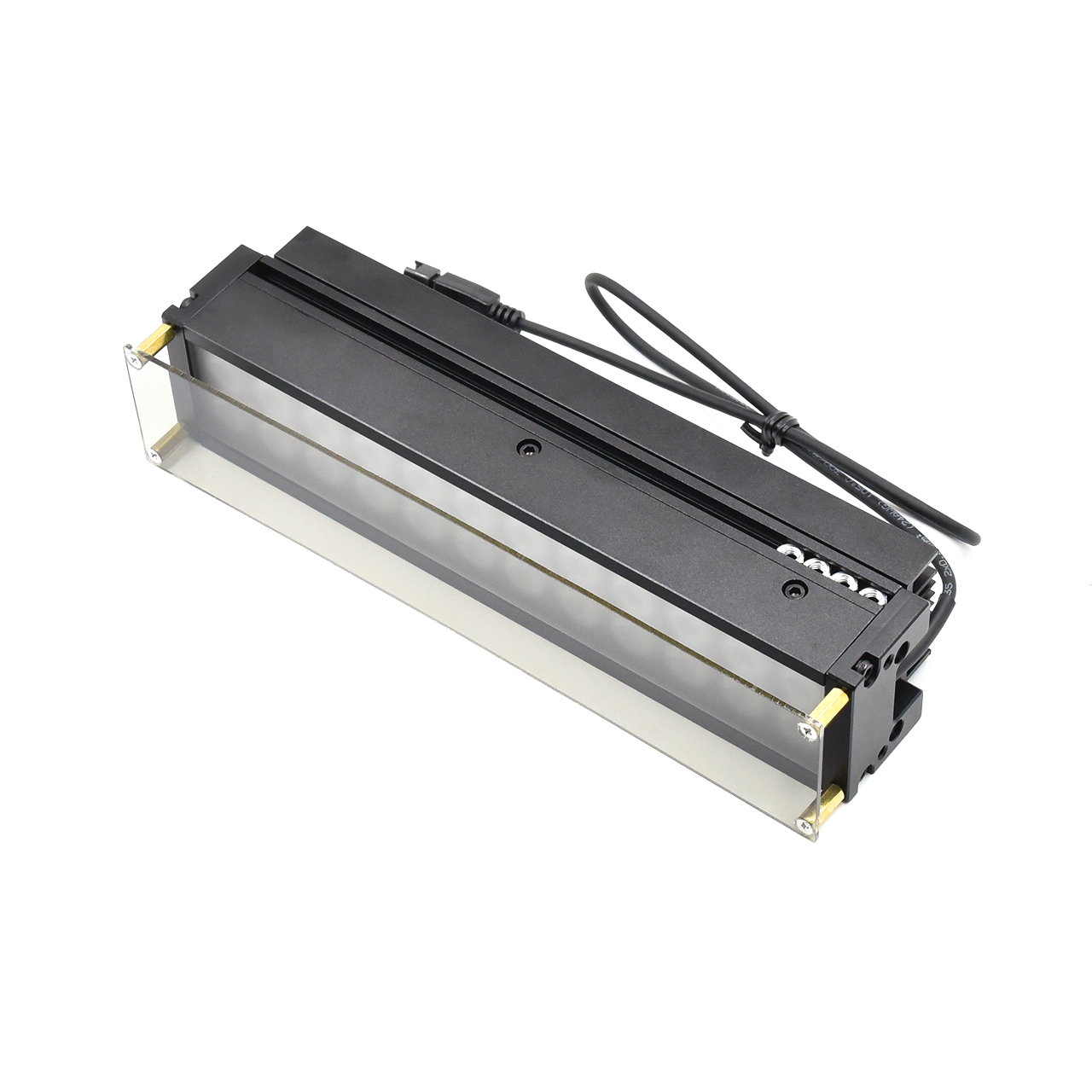

The polarized structure helps reduce glare and unwanted reflections from reflective surfaces, improving image contrast and inspection stability. The PHL+ Series is available in different light lengths and can be customized in size and color for applications such as surface inspection, material analysis, automotive inspection, robotics, and large-format printing.
Key Features
- High-power LEDs for enhanced illumination

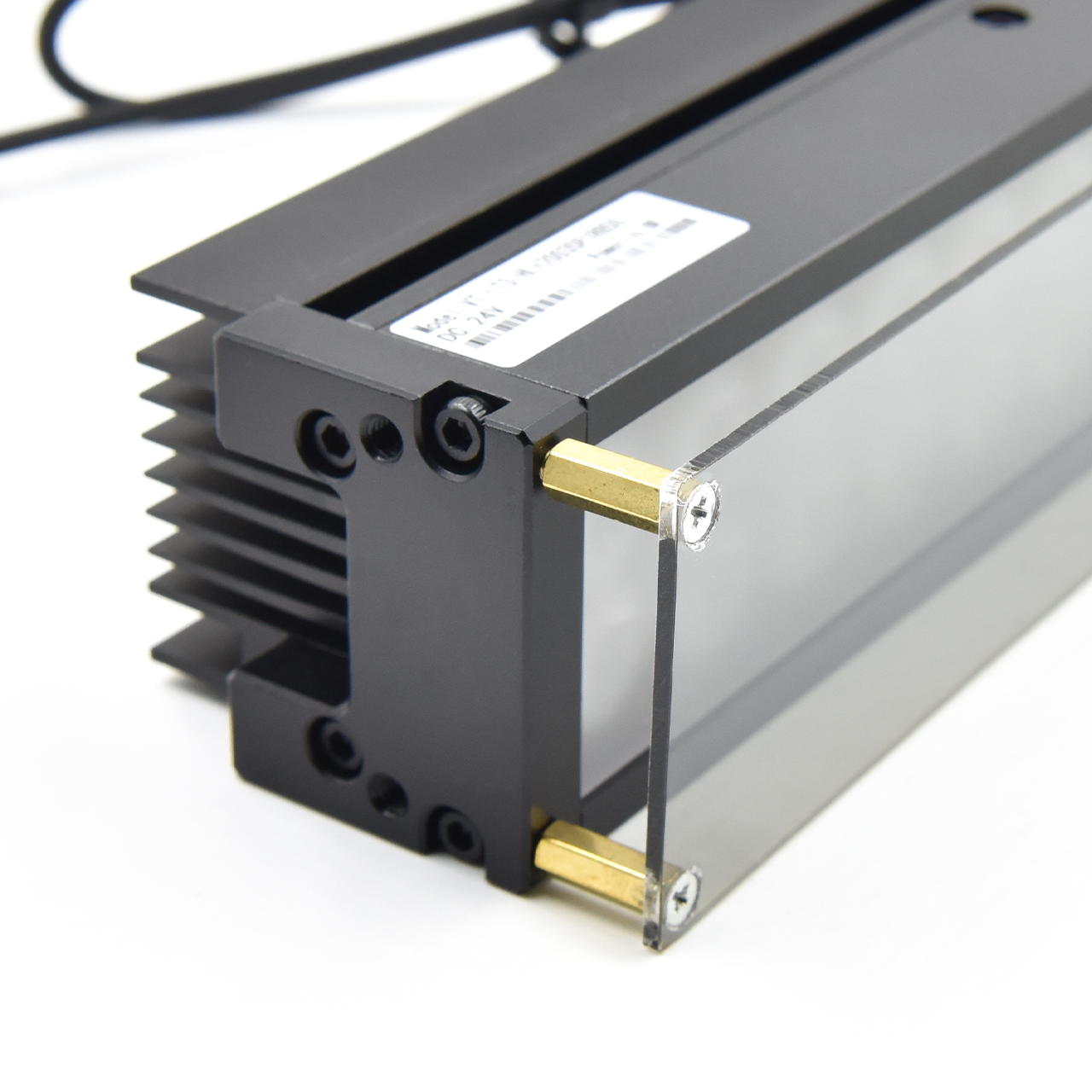

- Built-in polarizing plate for reflection control
- Uniform lighting for stable machine vision imaging
- Multiple light lengths and compact configurations
- Customizable size and light color
Applications
- Surface Defect Inspection
- Reflective Surface Inspection
- Automotive Inspection
- Material Analysis
- Robot Vision
- Large-Format Printing Inspection
Specifications
| Model | Light Area (mm) | Supply Volt. (V) | Power Cons. (W) | Dimensions (mm) |
|---|---|---|---|---|
| VT-LT3-PHL+10035 | 100 × 35 | 24 | 17.0 | 116 × 45 × 50 |
| VT-LT3-PHL+20035 | 200 × 35 | 24 | 34.0 | 216 × 45 × 50 |
| VT-LT3-PHL+30035 | 300 × 35 | 24 | 51.0 | 316 × 45 × 50 |
| VT-LT3-PHL+40035 | 400 × 35 | 24 | 68.0 | 416 × 45 × 50 |
| VT-LT3-PHL+50035 | 500 × 35 | 24 | 85.0 | 557.5 × 45 × 75.4 |
| VT-LT3-PHL+60035 | 600 × 35 | 24 | 102.0 | 657.5 × 45 × 75.4 |
| VT-LT3-PHL+70035 | 700 × 35 | 24 | 119.0 | 757.5 × 45 × 75.4 |
| VT-LT3-PHL+80035 | 800 × 35 | 24 | 136.0 | 857.5 × 45 × 75.4 |
| VT-LT3-PHL+90035 | 900 × 35 | 24 | 153.0 | 957.5 × 45 × 75.4 |
| VT-LT3-PHL+100035 | 1000 × 35 | 24 | 170.0 | 1057.5 × 45 × 75.4 |
| VT-LT3-PHL+10022 | 100 × 22 | 24 | 8.5 | 112 × 28 × 44 |
| VT-LT3-PHL+20022 | 200 × 22 | 24 | 17.0 | 212 × 28 × 44 |
| VT-LT3-PHL+30022 | 300 × 22 | 24 | 25.5 | 312 × 28 × 44 |
| VT-LT3-PHL+40022 | 400 × 22 | 24 | 34.0 | 412 × 28 × 44 |
| VT-LT3-PHL+50022 | 500 × 22 | 24 | 42.5 | 512 × 28 × 44 |
| VT-LT3-PHL+60022 | 600 × 22 | 24 | 51.0 | 612 × 28 × 44 |
| VT-LT3-PHL+70022 | 700 × 22 | 24 | 59.5 | 712 × 28 × 44 |
| VT-LT3-PHL+80022 | 800 × 22 | 24 | 68.0 | 812 × 28 × 44 |
| VT-LT3-PHL+90022 | 900 × 22 | 24 | 76.5 | 912 × 28 × 44 |
| VT-LT3-PHL+100022 | 1000 × 22 | 24 | 85.0 | 1012 × 28 × 44 |
HL+ Series High Brightness Bar Lights Download
