Descrizione

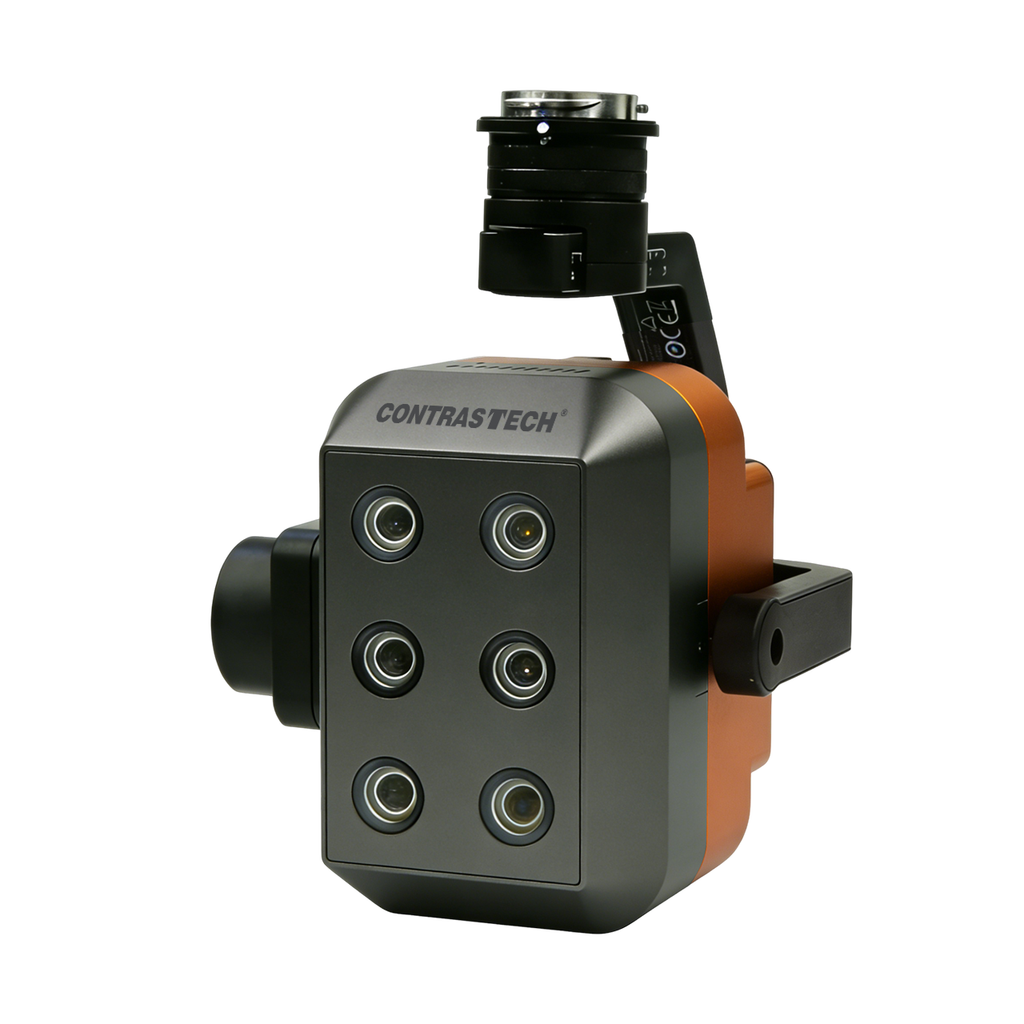

The iRx series delivers advanced multispectral and thermal imaging for drones, combining high-resolution RGB and multispectral channels with fast synchronization and plug-and-play operation. The iRx4L model 4*Multispectral Bands 1*RGB Camera
Key Features
● 100 ms synchronization across all channels
● Standard 512 GB SSD, fast, reliable, vibration-resistant storage
● DJIX-Port power supply & plug-and-play on DJIM300/M350 RTK drones
● Durable sapphire optical window, offering scratch resistance, high chemical stability, and excellent optical clarity for reliable outdoor use
Typical Applition
- Mineral Exploration
- Water Quality Monitoring
- Soil Monitoring
- Crop Growth Assessment
Main Specifications
| Feature |
iRx4T
|
|
Configuration
|
4*Multispectral Bands
1*RGB Camera
|
|
Sensor Size
|
MS:1/2″
RGB:1/3″ |
|
Effective
Pixels
|
MS:1.3MP
RGB:8.3MP
LWIR:/
|
|
Shutter
Type
|
MS:Global
RGB:Rolling
|
|
Bit Depth
|
MS:12bit
RGB:8bit
|
|
Field of View (FOV)
|
MS:54.2° ×44.5°
RGB:49.1° ×28.8°
|
|
Ground
Sampling
Distance
|
MS:9.6cm@h120m
RGB:2.86cm@h120m
|
|
Swath
Width
|
MS:123m×98m@ h120m
RGB:109m×61m@ h120m
|
|
Spectral Bands
|
555nm@27nm
660nm@22nm
720nm@10nm
840nm@30nm
RGB
|
|
Power Supply / Mounting Interface
|
X-Port
|
|
Power Consumption
|
≤ 43W
|
|
Image Format (Including GPS
Metadata)
|
MS:16-bit Raw TIFF
RGB:8bit JPEG
LWIR:/
|
|
Storage Medium
|
Standard 512 GB SSD
|
|
Parameter Configuration
|
DJI Pilot
|
|
Capture Trigger
|
Up to 10 Hz
|
|
Environmental Adaptability
|
Operating: -10 ° C to +50 ° C (airflow ≥ 1 m/s)/
Storage: -30℃ ~+70℃ RH ≤ 85% (non-condensing)
|
|
Dimensions
|
182x169x129mm
|
|
Weight
|
≤ 900g
|
Standard wavelengths are provided by default.
Custom combinations are available from the following 18 wavelength options (please contact sales for configuration and pricing):
410 nm @ 35 nm, 450 nm @ 30 nm, 490 nm @ 25 nm, 530 nm @ 27 nm,
555 nm @ 27 nm, 570 nm @ 32 nm, 610 nm @ 30 nm, 650 nm @ 27 nm,
660 nm @ 22 nm, 680 nm @ 25 nm, 720 nm @ 10 nm, 720 nm @ 15 nm(Long-pass),
750 nm @ 10 nm, 780 nm @ 13 nm, 800 nm @ 35 nm, 840 nm @ 30 nm,
900 nm @ 35 nm, 940 nm @ 30 nm (tolerance ±5 nm).
Infrared Camera Download
