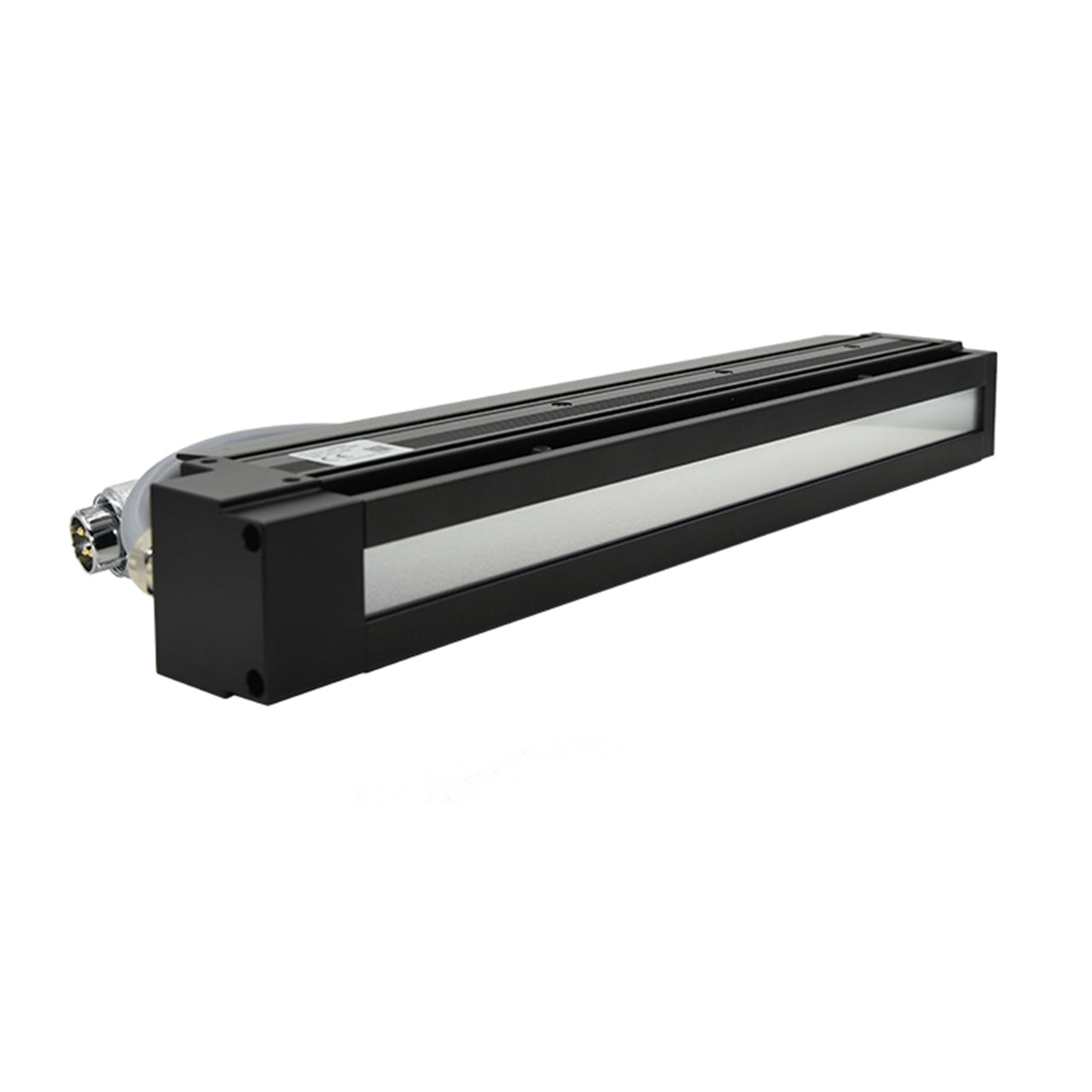

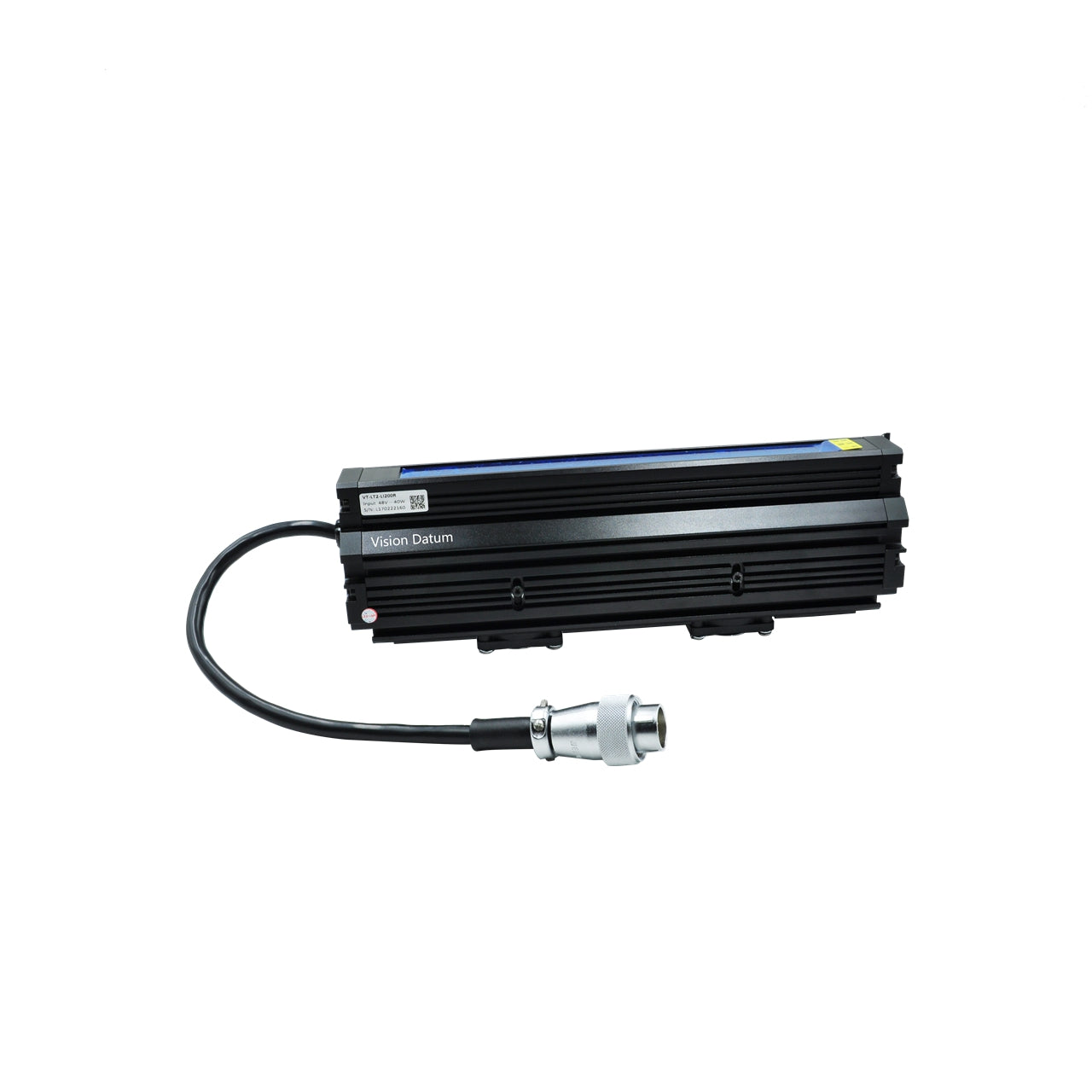

OEM SWIR Light – Product Description
The OEM SWIR Light (Short-Wave Infrared Illumination Module) is a high-performance SWIR light source operating across 1000–1700 nm, designed for industrial and scientific imaging. Compatible with InGaAs and SWIR CMOS cameras, it reveals details invisible to the human eye, enabling advanced inspection and analysis.

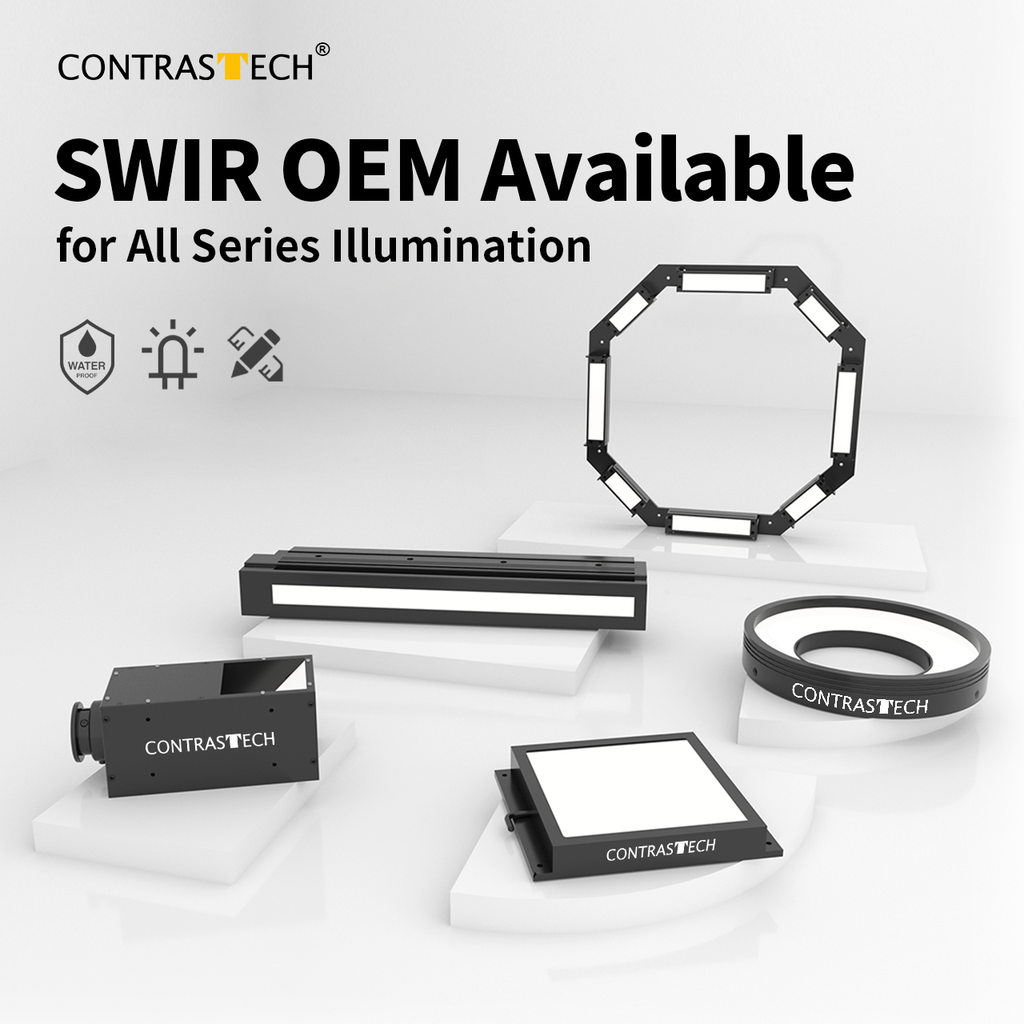

Our SWIR light modules support OEM customization and are available in multiple industrial lighting types: line/bar light, ring light, backlight, coaxial light, and more. Ideal for semiconductor and solar cell inspection, food and agricultural analysis, machine vision, and scientific imaging, it delivers uniform, stable illumination with low noise and high reliability.
Key Features:
- 1000–1700 nm SWIR wavelength range
- Multiple industrial light types: line, ring, backlight, coaxial and etc.
- OEM customizable: wavelength, power, beam shape, size...
- High stability, low noise, industrial-grade durability
Typical Applications & Recommended Parameters
1️⃣Industrial Machine Vision & Automation
Applications
- Plastic, film, and composite material identification
- Package integrity and liquid fill-level inspection
SWIR Advantages
- Differentiates visually similar materials by composition
- Superior imaging of transparent and semi-transparent objects
Recommended Parameters
- Wavelength: 1050 nm / 1200 nm / 1550 nm
- Optical Configuration: Coaxial, dark-field, or line-scan compatible
- Control Interface: Analog dimming / TTL digital trigger
- Operating Temperature: -20 °C to +50 °C
2️⃣Semiconductor & Solar Cell Inspection
Applications
- Wafer inspection
- Detection of micro-cracks and subsurface defects in solar cells
SWIR Advantages
- Enhanced penetration through silicon
- Improved visibility of internal structures and stress-related defects
Recommended Parameters
- Wavelength: 1300 nm / 1450 nm / 1550 nm
- Output Power: High-power continuous or pulsed operation
- Illumination Uniformity: ≥90%
- Drive Mode: Constant current with external trigger support
Light Catalog Download[Ask for Password]
