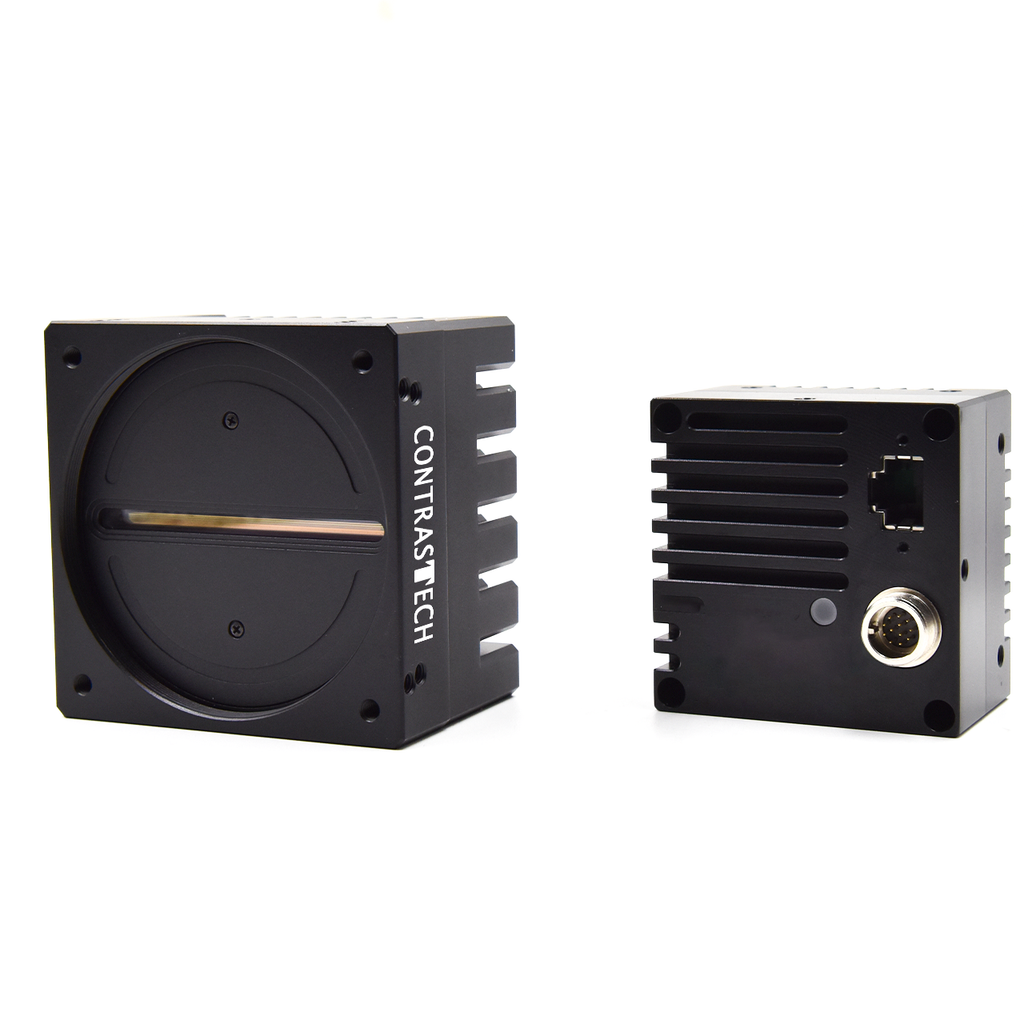

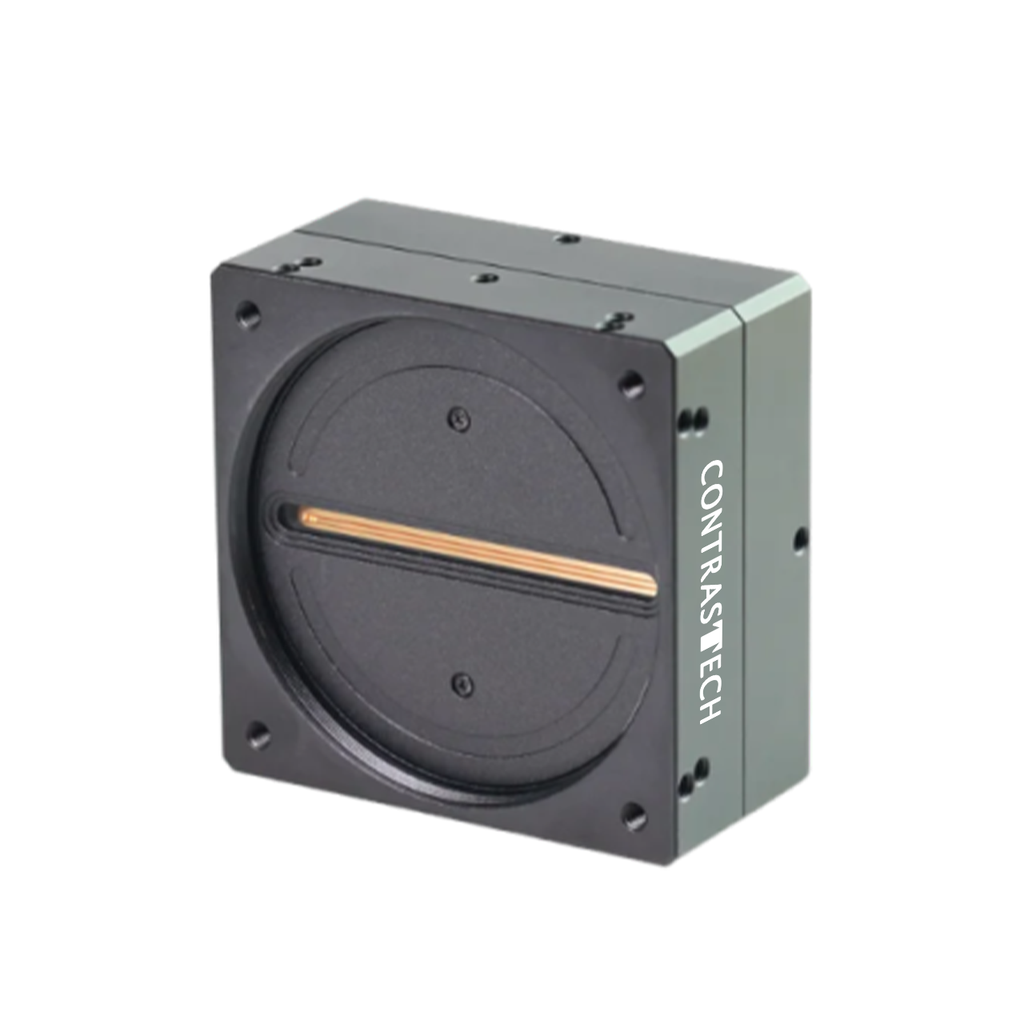

The 16K True Color Line Scan Camera is a high-performance industrial machine vision solution designed for ultra-precision inspection and high-speed production lines. Featuring 16384-pixel ultra-high resolution, RGB true color imaging, and 10G fiber optic transmission, this camera delivers exceptional image clarity and stability for demanding applications.
Built with advanced CMOS sensor technology and a powerful ISP imaging system, it ensures accurate defect detection, even in high-speed and long-distance environments.
Key Feature
- Ultra-high resolution 16K (16384 pixels) for detailed inspection
- True color RGB imaging (3-line) for accurate color reproduction
- High line rate up to 23KHz (burst up to 33KHz)
- 10G fiber optic interface for long-distance, high-speed data transmission
- High data throughput up to 1.5GB/s
- Wide dynamic range (up to 65dB) for complex lighting conditions
- Multiple exposure modes & flexible trigger options
- GenICam compliant for easy system integration
- Low power consumption (5.2W) for efficient operation
Typical Applications
- Printing quality inspection
- Battery manufacturing inspection
- Textile defect detection
- Electronics and semiconductor inspection
- Web and surface inspection systems
Main Specifications
|
Model
|
iCap-CTG16K2S
|
iCap-CTG16K2
|
iCap-CTG16K3
|
iCap-CTG16K3S
|
|
Resolution [H*V]
|
16384×2
|
16384×2
|
16384×3
|
16384×3
|
|
Sensor
|
CMOS
|
CMOS
|
CMOS
|
CMOS
|
|
Pixel Size [μm]
|
3.5um
|
3.5um
|
5um
|
5um
|
| Mono/Color |
Color
|
Color
|
Color
|
Color
|
|
Image Mode
|
1line
|
1line
|
3line
|
3line
|
|
Max.line rate
|
23K
(33K Burst Mode) |
23K
(33K Burst Mode) |
23.7K
(29K Burst Mode) |
23.7K
(29K Burst Mode) |
|
Data Rate
|
1031MB/s
|
1546MB/s
|
1359MB/S
|
1359MB/S
|
|
Dynamic Range
|
65dB
|
65dB
|
63.5dB
|
63.5dB
|
|
Gain
|
1×~16×
|
1×~16×
|
1×~16×
|
1×~16×
|
|
Exposure Time
|
4.2us-40ms
|
4.2us-40ms
|
2.95us–40ms
|
2.95us–40ms
|
|
Strobe Outputs
|
4 sequence strobe outputs
|
4 sequence strobe outputs
|
4 sequence strobe outputs
|
4 sequence strobe outputs
|
|
Image Format
|
Bayer8, BGR8, RGB8,Mono8,YUV422
|
Bayer8, BGR8, RGB8,Mono8,YUV422
|
Bayer8, BGR8, RGB8,Mono8,YUV422
|
Bayer8, BGR8, RGB8,Mono8,YUV422
|
|
Binning
|
1×1, 1×2l 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
1×1, 1×2l 1×4, 2×1,
2×2, 2×4, 4×1, 4×2, 4×4 |
/
|
/
|
|
External Trigger
Mode |
Line / Frame / Line + Frame
|
Line / Frame / Line + Frame
|
Line / Frame / Line + Frame
|
Line / Frame / Line + Frame
|
|
Image Buffer
|
8Gbit
|
8Gbit
|
8Gbit
|
8Gbit
|
|
Interface
|
10G optical fiber
|
10G optical fiber
|
10G optical fiber
|
10G optical fiber
|
|
Power Input
|
DC12V-24V（±10%）
|
DC12V-24V（±10%）
|
DC12V-24V（±10%）
|
DC12V-24V（±10%）
|
|
Power Consumption
|
5.2W@24V
|
5.2W@24V
|
7.2W@24VDC
|
7.2W@24VDC
|
|
Lenses Mount
|
M72x0.75 , FBL 12mm
|
M72x0.75 , FBL 12mm
|
M90x1, FBL 12mm
|
M90x1, FBL 12mm
|
|
Housing Size [L*W*H]
|
78×78×60.1mm (465g)
|
78×78×60.1mm (465g)
|
99×95×55.5mm(903g)
|
99×95×55.5mm(903g)
|
iCap Series 16K Line Scan Camera Download
