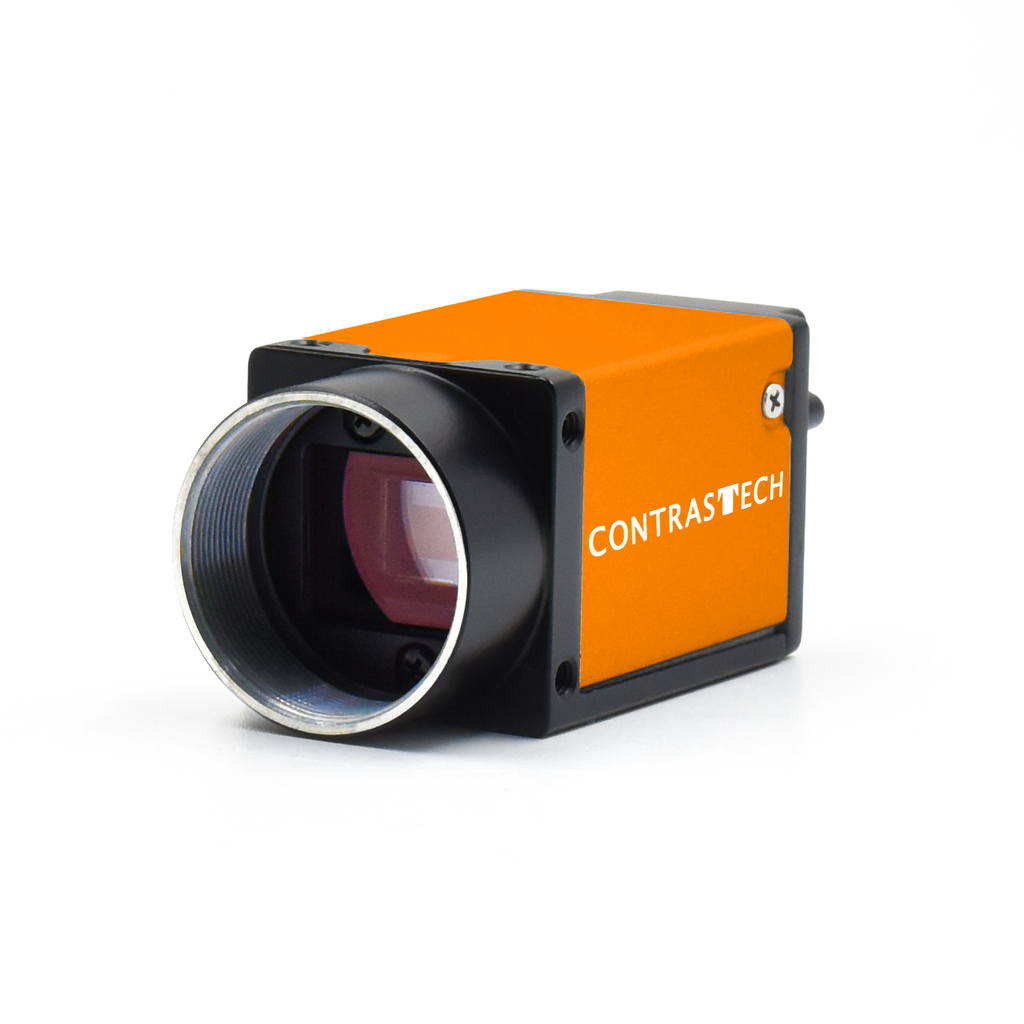

iCt90M/CG50A-Pro Machine Vision Camera
The iCt90M/CG50A-Pro is a high-performance 5MP industrial camera designed for precision machine vision applications. Powered by the Sony IMX264 CMOS sensor, it delivers exceptional image quality, stability, and reliability, making it ideal for demanding industrial environments.
With Gigabit Ethernet (GigE) connectivity, support for PoE, and a compact design, this camera ensures seamless integration into various automation and inspection systems.
Key Features
- 5MP High Resolution (2448 × 2048) for detailed image capture
- Up to 36 fps (with lossless compression) for high-speed inspection
- Global Shutter eliminates motion distortion
- GigE Interface (1 Gbps) with up to 100m transmission distance
- Low Power Consumption (2.4W) for stable long-term operation
- 256MB On-board Memory for reliable image buffering
- Compact Design (29×29×42mm) for easy installation in tight spaces
- Supports PoE & 9–24V DC power supply
Product Parameters
| Series | Mars Second Generation |
| Resolution | 2448 px x 2048 px |
| Pixel size | 3.45 μm x 3.45 μm |
| Frame Rate | 24 fps (36 fps Lossless Compression) |
| Mono/Color |
iCt90MG50A-Pro - Mono iCt90CG50A-Pro - Color |
| Sensor Vendor | Sony |
| Sensor | IMX 264 |
| Shutter | Global Shutter |
| Sensor Size | 2/3" |
| Sensor Type | CMOS |
| Dynamic range | 71.1 dB |
| Signal-to-Noise Ratio (typical) |
>39.8 dB |
| Interface | GigE |
| Pixel Bit Depth | 8 / 10 / 12 bits |
| Synchronization |
● Soft Trigger ● Hardware Trigger ● Free Run |

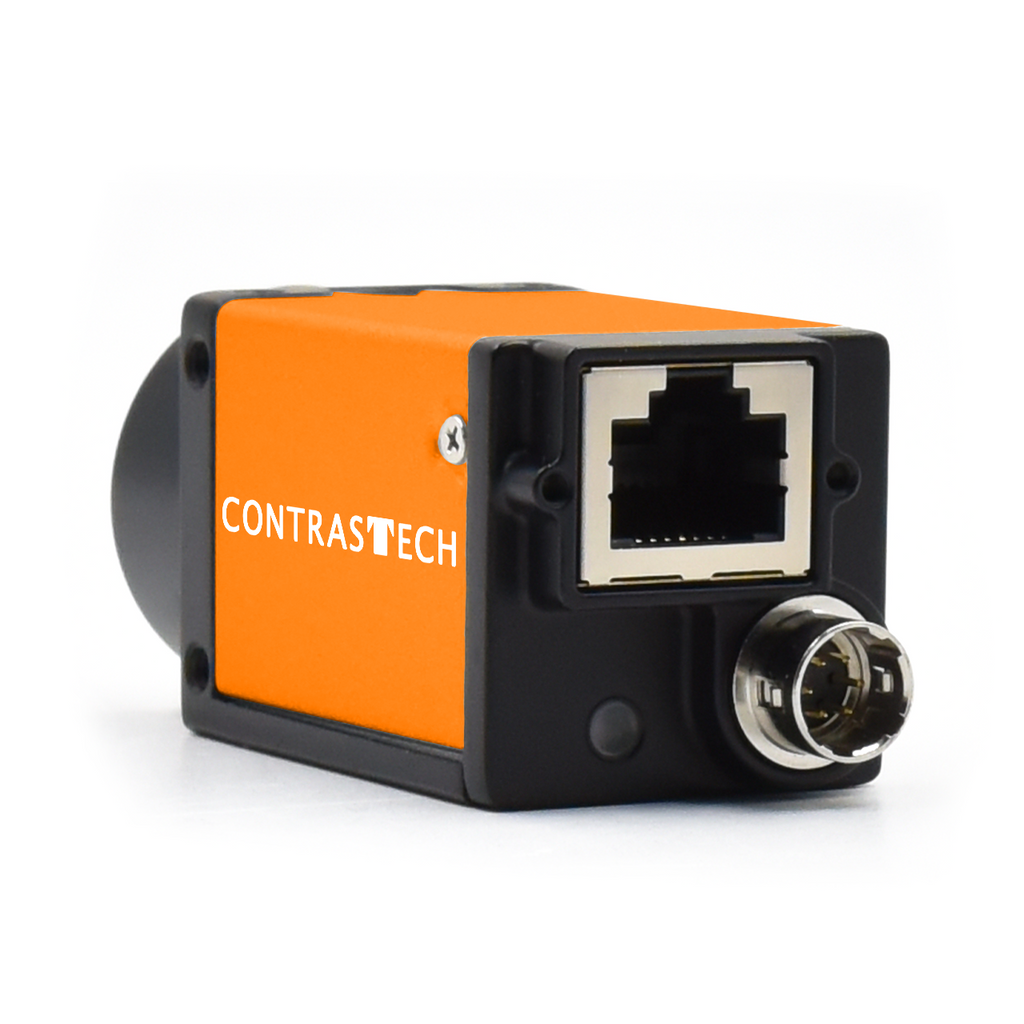

| GPIO | 6-pin Hirose connector: 1 opto-isolated input, 1 opto-isolated output, 1 configurable non-isolated input/output |
| Power Supply | PoE or 9-24V DC (via Hirose) |
| Design | Compact industrial design |
| Dimension (L x W x H) | 42 mm x 29 mm x 29 mm |
| Lens Mount | C-mount(CS-Mount can be customized） |
| Working Temperature | 0 - +50°C(Operating), -30 - +80°C（Storage） |
| Weight（Typical） | 98g |
| Driver , SDriver , SDK | Mars Series Camera Secondary Development Kit(iCentral）or Third-party Software meeting with GigE Vision Protocol |
| Operating System | Windows, Linux |
| Conformity | GigE Vision and GenICam |
iCt90M/CG50A-Pro Machine Vision Camera Download
