Q1: What is the primary purpose of this LED coaxial spot light?
A: This LED coaxial spot light is designed to provide uniform, high-intensity illumination for machine vision systems using coaxial and telecentric lenses. It helps improve image quality, reduce shadows, and enhance contrast for accurate inspection and measurement.
Q2: What are the available power options for the light source?
A: The light operates on a 5V power supply and is available in 3W and 5W output versions. Users can select the appropriate power level based on brightness requirements and thermal management considerations.
Q3: Why is coaxial illumination important in machine vision applications?
A: Coaxial illumination directs light along the same optical axis as the camera lens, creating highly uniform lighting conditions. This reduces reflections, minimizes shadows, and improves visibility of fine details on reflective or flat surfaces.
Q4: Is this light compatible with telecentric lenses?
A: Yes. The light is specifically designed for integration with both coaxial and telecentric lens systems, making it ideal for precision measurement, dimensional inspection, and metrology applications.
Q5: What industries can benefit from this LED coaxial spot light?
A: The light is widely used in electronics manufacturing, semiconductor inspection, precision machining, industrial automation, quality control, and machine vision inspection systems where consistent illumination is essential.
Q6: What types of inspection tasks is this light best suited for?
A: It is ideal for surface defect detection, electronic component inspection, dimensional measurement, OCR verification, precision alignment, and automated quality control processes requiring high image clarity and repeatability.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Description
Product Description

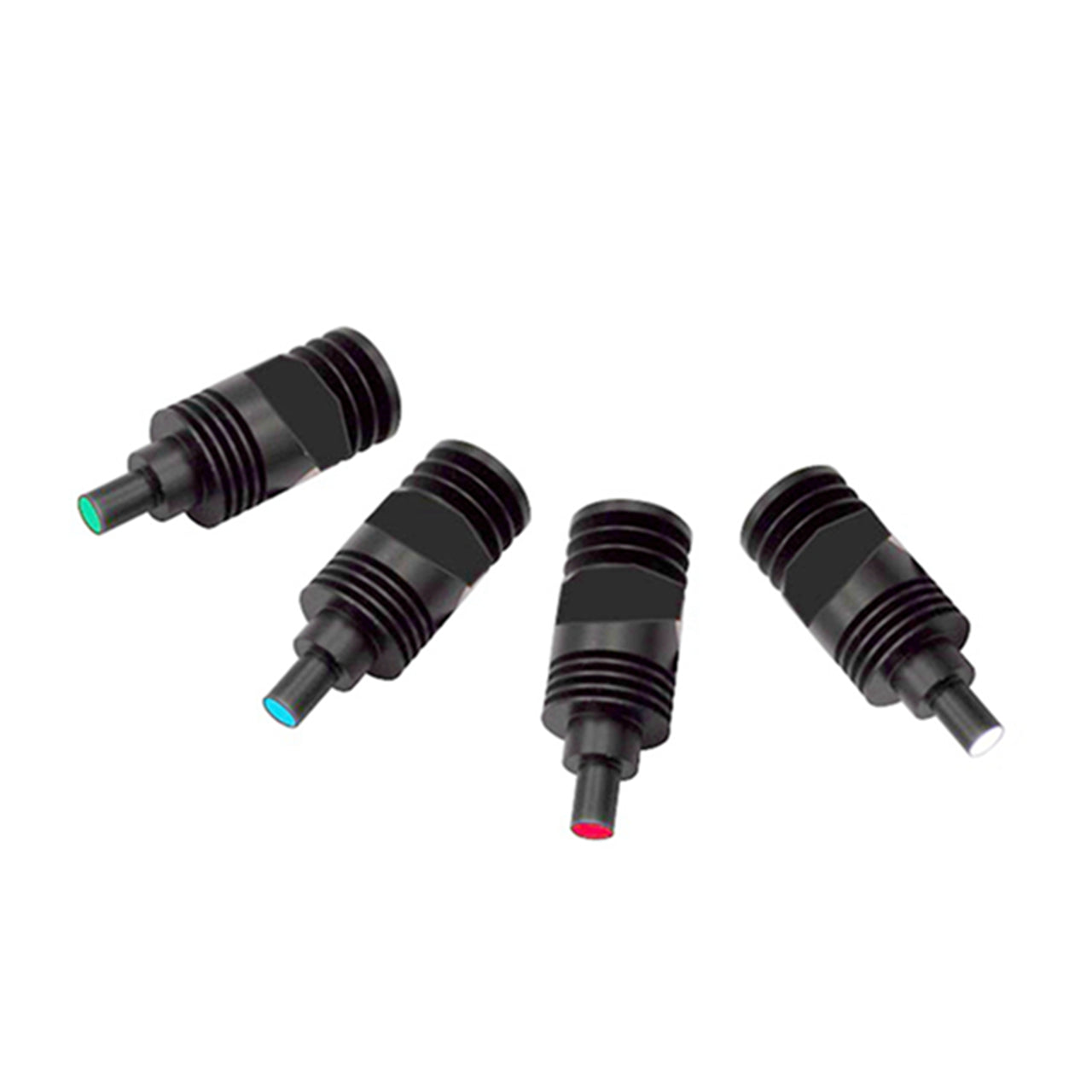

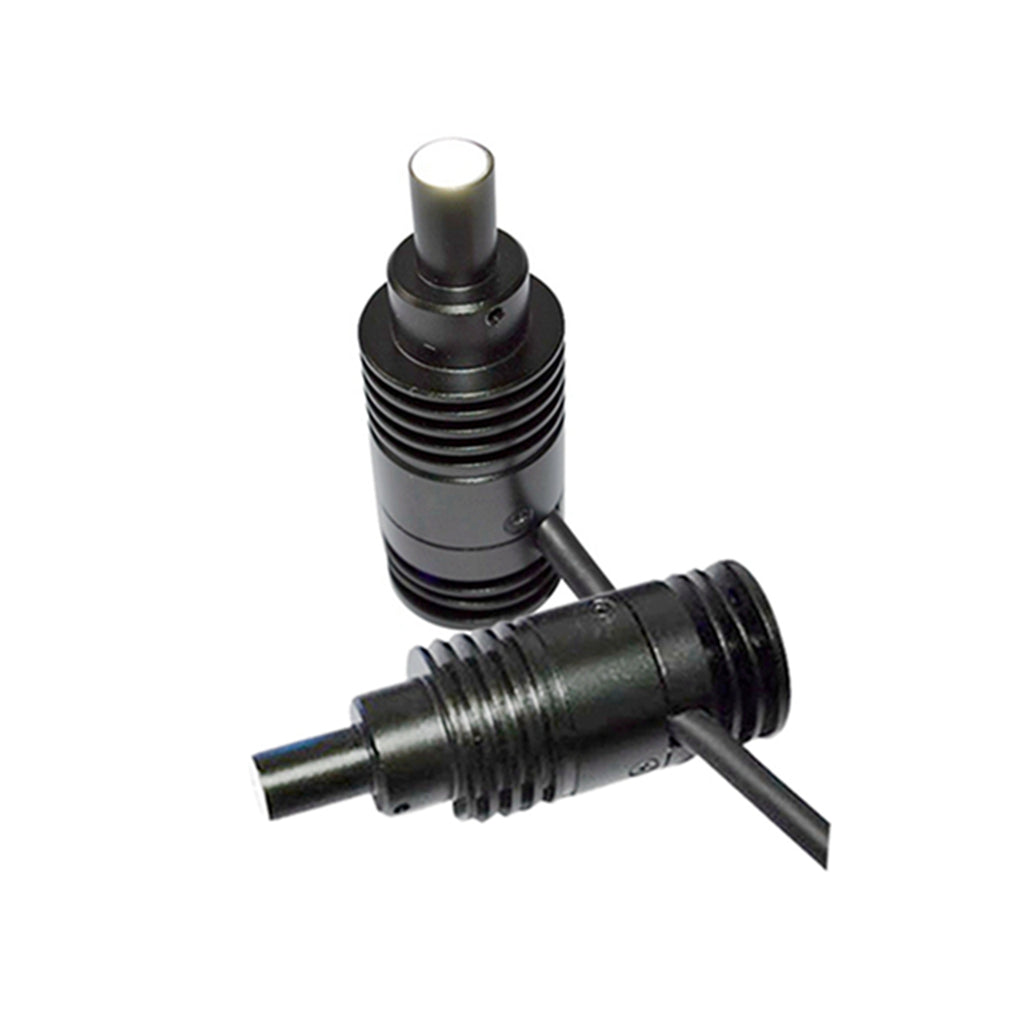

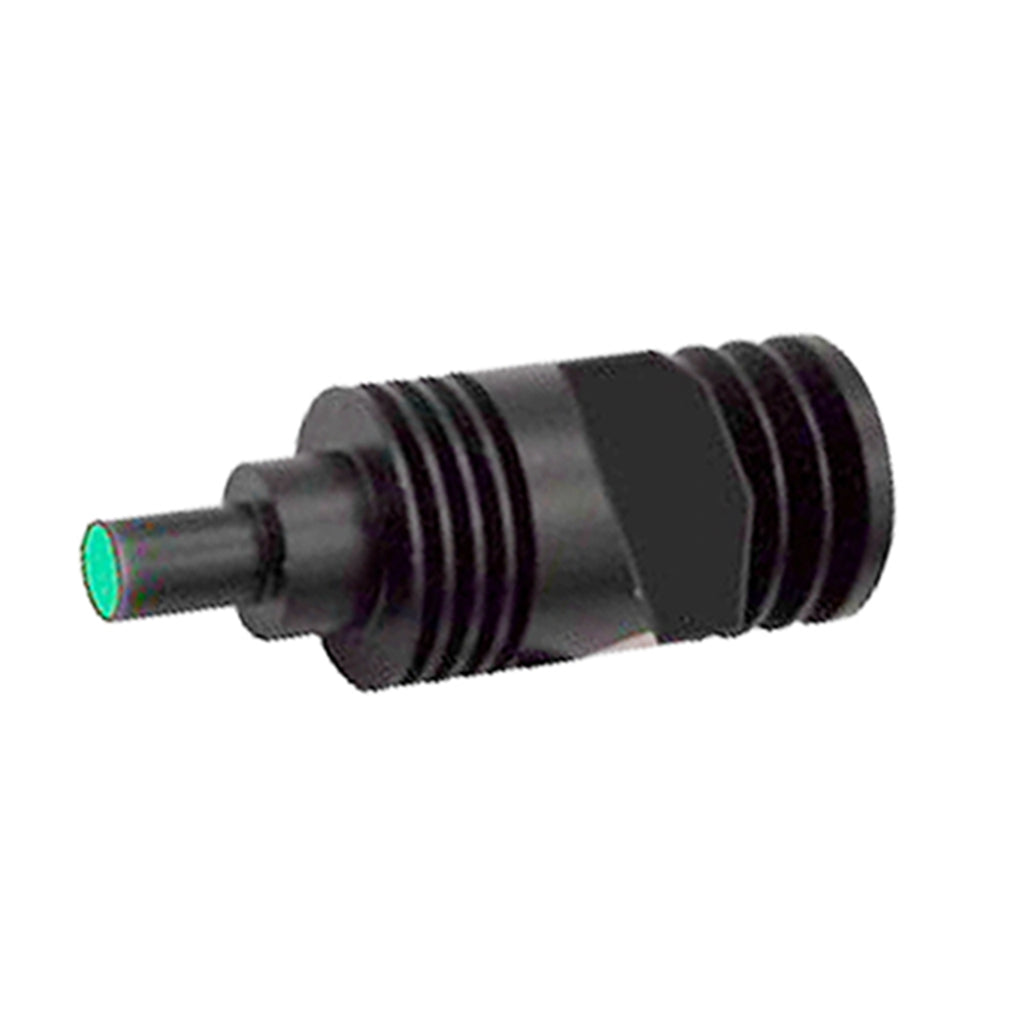

Precision LED Coaxial Spot Light for Machine Vision
This precision LED spot illumination is specifically engineered for machine vision systems using coaxial and telecentric lens configurations. Its compact 21 × 58 mm design allows seamless integration into space-constrained inspection setups while delivering stable, high-intensity illumination for demanding industrial applications.
Operating at 5V, the light source offers selectable 3W or 5W power output, enabling users to balance brightness and thermal performance based on their imaging requirements. The coaxial illumination design ensures uniform light distribution along the optical axis, significantly reducing shadows and unwanted reflections.
This makes the light ideal for high-resolution inspection, precision measurement, and quality control where consistent contrast and accurate image capture are critical.
Key Features
- Designed for coaxial and telecentric machine vision systems
- Compact size: 21 × 58 mm for easy integration
- 5V operating voltage for convenient system power compatibility
- Selectable power: 3W / 5W output options
- Uniform coaxial illumination to minimize shadows and glare
- Enhances contrast and image clarity for precise analysis
- Ideal for industrial automation, inspection, and metrology
Typical Applications
- Precision dimensional measurement
- Surface defect detection
- Electronic component inspection
- Industrial quality control
- Automated vision inspection systems
Specifications
|
Model
|
Emitting Diameter
|
interface Diameter
|
Color
|
Power
|
Voltage
|
|
VT-LT2-Pi2108-3W
|
7mm
|
8mm
|
R/W/B/G
|
3W
|
5V
|
|
VT-LT2-Pi3808-5W
|
7mm
|
8mm
|
R/W/B/G
|
5W
|
5V
|
