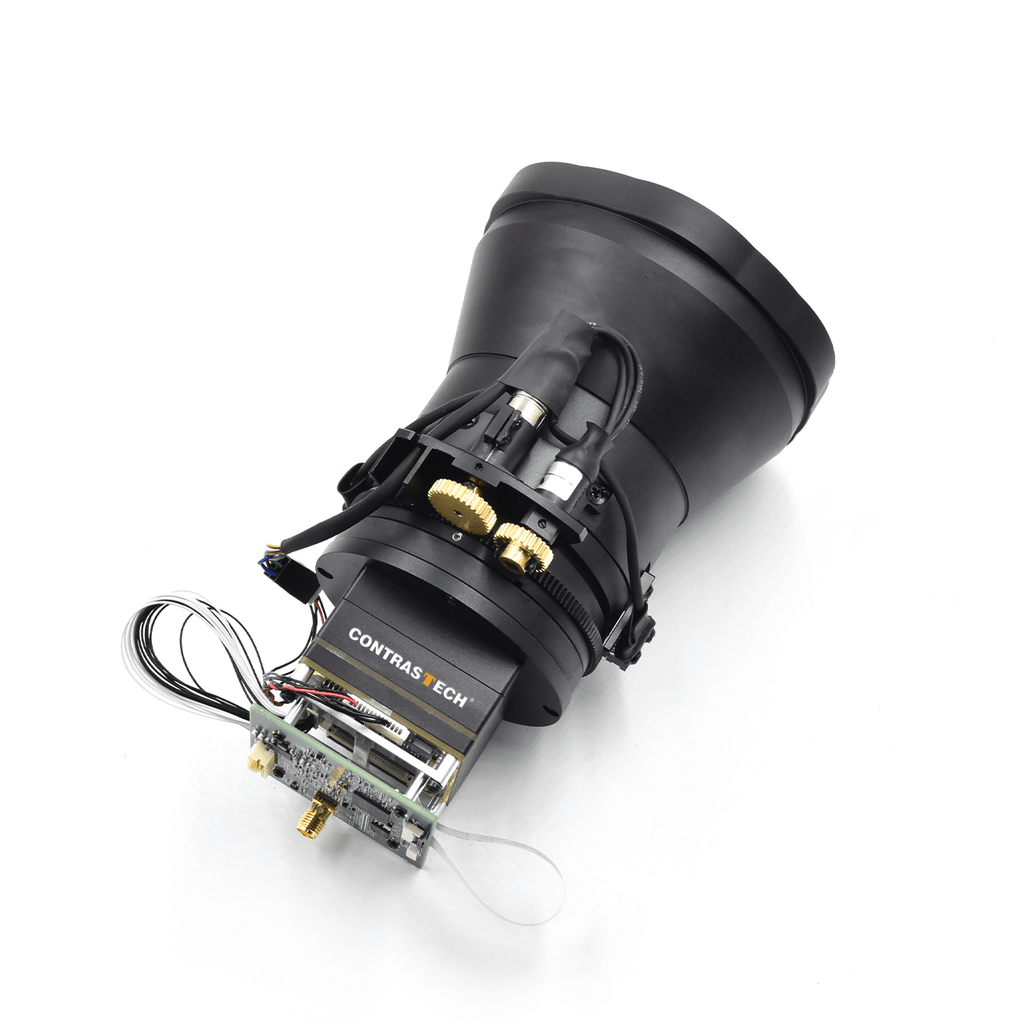

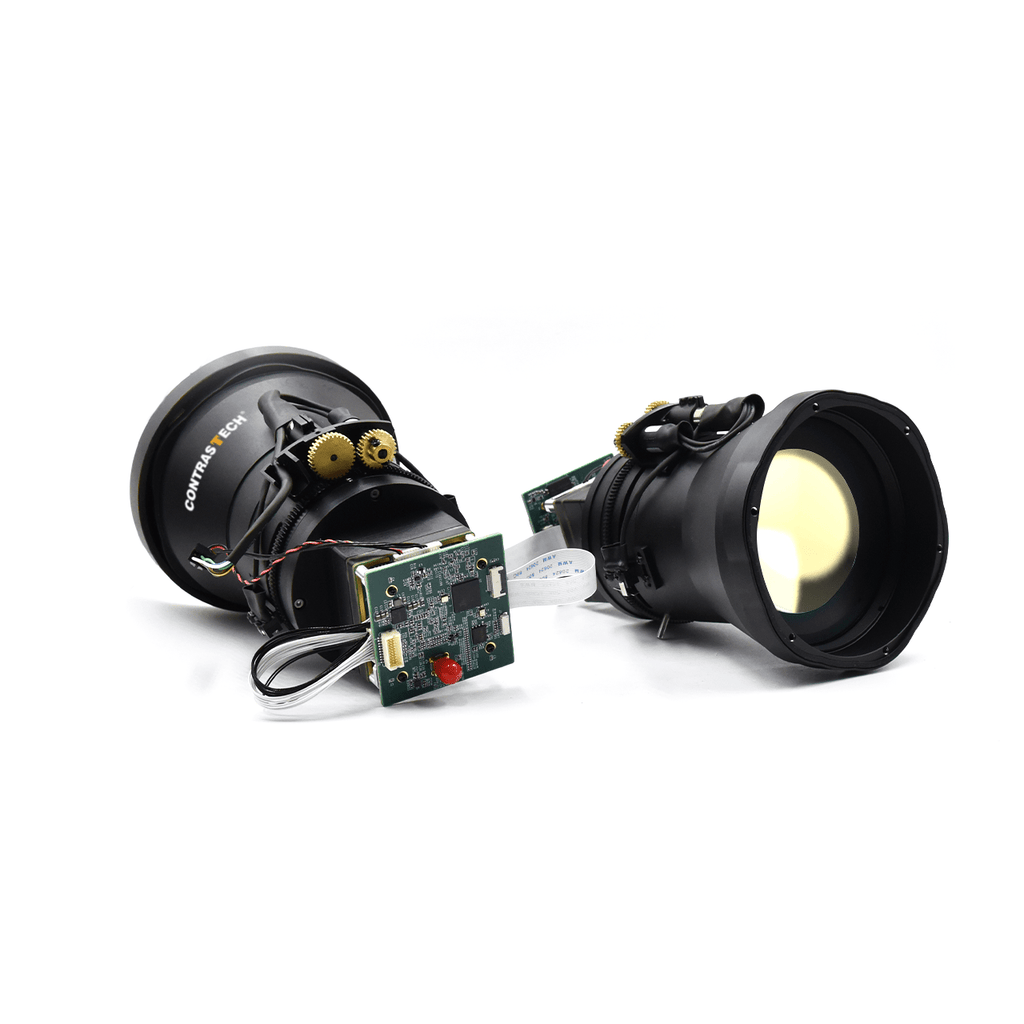

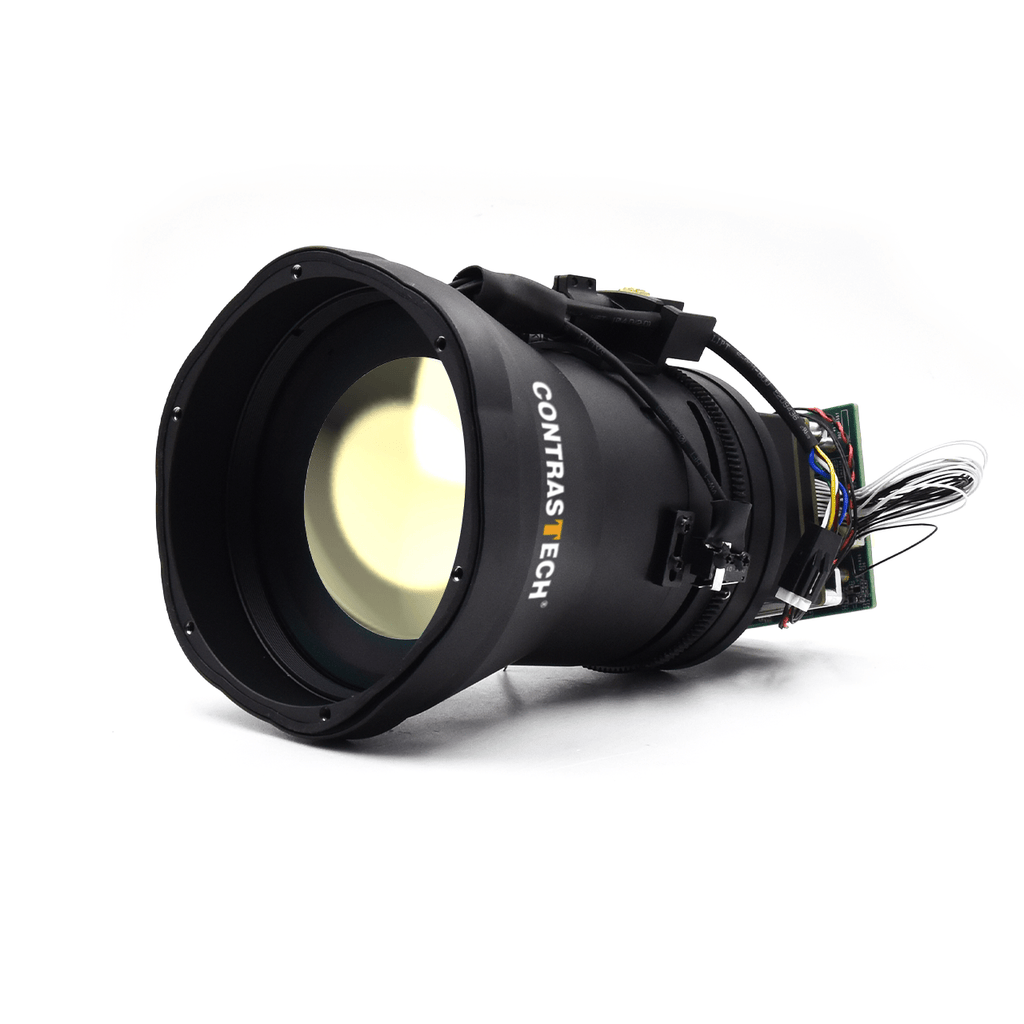

กล้อง LWIR สำหรับ Drone UAV Ethernet 30Hz VOx Uncooled 1920×1080 Full HD 8μm iVa-LW20A NETD 35mk ซูมดิจิทัล 1.0-8.0x

Q1: What applications is the iVa-LW20A UAV LWIR Camera suitable for?
A: The iVa-LW20A is designed for a wide range of thermal imaging applications, including aerial surveillance, industrial inspection, search and rescue operations, perimeter security, power line inspection, environmental monitoring, and emergency response. Its high-resolution thermal imaging capabilities enable accurate detection and monitoring in day or night conditions.

Q2: What thermal imaging technology does the iVa-LW20A use?
A: The camera utilizes a VOx (Vanadium Oxide) uncooled IRFPA sensor with a resolution of 1920×1080 pixels and 8μm pixel pitch. This advanced sensor technology provides excellent thermal sensitivity and image clarity without requiring a cooling system, reducing size, weight, and power consumption.

Q3: How sensitive is the iVa-LW20A thermal camera?
A: The iVa-LW20A features a NETD (Noise Equivalent Temperature Difference) of ≤35mK at 25°C (F#1.0), allowing it to detect very small temperature differences. This high sensitivity helps users identify thermal anomalies and targets with greater precision.

Q4: Does the iVa-LW20A support digital zoom?
A: Yes. The camera supports continuous digital zoom from 1.0× to 8.0× in 0.1× increments. Users can magnify specific areas of interest while maintaining detailed thermal image analysis during surveillance and inspection tasks.

Q5: What video output interfaces are available on the iVa-LW20A?
A: The iVa-LW20A supports multiple output interfaces, including SDI, USB, CameraLink, HDMI, and Ethernet. These flexible connectivity options make integration easy with UAV platforms, ground control stations, recording systems, and industrial monitoring equipment.

Q6: Can the iVa-LW20A operate in real-time aerial imaging missions?
A: Yes. With a 30Hz frame rate, the iVa-LW20A delivers smooth, real-time thermal video transmission. This makes it ideal for dynamic UAV operations such as target tracking, infrastructure inspection, security patrols, and search and rescue missions where immediate thermal feedback is essential.
