1. What is the working distance of the CLW-MP telecentric lens?
The CLW-MP Series has a 65 mm working distance, making it suitable for precision inspection of larger components while maintaining stable imaging geometry.
2. What magnifications are available for the CLW-MP Series?
The series offers 0.8X, 1.0X, 1.5X, 2.0X, 3.0X, 4.0X, and 6.0X magnification options for different inspection and measurement requirements.
3. What sensor size does the CLW-MP Series support?
The lenses support industrial cameras with sensors up to 2/3" (Φ11 mm) and use a C-Mount interface.
4. What is the difference between the CLW-MP-XX-65 and CLW-MP-XX-65D models?

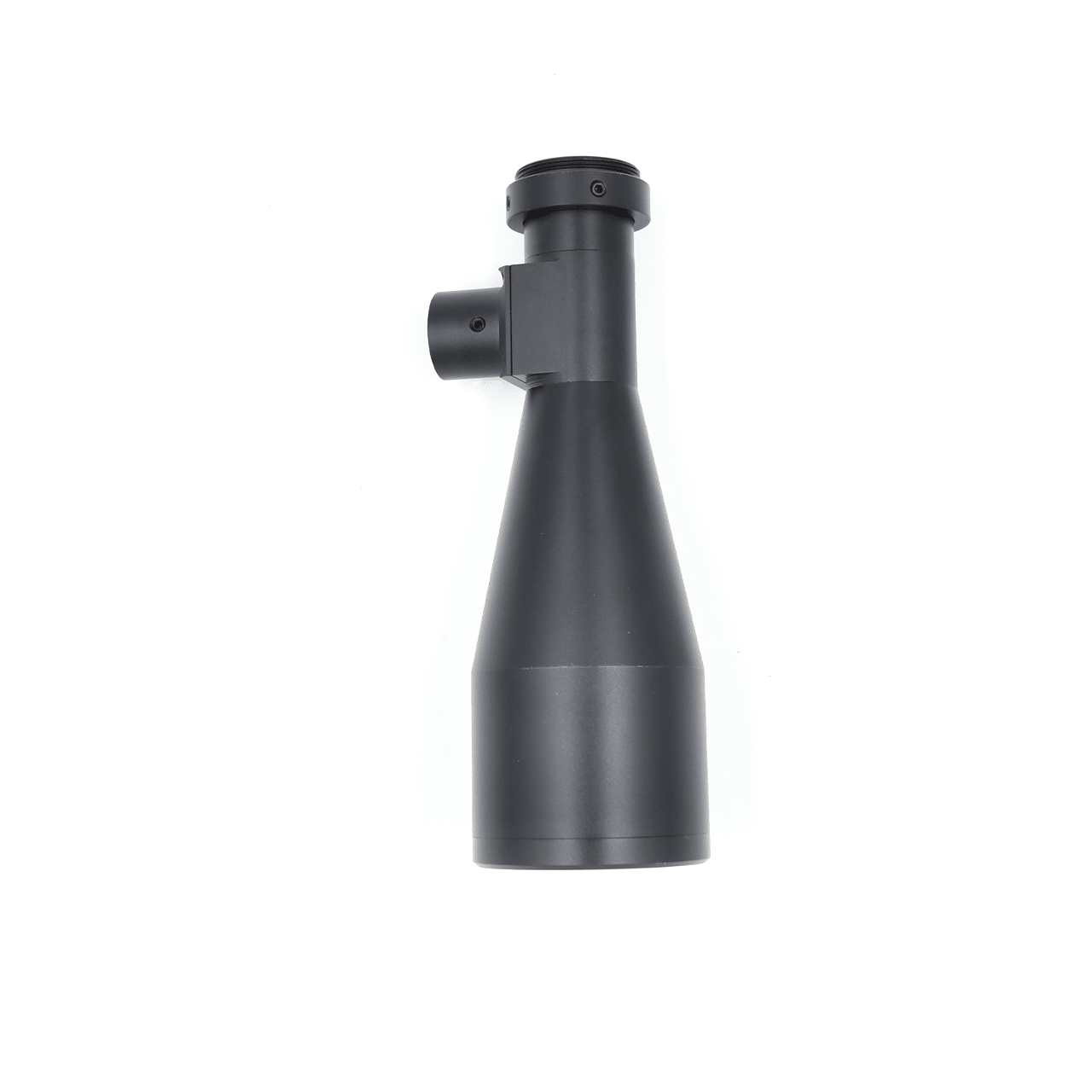

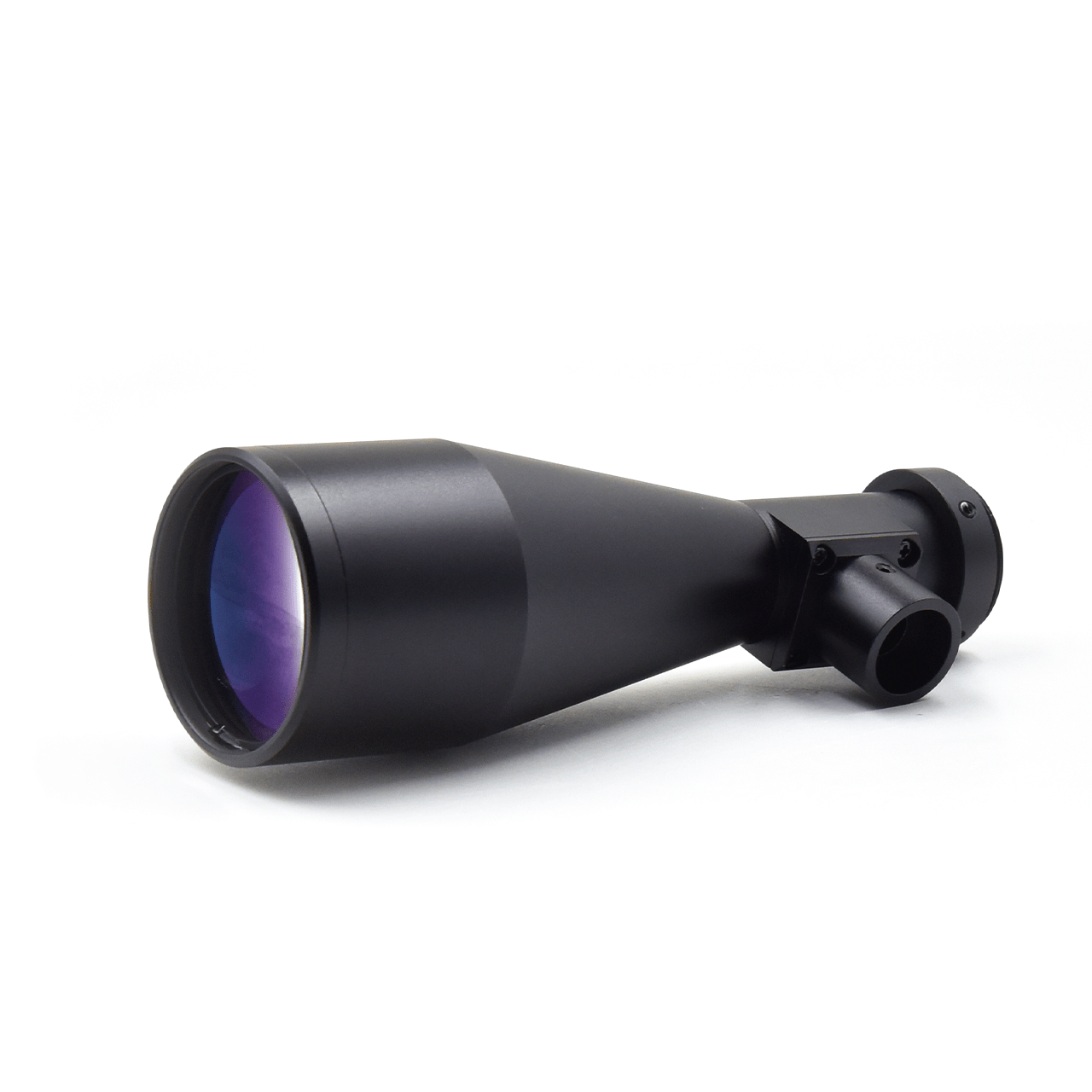

The D models feature an integrated coaxial illumination structure, while the standard models do not. The coaxial configuration can help provide more uniform illumination for reflective or flat-surface inspection.
5. What are telecentric lenses used for in machine vision?
Telecentric lenses are commonly used for dimensional measurement, precision component inspection, and automated quality control, where consistent magnification and reduced perspective distortion are important.
6. Does the CLW-MP Series include a light source?
No. The lens itself does not include a light source. For D models with coaxial illumination capability, the matching machine vision illumination must be purchased separately.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Description
Product Description

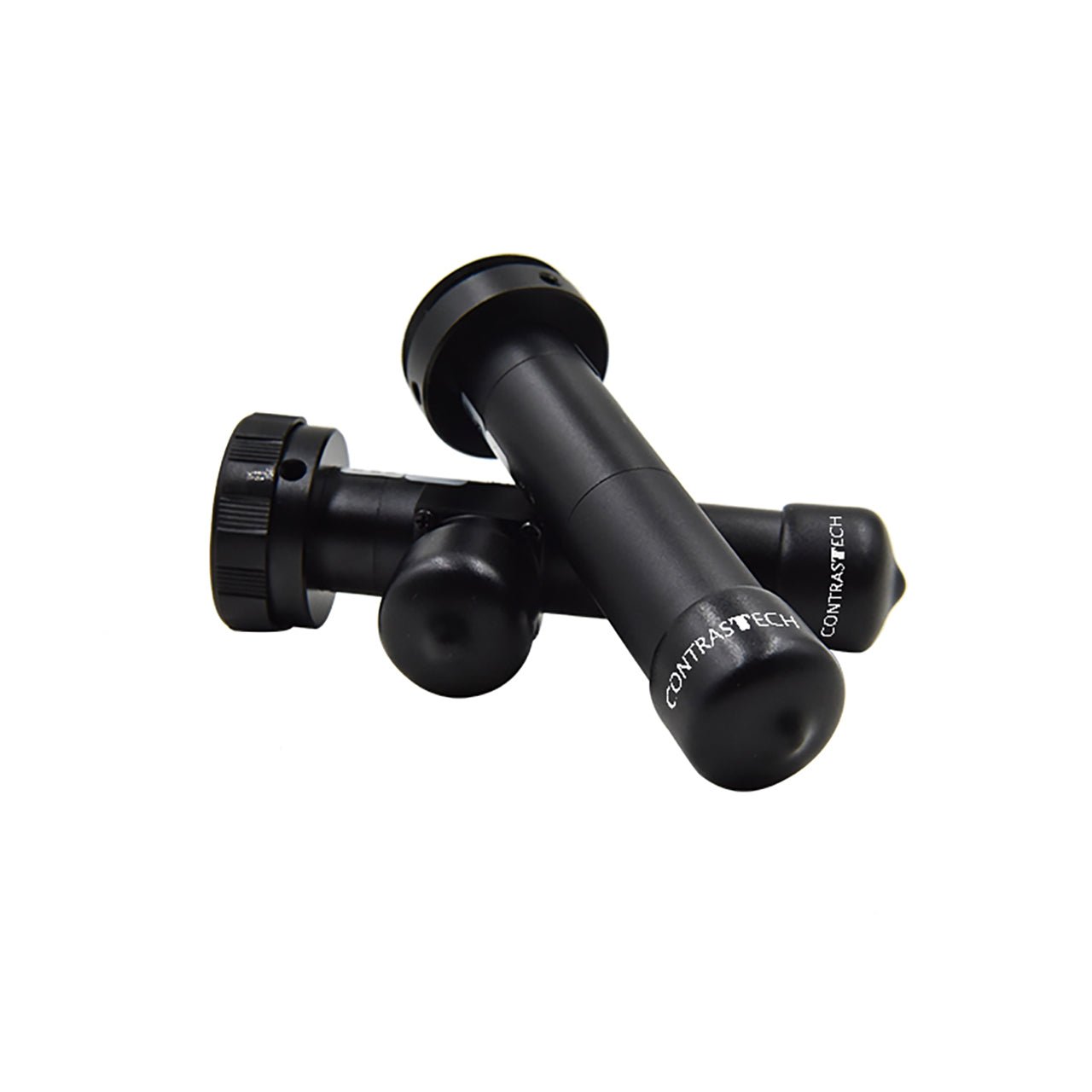

The CLW-MP Series Telecentric Lenses are designed for high-precision imaging and measurement applications, offering consistent image quality and accurate magnification. With a 65 mm working distance, they are ideal for inspecting larger objects while minimizing perspective errors.
Featuring high resolution, low distortion, and excellent telecentricity, these lenses deliver sharp detail and high contrast for reliable machine vision inspection, dimensional measurement, and automated quality control.
The compact design supports coaxial illumination integration, helping reduce shadows and improve image contrast. Compatible with megapixel industrial cameras and supporting sensors up to 2/3" (Φ11 mm), the lens also offers an optional adjustable iris for flexible control of resolution and depth of field (DOF).
Main Features
- 65 mm working distance optimized for larger object inspection
- High resolution and high contrast imaging for precise inspection
- Excellent telecentricity and low distortion for accurate measurements
- Compact design with coaxial illumination compatibility
- Compatible with megapixel industrial cameras
- Optional adjustable iris for resolution and depth-of-field control
- Supports sensor size up to 2/3" (Φ11 mm)
- C-Mount interface for easy integration with machine vision systems
Typical Applications
- Industrial dimensional measurement
- Precision component inspection
- Electronic and semiconductor inspection
- Automated quality control systems
- Machine vision integration for industrial automation
| Model |
Coaxial
|
Sensor Size
|
Mag.
|
F/#
|
|---|---|---|---|---|
|
CLW-MP-0.8X-65
|
No
|
2/3"
|
0.8x
|
f10
|
|
CLW-MP-0.8X-65D
|
Yes
|
2/3"
|
0.8x
|
f10
|
|
CLW-MP-1.0X-65
|
No | 2/3" |
1.0x
|
f11.1
|
|
CLW-MP-1.0X-65D
|
Yes | 2/3" |
1.0x
|
f11.1
|
|
CLW-MP-1.5X-65
|
No | 2/3" |
1.5x
|
f11.9
|
|
CLW-MP-1.5X-65D
|
Yes | 2/3" |
1.5x
|
f11.9
|
|
CLW-MP-2.0X-65
|
No | 2/3" |
2.0x
|
f14.4
|
|
CLW-MP-2.0X-65D
|
Yes | 2/3" |
2.0x
|
f14.4
|
|
CLW-MP-3.0X-65
|
No | 2/3" |
3.0x
|
f15.7
|
|
CLW-MP-3.0X-65D
|
Yes | 2/3" |
3.0x
|
f15.7
|
|
CLW-MP-4.0X-65
|
No | 2/3" |
4.0x
|
f17.8
|
|
CLW-MP-4.0X-65D
|
Yes | 2/3" |
4.0x
|
f17.8
|
|
CLW-MP-6.0X-65
|
No | 2/3" |
6.0x
|
f26.6
|
|
CLW-MP-6.0X-65D
|
Yes | 2/3" |
6.0x
|
f26.6
|
Telecentric Lenses Download
