Q1: What sensor does the iCt90M/CG90A-Pro use?
A: The camera uses the Sony IMX267 1-inch CMOS sensor, providing 9MP high-resolution imaging with excellent sensitivity and image quality.
Q2: What is the resolution and frame rate of this camera?
A: The iCt90M/CG90A-Pro delivers 4096 × 2160 resolution at up to 14fps, suitable for detailed industrial inspection tasks.
Q3: What is the advantage of the GigE interface?
A: The GigE interface provides stable high-speed data transmission and flexible installation for industrial systems requiring longer cable distances.
Q4: Does this camera support moving object inspection?
A: Yes. The global shutter design eliminates motion distortion, making it suitable for capturing fast-moving objects in automation environments.
Q5: What trigger modes are supported?
A: The camera supports software trigger, hardware trigger, and free-run acquisition modes for different imaging requirements.
Q6: What applications are suitable for this camera?
A: It is widely used in robot vision, AOI inspection, precision measurement, quality control, and factory automation systems.
Estimated Delivery Time
Ship To Detecting...
Delivery: -
Description
Product Description

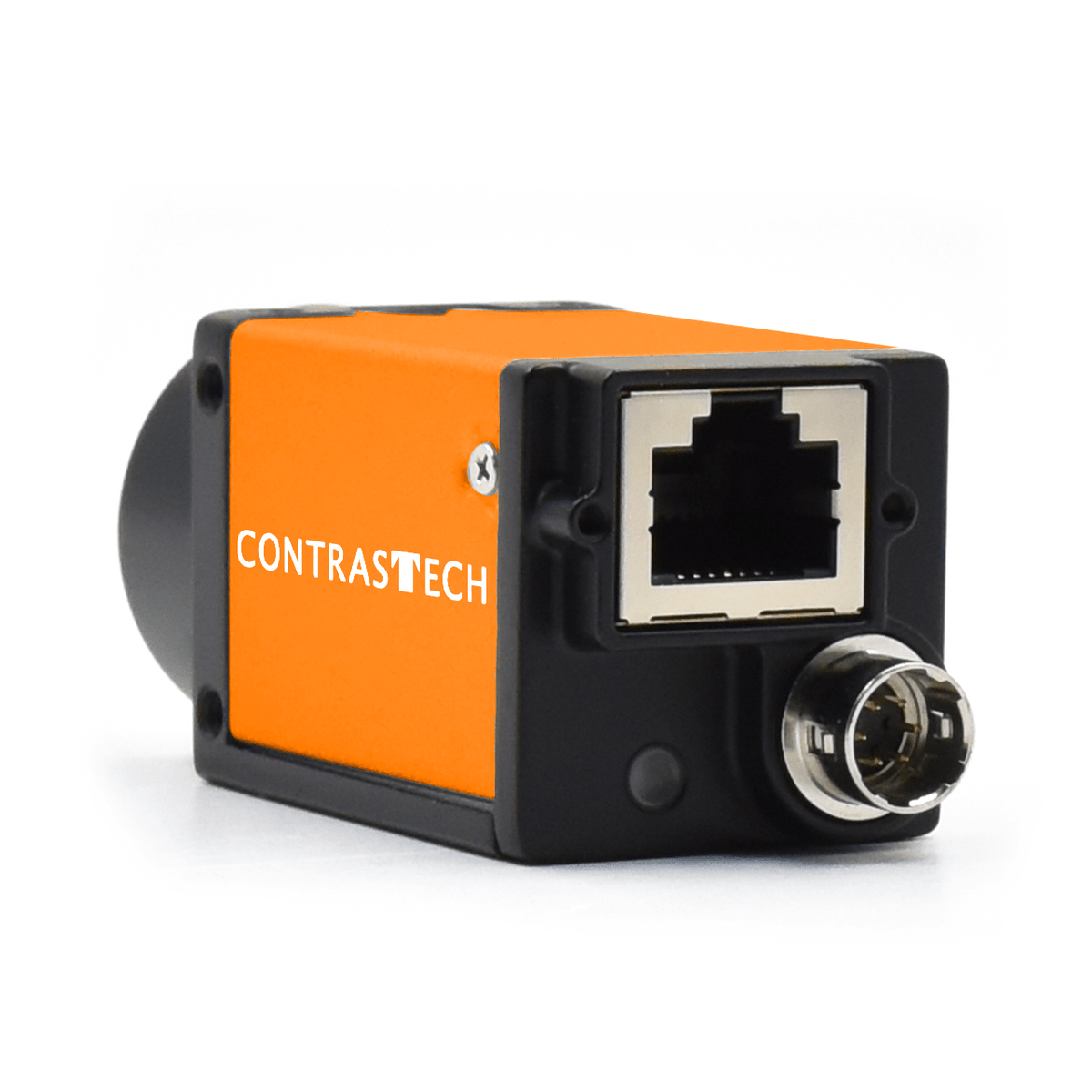

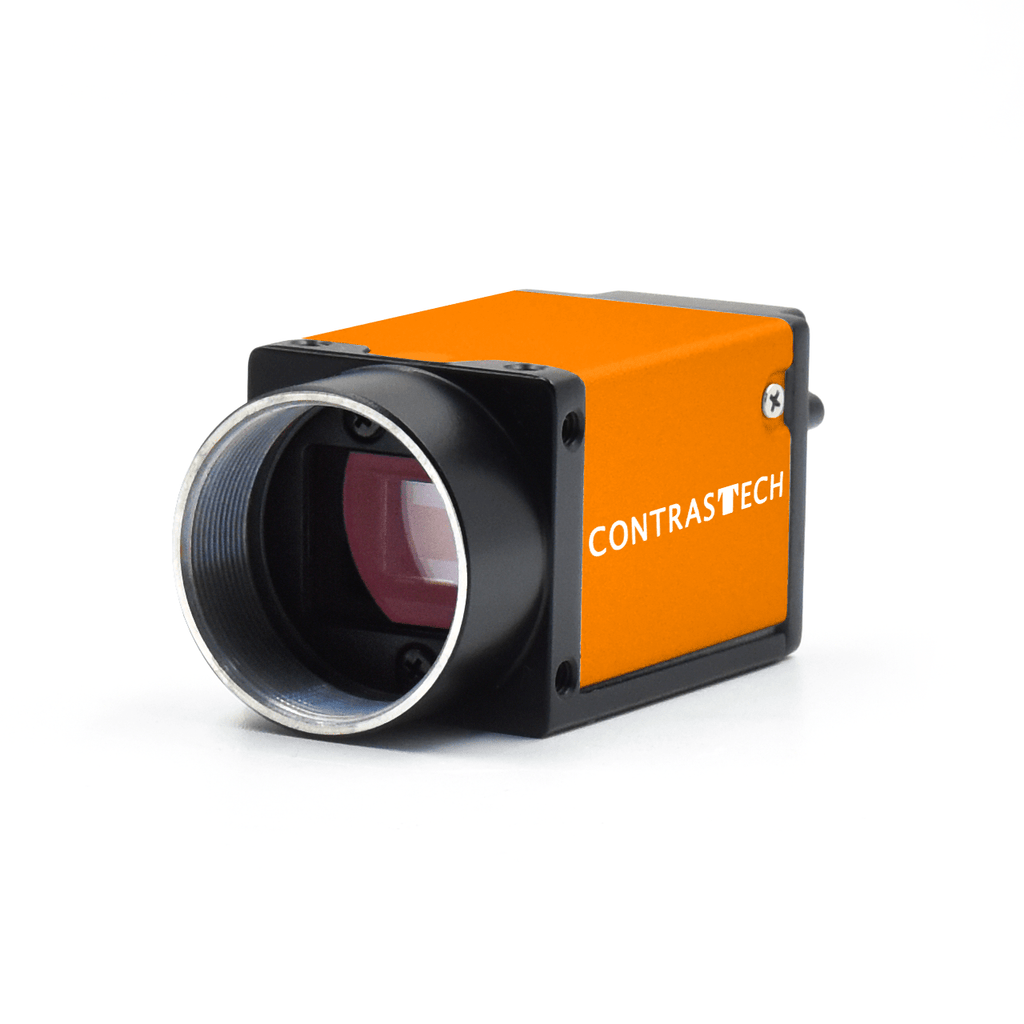

9MP GigE Vision Camera for Industrial Inspection and Robot Vision
The iCt90M/CG90A-Pro is a high-performance 9MP GigE Vision area scan camera featuring the Sony IMX267 1" CMOS sensor with 4096 × 2160 resolution and 14fps imaging performance.
Designed for industrial vision applications, the camera delivers global shutter imaging, high sensitivity, and accurate image capture for moving objects. Compared with USB3 models, the GigE interface provides flexible system integration with long-distance transmission capability, making it ideal for factory automation and distributed vision systems.
With comprehensive SDK support, hardware/software trigger modes, and compatibility with industrial vision platforms, the iCt90M/CG90A-Pro provides a reliable imaging solution for robot vision, inspection, measurement, and smart manufacturing applications.
Key Features
- Sony IMX267 1" CMOS sensor
- 9MP high-resolution imaging (4096 × 2160)
- 14fps GigE Vision interface
- Global shutter for distortion-free motion capture
- High sensitivity and wide dynamic range
- Hardware trigger / Software trigger / Free Run
- Flexible integration with industrial vision systems
- Compatible with machine vision software platforms
Typical Applications
- Robot Vision
- Industrial Automation
- Precision Inspection
- Quality Control
- Measurement Systems
- AOI Inspection
- Smart Manufacturing
- Factory Vision Systems
Specifications
| Model | iCt90MG90A-Pro / iCt90CG90A-Pro |
| Resolution | 4096 × 2160 |
| Frame Rate | 13.7 fps (22 fps with Lossless Compression) |
| Sensor | Sony IMX267 (1" CMOS) |
| Pixel Size | 3.45 × 3.45 μm |
| Mono / Color | Mono / Color |
| Bit Depth | 12 bit |
| Shutter Type | Global Shutter |
| SNR | Mono: 39.9 dB / Color: 39.8 dB |
| Dynamic Range | Mono: 71 dB / Color: 70.8 dB |
| Image Format (Mono) | Mono8 / Mono10 / Mono10Packed / Mono12 / Mono12Packed |
| Image Format (Color) | Bayer RG8 / RG10 / RG10Packed / RG12 / RG12Packed / YUV422_8_UYVY / YUV422_8 / RGB8 / BGR8 |
| Binning Mode | Off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3, 1×6, 6×1, 6×6 |
| ROI Support | Yes |
| Flip X | Support |
| Flip Y | Support |
| Gain Range | 1×–32× |
| Gamma LUT | Range: 0–3.99998 |
| Exposure Time | Ultra-fast: 1 μs–14 μsStandard: 15 μs–10 sec |
| Image Acquisition Mode | Software Trigger / Hardware Trigger / Free Run |
| SPC Configuration Channel | Support |
| User Configuration Storage | Supports saving 3 sets of user-defined configurations |
| Buffer Memory | 256MB |
| Interface | GigE |
20MP 1.1" Industrial Lens Specifications
| Model | FL | Aperture | WD | Mount | Wavelength |
|---|---|---|---|---|---|
| iLens1224MP20 | 12mm | F2.4–16 | 100mm–∞ | C-Mount | 420–720nm |
| iLens1624MP20 | 16mm | F2.4–16 | 100mm–∞ | C-Mount | 420–720nm |
| iLens2524MP20 | 25mm | F2.4–16 | 150mm–∞ | C-Mount | 420–720nm |
| iLens3524MP20 | 35mm | F2.4–16 | 150mm–∞ | C-Mount | 420–720nm |
| iLens5024MP20 | 50mm | F2.4–16 | 250mm–∞ | C-Mount | 420–720nm |
