Description

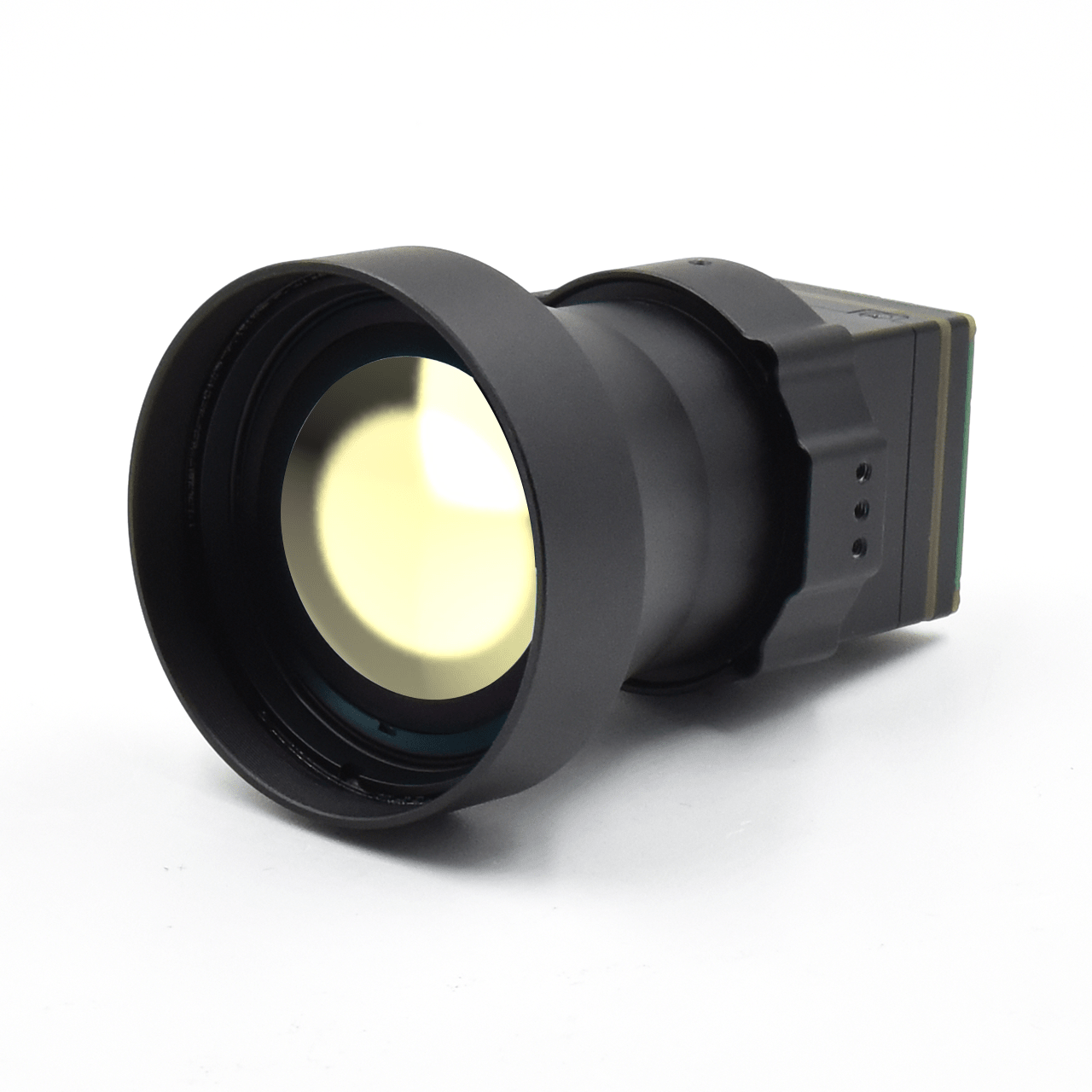

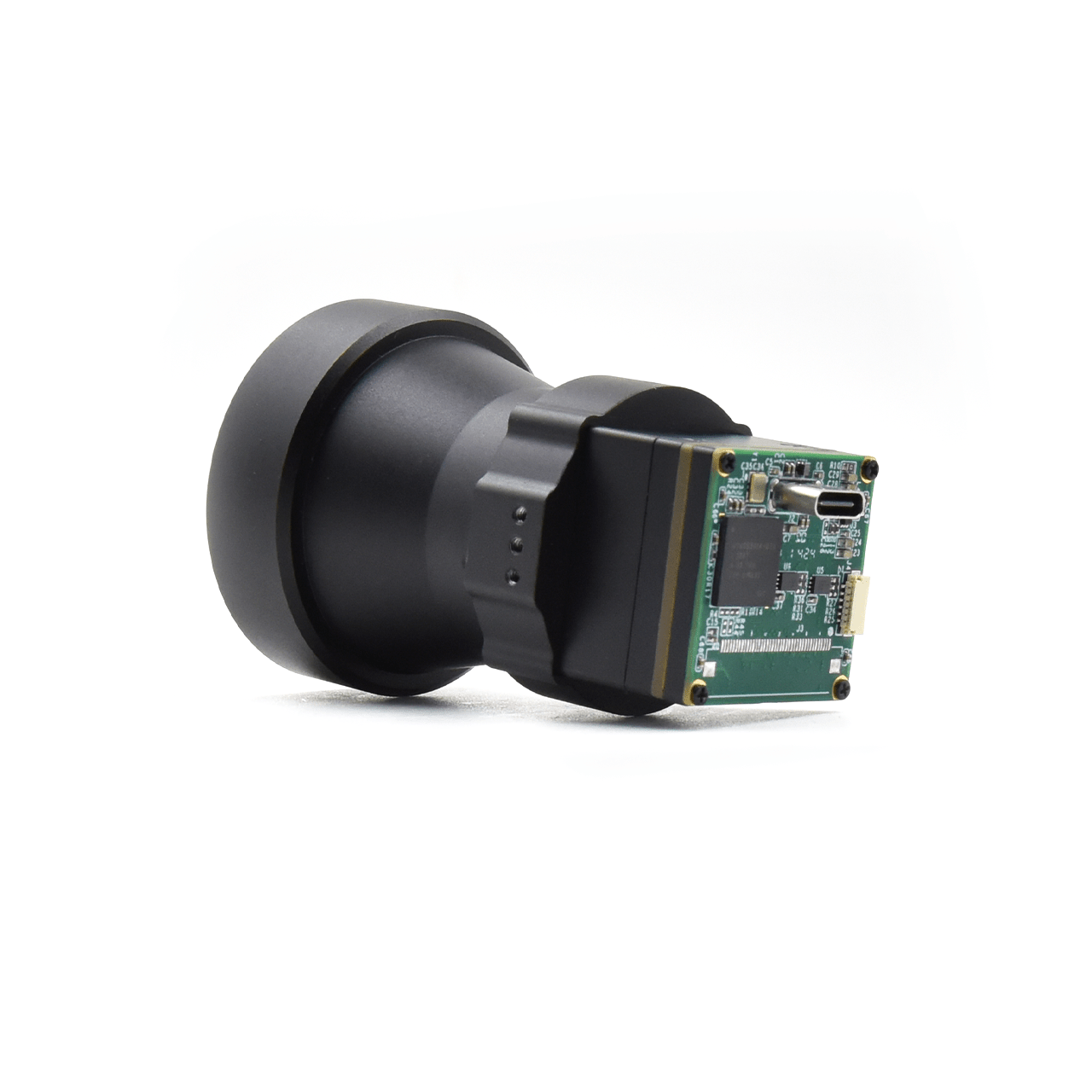

The iVaster1280LWT delivers next-generation thermal imaging performance with its 1280×1024 uncooled infrared detector and 30Hz frame rate. Designed for professional UAV applications, it captures expansive, detailed radiometric imagery for inspection, mapping, and environmental monitoring. Its superior resolution ensures every temperature variation is detected with clarity, providing unmatched situational awareness and measurement precision in aerial missions.
Main Features
● 8000 to 14000 nm spectrum
● Ultra-light module weight < 25g, lightweight design
● The latest generation of image algorithms for amazing details and contrast performance
● Provide Windows, Linux, easy to rapid back-end development
● Ultra-light module weight < 25g, lightweight design
● The latest generation of image algorithms for amazing details and contrast performance
● Provide Windows, Linux, easy to rapid back-end development
| Model |
iVaster1280LWT
|
|
Temp
|
Yes |
|
Resolution
|
1280 x 1024
|
|
Frame Rate（Hz）
|
30
|
|
Digital Zoom
|
/
|
|
Shutterless
|
/
|
|
Lenses
|
10/35/50mm |
|
Via 70pin output
trigger
|
LVCMOS/BT.1120/MIPI
|
|
Via extend board
|
USB3.0 Type-C
|
|

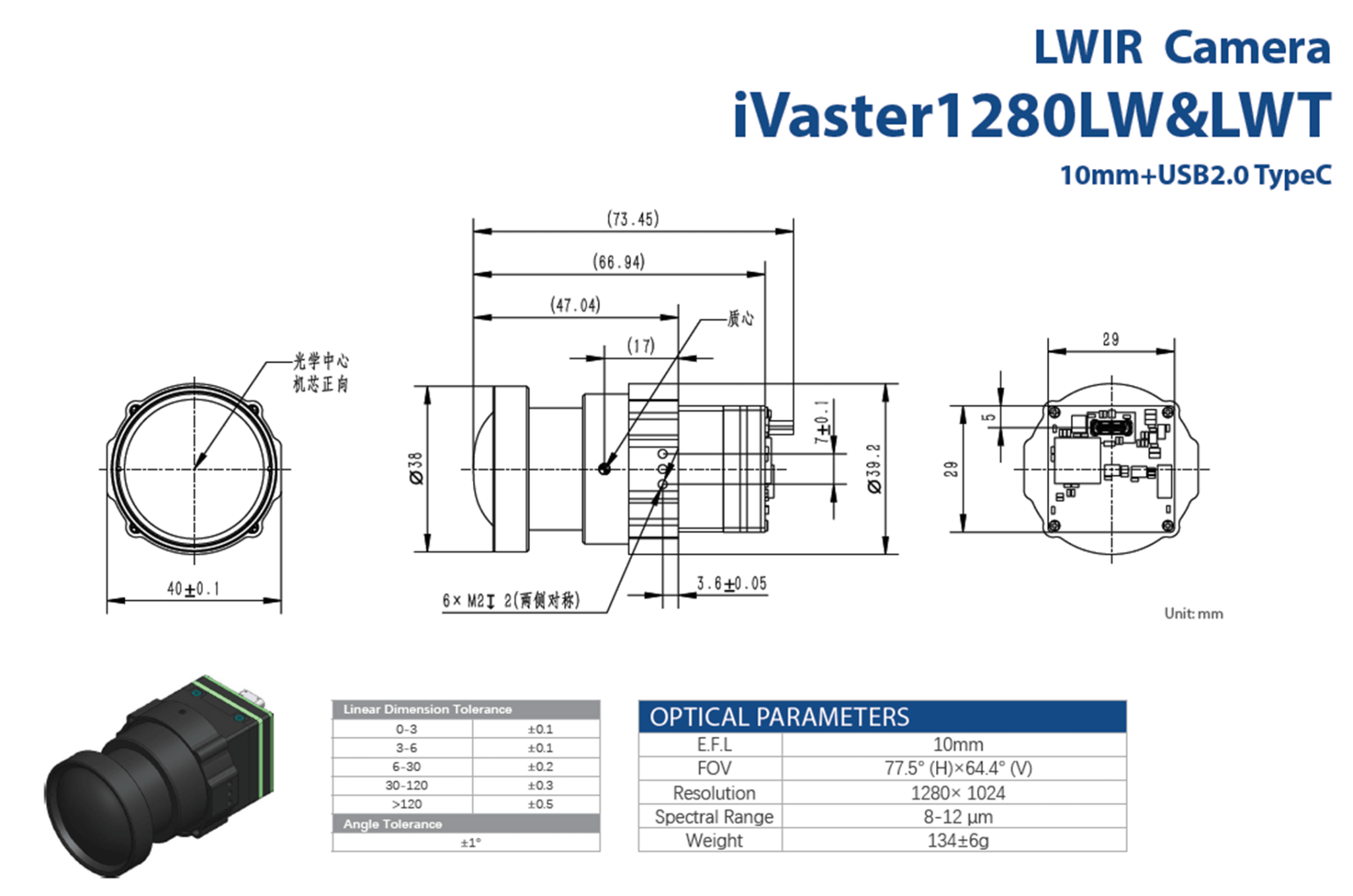

Dimension(mm/g)
|
29x29/24.5g without lens
|
|
Temperature Range
|
Temperature measuring type：-20℃～ +150℃，0℃～ +650℃
|
|
Temperature Measurement
Accuracy
|
Temperature measurement:±5° C or ±3% of the reading
(The greater shall prevail) @ ambient temperature of -20° C ~ 60° C(±2° C optional)
|
|
Temperature Measuring Tool
|
Secondary analysis of points, lines, regions, etc
|
|
NETD
|
≤ 40mk
|
Datasheet Download
